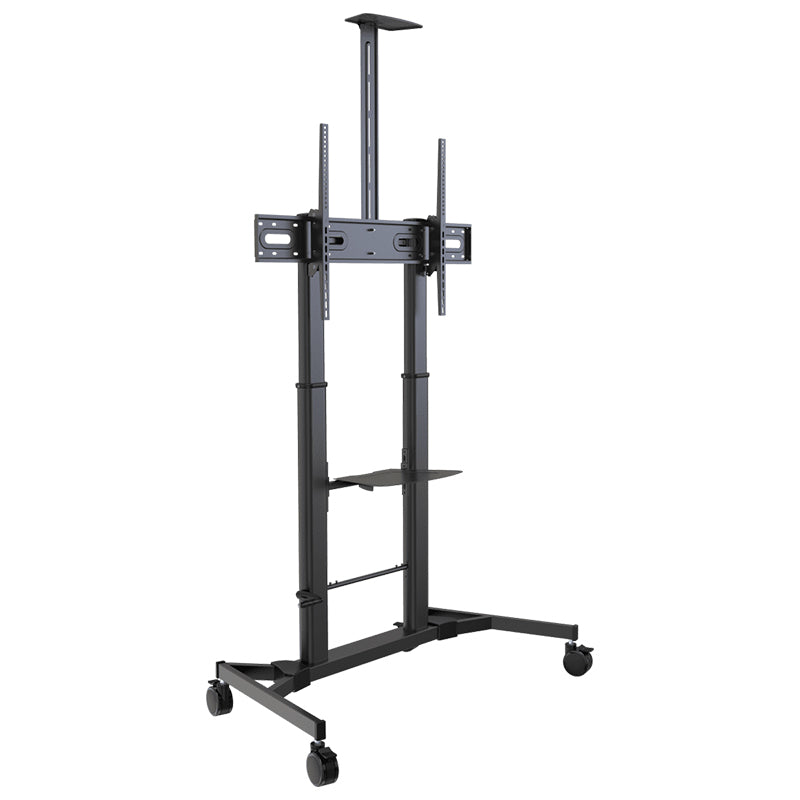

Vision’s Flat-Panel Mount (VFM) Carts are constructed from commercial-grade heavy-duty steel. They are easy for one person to move, and feature a hand crank to adjust height once the display is in position. These attractive floorstands are perfect for AV rental, event centers, healthcare, schools, or any application where large format displays are shared between meeting areas.
SWL 80 kg (176 lb)
The robust steel frame supports displays weighing up to 80 kilograms.
The screws included to fix the display are thumbscrews for fast tool-free assembly. Vision include more screw sizes than other manufacturers to ensure you get that display on the wall as quickly as possible every time.
The recommended size range is also influence by the weight of the display and the mounting hole dimensions. Any display weighing less than 80 kg and with a VESA pattern of up to 1000 x 600 mm can fit this display.
Quality 4″ (100 mm) castors glide over any bumps, making the cart easy to pull even on deep carpet. Big wheels also reduce vibration of your expensive AV equipment.
Crank the handle at the back of the column to adjust the display height by 300 mm (12″). Gearing makes it easy to turn. Note: the turn-handle can be fixed in place with a screw once the height is set.
5° of tilt adjustment to avoid reflection from overhead lights.
Two shelves come with the cart; one for a video conference camera above the display, and another below the display for laptops etc. Both are height adjustable.

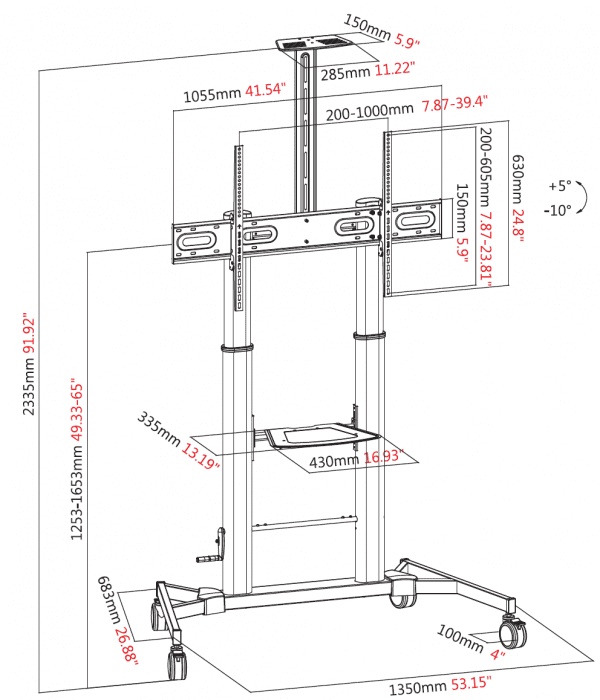

PRODUCT DIMENSIONS - 1350 x 683 x 1935~2335 mm / 53.1″ x 26.9″ x 76.2″~91.9″ (length x width x height)
PACKAGED DIMENSIONS - 1176 x 446 x 345 mm / 46.3″ x 17.6″ x 13.6″ (length x width x height)
PRODUCT WEIGHT - 38 kg (83.8 lbs)
PACKAGED WEIGHT - 42 kg (92.6 lbs)
SAFE WORKING LOAD (SWL) - 80 kg (176 lbs)
SHELF SAFE WORKING LOAD - 5 kg (11 lbs)
CONTRUCTION MATERIAL - Steel
COLOUR - Black Powerder coating
