ELYSIAN 3R is engineered for listeners who want the immersive scale of a floorstanding loudspeaker without the footprint of the flagship model. It uses a true three-way driver array, allowing the bass, midrange and treble sections to operate with clarity and control.
As part of the ELYSIAN R evolution, the 3R benefits from refined crossover modelling, improved driver consistency and further optimised cabinet behaviour. Its dual bass drivers provide low-frequency weight and dynamic ability, while the dedicated midrange driver preserves the natural expression of voices and instruments. The AMT treble unit gives the speaker its open, fast and effortlessly detailed character.
The 3R is compact by ELYSIAN standards, but unmistakably high-end in performance, finish and presence.
Compact floorstanding design
ELYSIAN 3R delivers the scale and authority of a floorstander while maintaining a slimmer profile for modern living spaces.
Dual 7” bass drivers
Two coated glass fibre matrix bass drivers provide dynamic low-frequency performance with speed, control and articulation.
SLPP bass management
Wharfedale’s Slot-Loaded Profiled Port system improves bass extension and control, reduces turbulence, and lessens placement sensitivity. The result is bass that is powerful, fast, and consistent in usual listening settings.
New Luxury finishes

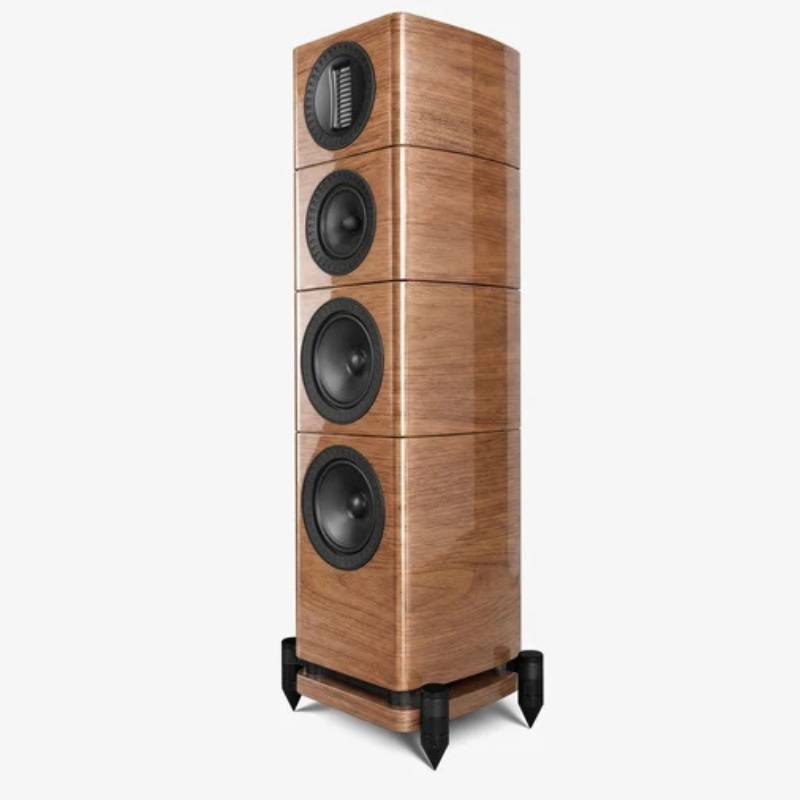

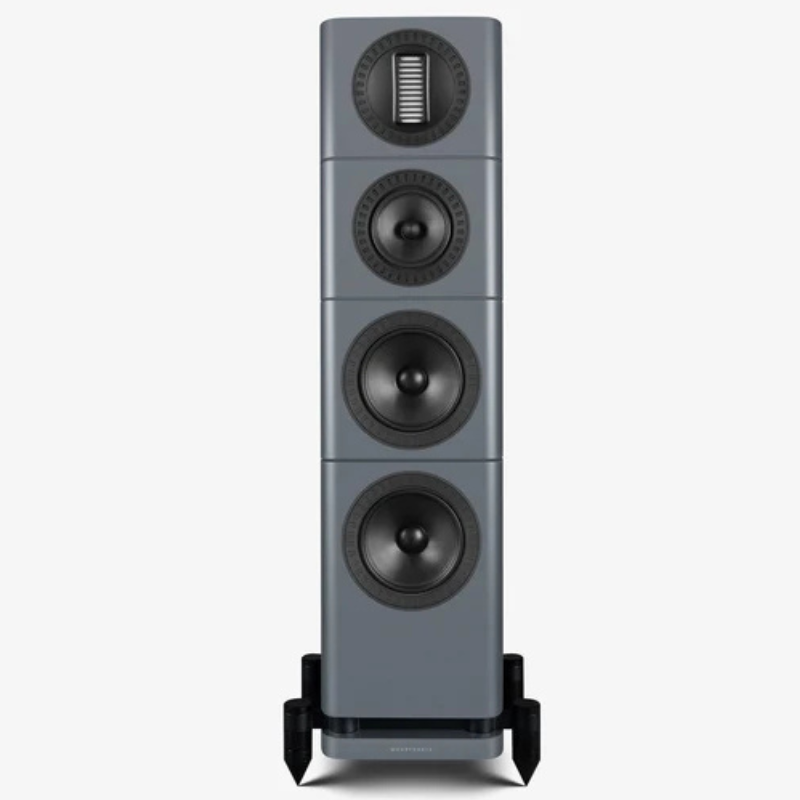

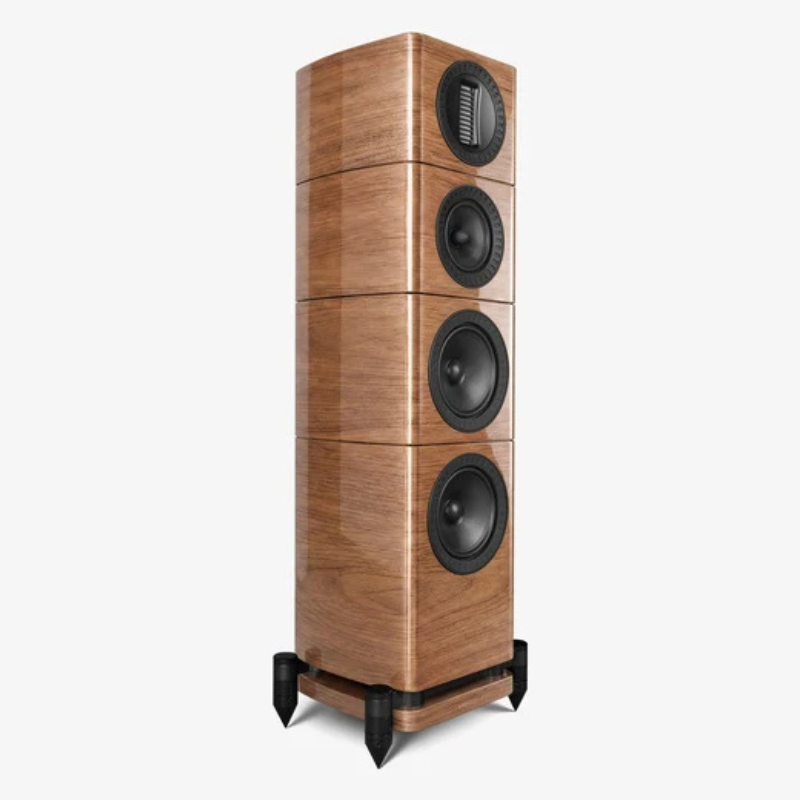

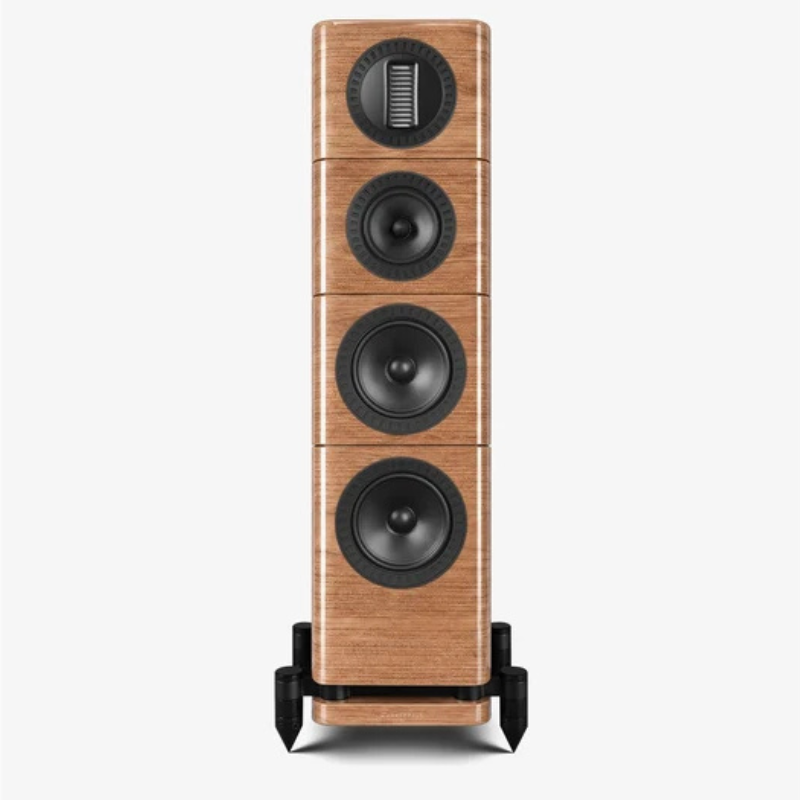

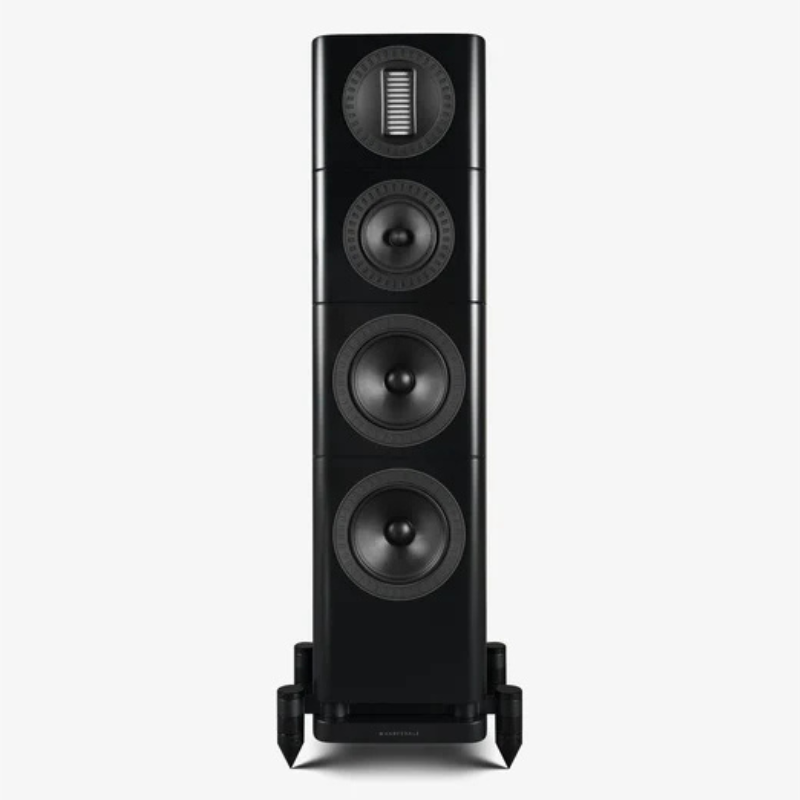

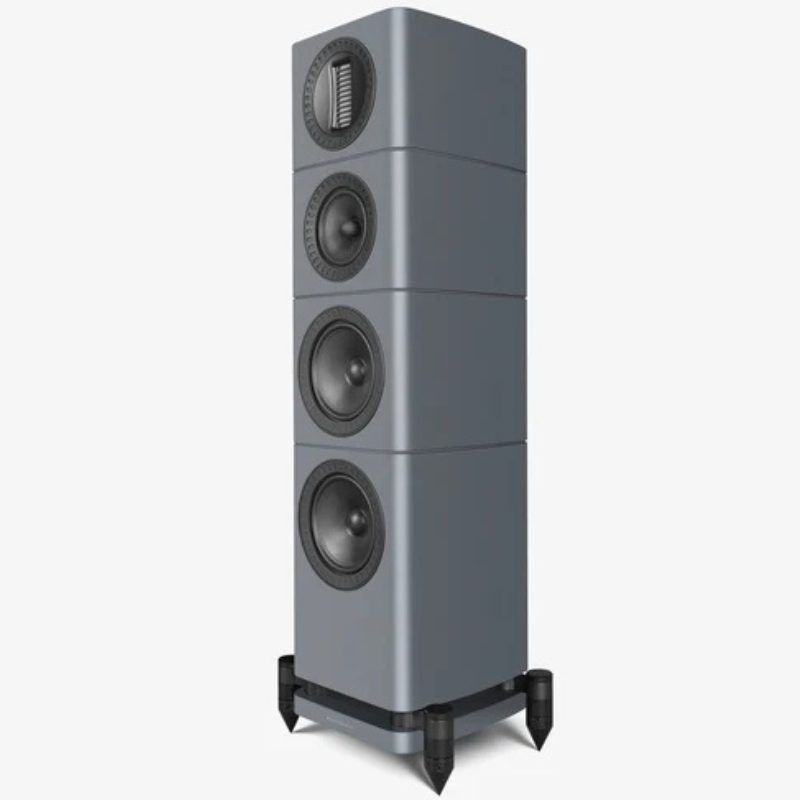

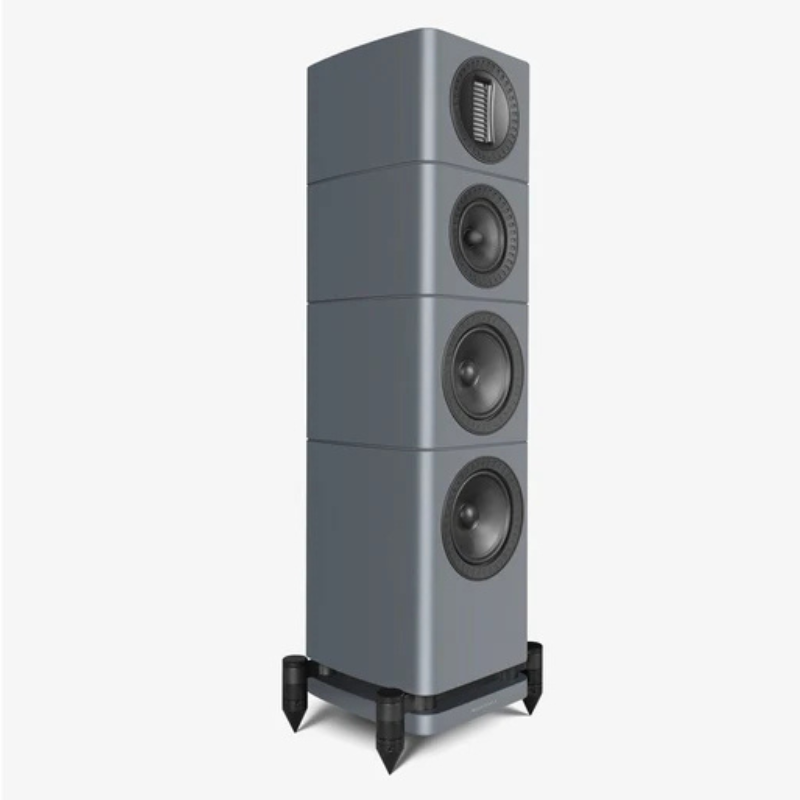

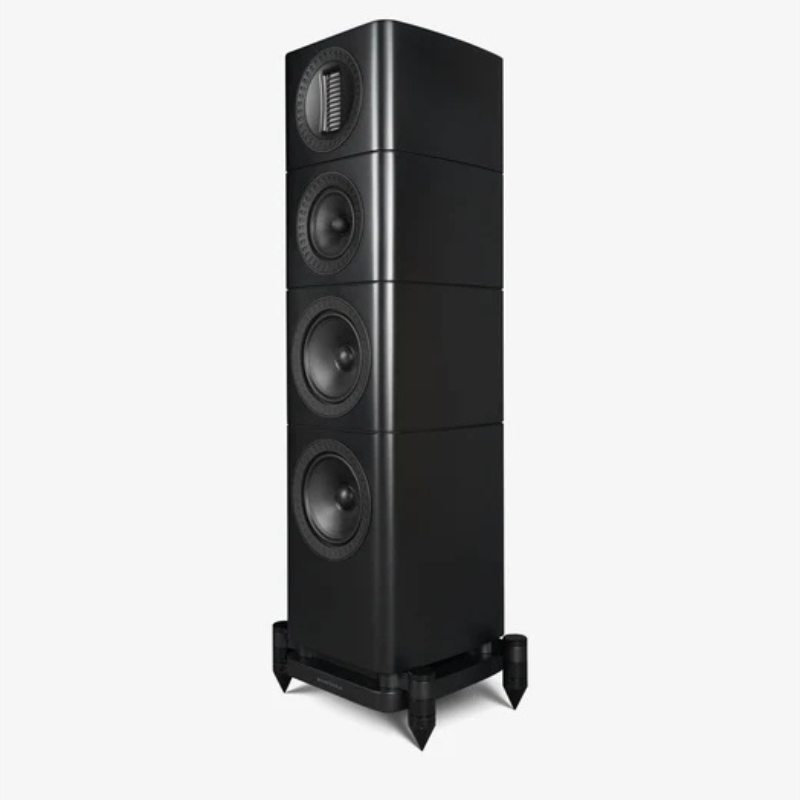

ELYSIAN 3R is available in Walnut High Gloss, Matte Black, and Lunar Grey, with stylish matte-black trim details.
Specifications
Model ELYSIAN 3R
General Description 3-way floorstanding speaker
Enclosure Type Bass reflex
Transducer Complement 3-way
Low Frequency Driver 7" (180mm) coated glass fibre
matrix cone x 2
Midrange Driver 6" (150mm) coated glass fibre
matrix cone
High Frequency Driver 27 x 90mm AMT
Sensitivity (2.83V @ 1m) 89dB
Recommended Amplifier Power 30-200W
Peak SPL 108dB
Nominal Impedance 4Ω (compatible 8Ω)
Minimum Impedance 2.3Ω
Frequency Response (+/-3dB) 44Hz - 22kHz
Bass Extension (-6dB) 35Hz
Crossover Frequency 375Hz, 2.9kHz
Cabinet Volume (in litres) 9.4L, 35L
Dimensions (mm)
Height (on plinth) 1050mm
Width (on plinth) 263mm
Depth (with terminals) (285+30)mm
Carton Size 425 x 415 x 1155mm
Net Weight 28.45kg/pcs
Gross Weight 35.37kg/ctn
