Aside from newly improved aesthetics, the two new subwoofers are built to elevate the performance of any AV setup. The D10 features an active dynamic drive subwoofer system in a sealed box, providing fast, accurate and intensive bass response. The D10 also employs a custom designed class-d balanced drive power amplifier which provides power and dynamics unheard of in products at a comparable.
Key Features
- Low pass filter slope continuously adjustable from 40Hz – 150Hz
- Phase invert switch
- Low-frequency bass extension (below 30Hz), with a wide 86dB dynamic range
- Low-level inputs, dedicated LFE input
- Auto power sensor
Specifications
Description/Format
Active Dynamic-Drive IB Subwoofer System
Drive Units:
- 1 x 10" (250mm) cone long-throw
Performance:
- Frequency Response (+/-3dB): 35Hz - 150Hz
- Amplifier Power Output: 150W
- Peak Power Output: 300W
- Line Input Sensitivity: 100mV for maximum output
- Crossover Range: 30Hz - 150Hz
- Signal-to-Noise Ratio: >85dB
- Avg. Max Output @1m: 110dB

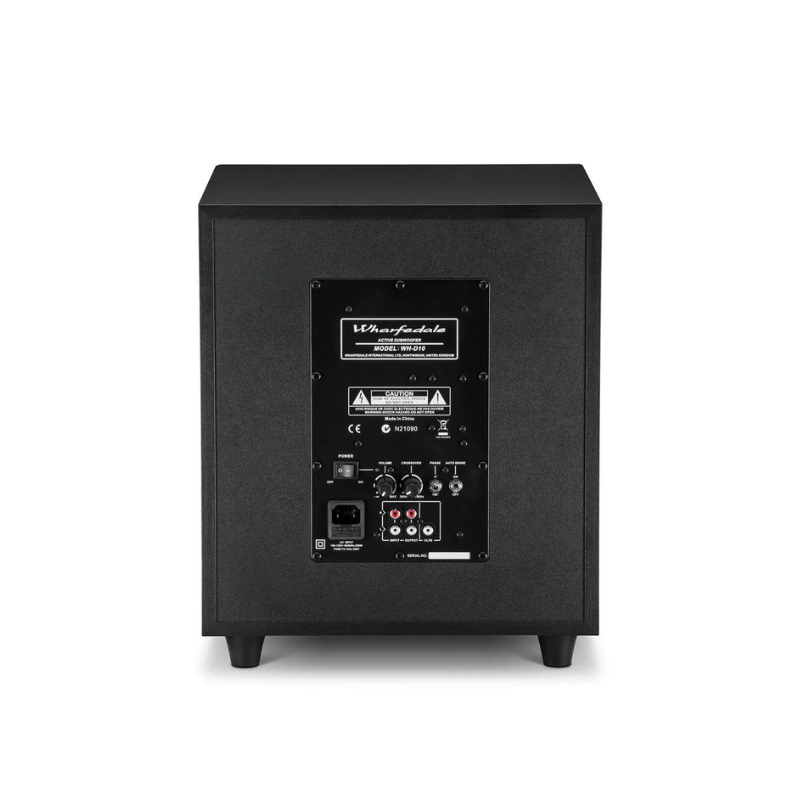

Inputs:
- Stereo Line In (2 x RCA Phono)
- Mono (LFE) Line In (RCA Phono)
Input Impedance:
- Line In 10kOhms
- LFE 5kOhms
Features:
- Low pass filter slope adjustment
- Phase inversion
- Auto on/off
- High pass output
Dimensions (mm):
- 363 (+30) x 333 x 372 (+22)
Weight:
- Net Weight: 14kg
- Gross Weight: 16.5kg
Accessories:
- IEC power cord
- Spikes (included as standard)
