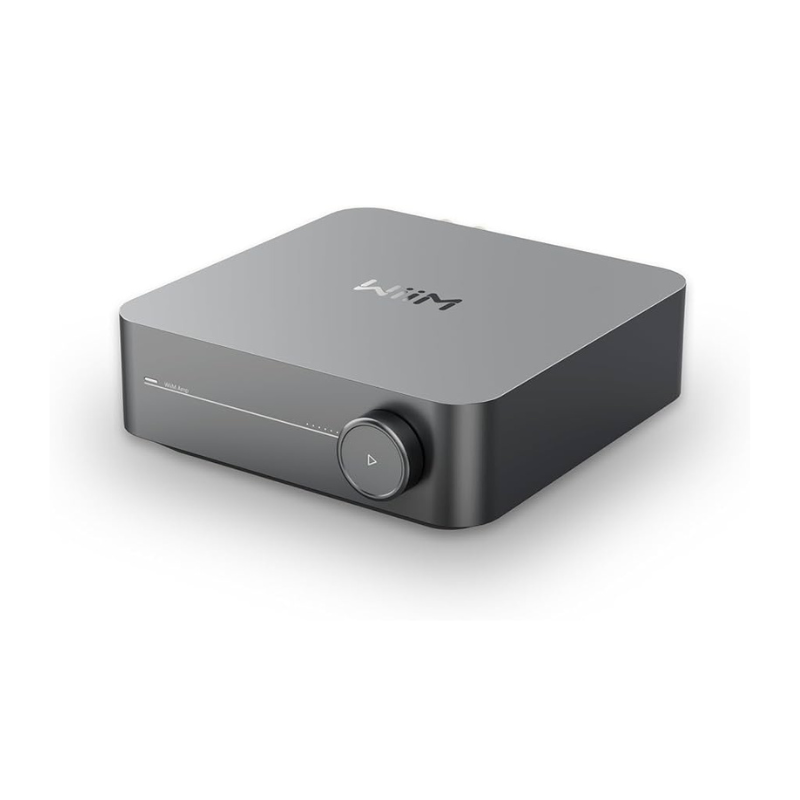

Wiim Amp Streaming Amplifier (Each)
Stream Everything
You Love
Everywhere
Endless Possibilities
Audio Amplification
- Amplifier IC: TI TPA3255
-
Main Purpose:
- Connected to amplifier or powered speaker for streaming
- Connected to passive speaker for streaming
- Pair with a Sub: Yes
- USB Port (Storage/Audio Out): Yes
- Ethernet: Yes
-
DAC IC:
- TI PCM 5121
- AKM 4493SEQ
- ESS 9018 K2M
-
Analog Out SNR:
- 106 dB
- 121 dB
- 98 dB
-
THD+N (Analog Out):
- -92dB (0.0025%)
- -113dB (0.00023%)
- -92dB (0.002%)
-
Analog Input (ADC):
- Fixed 48k, 16 bit
- Up to 192k, 24 bit
- Chromecast Audio: Yes
- Group with Nest speakers and Display: Yes
- Group with Echo speakers and Display: Yes
- Alexa Multiroom with UHD: Yes
- Group with HomePods: Yes
- Works with Alexa: Yes
- Works with Google: Yes
- Works with Siri: Yes
- Group with WiiM or Linkplay devices: Yes
- AirPlay 2: Yes
- 2-Way Bluetooth: Yes
- Roon Ready: Yes
- DLNA: Yes
- Spotify Connect & TIDAL Connect: Yes
- Gapless Playback: Yes
- 10-band Graphics EQ: Yes
- Linkplay Music Streaming Platform: Yes
-
CPU:
- Dualcore A7
- Quad Core A53
-
DRAM:
- 128 MB
- 512 MB
-
Flash:
- 128 MB
- 512 MB
-
Audio Input Port:
- AUX 3.5mm jack
- Line-in, Optical
- Stereo RCA / Optical / HDMI ARC / USB-A
-
Audio Output Port:
- AUX 3.5mm jack, Optical
- Line-Out, Optical, Coax
- HP terminals / Subwoofer

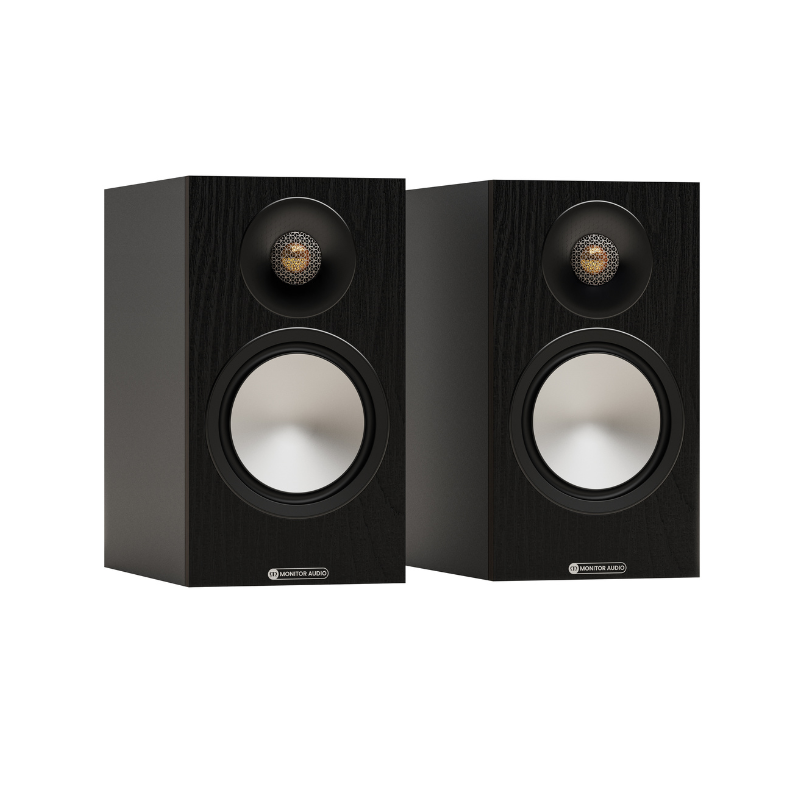

Monitor Audio Bronze 50 7G Bookshelf Speakers (Pair)
The Bronze 50 7G is a compact, high-fidelity bookshelf speaker. It’s discreet proportions, plus the ability to partner it with the ST-2 floor stand, allow it to be highly flexible in terms of placement around the listening environment. Featuring the latest C-CAM driver technology across its gold dome 1-inch tweeter featuring the UD waveguide and 6-inch bass-mid driver, the Bronze 50 7G delivers a powerful and detailed performance for its diminutive stature.
A starting point for acoustic excellence.
Enriched with the DNA of every Bronze Series that has gone before, the Bronze 50 7G has been expertly refined, developed and enhanced to deliver powerful, detailed performance from a compact form. Its discreet proportions, combined with the option to pair with the ST-2 floor stand, allow for highly flexible placement around the listening environment.
Featuring a 1-inch C-CAM gold dome tweeter with UD waveguide and a 6-inch C-CAM bass-mid driver, it delivers a clear, dynamic sound. A new crossover design and HiVe II port technology ensure seamless integration and fast, punchy bass.
Bronze 50 7G: the only choice to start your high-fidelity listening experience.
A captivating class leader.
Bronze Series 7G exudes all the qualities you’d expect in terms of craftsmanship and sonic excellence that many have followed, yet very few have bettered.
Bronze has always led and is the entryway into achieving an enhanced listening experience.
A Jewel in the Crown.
One of the more distinct design features on the Bronze Series 7G is the tweeter. The C-CAM gold dome, protected by an aluminium-etched hexagonal grille design, blends seamlessly into the hexagonal waveguide, allowing the high frequencies to reach the listener with the minimum of obstruction to deliver detailed, clear and pristine high fidelity.
Compact, controlled and crystal clear.
The latest incarnation of the Gold Dome tweeter, within Bronze Series 7G, is not only thinner, lighter and more rigid than the previous 6th generation, but its carefully formed profiled dome now benefits from the UD (Uniform Dispersion) Waveguide II. This improves time alignment and allows a lower frequency to crossover for wider directivity.
Delivering life-like clarity.
The Bronze Series 7G utilises a bass-mid driver design that features large magnets and a voice coil, giving this Bronze range much higher power handling and high sensitivity and thus delivering far greater control and more accurate time responses.
What this means is that movie soundtracks, from the quietest to the most dynamic passages or delicate strings to powerful bombastic music passages, are delivered with total realism and neutrality.
Crossover Design – the purest of signals.
The crossovers for Bronze Series 7G have been optimised over many hundreds of hours of listening, each component having been carefully selected by the R&D team. Each component has gone through rigorous measurement testing to improve the overall ‘system design’, and with high-quality capacitors and transistors used – at this price point – the Bronze Series 7G provides detailed and precise sound delivery across all audible sound frequencies for an engaging listen.
Powerful Bronze bass, to move you.
Below the smooth metallic finish of the Bronze Series 7G C-CAM drivers lies a powerful motor system – designed for agility, accuracy and impact.
We’ve introduced a new progressive spider design to ensure smoother, more controlled driver movement, improving excursion linearity. The voice coils on this generation of Bronze are much larger than the previous, now 28.5mm compared to 25mm. The result? Far more bass extension and greater power handling for controlled, punchy, articulate bass.
Specifications
System Format
2-Way
Performance
-
Frequency Response (-6dB, In-Room): 41 Hz — 30 kHz
-
Sensitivity (2.83 Vrms @ 1m, Free-Field): 86 dB
-
Nominal Impedance: 8 Ohms
-
Minimum Impedance (20 Hz - 20 kHz): 4.0 Ohms @ 200 Hz
-
Maximum Peak SPL (AES75, Z-weighted): 112 dB
-
Continuous Power Handling (CTA 426-B): 100 W
-
Recommended Amplifier Power:
-
50 – 200 W into 4 Ohms
-
30 – 100 W into 8 Ohms
-
Acoustic Design
-
Bass Alignment: Ported (HiVe II)
-
Port Tuning Frequency: 47 Hz
-
Crossover Frequency (LF/HF): 3.0 kHz
-
Drive Units:
-
1 x 6" C-CAM Bass Midrange Driver
-
1 x 25mm C-CAM Gold Dome Tweeter
-
Dimensions & Weight
-
External Dimensions (H x W x D): 335 x 185 x 328 mm (13 3/16 x 7 5/16 x 12 7/8")
-
Packed Dimensions (H x W x D): 453 x 754 x 297 mm (17 13/16 x 29 11/16 x 11 11/16")
-
Weight (each): 6.4 kg (14 lb 2 oz)
Additional Information
-
Sold As: Pair
-
Warranty: 5 Years
