Specifications:

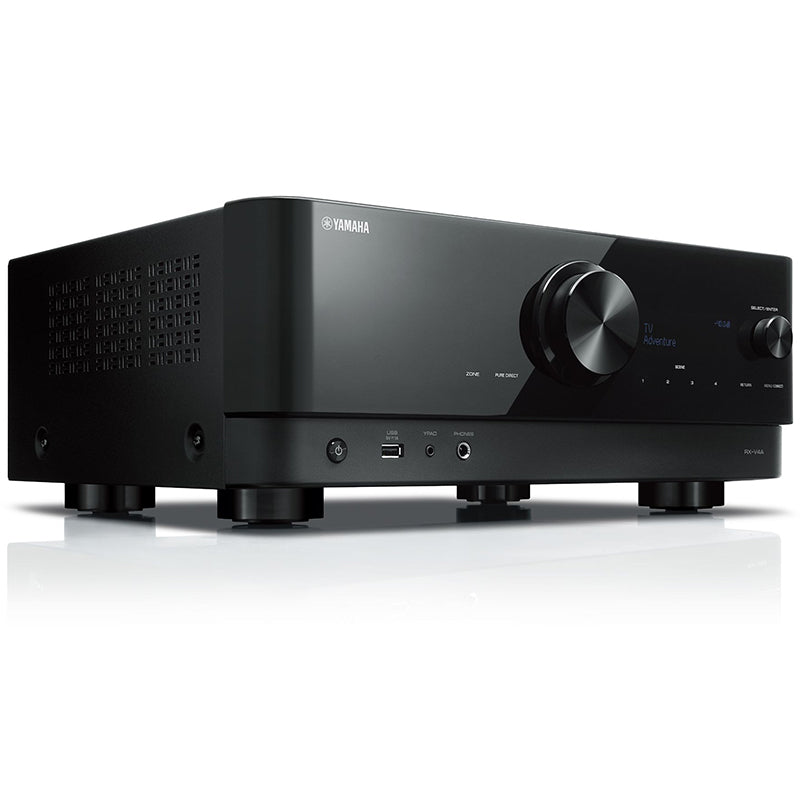

Yamaha RX V4A
Elevate your home entertainment experience with the [Receiver Model] AV receiver. With a robust amplifier delivering 80W per channel, enjoy crystal-clear audio reproduction and dynamic sound performance.
Immerse yourself in surround sound with Cinema DSP and choose from 17 DSP programs to customize your audio experience. With Dolby TrueHD and DTS-HD Master Audio support, enjoy lifelike audio with stunning clarity.
Stay connected with Wi-Fi, Bluetooth, and AirPlay 2 for seamless music streaming. HDMI eARC and HDMI Audio Return Channel ensure high-quality audio from compatible devices, while HDMI pass-through supports 4K120AB*, 8K60B*, and 4K60 (*via future update) for stunning visuals.
Control your audio settings effortlessly with the graphical user interface and included remote control unit. With Yamaha's reliability and user-friendly interface, the [Receiver Model] is the perfect addition to your home entertainment setup.
Dimensions: 17-1/8" x 6-3/4" x 14-7/8" (with antenna up:17-1/8" x 9-5/8" x 14-7/8") | Weight: 19.4 lbs.

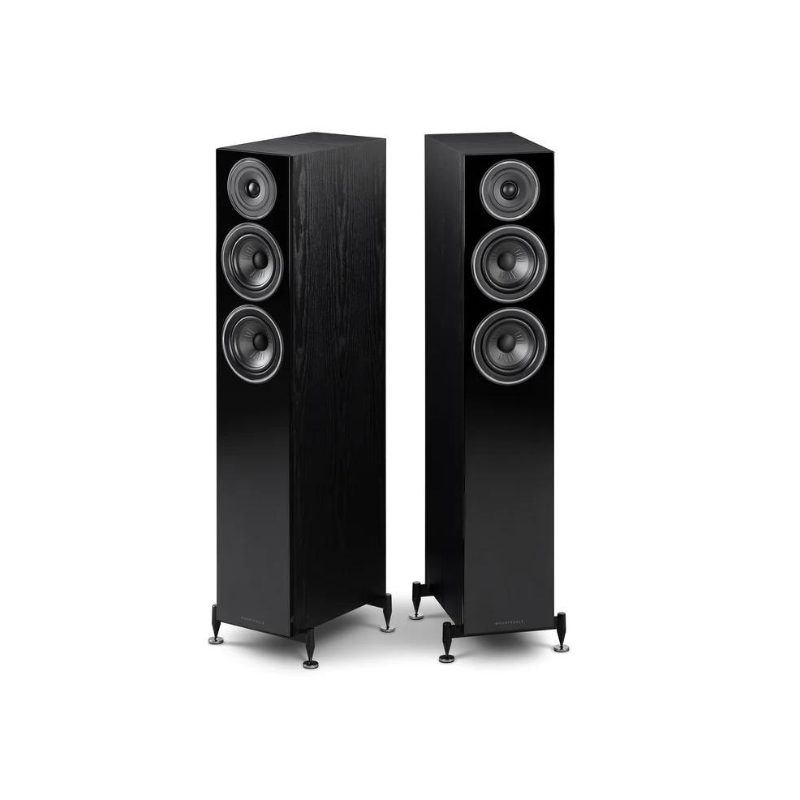

Wharfedale Diamond 12.3
Upgrade your home audio system with the [Receiver Model] AV receiver today.
- Speaker Type: 2.5-way floorstanding
- Bass Driver: 5" Advanced PP Cone
- Midrange Driver: 5" Advanced PP Cone
- Treble Driver: 1" Textile Dome
- Sensitivity: 87.5dB
- Recommended Amp Power: 30-150W
- Peak SPL: 102dB
- Impedance: 8 Ω (compatible), Minimum Impedance: 4.6 Ω
- Frequency Response: 45Hz to 20kHz (+/-3dB), Bass Extension: 40Hz (-6dB)
- Crossover Frequency: 2.2kHz
- Cabinet Volume: 26.6 liters
- Dimensions: 38.38" x 7" x 13.7"
- Net Weight: 42.9 lbs
With elegant design and sturdy construction, these speakers stand tall at 38.38 inches, while their sleek profile of 7 inches wide and 13.7 inches deep ensures they fit seamlessly into any space. Each speaker weighs 42.9 lbs and comes with adjustable spikes for stability on any surface.
Experience superior audio quality with the Wharfedale Diamond 12.3 floorstanding speakers. Elevate your listening experience today.

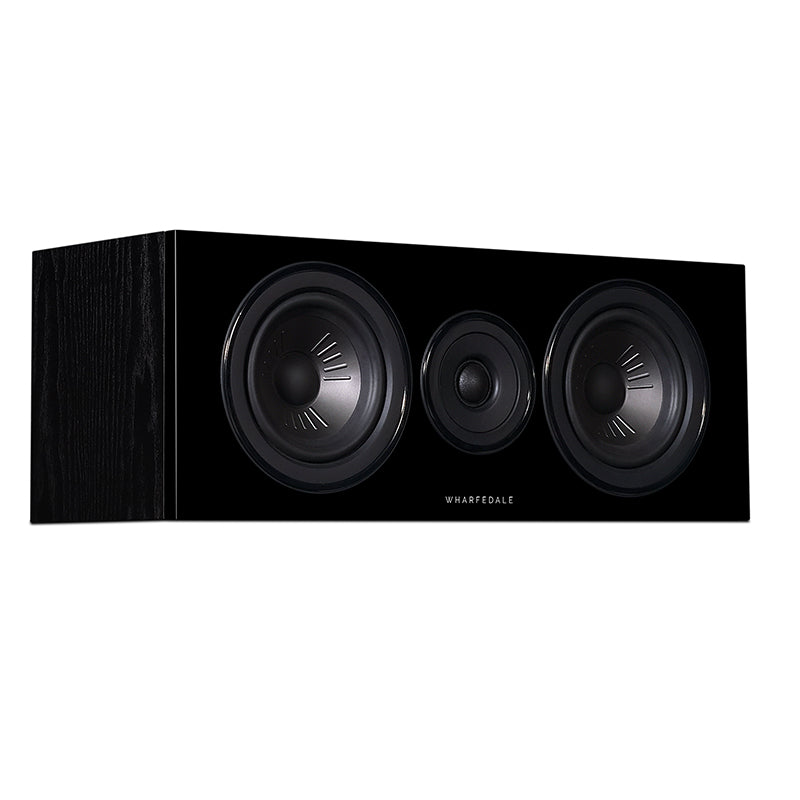

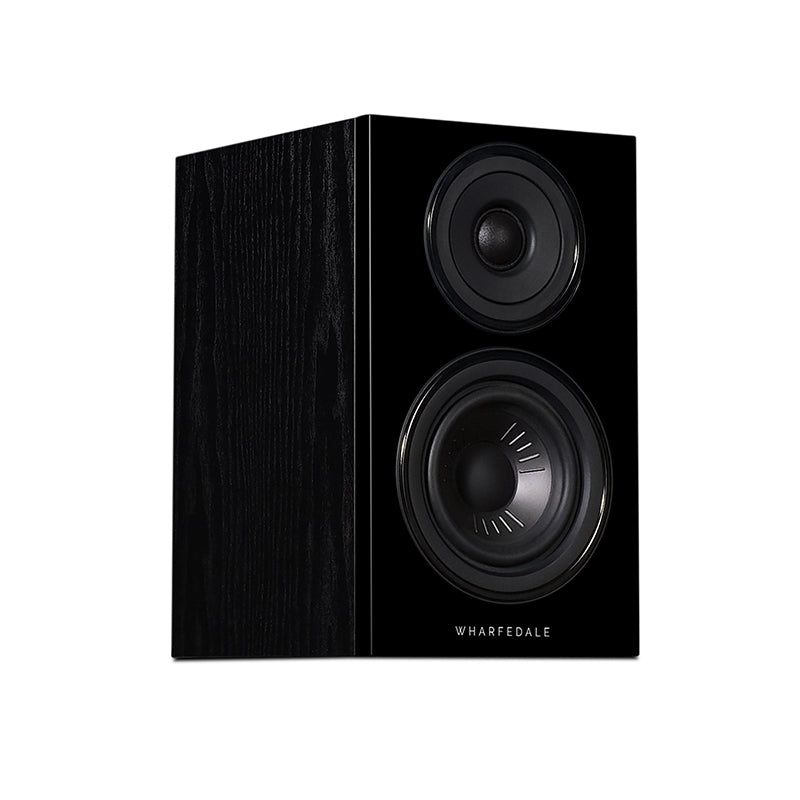

Wharfdedale Diamond 12.2 & Diamond 12.C
KLARITY AffORDS FOCUS
NEW Klarity™ cone material, formulated from a blend of Polypropylene and mica adds stiffness to reduce flexing, enabling a lightweight cone with high rigidity, low colouration and lightning-fast response.
LOW COLOUR AND EXPRESSION
The Klarity™ cone is fitted with a low-damping surround, thereby achieving both low colouration and expressive dynamics. By simulating many different cone shapes and adding ribs to provide further stiffening, a flat response curve was achieved without resorting to a high-damping surround, thereby striking the ideal balance.
A MAGNET OF FORCES
A precision-made magnet system with an aluminium compensation ring to minimise the effect of variations in inductance as the voice coil travels. This contributes to an absence of distortion and intermodulation generated by the ‘motor system’.
A VOICE COIL BEYOND THIS CLASS
The voice coil is wound on a high-power epoxy/glass fibre bobbin highly unusual in speakers at this price level. This has the advantage of not adding eddy currents and delivering greater power handling than an aluminium bobbin, whilst also being much stiffer than the Kapton type associated with this price-class.
DIAMOND HIGHS
The 25mm dome is made from a woven polyester film with a high-loss coating to deliver open and smoothly extended high frequencies. The magnet system and the front plate have been optimised for wide dispersion and uncompressed behaviour. The front plate is flat and exposes the dome as much as possible; only a very short duct on the front plate balances the acoustic load and improves the SPL (sound pressure level) measurement.
A CROSSOVER OF STYLE
The crossover network uses an acoustic LKR 24dB topology. This includes air-core inductors of the type more commonly found in high-end speakers, selected because they produce the lowest distortion of all inductor types. As the resistance of the coil is higher than a standard laminated steel or ferrite core inductor, the magnetic structure of the mid/bass driver has been modified to compensate, resulting in fast, clean bass with no distortion from the inductor.

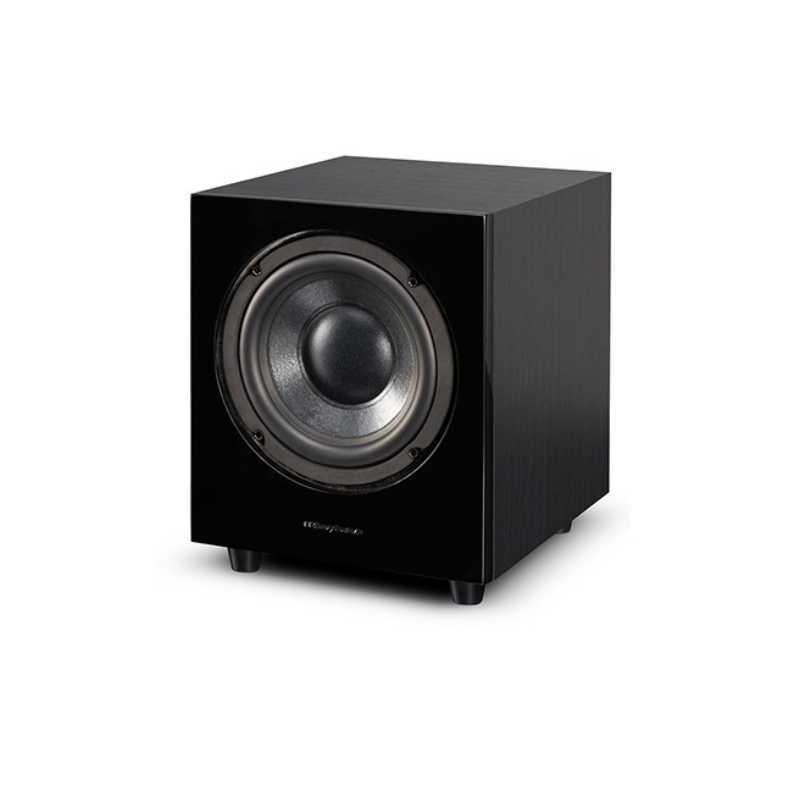

Wharfedale WH-D10 Subwoofer
Aside from newly improved aesthetics, the two new subwoofers are built to elevate the performance of any AV setup. The D10 features an active dynamic drive subwoofer system in a sealed box, providing fast, accurate and intensive bass response. The D10 also employs a custom designed class-d balanced drive power amplifier which provides power and dynamics unheard of in products at a comparable.
Key Features
- Low pass filter slope continuously adjustable from 40Hz – 150Hz
- Phase invert switch
- Low-frequency bass extension (below 30Hz), with a wide 86dB dynamic range
- Low-level inputs, dedicated LFE input
- Auto power sensor
