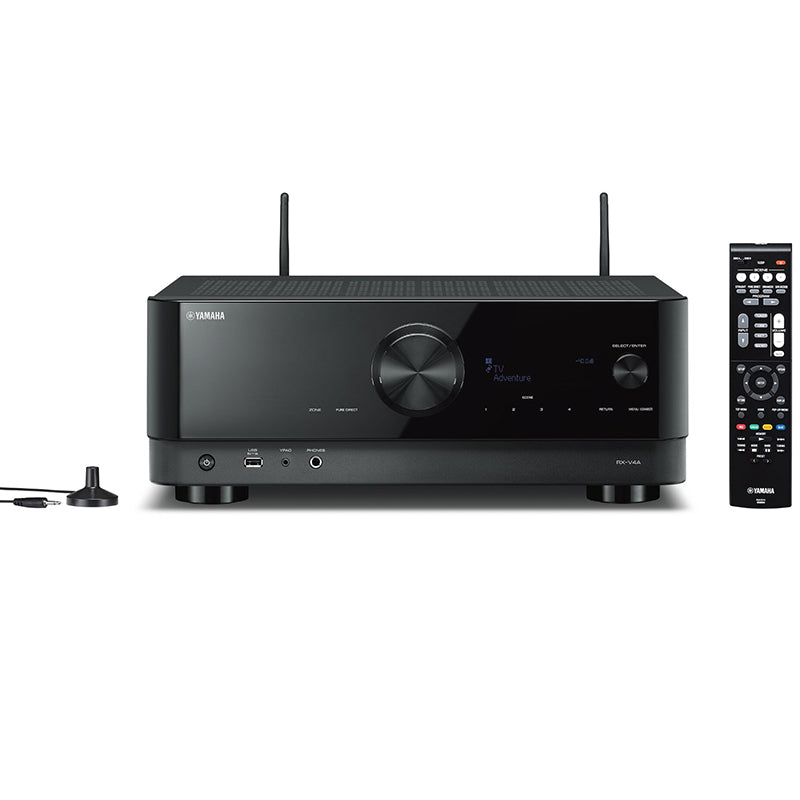

Yamaha RX-V4A - 5.2-Channel AV Receiver with 8K HDMI and MusicCast
UNPARALLELED SOUND
CINEMA DSP 3D
This unique Yamaha proprietary sound field creation technology was created by combining measured sound field data with digital signal processing. Yamaha collected sound field data from famous concert halls and music clubs around the world, utilizing its wealth of experience in the fields of concert hall design, public address and mixing. By digitizing this vast trove of information and incorporating it into dedicated LSI devices, it effectively reproduces the spaces of concert halls and music clubs in your home. Immerse yourself in the astounding realism of your movies and enter a world of profound theater sound.
Compressed Music Enhancer
When music is encoded into a digitally compressed format like MP3, the frequency response suffers. The Yamaha Compressed Music Enhancer employs sophisticated digital signal processing using exclusive algorithms to restore what was lost, so the music always sounds the way it should.
MOVIES AND GAMES LIKE NEVER BEFORE
HDR and HDR10+*
HDR (High Dynamic Range) video provides incredible contrast, smooth tone and rich, bright colors—giving you full, high-definition enjoyment with an exceptionally realistic and natural picture quality.
HDR10+ greatly improves dynamic range (the ratio of light to dark) of video content on a scene-by-scene (or even frame-by-frame) basis. Also, using frame-by-frame metadata, it improves the scene characteristics between bright and dark so that important detail can remain. This enables displays to reproduce images more realistically, adhering to the creator's intent.
* HDR10+ is available via a future update
4K120, 8K60 and 4K60
Supports end-to-end 8K/4K resolutions and higher refresh rate solutions with a single upgraded cable for seamless integration within the HDMI eco-system. 8K delivers a super-immersive viewing experience with 2x the horizontal and vertical resolution of 4K, and 4 times as many pixels; and combined with 60Hz refresh rate enables smooth and sharp viewing of content with high-speed action. 4K120 enables ultra-fast motion UHD images to be crisp and razor sharp; allowing sports, action movies, high-performance gaming and VR to benefit significantly. It also supports Dolby Vision™ and Hybrid Log-Gamma.
* 4K120AB and 8K60B are available via a future update
Enhanced Media and Gaming (ALLM, VRR, QMS, QFT)*
Enhanced media and gaming features ensure an added level of smooth and seamless motion and transitions for gaming, movies and video. They include: Auto Low Latency Mode (ALLM), which enables the ideal latency setting to automatically be set allowing for smooth, lag-free and uninterrupted viewing and interactivity; Variable Refresh Rate (VRR) reduces or eliminates lag, stutter and frame tearing for more fluid and detailed gameplay; Quick Media Switching (QMS) for movies and video eliminates the delay that can result in blank frames before content is displayed; and Quick Frame Transport (QFT), which reduces latency for smoother, no-lag gaming and real-time interactive virtual reality.
* These features are available via a future update
SIMPLE TO SET UP, SIMPLE TO USE
AV Setup Guide App for Initial Setup
No worries, no confusion. Use this special app to receive expert set up assistance for your AV receiver and source devices. It even guides you through various other settings such as speaker connections, TV and source device connections and power amplifier assignments.
Simple and Easy with the MusicCast App
Use your smartphone or tablet together with the MusicCast app to operate the AV receiver and change settings quickly and easily. The app offers the same functions as a remote control for all your MusicCast-compatible devices as well as full multi-room audio controls.
Voice Control (Alexa, Google Assistant and Siri)
Easily works with Alexa, Google Assistant and Siri (via Airplay 2), so your AV receiver is always at your command and your whole home can come alive.
*A third party device is required to initiate voice commands
MADE FOR YOUR ROOM
YPAO™
YPAO (Yamaha Parametric room Acoustic Optimizer) analyzes the room acoustics and your system, then precisely adjusts various audio parameters to provide the best sound for your room. Simply by placing the supplied microphone at your listening position and switching YPAO on, the system is automatically calibrated for optimum performance in your home theater room.
MusicCast Surround
Combine this AV receiver with the MusicCast 50 or two MusicCast 20 wireless streaming speakers and enjoy MusicCast Surround, creating a 5.1-channel home theater with wireless surround sound. What’s more, you get stunningly realistic sound with a clean, clutter-free setup. Easily turn your living room into a home theater where you can fully enjoy movies and music.
SCENE Buttons with the Ability to Preset Songs and Stations
Easily program up to 4 different preset scenarios using 4 SCENE buttons. You can preset them for different inputs, as well as a sound field program, Music Enhancer, HDMI output and more. The inputs can be set to specific sources, such as an FM or Internet radio station, a station on a streaming service, a USB device or a song on a PC or NAS (Network-attached Storage). Once you’ve set the buttons, simply press one on the main unit or the remote control to power on the receiver and hear your desired music. The buttons can be re-set at any time.
STREAMING, APPS AND MORE
Stream it All
Explore a world of music with music streaming services built-in. Synchronizing your playlists and tracks from your smart phone or computer to the AV receiver, music streaming services make it easy to either listen to your favorites or discover new music.
Multi-room Audio - MusicCast
Imagine sharing all the music you love throughout the home – no matter the format. From your favorite vinyl to AirPlay®, Bluetooth® to music streaming services* and even sound from your TV, MusicCast has it covered.
Additionally, all MusicCast products are designed with sound quality at the front of mind. High-res formats including Apple Lossless (ALAC) up to 96 kHz, WAV, FLAC and AIFF up to 192 kHz are supported.
AirPlay 2
Hey Siri. Play music in the kitchen and living room.
AirPlay 2 adds the ability to stream Apple Music and other streaming services to multiple MusicCast devices throughout your home. Easily control it from your iPhone or iPad, link it with a HomePod, or simply utilize voice control and ask Siri for an assist.
eARC
Unlock the full potential of your 4K content. Enhanced Audio Return Channel (also known as eARC) is the next generation of ARC – available in the industry-leading AV receivers from Yamaha.
eARC delivers full-resolution, multi-channel audio formats such as Dolby® TrueHD and DTS-HD® through your existing HDMI connection, giving you the most realistic surround sound experience for immersing yourself in your favorite movies and moments.
SPECIFICATIONS
| Amplifier Section | Channels | 5.2 | |
|---|---|---|---|
| Rated Output Power (20Hz-20kHz, 2ch driven) | 80 W (6 ohms, 0.06% THD) | ||
| High Slew Rate Amplifier | Yes | ||
| Surround Sound Processing | Cinema DSP | Yes | |
| DSP Programs | 17 | ||
| Dialog Level Adjustment | Yes | ||
| Virtual Presence Speaker | Yes | ||
| Virtual Surround Back Speaker | N/A | ||
| Dialogue Lift | N/A | ||
| SILENT Cinema / Virtual Cinema DSP | Yes | ||
| Dolby Atmos | N/A | ||
| Dolby Atmos Height Virtualization | N/A | ||
| Dolby TrueHD | Yes | ||
| Dolby Digital Plus | Yes | ||
| Dolby Surround | N/A | ||
| DTS:X | N/A | ||
| DTS-HD Master Audio | Yes | ||
| Audio Features | File Format | MP3 / WMA / MPEG-4 AAC: up to 48 kHz / 16-bit, ALAC: up to 96 kHz / 24-bit, FLAC: up to 192 kHz / 24-bit, WAV / AIFF: up to 192 kHz / 32-bit, DSD: up to 11.2 MHz | |
| Pure Direct | Yes | ||
| Compressed Music Enhancer | Yes | ||
| YPAO Multipoint Measurement | N/A | ||
| YPAO Volume | Yes | ||
| Adaptive DRC (Dynamic Range Control) | Yes | ||
| Initial Volume and Maximum Volume Setting | Yes | ||
| A.R.T. Wedge | N/A | ||
| Bi-amp Capability | Yes | ||
| Audio Delay | Yes (0-500 ms) | ||
| DA Converter | 384 kHz / 32-bit BB PCM5101A | ||
| Video Features | HDMI eARC | Yes | |
| HDMI Audio Return Channel | Yes | ||
| HDMI Pass-through | 4K120AB*, 8K60B* and 4K60 (*via future update) | ||
| HDMI Upscaling | Yes up to 4K | ||
| Dolby Vision | Yes | ||
| HDR 10+ | Yes (via future update) | ||
| VRR/ALLM/QMS/QFT | Yes (via future update) | ||
| Connectivity | MusicCast Surround | Yes | |
| Wi-Fi | Yes (2.4 / 5 GHz) | ||
| AirPlay 2 | Yes | ||
| Bluetooth | Yes (SBC / AAC) | ||
| Phono Input | N/A | ||
| Extensive Connections | HDMI Input/Output | 4 / 1 (HDR / Dolby Vision™ / HLG and BT.2020-compatible) | |
| HDMI CEC | Yes | ||
| USB Input | Yes | ||
| Network Port | Yes | ||
| Front AV Input | USB | ||
| Digital Audio Input / Output: Optical | 1 / 0 | ||
| Digital Audio Input / Output: Coaxial | 1 / 0 | ||
| Analog Audio Input / Output | 3 / 0 | ||
| Preout | 0.2-ch | ||
| Headphone Output | 1 | ||
| Tuner Section | FM / AM Tuner | Yes | |
| User Interface | On-Screen Display | Graphical User Interface | |
| SCENE | Yes (4 sets) | ||
| App Control | Yes (iPhone / iPad / Android phone / tablet) | ||
| Web Browser Control | N/A | ||
| Remote Control Unit | Yes | ||
| Zone Control | Zone 2 Audio Output | N/A | |
| Powered Zone | N/A | ||
| +12V Trigger Output | N/A | ||
| Remote (IR) Input/Output | N/A | ||
| Party Mode | N/A | ||
| General | Standby Power Consumption (IR only) | 0.1 W | |
| Auto Power Standby | Yes | ||
| ECO Mode | Yes | ||
| Dimensions (W x H x D) | 17-1/8" x 6-3/4" x 14-7/8" D (with antenna up:17-1/8" x 9-5/8" x 14-7/8") | ||
| Weight | 19.4 lbs. | ||

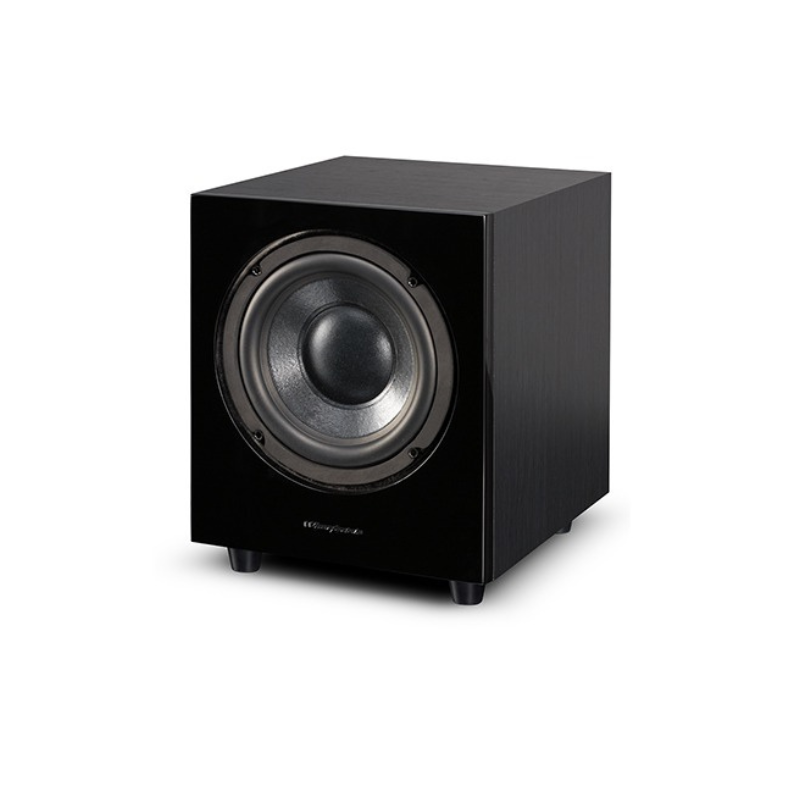

Wharfedale WH-D10 Subwoofer (Each)
Aside from newly improved aesthetics, the two new subwoofers are built to elevate the performance of any AV setup. The D10 features an active dynamic drive subwoofer system in a sealed box, providing fast, accurate and intensive bass response. The D10 also employs a custom designed class-d balanced drive power amplifier which provides power and dynamics unheard of in products at a comparable.
Key Features
- Low pass filter slope continuously adjustable from 40Hz – 150Hz
- Phase invert switch
- Low-frequency bass extension (below 30Hz), with a wide 86dB dynamic range
- Low-level inputs, dedicated LFE input
- Auto power sensor
Specifications
Description/Format
Active Dynamic-Drive IB Subwoofer System
Drive Units:
- 1 x 10" (250mm) cone long-throw
Performance:
- Frequency Response (+/-3dB): 35Hz - 150Hz
- Amplifier Power Output: 150W
- Peak Power Output: 300W
- Line Input Sensitivity: 100mV for maximum output
- Crossover Range: 30Hz - 150Hz
- Signal-to-Noise Ratio: >85dB
- Avg. Max Output @1m: 110dB
Inputs:
- Stereo Line In (2 x RCA Phono)
- Mono (LFE) Line In (RCA Phono)
Input Impedance:
- Line In 10kOhms
- LFE 5kOhms
Features:
- Low pass filter slope adjustment
- Phase inversion
- Auto on/off
- High pass output
Dimensions (mm):
- 363 (+30) x 333 x 372 (+22)
Weight:
- Net Weight: 14kg
- Gross Weight: 16.5kg
Accessories:
- IEC power cord
- Spikes (included as standard)

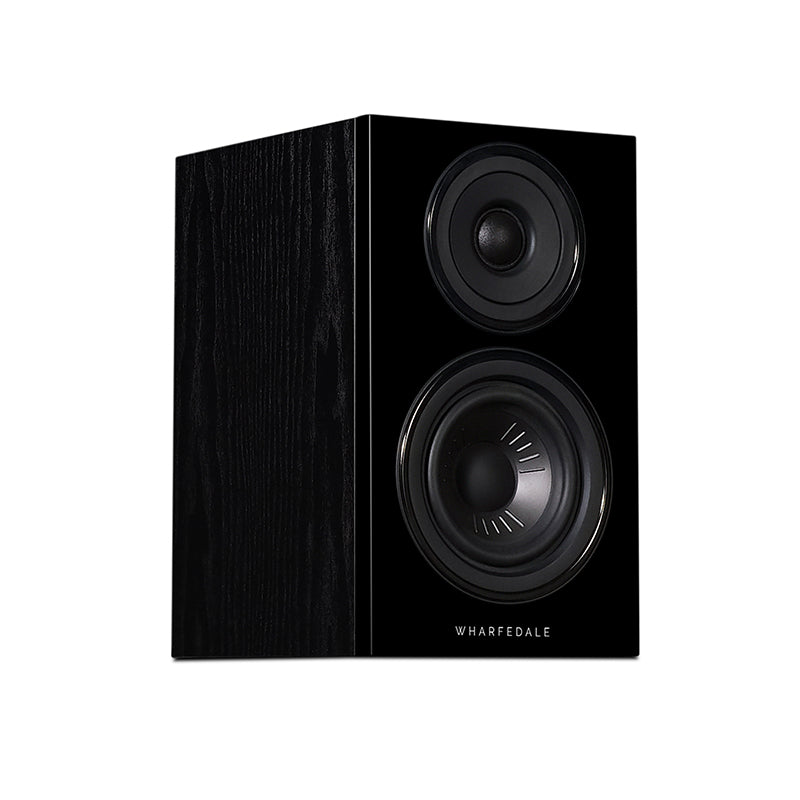

Wharfedale Diamond 12.2 Bookshelf Speaker (Pair)
KLARITY AffORDS FOCUS
NEW Klarity™ cone material, formulated from a blend of Polypropylene and mica adds stiffness to reduce flexing, enabling a lightweight cone with high rigidity, low colouration and lightning-fast response.
LOW COLOUR AND EXPRESSION
The Klarity™ cone is fitted with a low-damping surround, thereby achieving both low colouration and expressive dynamics. By simulating many different cone shapes and adding ribs to provide further stiffening, a flat response curve was achieved without resorting to a high-damping surround, thereby striking the ideal balance.
A MAGNET OF FORCES
A precision-made magnet system with an aluminium compensation ring to minimise the effect of variations in inductance as the voice coil travels. This contributes to an absence of distortion and intermodulation generated by the ‘motor system’.
A VOICE COIL BEYOND THIS CLASS
The voice coil is wound on a high-power epoxy/glass fibre bobbin highly unusual in speakers at this price level. This has the advantage of not adding eddy currents and delivering greater power handling than an aluminium bobbin, whilst also being much stiffer than the Kapton type associated with this price-class.
DIAMOND HIGHS
The 25mm dome is made from a woven polyester film with a high-loss coating to deliver open and smoothly extended high frequencies. The magnet system and the front plate have been optimised for wide dispersion and uncompressed behaviour. The front plate is flat and exposes the dome as much as possible; only a very short duct on the front plate balances the acoustic load and improves the SPL (sound pressure level) measurement.
A CROSSOVER OF STYLE
The crossover network uses an acoustic LKR 24dB topology. This includes air-core inductors of the type more commonly found in high-end speakers, selected because they produce the lowest distortion of all inductor types. As the resistance of the coil is higher than a standard laminated steel or ferrite core inductor, the magnetic structure of the mid/bass driver has been modified to compensate, resulting in fast, clean bass with no distortion from the inductor.
FIRM AND FAIR
The DIAMOND 12.1 ’s rear-ported enclosure is precisely sized so that the internal volume works in harmony with the drive unit system to deliver the desired sonic result. A multi-layered sandwich design subdues the identifiable characteristics of the cabinet’s ‘sound’. Even the resonant properties of the glue between the layers was measured to determine the optimum combination.
BRACE YOURSELF
Inside the cabinet, Intelligent Spot Bracing connects opposite walls with a specific form of the wood brace to achieve an optimal reduction of cabinet resonance. These braces are precisely modelled by computer simulation to improve upon the commonplace ‘figure of eight’ brace, which may simply transfer resonance from one wall to another.

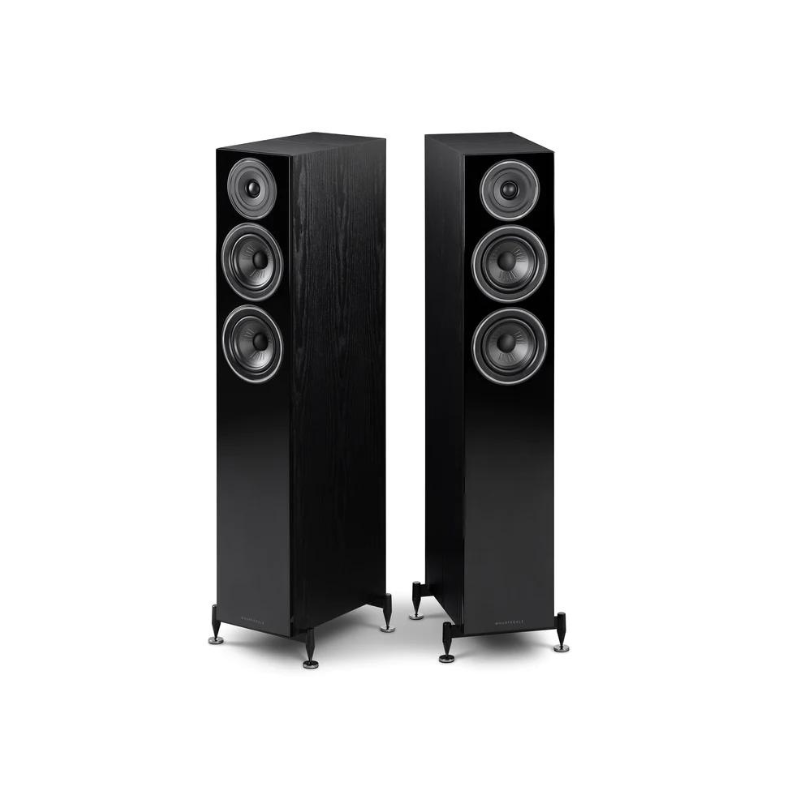

Wharfedale Diamond 12.3 Floorstanding Speakers (Pair)
Unlock unparalleled audio excellence with the renowned Wharfedale Diamond series loudspeakers. Since 1982, they've redefined value in the world of high-fidelity sound, consistently outperforming competitors priced two to three times higher.
The new Diamond series woofers feature Klarity™ technology, integrating mica-infused Polypropylene cones with moulded radial ribs for lightweight yet rigid construction, resulting in low coloration and lightning-fast response. The woofer voice coil, wound on a high-power epoxy/glass fibre bobbin, offers higher power handling and greater stiffness for exceptional performance. Klarity technology ensures voices and instruments are rendered utterly natural, clear, and distortion-free, while bass is extended, precise, and impactful, cutting to the heart of the music.
The tweeter, made from a woven polyester film with a high-loss damping coating, delivers smoothly extended high frequencies with minimized distortion. The front plate's flat design ensures low coloration and wide dispersion, presenting a broad, deep, and stable soundstage that envelops listeners within the music.
Diamond series speakers boast sophisticated crossover networks, featuring air-core inductors for low distortion and freedom from listening fatigue. The floor-standing models are equipped with spikes for stability, with adjustable height feet for uneven floors.
Diamond series speakers blend seamlessly into any décor. Whether for music or cinema, the Diamond series offers superior performance and versatility, making it the ideal choice for any audio enthusiast.
Introducing the Wharfedale Diamond 12.3 floorstanding speakers, delivering exceptional audio performance for music and home cinema enthusiasts. With advanced drivers and a sophisticated crossover network, these speakers offer immersive sound reproduction.
Specifications:
- Speaker Type: 2.5-way floorstanding
- Bass Driver: 5" Advanced PP Cone
- Midrange Driver: 5" Advanced PP Cone
- Treble Driver: 1" Textile Dome
- Sensitivity: 87.5dB
- Recommended Amp Power: 30-150W
- Peak SPL: 102dB
- Impedance: 8 Ω (compatible), Minimum Impedance: 4.6 Ω
- Frequency Response: 45Hz to 20kHz (+/-3dB), Bass Extension: 40Hz (-6dB)
- Crossover Frequency: 2.2kHz
- Cabinet Volume: 26.6 liters
- Dimensions: 38.38" x 7" x 13.7"
- Net Weight: 42.9 lbs
With elegant design and sturdy construction, these speakers stand tall at 38.38 inches, while their sleek profile of 7 inches wide and 13.7 inches deep ensures they fit seamlessly into any space. Each speaker weighs 42.9 lbs and comes with adjustable spikes for stability on any surface.
Experience superior audio quality with the Wharfedale Diamond 12.3 floorstanding speakers. Elevate your listening experience today.

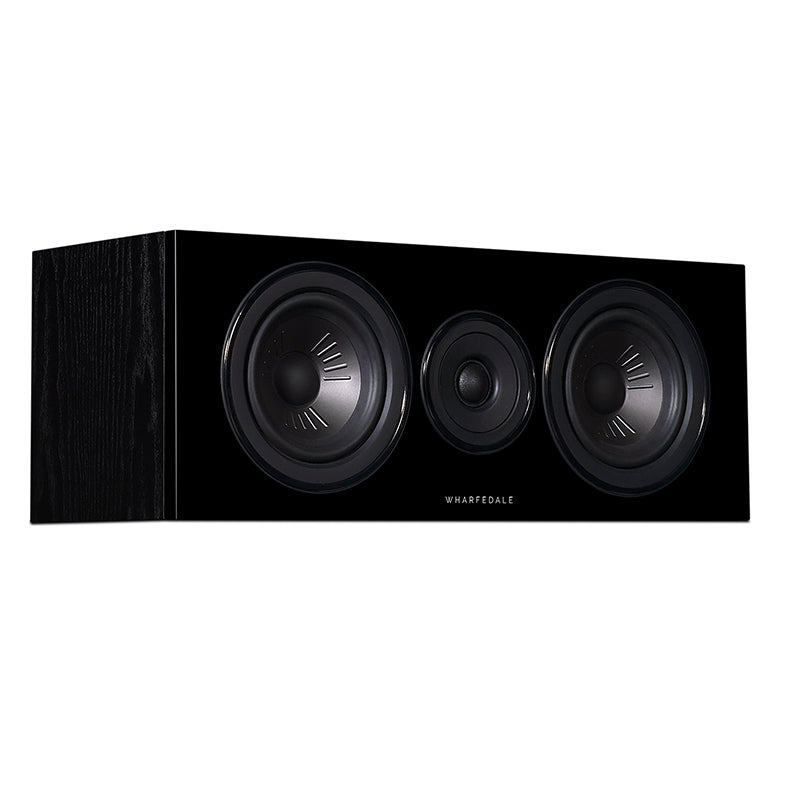

Wharfedale Diamond 12.C - 2-way Centre Speaker (Each)
KLARITY AFFORDS FOCUS
NEW Klarity™ cone material, formulated from a blend of Polypropylene and mica adds stiffness to reduce flexing, enabling a lightweight cone with high rigidity, low colouration and lightning-fast response.
LOW COLOUR AND EXPRESSION
The Klarity™ cone is fitted with a low-damping surround, thereby achieving both low colouration and expressive dynamics. By simulating many different cone shapes and adding ribs to provide further stiffening, a flat response curve was achieved without resorting to a high-damping surround, thereby striking the ideal balance.
A MAGNET OF FORCES
A precision-made magnet system with an aluminium compensation ring to minimise the effect of variations in inductance as the voice coil travels. This contributes to an absence of distortion and intermodulation generated by the ‘motor system’.
A VOICE COIL BEYOND THIS CLASS
The voice coil is wound on a high-power epoxy/glass fibre bobbin highly unusual in speakers at this price level. This has the advantage of not adding eddy currents and delivering greater power handling than an aluminium bobbin, whilst also being much stiffer than the Kapton type associated with this price-class.
DIAMOND HIGHS
The 25mm dome is made from a woven polyester film with a high-loss coating to deliver open and smoothly extended high frequencies. The magnet system and the front plate have been optimised for wide dispersion and uncompressed behaviour. The front plate is flat and exposes the dome as much as possible; only a very short duct on the front plate balances the acoustic load and improves the SPL (sound pressure level) measurement.
A CROSSOVER OF STYLE
The crossover network uses an acoustic LKR 24dB topology. This includes air-core inductors of the type more commonly found in high-end speakers, selected because they produce the lowest distortion of all inductor types. As the resistance of the coil is higher than a standard laminated steel or ferrite core inductor, the magnetic structure of the mid/bass driver has been modified to compensate, resulting in fast, clean bass with no distortion from the inductor.
FIRM AND FAIR
The DIAMOND 12.1 ’s rear-ported enclosure is precisely sized so that the internal volume works in harmony with the drive unit system to deliver the desired sonic result. A multi-layered sandwich design subdues the identifiable characteristics of the cabinet’s ‘sound’. Even the resonant properties of the glue between the layers was measured to determine the optimum combination.
BRACE YOURSELF
Inside the cabinet, Intelligent Spot Bracing connects opposite walls with a specific form of the wood brace to achieve an optimal reduction of cabinet resonance. These braces are precisely modelled by computer simulation to improve upon the commonplace ‘figure of eight’ brace, which may simply transfer resonance from one wall to another.
