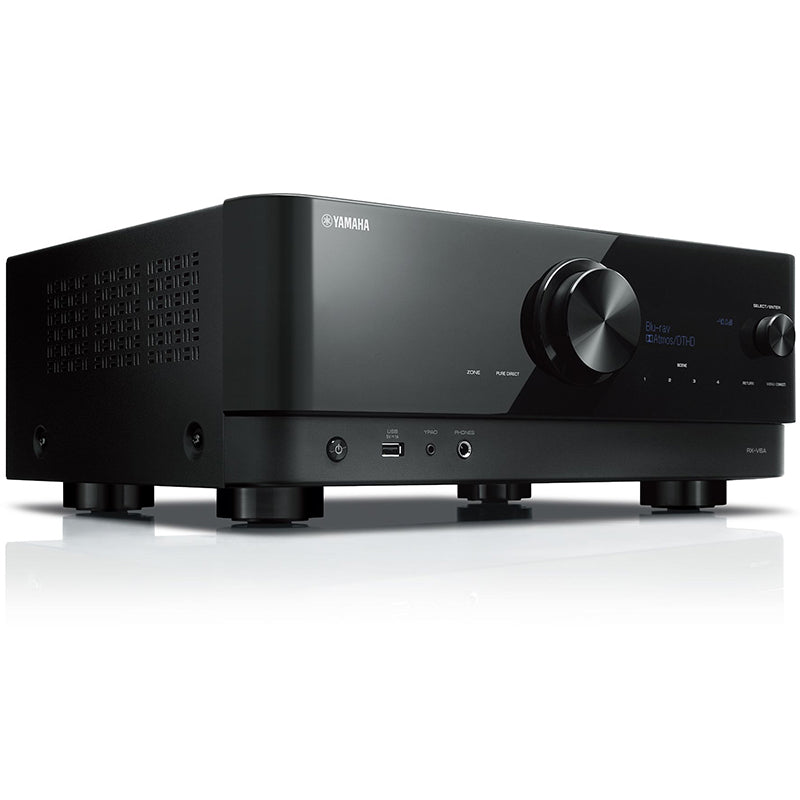

Yamaha RX-V6A - 7.2-Channel AV Receiver with 8K HDMI and MusicCast (Each)
POWERFUL SOUND PROCESSING
Dolby Atmos® and Dolby Atmos Height Virtualization*
Feel every dimension in Dolby Atmos. Enjoy a 5.1 surround speaker system and two additional overhead speakers or two Dolby Atmos elevation speakers, delivering dramatic overhead effects for truly enveloping audio.
For those without in-ceiling or upward firing speakers in their system, Dolby Atmos Height Virtualization* technology can simulate the Atmos experience. Configure up to five speakers to replicate the effect of two in-ceiling speakers, or utilize all seven channels to simulate the powerful effect of four overhead speakers.
* Dolby Atmos Height Virtualization is available via a future update
DTS:X®
DTS:X immersive audio formatting places sound where it would naturally occur in space, creating life-like, multi-dimensional audio. The included spatial remapping engine of DTS Neural:X™ offers improved immersion and heightened realism in all your favorite movies.
CINEMA DSP 3D
This unique Yamaha proprietary sound field creation technology was created by combining measured sound field data with digital signal processing. Yamaha collected sound field data from famous concert halls and music clubs around the world, utilizing its wealth of experience in the fields of concert hall design, public address and mixing. By digitizing this vast trove of information and incorporating it into dedicated LSI devices, it effectively reproduces the spaces of concert halls and music clubs in your home. Immerse yourself in the astounding realism of your movies and enter a world of profound theater sound.
Compressed Music Enhancer
When music is encoded into a digitally compressed format like MP3, the frequency response suffers. The Yamaha Compressed Music Enhancer employs sophisticated digital signal processing using exclusive algorithms to restore what was lost, so the music always sounds the way it should.
MOVIES AND GAMES LIKE NEVER BEFORE
HDR and HDR10+*
HDR (high dynamic range) video provides incredible contrast, smooth tone and rich, bright colors—giving you full, high-definition enjoyment with an exceptionally realistic and natural picture quality.
HDR10+ greatly improves dynamic range (the ratio of light to dark) of video content on a scene-by-scene (or even frame-by-frame) basis. Also, using frame-by-frame metadata, it improves the scene characteristics between bright and dark so that important detail can remain. This enables displays to reproduce images more realistically, adhering to the creator's intent.
* HDR10+ is available via a future update
4K120AB* , 8K60B* and 4K60
Supports end-to-end 8K/4K resolutions and higher refresh rate solutions with a single upgraded cable for seamless integration within the HDMI eco-system. 8K delivers a super-immersive viewing experience with 2x the horizontal and vertical resolution of 4K, and 4 times as many pixels; and combined with 60Hz refresh rate enables smooth and sharp viewing of content with high-speed action. 4K120 enables ultra-fast motion UHD images to be crisp and razor sharp; allowing sports, action movies, high-performance gaming and VR to benefit significantly. It also supports Dolby Vision™ and Hybrid Log-Gamma.
* 4K120AB and 8K60B are available via a future update
Enhanced Media and Gaming (ALLM, VRR, QMS, QFT)*
Enhanced media and gaming features ensure an added level of smooth and seamless motion and transitions for gaming, movies and video. They include: Auto Low Latency Mode (ALLM), which enables the ideal latency setting to automatically be set allowing for smooth, lag-free and uninterrupted viewing and interactivity; Variable Refresh Rate (VRR) reduces or eliminates lag, stutter and frame tearing for more fluid and detailed gameplay; Quick Media Switching (QMS) for movies and video eliminates the delay that can result in blank frames before content is displayed; and Quick Frame Transport (QFT), which reduces latency for smoother, no-lag gaming and real-time interactive virtual reality.
* These features are available via a future update
SIMPLE TO SET UP, SIMPLE TO USE
AV Setup Guide App for Initial Setup
No worries, no confusion. Use this special app to receive expert set up assistance for your AV receiver and source devices. It even guides you through various other settings such as speaker connections, TV and source device connections and power amplifier assignments.
Simple and Easy with the MusicCast App
Use your smartphone or tablet together with the MusicCast app to operate the AV receiver and change settings quickly and easily. The app offers the same functions as a remote control for all your MusicCast-compatible devices as well as full multi-room audio controls.
Voice Control (Alexa, Google Assistant and Siri)
Easily works with Alexa, Google Assistant and Siri (via Airplay 2), so your AV receiver is always at your command and your whole home can come alive.
*A third party device is required to initiate voice commands
MADE FOR YOUR ROOM
YPAO™ automatic room calibration with R.S.C. and Multipoint
YPAO (Yamaha Parametric room Acoustic Optimizer) analyzes your room acoustics, measures speaker characteristics and adjusts unwanted reflected sounds to optimize every channel of your home theater. R.S.C. (Reflected Sound Control) analyzes room acoustics and measures various speaker characteristics, then calibrates audio parameters to achieve optimum sound at any of eight listening positions.
Simply by placing the supplied microphone at your listening position and switching YPAO on, the system is automatically calibrated ensuring your home theater room has the best sound.
MusicCast Surround
Combine this AV receiver with the MusicCast 50 or two MusicCast 20 wireless streaming speakers and enjoy MusicCast Surround, creating a 5.1-channel home theater with wireless surround sound. What’s more, you get stunningly realistic sound with a clean, clutter-free setup. Easily turn your living room into a home theater where you can fully enjoy movies and music.
SCENE Buttons with the Ability to Preset Songs and Stations
Easily program up to 8 different preset scenarios using 4 SCENE buttons. You can preset them for different inputs, as well as a sound field program, Music Enhancer, HDMI output and more. The inputs can be set to specific sources, such as an FM or Internet radio station, a station on a streaming service, a USB device or a song on a PC or NAS (Network-attached Storage). Once you’ve set the buttons, simply press one on the main unit or the remote control to power on the receiver and hear your desired music. The buttons can be re-set at any time.
STREAMING, APPS AND MORE
Stream it All
Explore a world of music with music streaming services built-in. Synchronizing your playlists and tracks from your smart phone or computer to the AV receiver, music streaming services make it easy to either listen to your favorites or discover new music.
Multi-room Audio - MusicCast
Imagine sharing all the music you love throughout the home – no matter the format. From your favorite vinyl to AirPlay®, Bluetooth® to music streaming services and even sound from your TV, MusicCast has it covered.
Additionally, all MusicCast products are designed with sound quality at the front of mind. High-res formats including Apple Lossless (ALAC) up to 96 kHz, WAV, FLAC and AIFF up to 384 kHz are supported.
AirPlay 2
Hey Siri. Play music in the kitchen and living room.
AirPlay 2 adds the ability to stream Apple Music and other streaming services to multiple MusicCast devices throughout your home. Easily control it from your iPhone or iPad, link it with a HomePod, or simply utilize voice control and ask Siri for an assist.
eARC
Unlock the full potential of your 4K content. Enhanced Audio Return Channel (also known as eARC) is the next generation of ARC – available in the industry-leading AV receivers from Yamaha.
eARC delivers full-resolution, multi-channel audio formats such as Dolby® TrueHD and DTS-HD® through your existing HDMI connection, giving you the most realistic surround sound experience for immersing yourself in your favorite movies and moments.
Zone 2
Featuring Zone 2 compatible speaker terminals, this system can send the same (or even different) AV source playing in the main room for playback in another room. For example, if you have speakers installed in your bedroom, kitchen or patio, you can go to that other room and enjoy listening to the same or different main room content.
Phono
This AV receiver provides dedicated phono input terminals, letting you connect a turntable and enjoy music from your vinyl collection.
SPECIFICATIONS
| Amplifier Section | Channels | 7.2 | |
|---|---|---|---|
| Rated Output Power (20Hz-20kHz, 2ch driven) | 100 W (8 ohms, 0.06% THD) | ||
| High Slew Rate Amplifier | Yes | ||
| Surround Sound Processing | Cinema DSP | Yes | |
| DSP Programs | 17 | ||
| Dialog Level Adjustment | Yes | ||
| Virtual Presence Speaker | Yes | ||
| Virtual Surround Back Speaker | Yes | ||
| Dialogue Lift | Yes | ||
| SILENT Cinema / Virtual Cinema DSP | Yes | ||
| Dolby Atmos | Yes | ||
| Dolby Atmos Height Virtualization | Yes (via future update) | ||
| Dolby TrueHD | Yes | ||
| Dolby Digital Plus | Yes | ||
| Dolby Surround | Yes | ||
| DTS:X | Yes | ||
| DTS-HD Master Audio | Yes | ||
| Audio Features | File Format | MP3 / WMA / MPEG-4 AAC: up to 48 kHz / 16-bit, ALAC: up to 96 kHz / 24-bit, FLAC: up to 384 kHz / 24-bit, WAV / AIFF: up to 384 kHz / 32-bit, DSD: up to 11.2 MHz | |
| Pure Direct | Yes | ||
| Compressed Music Enhancer | Yes | ||
| YPAO Multipoint Measurement | Yes | ||
| YPAO Volume | Yes | ||
| Adaptive DRC (Dynamic Range Control) | Yes | ||
| Initial Volume and Maximum Volume Setting | Yes | ||
| A.R.T. Wedge | N/A | ||
| Bi-amp Capability | Yes | ||
| Audio Delay | Yes (0-500 ms) | ||
| DA Converter | 384 kHz / 32-bit BB PCM5102A | ||
| Video Features | HDMI eARC | Yes | |
| HDMI Audio Return Channel | Yes | ||
| HDMI Pass-through | 4K120AB*, 8K60B* and 4K60 (*via future update) | ||
| HDMI Upscaling | Yes up to 4K | ||
| Dolby Vision | Yes | ||
| HDR 10+ | Yes (via future update) | ||
| VRR/ALLM/QMS/QFT | Yes (via future update) | ||
| Connectivity | MusicCast Surround | Yes | |
| Wi-Fi | Yes (2.4 / 5 GHz) | ||
| AirPlay 2 | Yes | ||
| Bluetooth | Yes (SBC / AAC) | ||
| Phono Input | Yes | ||
| Extensive Connections | HDMI Input/Output | 7 / 1 (HDR / Dolby Vision™ / HLG and BT.2020-compatible) | |
| HDMI CEC | Yes | ||
| USB Input | Yes | ||
| Network Port | Yes | ||
| Front AV Input | USB | ||
| Digital Audio Input / Output: Optical | 1 / 0 | ||
| Digital Audio Input / Output: Coaxial | 1 / 0 | ||
| Analog Audio Input / Output | 4 / 0 | ||
| Preout | 2.2-ch | ||
| Headphone Output | 1 | ||
| Tuner Section | FM / AM Tuner | Yes | |
| User Interface | On-Screen Display | Graphical User Interface | |
| SCENE | Yes (8 sets) | ||
| App Control | Yes (iPhone / iPad / Android phone / tablet) | ||
| Web Browser Control | Yes | ||
| Remote Control Unit | Yes | ||
| Zone Control | Zone 2 Audio Output | Preout | |
| Powered Zone | Zone 2 | ||
| +12V Trigger Output | 1 | ||
| Remote (IR) Input/Output | N/A | ||
| Party Mode | Yes | ||
| General | Standby Power Consumption (IR only) | 0.1 W | |
| Auto Power Standby | Yes | ||
| ECO Mode | Yes | ||
| Dimensions (W x H x D) | 17-1/8" x 6-3/4" x 14-7/8" (with antenna up:17-1/8" x 9-5/8" x 14-7/8") | ||
| Weight | 21.6 lbs. | ||

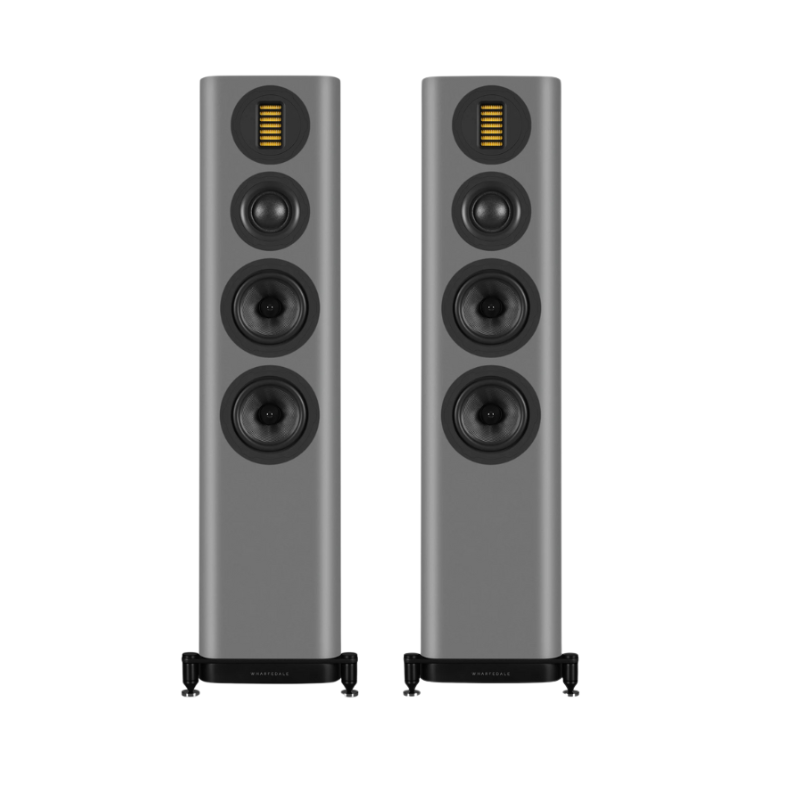

Wharfedale EVO 5.3 Floorstanding Speakers (Pair)
High Frequency Unit
The EVO series concept originated from the same thorough research and development processes that characterised Wharfedale’s flagship Elysian project. It was specifically designed to bridge the gap between affordability and high-end performance. A notable feature of this series is the EVO AMT (Air Motion Transformer) high-frequency unit.
A Distinctive Approach to High Frequencies
AMT Tweeter for Precision and Detail: In developing the new EVO 5 series, Wharfedale has further evolved the cutting-edge Air Motion Transformer (AMT). The AMT is a type of high-frequency driver used in speakers, known for its exceptional accuracy, speed, and low distortion compared to traditional dome treble units.
Instead of using a conventional dome or cone to push air forward, an AMT uses a pleated diaphragm made of an ultra-thin, lightweight material (often a polymer film). Strong magnets are positioned on either side of the diaphragm, creating a powerful magnetic field. When an audio signal is passed through the conductive traces, the diaphragm is energised, causing the pleats to contract and expand. As the pleats move, they "squeeze" and "expand" the air between them, pushing it out in a highly controlled and effcient manner. This method allows the AMT to move four times more air than a traditional dome tweeter of the same surface area, leading to lower distortion (since the diaphragm moves less than a typical dome or ribbon), faster transient response (due to the lightweight material and minimal movement), wider frequency range and better dispersion.
The EVO 5 AMT goes further with Revolutionary Sound
Absorption and Damping Enhancements
A new sound-absorbing material, Silentweave™, has been added to the cavity behind the diaphragm to reduce sound wave reflection and sound colouration inside the speaker. This material, a combination of cotton and felt fibre, was specially developed for the EVO 5 series.
All EVO 5 drive units benefit from a new acoustic damping frame called ResoFrame™, made from elastomer and visible as a cog-like shape within the driver’s front panel. In the case of the AMT, an additional elastomer damping gasket between the diaphragm and the front plate further reduces mechanical resonances and smooths the response, especially in the important lower treble band.
These Internal Acoustic enhancements minimise unwanted sound colouration, ensuring a purer, more natural sonic signature. This smoother treble response delivers a listening experience that is crisp, controlled, and devoid of harshness.
Lower-Midrange and Bass Refinements for Unparalleled Vocal Reproduction
Enhanced Midrange: A new technique, labelled Resoseal™, sees a thin mass ring of elastomer applied to the rear of the cone where it meets the surround. This further optimises midrange frequency response, allowing vocals to sound richer, more natural, and more emotionally engaging. This subtle yet critical enhancement ensures a refined and immersive listening experience.
Reengineered Cabinetry for Superior Resonance Control
Each model in the EVO 5 series now features an optimally increased internal cabinet volume. The expanded cabinet volume contributes to deeper bass extension and improved overall sound dispersion, creating a more immersive and expansive audio field.
The inclusion of a hybrid plinth, which combines metal and wood elements of the cabinet’s details, enhances structural integrity and reduces unwanted vibrations. This innovative base ensures that sound remains clean and uncoloured, free from external resonance artefacts.
Next-Generation Slot-Loaded Port Design
Wharfedale’s proprietary Slot Loaded Profiled Port (SLPP) system effciently channels the rear output of the bass drivers into the room. The specially designed slot at the speaker's base equalises pressure to the room, reducing turbulence while enhancing low-frequency performance.
The EVO 5 Series debuts a groundbreaking three-directional SLPP (Slot Loaded Profiled Port) channel. Unlike the previous two-directional port in EVO 4, this system optimises airflow distribution, reducing turbulence and distortion. This refined engineering allows the speakers to produce profound yet controlled bass without the muddiness common in conventional bass reflex designs. The result is exceptionally well-defined, tight bass that integrates seamlessly with mid and high frequencies.
Specifications
| Model | EVO 5.3 |
|---|---|
| General description | 3-way floorstanding speaker |
| Design philosophy and core technology | |
| Enclosure type | bass reflex |
| Transducer complement | 3-way |
| ABR | |
| Bass driver | 5"(130mm) Black Woven Kevlar Cone x2 |
| Midrange driver | 2"(50mm) Soft Dome |
| Treble driver | 35 x 70mm AMT |
| Full-range driver | |
| AV shield | No |
| Sensitivity (2.83V @ 1m) | 88dB |
| Recommended amplifier power | 25-150W |
| Peak power handling | |
| Peak SPL | 106dB |
| Nominal impedance | 4Ω (8Ω compatible) |
| Minimum impedance | 3.5Ω |
| Frequency response (+/-3dB) | 46Hz – 24kHz |
| Bass extension (-6dB) | 40Hz |
| Crossover frequency | 825 Hz,4kHz |
| Cabinet Volume (in litres) | 35.4L |
| Dimensions (mm) | |
| Height (on plinth&spike) | 933mm |
| Width | 266mm |
| Depth (with grille+terminal) | (285 + 40)mm |
| Carton size | 430 * 350 * 1055mm |
| Net weight | 21.5kg/pcs |
| Gross weight | 23.0kg/ctn |
| Finish | Walnut/Black Oak Veneer |
| Standard accessories |
spike seat
|

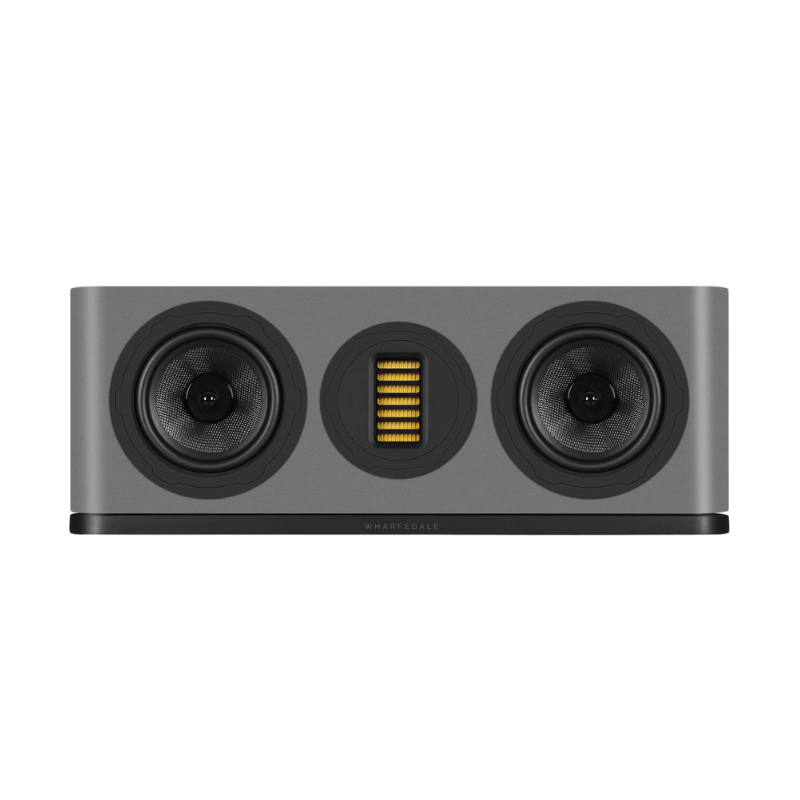

Wharfedale EVO 5.C Centre Speaker (Each)
High Frequency Unit
The EVO series concept originated from the same thorough research and development processes that characterised Wharfedale’s flagship Elysian project. It was specifically designed to bridge the gap between affordability and high-end performance. A notable feature of this series is the EVO AMT (Air Motion Transformer) high-frequency unit.
A Distinctive Approach to High Frequencies
AMT Tweeter for Precision and Detail: In developing the new EVO 5 series, Wharfedale has further evolved the cutting-edge Air Motion Transformer (AMT). The AMT is a type of high-frequency driver used in speakers, known for its exceptional accuracy, speed, and low distortion compared to traditional dome treble units.
Instead of using a conventional dome or cone to push air forward, an AMT uses a pleated diaphragm made of an ultra-thin, lightweight material (often a polymer film). Strong magnets are positioned on either side of the diaphragm, creating a powerful magnetic field. When an audio signal is passed through the conductive traces, the diaphragm is energised, causing the pleats to contract and expand. As the pleats move, they "squeeze" and "expand" the air between them, pushing it out in a highly controlled and eficient manner. This method allows the AMT to move four times more air than a traditional dome tweeter of the same surface area, leading to lower distortion (since the diaphragm moves less than a typical dome or ribbon), faster transient response (due to the lightweight material and minimal movement), wider frequency range and better dispersion.
The EVO 5 AMT goes further with Revolutionary Sound
Absorption and Damping Enhancements
A new sound-absorbing material, Silentweave™, has been added to the cavity behind the diaphragm to reduce sound wave reflection and sound colouration inside the speaker. This material, a combination of cotton and felt fibre, was specially developed for the EVO 5 series.
All EVO 5 drive units benefit from a new acoustic damping frame called ResoFrame™, made from elastomer and visible as a cog-like shape within the driver’s front panel. In the case of the AMT, an additional elastomer damping gasket between the diaphragm and the front plate further reduces mechanical resonances and smooths the response, especially in the important lower treble band.
These Internal Acoustic enhancements minimise unwanted sound colouration, ensuring a purer, more natural sonic signature. This smoother treble response delivers a listening experience that is crisp, controlled, and devoid of harshness.
Lower-Midrange and Bass Refinements for Unparalleled Vocal Reproduction
Enhanced Midrange: A new technique, labelled Resoseal™, sees a thin mass ring of elastomer applied to the rear of the cone where it meets the surround. This further optimises midrange frequency response, allowing vocals to sound richer, more natural, and more emotionally engaging. This subtle yet critical enhancement ensures a refined and immersive listening experience.
Reengineered Cabinetry for Superior Resonance Control
Each model in the EVO 5 series now features an optimally increased internal cabinet volume. The expanded cabinet volume contributes to deeper bass extension and improved overall sound dispersion, creating a more immersive and expansive audio field.
The inclusion of a hybrid plinth, which combines metal and wood elements of the cabinet’s details, enhances structural integrity and reduces unwanted vibrations. This innovative base ensures that sound remains clean and uncoloured, free from external resonance artefacts.
Specifications
| Model | EVO 5.C |
|---|---|
| General description | 2-way centre speaker |
| Design philosophy and core technology | |
| Enclosure type | bass reflex |
| Transducer complement | 2-way |
| ABR | |
| Bass driver | 5"(130mm) Black Woven Kevlar Cone x2 |
| Midrange driver | |
| Treble driver | 35 x 70mm AMT |
| Full-range driver | |
| AV shield | No |
| Sensitivity (2.83V @ 1m) | 89dB |
| Recommended amplifier power | 25 – 120W |
| Peak power handling | |
| Peak SPL | 103dB |
| Nominal impedance | 4Ω (8Ω compatible) |
| Minimum impedance | 4.1Ω |
| Frequency response (+/-3dB) | 56Hz – 24kHz |
| Bass extension (-6dB) | 49Hz |
| Crossover frequency | 2.3kHz |
| Cabinet Volume (in litres) | 14L |
| Dimensions (mm) | |
| Height (on plinth) | 188mm |
| Width | 520mm |
| Depth (with grill) | (265 + 40)mm |
| Carton size | 635 * 395 * 305mm |
| Net weight | 12.5kg/pcs |
| Gross weight | 14.3kg/ctn |
| Finish | Walnut/Black Oak Oak Veneer |
| Standard accessories |
rubber feet
|

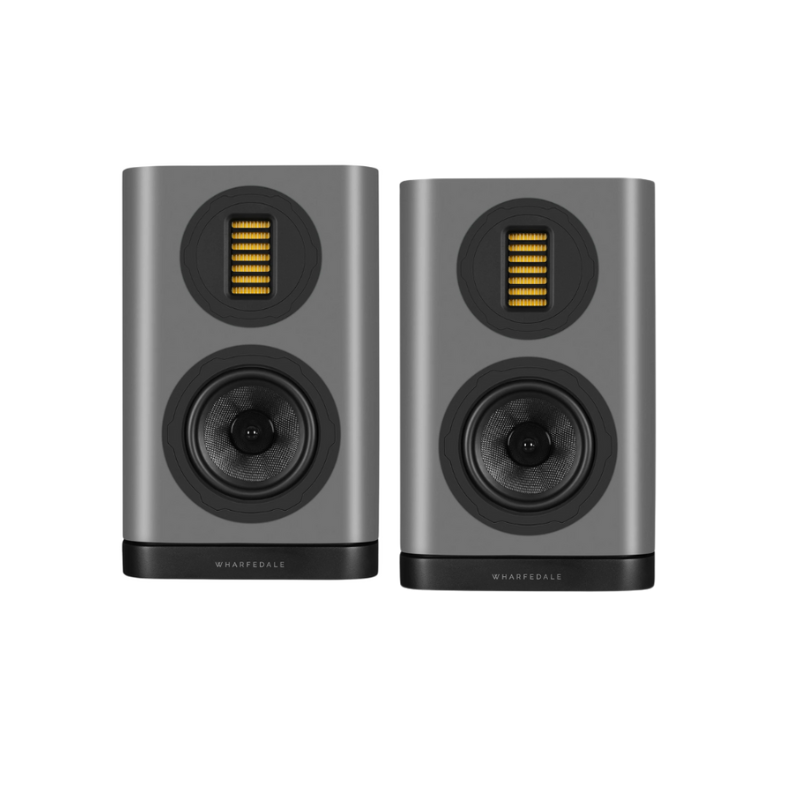

Wharfedale EVO 5.1 Bookshelf Speakers (Pair)
High Frequency Unit
The EVO series concept originated from the same thorough research and development processes that characterised Wharfedale’s flagship Elysian project. It was specifically designed to bridge the gap between affordability and high-end performance. A notable feature of this series is the EVO AMT (Air Motion Transformer) high-frequency unit.
A Distinctive Approach to High Frequencies
AMT Tweeter for Precision and Detail: In developing the new EVO 5 series, Wharfedale has further evolved the cutting-edge Air Motion Transformer (AMT). The AMT is a type of high-frequency driver used in speakers, known for its exceptional accuracy, speed, and low distortion compared to traditional dome treble units.
Instead of using a conventional dome or cone to push air forward, an AMT uses a pleated diaphragm made of an ultra-thin, lightweight material (often a polymer film). Strong magnets are positioned on either side of the diaphragm, creating a powerful magnetic field. When an audio signal is passed through the conductive traces, the diaphragm is energised, causing the pleats to contract and expand. As the pleats move, they "squeeze" and "expand" the air between them, pushing it out in a highly controlled and eficient manner. This method allows the AMT to move four times more air than a traditional dome tweeter of the same surface area, leading to lower distortion (since the diaphragm moves less than a typical dome or ribbon), faster transient response (due to the lightweight material and minimal movement), wider frequency range and better dispersion.
The EVO 5 AMT goes further with Revolutionary Sound
Absorption and Damping Enhancements
A new sound-absorbing material, Silentweave™, has been added to the cavity behind the diaphragm to reduce sound wave reflection and sound colouration inside the speaker. This material, a combination of cotton and felt fibre, was specially developed for the EVO 5 series.
All EVO 5 drive units benefit from a new acoustic damping frame called ResoFrame™, made from elastomer and visible as a cog-like shape within the driver’s front panel. In the case of the AMT, an additional elastomer damping gasket between the diaphragm and the front plate further reduces mechanical resonances and smooths the response, especially in the important lower treble band.
These Internal Acoustic enhancements minimise unwanted sound colouration, ensuring a purer, more natural sonic signature. This smoother treble response delivers a listening experience that is crisp, controlled, and devoid of harshness.
Lower-Midrange and Bass Refinements for Unparalleled Vocal Reproduction
Enhanced Midrange: A new technique, labelled Resoseal™, sees a thin mass ring of elastomer applied to the rear of the cone where it meets the surround. This further optimises midrange frequency response, allowing vocals to sound richer, more natural, and more emotionally engaging. This subtle yet critical enhancement ensures a refined and immersive listening experience.
Reengineered Cabinetry for Superior Resonance Control
Each model in the EVO 5 series now features an optimally increased internal cabinet volume. The expanded cabinet volume contributes to deeper bass extension and improved overall sound dispersion, creating a more immersive and expansive audio field.
The inclusion of a hybrid plinth, which combines metal and wood elements of the cabinet’s details, enhances structural integrity and reduces unwanted vibrations. This innovative base ensures that sound remains clean and uncoloured, free from external resonance artefacts.
EVO 5 Stands
For the EVO 5.1 and EVO 5.2 loudspeakers, specially designed stands are offered to ensure the perfect synergy between form and function. Crafted from high-carbon steel, these stands provide exceptional strength and stability while effectively minimising unwanted vibrations and interactions with floor surfaces that could compromise sound quality.
Engineered with precision, they position the loudspeakers at the ideal listening height, ensuring an immersive and well-balanced audio experience across various seating positions. Their understated yet elegant design seamlessly complements the aesthetic of the EVO 5 series, maintaining the refined and sophisticated appeal of the speakers themselves.
Beyond aesthetics, these stands enhance overall performance by also aiding perfect speaker placement, allowing the EVO 5.1 and EVO 5.2 to deliver their full sonic potential with clarity, depth, and precision for audiophiles and design-conscious listeners alike.
Specifications
| Model | EVO 5.1 |
|---|---|
| General description | 2-way bookshelf speaker |
| Design philosophy and core technology | |
| Enclosure type | bass reflex |
| Transducer complement | 2-way |
| ABR | |
| Bass driver | 5"(130mm) Black Woven Kevlar Cone |
| Midrange driver | |
| Treble driver | 35 x 70mm AMT |
| Full-range driver | |
| AV shield | No |
| Sensitivity (2.83V @ 1m) | 87dB |
| Recommended amplifier power | 25-100W |
| Peak power handling | |
| Peak SPL | 98dB |
| Nominal impedance | 4Ω (8Ω compatible) |
| Minimum impedance | 3.4Ω |
| Frequency response (+/-3dB) | 56Hz – 24kHz |
| Bass extension (-6dB) | 46Hz |
| Crossover frequency | 2.7kHz |
| Cabinet Volume (in litres) | 11.5L |
| Dimensions (mm) | |
| Height (on plinth) | 340mm |
| Width | 220mm |
| Depth (with grille+terminal) | (285 + 40)mm |
| Carton size | 610 * 415 * 455mm |
| Net weight | 8.0kg/pcs |
| Gross weight | 20.5kg/ctn |
| Finish | Walnut/Black Oak Veneer |
| Standard accessories |
rubber feet
|

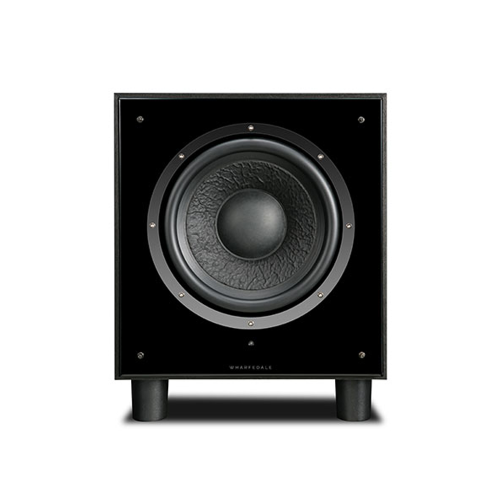

Wharfedale SW-12 - 12 Active Subwoofer 300W
The new range of SW subwoofers comes with a host of new features. They now come with Non-pressed paper cones for increase self-damping, improved transient impact and intern increased the structural rigidity of the cone itself. The centre vents are copper lined to reduce the magnetic distortion and improve the heat dissipation.
Still utilising the solid, well-engineered power amplifiers the SW subwoofers are optimised for high impact at low frequencies and are ideal for movies or music. With the various finishes to the cabinets – Rosewood /Walnut Pearl/White sandex/Blackwood Vinyl with Hi-gloss baffle – these subwoofers look great with matching floorstanding speakers.
