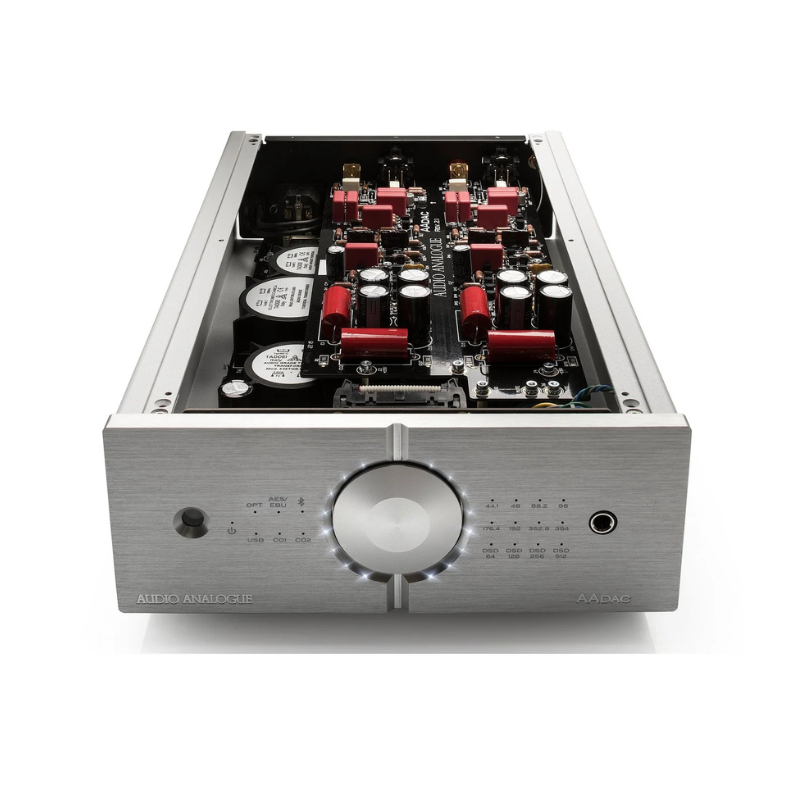

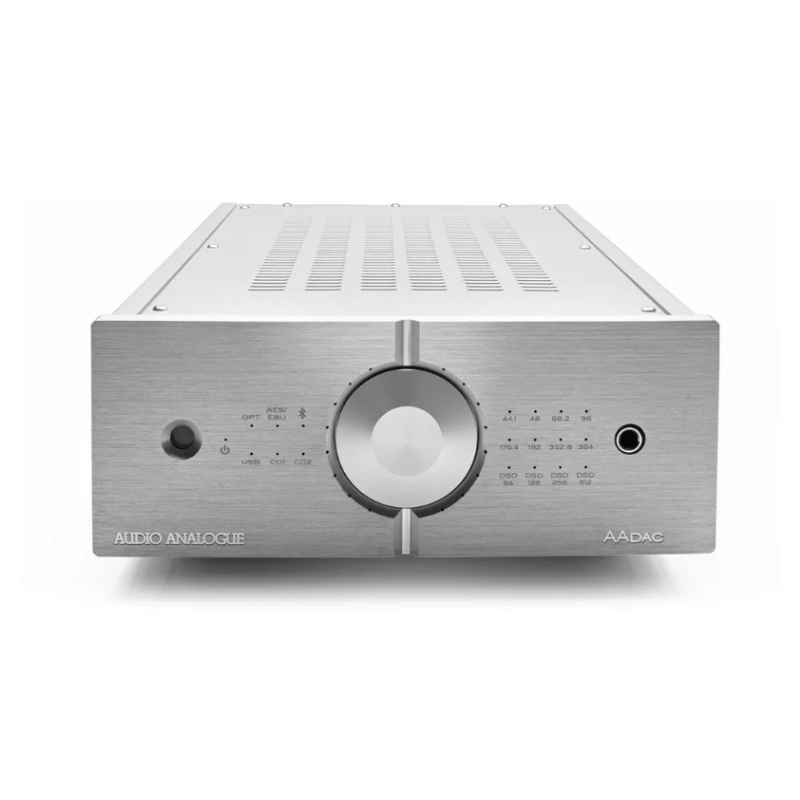

Audio Analogue AA-Dac D/A Converter (Each)

Gallery
Description

Description

AAdac has a wide variety of functions and entering the settings you can adjust the

intensity of the LEDs, change the channel balance, select one of seven different

digital filters and set it in preamp mode.

High performance D/A converter up to 32bit/768Khz using Sabre ES9038. Amanero USB converter up to 32bit/384khz. Native DSD up to 512. 7 different digital filters.

SPDIF, Toslink, AES/EBU digital inputs. High quality Bluetooth aptX® audio wireless input (optional). Separate boards for each stage. Separate power supplies dedicated to digital and analog sections.

Fully balanced output stage with audiograde discrete components to perfectly support ultra-low noise and very low distortion digital stage.

Specifications

Channels

2

Output level

2.9 µV (22 Hz ÷ 20 kHz )

Output level(a weighted)

2.1 µV

Balanced output voltage
1kHz/0dB

3.35 VRMS

Unbalanced output voltage
1kHz/0dB

3.35 VRMS

Dynamic range(A weight)

124 dB

THD+N
1dB, 1kHz, FS = 48 kHz

-108 dB

ENOB

17.65 BIT

Standby power consumption
230VAC

0.7W

Dimensions
HxWxD

100x220x390 mm

Weight

5.5 Kg

AADAC-DU

Audio Analogue AA-Dac D/A Converter (Each) | Display Unit

R 59,990.00

R 129,990.00 53% OFF

AAdac is part of the PureAA line just like AAcento and AAphono. It is a product thatperfectly fits the philosophy of Audio Analogue: its simple design together with itsextraordinary sound performance, the great care for the finishes and in the choice ofmaterials and parts makes it a perfect match fo Read more

Quantity

Lucky you 🤩 Only 1 left in stock! Buy now.

E-CREDIT, NOW AVAILABLE
E-Credit finance on orders with a minimum value of R50 000. Learn More.

Description

AAdac has a wide variety of functions and entering the settings you can adjust the

intensity of the LEDs, change the channel balance, select one of seven different

digital filters and set it in preamp mode.

High performance D/A converter up to 32bit/768Khz using Sabre ES9038. Amanero USB converter up to 32bit/384khz. Native DSD up to 512. 7 different digital filters.

SPDIF, Toslink, AES/EBU digital inputs. High quality Bluetooth aptX® audio wireless input (optional). Separate boards for each stage. Separate power supplies dedicated to digital and analog sections.

Fully balanced output stage with audiograde discrete components to perfectly support ultra-low noise and very low distortion digital stage.

Specifications

Channels

2

Output level

2.9 µV (22 Hz ÷ 20 kHz )

Output level(a weighted)

2.1 µV

Balanced output voltage
1kHz/0dB

3.35 VRMS

Unbalanced output voltage
1kHz/0dB

3.35 VRMS

Dynamic range(A weight)

124 dB

THD+N
1dB, 1kHz, FS = 48 kHz

-108 dB

ENOB

17.65 BIT

Standby power consumption
230VAC

0.7W

Dimensions
HxWxD

100x220x390 mm

Weight

5.5 Kg
