2-way closed-box selectable dipole/monopole surround system
Drive units
1x ø25mm (1 in) aluminium dome high-frequency
2x ø80mm (3 in) midrange / high frequency
1x ø130mm (5 in) woven Kevlar® cone bass / midrange
Frequency range
-6dB at 63Hz and 42kHz (monopole mode)
-6dB at 63Hz and 15kHz (dipole mode)
Frequency response
85Hz – 22kHz ±3dB on reference axis (monopole mode)
85Hz – 10kHz ±3dB power averaged over front hemisphere (dipole mode)
Dispersion
Monopole mode: within 2dB of reference response
Horizontal: over 40º arc
Vertical: over 10º arc
Dipole mode: horizontal figure of eight
Effective null zone ±20º (250Hz – 15kHz)
Sensitivity
89dB spl (2.83V, 1m)
Harmonic distortion
2nd and 3rd harmonics (90dB, 1m)
<1% 130Hz – 20kHz
Nominal impedance
8Ω (minimum 3.3Ω)
Crossover frequency
4kHz (monopole mode)
250Hz (dipole mode)
Crossover Filters
2nd Order – midrange / high frequencyt
2nd Order – bass
Bowers & Wilkins DS3 Surround Speakers delivers enveloping sound effect with option to set them as either “dipole” or “mono-pole” system.
Bowers & Wilkins DS3 Surround Speakers Pair are a wall-mounted surround speaker that can operate in either ‘dipole’ or ‘m
Read more
Bowers & Wilkins DS3 Surround Speakers delivers enveloping sound effect with option to set them as either “dipole” or “mono-pole” system.

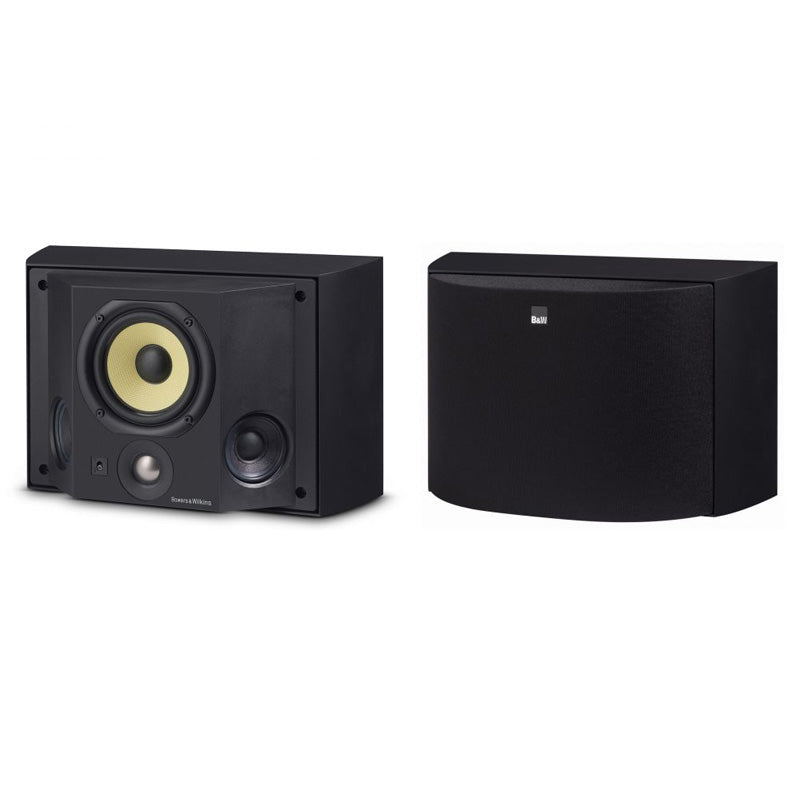

Bowers & Wilkins DS3 Surround Speakers Pair are a wall-mounted surround speaker that can operate in either ‘dipole’ or ‘monopole’ modes, to create an authentic all-enveloping effect of the auditorium in a large space.
For large home theatre installations, choose a pair of rear speakers that can get you closer to the true surround sound of the cinema.
The DS3 is a wall-mounted surround speaker that can operate in what’s called ‘dipole’ mode, to create an authentic all-enveloping effect of the auditorium in a large space. Or, you may prefer to switch to conventional ‘monopole’ operation, in which the sound from side or rear is more precisely located and less diffuse. The choice depends on the room conditions, the size of the audience and the kind of material on view.
Whichever mode you select, the sound quality is superlative, supplied by a 130 mm Kevlar® cone bass/midrange, twin midrange/high frequency units and a Nautilus™ tube-loaded tweeter.
2-way closed-box selectable dipole/monopole surround system
Drive units
1x ø25mm (1 in) aluminium dome high-frequency
2x ø80mm (3 in) midrange / high frequency
1x ø130mm (5 in) woven Kevlar® cone bass / midrange
Frequency range
-6dB at 63Hz and 42kHz (monopole mode)
-6dB at 63Hz and 15kHz (dipole mode)
Frequency response
85Hz – 22kHz ±3dB on reference axis (monopole mode)
85Hz – 10kHz ±3dB power averaged over front hemisphere (dipole mode)
Dispersion
Monopole mode: within 2dB of reference response
Horizontal: over 40º arc
Vertical: over 10º arc
Dipole mode: horizontal figure of eight
Effective null zone ±20º (250Hz – 15kHz)
Sensitivity
89dB spl (2.83V, 1m)
Harmonic distortion
2nd and 3rd harmonics (90dB, 1m)
<1% 130Hz – 20kHz
Nominal impedance
8Ω (minimum 3.3Ω)
Crossover frequency
4kHz (monopole mode)
250Hz (dipole mode)
Crossover Filters
2nd Order – midrange / high frequencyt
2nd Order – bass
