SPECIFICATIONS
| Range | Dual-mono |
| Exclusive Technologies | ADHV2®, SAM®, AIR®, EVO®, DAC Magic Wire®, RAM® |
| streaming Services | UPnP | Airplay® | Spotify Connect |
| Daisy Chaining | Up to 8 units |
| Phono Stage | Advanced (MM / MC) |
| Pre-amplified Output | Patented Magic Wire Digital / Analogue Converter, D/A T.I. PCM1792
Unique high-precision MasterClock with very low jitter: 2ps RMS Conversion of all inputs into 24-bit/192 kHz Built-in DSD / PCM conversion |

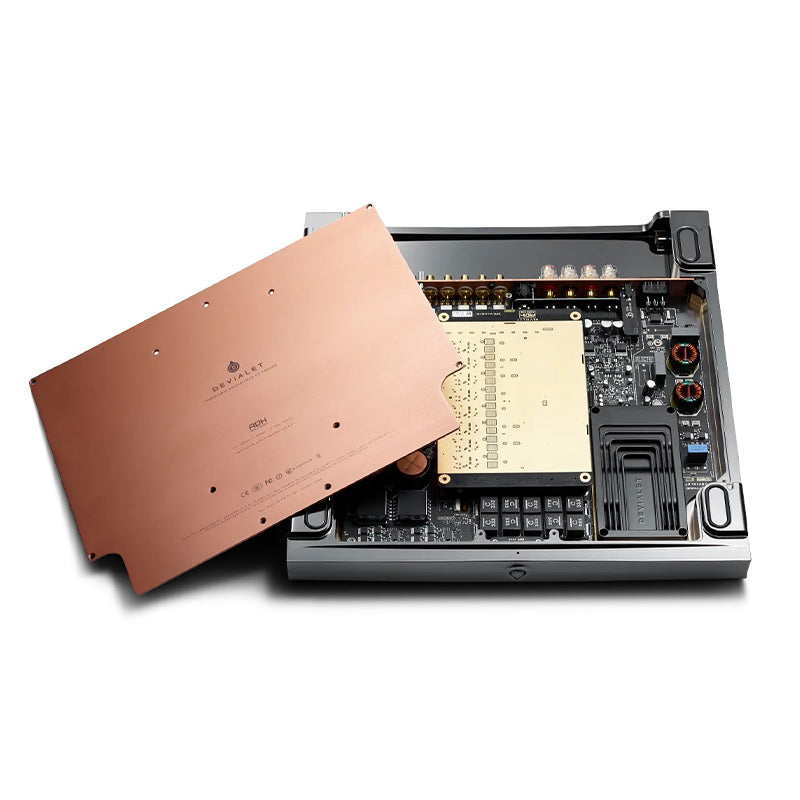

| Casing | Dark chrome | Hand polished casing carved out of a single aluminium block 100% pure copper bottom plate for optimal thermal dissipation |
| Side Plating | Yes |
| Dimension | Length: 400mm | Width: 400mm | Height: 40mm |
| Weight | Master : 9,7Kg Companion : 9,5Kg |
PERFORMANCE
| Power | 2x1000 Watts RMS under 6Ω |
| Distortion at full power | 0.00025% THD+N |
| Distortion at full power | 0,0001% (10W / 6Ω) |
| Distortion at 10w | 0.0001% THD+N |
| Distortion at 10w | 0.00025% THD+N |
| Signal-to-noise Ratio | 133dB |
| Output Impedance | 0.001Ω |
| Damping Factor | 8000 |
| Bandwidth | DC-30kHz @ -0.1dB
DC-95kHz @ -3dB |
| Phase Rotation | 0.2° at 20kHz
0.9° at 40kHz |
| Thermal Distorsion | Below measurement threshold |

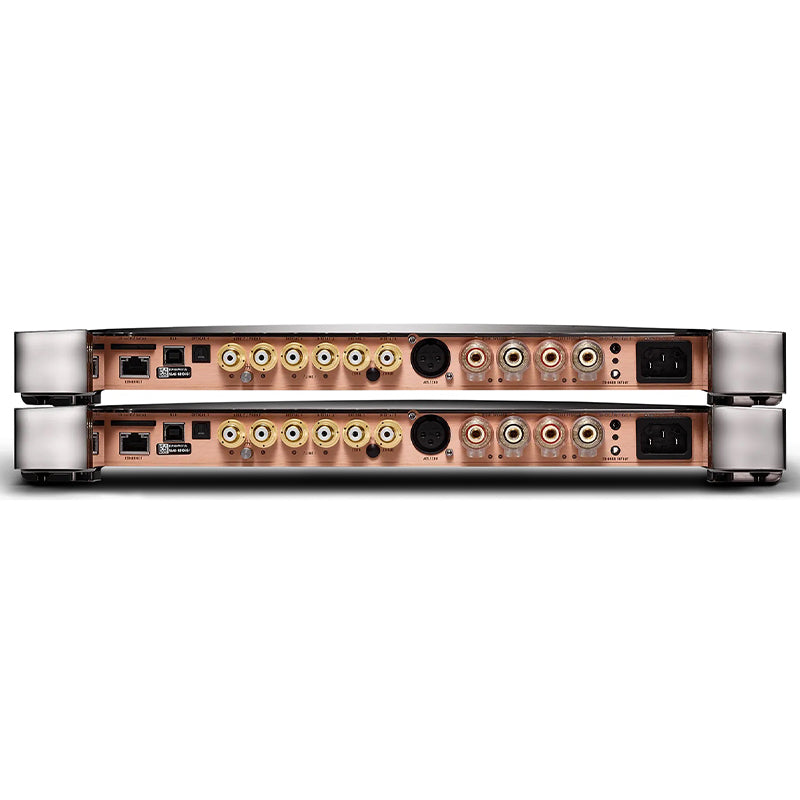

CONNECTIVITY
| WI-FI | 2.4GHz 802.11 b/g/n Wi-Fi input for the Devialet AIR universal streamer
Supported formats: 16-bit/44.1 kHz PCM to 24-bit/192 kHz PCM |
| Ethernet | RJ45 100/1000 Mbps |
| USB | USB Audio 2.0 asynchronous input/output
Supported formats: 16-bit/44.1 kHz PCM to 32-bit/192 kHz PCM DSD64 1bit/2.822400MHz and 1bit/3.072000MH Special characteristics: Very low latency |
| Digital Coaxial Inputs | Supported formats:16-bit/44.1 kHz PCM to 24-bit/192 kHz PCM
DSD64 1bit/2.822400MHz and 1bit/3.072000MHz |
| Digital Optical Inputs | Supported formats: 16-bit/44.1 kHz PCM to 24-bit/192 kHz PCM |
| Supported Formats | Up to 32bits / 192kHz PCM (USB)
Up to 24bits / 192kHz PCM (AIR®, UPnP, AES/EBU, Coaxial) Up to 24bits / 96kHz PCM (Optical) Up to 1bit / 3.072000MHz DSD64 (USB, Coaxial) |
| Analog Inputs | Up to 4x RCA stereo
Sensitivity adjustable via the Configurator Advanced phono stage (MM / MC) |
| Speaker Output | 4mm banana plugs, stripped cables or fork connectors
Adjustable from 30 WRMS to 1000 WRMS via the configurator Compatible with all speakers, from 1Ω to 16Ω Short-circuit protection Active filtering available |
| Home Automation | Up to 1x RS232 3.5mm 115200 bauds (documentation available via the configurator) |
| Trigger | 3.5mm mini-jack trigger connector |
