Full 4K Support with HDCP2.2
The LX-UH1 is compatible with full-spec 4K input at 18Gbps throughput – supporting 4K/60p 4:4:4/36bit, 4K/60p 4:2:2/36bit, and 4K/24p 4:4:4/36bit signals – for more vivid colours and subtle gradations. What’s more, HDCP2.2 compatibility means that this projector supports the latest video-streaming services and copyright-protected content such as UHD Blu-ray discs.
HDR (High Dynamic Range) for More Realistic Image
High Dynamic Range (HDR) is a technology to accurately reproduce realistic, dynamic images in which finer gradations and colors are clearly visible, even in the lightest and darkest areas of the picture. The LX-UH1 supports both HDR10 for UHD BD content and Hybrid Log Gamma (HLG) for broadcast signals.
Bright Picture and 100% Coverage of Rec. 709
Viewing movies, broadcast and other content in a room that’s well lit can be difficult with a conventional projector. But despite its compact size, the LX-UH1 offers brightness of 2,000 lumens thanks to a highly efficient lamp system. And 100% coverage of the Rec. 709 gamut means you enjoy beautiful colour rendition.
Newly Developed 0.47-inch DMD for Bright High-definition 4K Images
4K resolution (3840 x 2160 pixels) is four times full HD resolution. As 4K content rapidly becomes mainstream for broadcasting, streaming and optical discs, you can be sure that the LX-UH1 will make the most of it, providing a bright, vibrant picture with all the detail. Impressive colour reproduction almost makes you feel immersed in the scenes unfolding on the screen
Wide Lens Shift Function: ±60% Vertical, ±23% Horizontal
A compact design facilitates projector installation – but if lens shift is insufficient it may require keystone adjustment, which can degrade picture quality. There are no such worries with the LX-UH1, however, as it features a wide lens shift: ±60% vertically and ±23% horizontally.
1.6x High-resolution Lens
The LX-UH1 features a 1.6-times zoom lens. For a typical 100-inch picture size, the projector would be installed between 3 and 4.8 m / 9.8' and 15.7' from the screen – an added convenience when space is at a premium. Refer to Projection Distance Chart on the back of the brochure for more.
Features
- 4K (3840 x 2160) via e-shift technology
- HDMI/HDCP2.2 standard
- Provides a ±60% vertical lens shift and ±23% horizontal lens shift
- BT.2020 compatible - displays HDR content
- 100% of Rec.709 color space
- HDR10 and Hybrid Log Gamma
- 2000 lumens
- New 0.47-inch TRP digital micro-mirror device (DMD)
- Data transfer rates up to 18Gbps
- Recommended Screen size 60～200 inch
SPECIFICATIONS
Info
Image Devices
- Projection Technology
- DLP
- Projection Chip size
- 0.47 inch
- Number of Projection Chips
- 1
- Native Resolution
- 1920 by 1080 Pixels
- Electronic E-Shift Generation
- Yes
- Max Resolution
- 3840 by 2160 Pixels
Light-Source
- Light source technology
- NSH
- Number of Light sources
- 1 unit
- Expecting Lifetime regular mode
- 4000
- Expecting Lifetime save mode
- 10000
- Color Wheel
- RGBRGB
Light and Contrast
- Brightness Typical
- 2000 ANSI Lumen
- Dynamic Contrast
- 100000 to 1
- Color Space
- REC 709
Lens
- Model Name
- Regular Lens
- Description
- Zoom Lens
- Fix Lens
- Yes
- Lens include
- YES
- Zoom Electrical or Mechanical
- Mechanic Manual
- Focus Electrical or Mechanical
- Mechanic Manual
- Aperture ratio F:
- 1.8 to 0
- Focal length f:
- 14.3mm to 22.9mm
- Lens Ratio Factor
- 1.35:1 to 2.17:1
- For Lens Type A:
- Regular Lens
- A) Aperture ratio F:
- 1.8 to 0
- A) Focal length f:
- 14.3mm to 22.9mm
- A) Zoom Electrical or Mechanical
- mechanical
- A) Focus Electrical or Mechanical
- mechanical
- A) Lens Shift Vertical
- +/-60%
- A) Lens Shift Horizontal
- +/-23%
- A) Projection distance Wide to End
- 2.85 m to 6m
- A) Projection distance Tele to End
- 4.56m to 9.6m
- A) Screen Size in inch diagonal
- 60 inch to 200 inch
- Lens Aperture
- Off / LOW / HIGH
- Focus/Zoom Adjustment on internal Test Patterns
- Yes
Functions
- Picture Mode Presets
- Natural / Cinema / Dynamic / User 1 / User 2
- Color Temperature
- High / Normal / Low / User
- Gamma adjust
- 2,2 Std. 1,8 / 2,0 / 2,1 / 2,2 / 2,3 / 2,4 / 2,6
- E-Shift Control
- OFF/ON
- HDR Compatible
- YES HDR with EOTF
- HDR Gamma
- Hybrid LOG
- HDR Picture Mode
- HLR
- Color Management
- 3D Color Management
- Start up Logo
- YES
- Internal Test Patterns
- YES
- Standby Timer
- Yes
- ECO Mode
- ON/OFF
- Projector System Status Screen
- Yes
- Local Projector Control Buttons
- Yes
- Menu Position select
- Yes
- Black/Blue Screen select (in case of no Input source)
- Yes
Input Signal
- Input Signal Capability Special Notes:
- The Projector supports Auto Search for input devices
- PC Input Signal
- max. 1920 x 1200/60Hz
- HDMI Input Signal
- max. 3840 x 2160
- Input Level Adjustment
- HDMI 0-255 / Limited HDMI 16-235

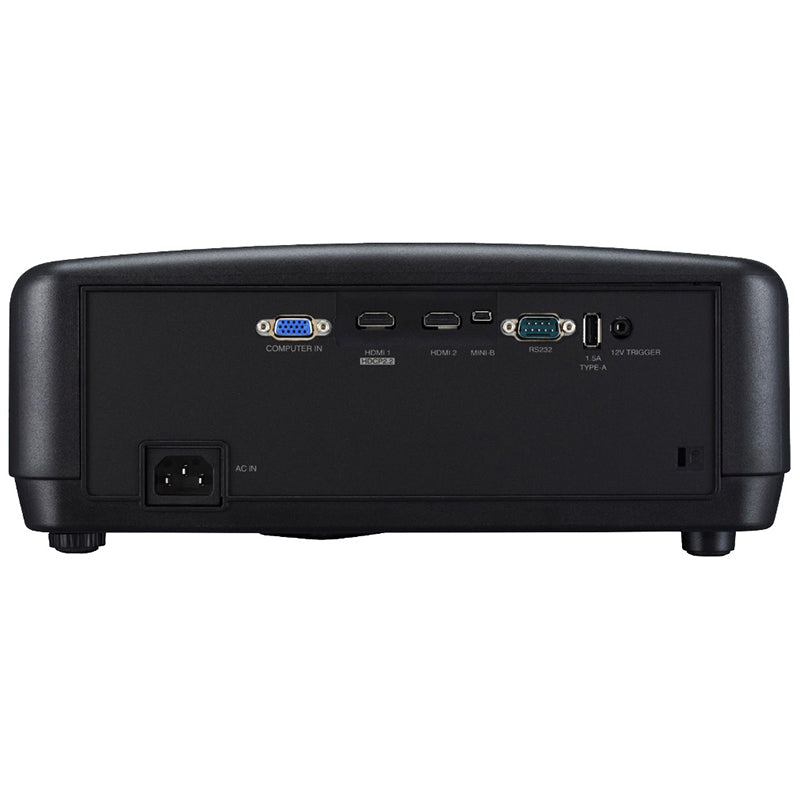

Input Terminals
- RGB
- Yes, D-SUB 15 PIN
- HDMI
- Yes, 2 x (HDCP2.2 x 1x,HDCP 1.4 x1)
- USB
- Type A for service only
Output Terminals
- Trigger Terminal
- Yes, 1 x (mini jack, DC12V/100mA)
- RS-232C Terminal
- Yes, 9 PIN sub D
Control Terminals
- RS-232C Terminal
- Yes, 1 x System D-sub 9-pin
- IR Remote Receivers
- 2 Front/Back
Power and Environment Spec´s
- Noise Level (0-26 degree)
- 29dB/33dB (ECO/Normal)
- Power Requirement
- AC 100-240V, 50/60Hz
- Power Consumption
- 370 Watts
- Power Standby
- 0,5 Watt
- Operation Temperature in Celsius
- 0C to 40C
- Operation Humidity:(Non-Condensing)
- 10% to 90%
- Installation Height
- 1500m-3000m at 0 degree to 30 degrees
- Installation Angle
- 0
- Dimensions
- W 333 x H 135 x D 332 mm
- Weight
- 4.8 kg
- High Altitude Mode
- see instructions
Include Package
- Cord A
- Power cord
- IR Controller
- Yes
- Instruction Handbook
- Yes
General Editing Note
- General Note:
- Simulated pictures.The values for weight and dimensions are approximate.E.&O.E. Design and specifications subject to change without notice.
