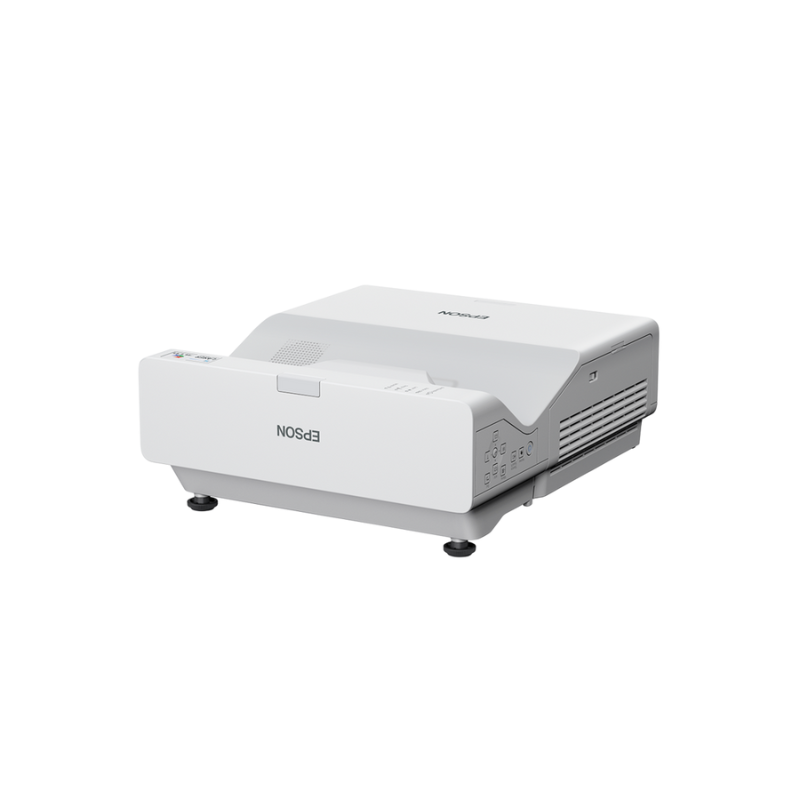

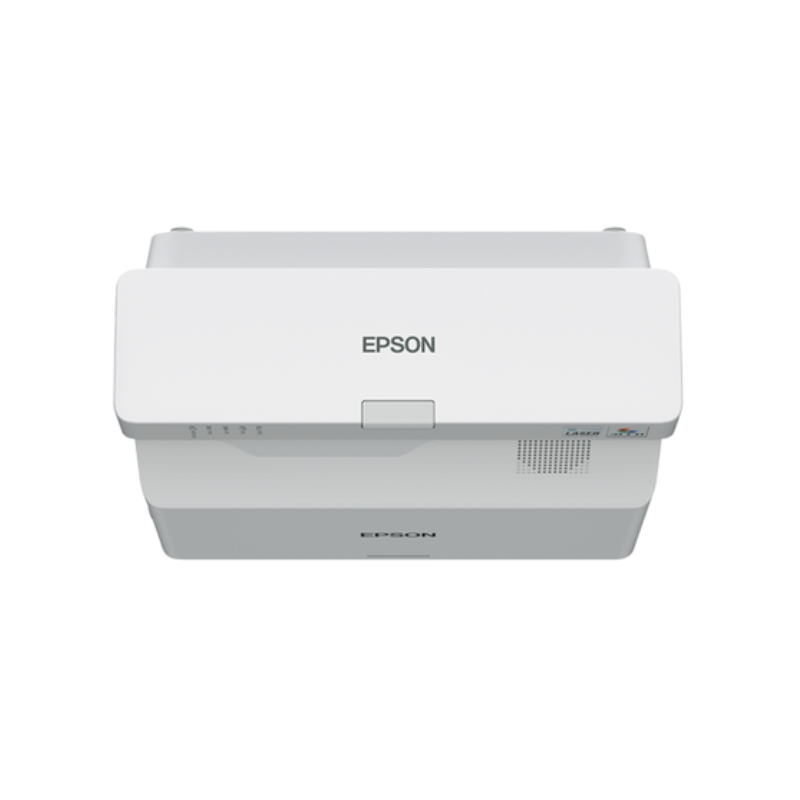

The EB-770Fi is a step up from the EB-770F, with added interactive features.

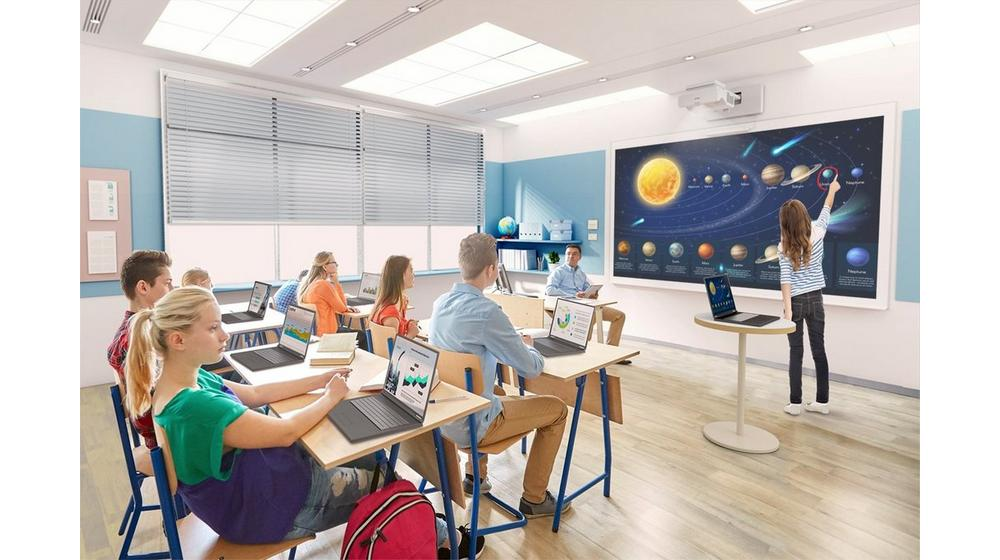

Interactive technology enables two digital pens to be used on the display simultaeously (finger touch available through optional accessory FT01). Presentations can be controlled and brought to life with on-screen annotations, while a variety of convenient built-in tools support productivity. An optional Epson visualiser camera can be contolled via the display, projecting documents or objects from a desk for the whole room to see in incredible detail.

With a 4,100 lumens laser-light source, combined with 3LCD technology, it produces a large, bright and vibrant display up to 100", clearly visible from all angles and at a distance.

Versatile wired and wireless connectivity options, including screen mirroring via Miracast™, allows participants to effortlessly share content from their PCs or mobile devices.

The experience is immersive and user-friendly.

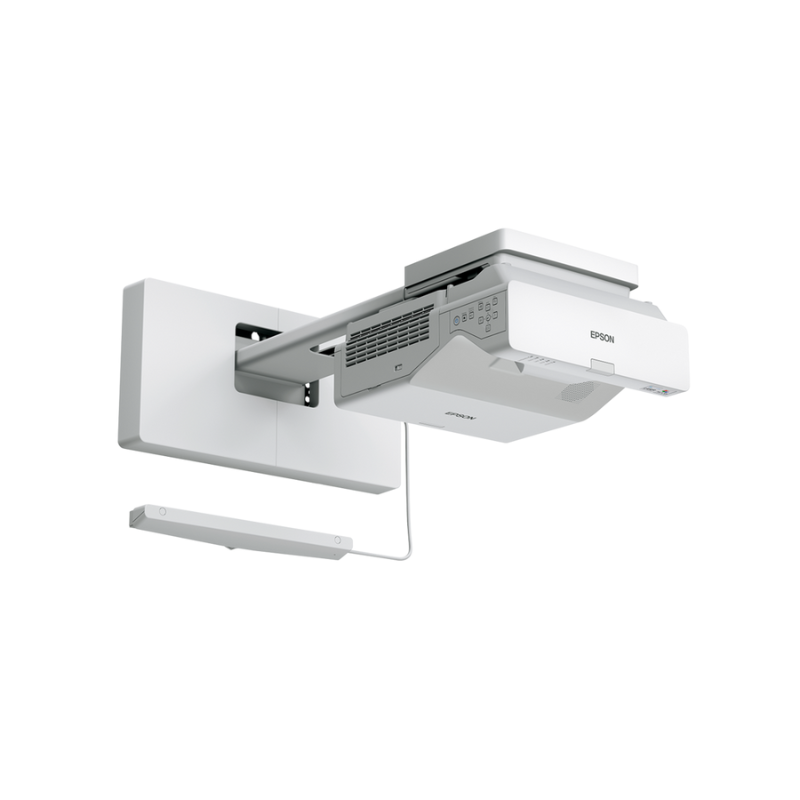

The ultra short throw lens allows safe, unobtrusive positioning above the display, enabling presenters free access to interact without casting shadows.

Unlike a flat-panel display, there is no heavy, breakable, glass panel to create disruptive, reflected blind spots from certain angles; and presenters are not subjected to LCD panel direct blue light radiation.

Key Features

• Interactive FHD display for any room 49-100" UST display for unrestricted viewing (no shadows/reflections)
• Bright and energy efficient laser 4,100lm CLO with 3LCD technology for brighter colours at only 205W
• Effortless connectivity options Auto-on, wired / wireless display with USB 2A output for smart sticks
• Simple to use and built to last Virtually maintenance free with 5-year, 12,000hr warranty
• Document camera compatibility Create and record a live, totally immersive lesson or presentation

Specifications

Technology:

• Projection System: Epson® 3-chip 3LCD technology
• Projection Method: Front/rear/wall mount/table mount
• Driving Method: Epson Poly-Silicon TFT Active Matrix
• Pixel Number: 2,073,600 dots (1920 x 1080) x 3

Brightness:

• Color Brightness: 4,100 lumens (Color Light Output)
• White Brightness: 4,100 lumens (White Light Output)

Resolution:

• Native Aspect Ratio: 16:9
• Supported Aspect Ratios: 4:3, 16:10, 21:9
• Native Resolution: 1920 x 1080 (1080p HD)
• LCD Panel Size: 0.62"

Light Source:

• Type: Laser Diode
• Laser Light Source Life:
  • Up to 20,000 hours
  • Extended Mode: Up to 30,000 hours

Image Size (Projection Distance):

• With ELPMB62 Mount:
  • 56.8" – 110" (14.1' – 27.2') for 21:9
  • 60" – 110" (13.9" – 27.24") for 16:6
  • 65" – 100" (14.01' – 22.7') for 16:9

Keystone Correction (Manual):

• Vertical: ± 3 degrees
• Horizontal: ± 3 degrees

USB Plug ’n Play:

• Mac OS Compatibility: macOS® 10.8 – 10.15.x, 11.0, 12.0
• Windows Compatibility: Windows 7, Windows 8, Windows 10, Windows 11

Contrast Ratio:

• Up to: 2,500,000:1

Color Reproduction:

• Up to: 1.07 billion colors

Wireless Specifications:

• Supported Security Modes:
  • OPEN, WPA2/WPA3-PSK, WPA2/WPA3-EAP
  • Supported EAP Types: PEAP, PEAP-TLS, EAP-TLS, EAP-Fast
• Supported Speeds:
  • IEEE 802.11 b: 11 Mbps* (2.4 GHz)
  • IEEE 802.11 g: 54 Mbps* (2.4 GHz)
  • IEEE 802.11 n: 72.2 Mbps* (2.4 GHz)
  • IEEE 802.11 a: 54 Mbps* (5 GHz)
  • IEEE 802.11 n: 150 Mbps* (5 GHz)
  • IEEE 802.11 ac: 325 Mbps* (5 GHz)

* These modes and actual data throughputs depend on supported wireless mode of source devices and/or environmental conditions.

Projection Lens:

• Type: Manual focus
• F-Number: 1.6
• Focal Length: 3.7 mm
• Throw Ratio Range: 0.25 – 0.35
• Zoom Ratio: Digital zoom 1.00 – 1.35x

Other Features:

• Speaker: 16 W monaural
• Operating Temperature: 41˚F to 104˚F (5˚C to 40˚C)
• Power Supply Voltage: 100 V – 240 V ±10%, 50/60 Hz
• Power Consumption:
  • Normal Mode: 277 W
  • Quiet Mode: 214 W
  • Standby (Communication On): 2.0 W
  • Standby (Communication Off): 0.5 W
• Fan Noise:
  • Normal Mode: 37 dB
  • Quiet Mode: 27 dB
