Retro style, timeless musicality

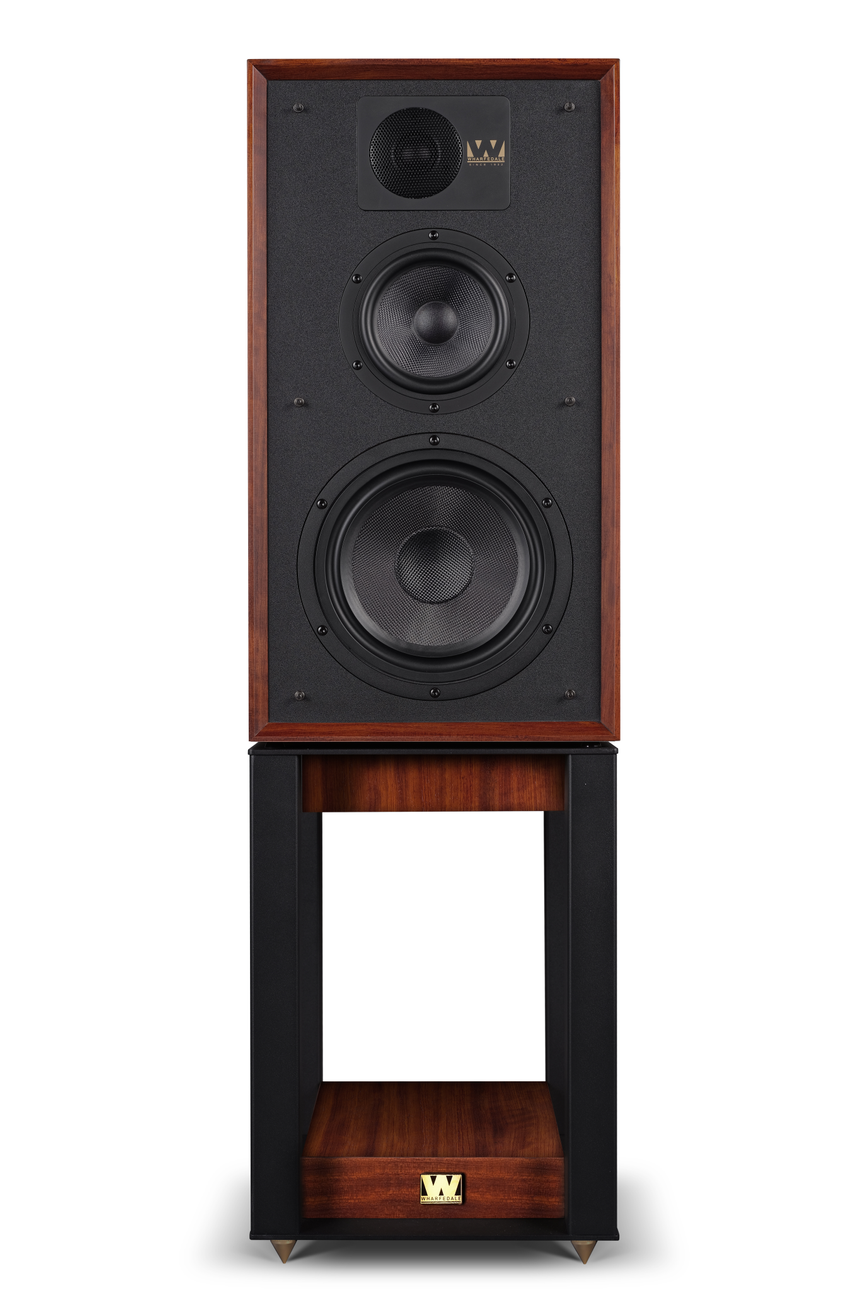

The Linton makes use of its wide baffle by incorporating a large (by modern standards) bass driver with a 200mm Kevlar cone, mounted on a rigid, die-cast chassis. Above this sits a 135mm midrange driver, also sporting a woven Kevlar cone and housed within its own internal enclosure. Finally, a 25mm fabric-dome tweeter with a high-flux ferrite magnet handles high frequencies.
The original Linton incarnations of the 1960s and 1970s were well known for their rich and natural sound quality; the new model retains these attributes but upgrades the performance in every department. Its bass is deep and well-defined, its midrange clear and open, with free-breathing dynamics and an expansive scale that brings music to life. It is a sound you can dive into and lose yourself in, as you listen to album after album; a nostalgic nod to the past elevated to a level fit for the future.
The original Linton incarnations of the 1960s and 1970s were well known for their rich and natural sound quality; the new model retains these attributes but upgrades the performance in every department. Its bass is deep and well-defined, its midrange clear and open, with free-breathing dynamics and an expansive scale that brings music to life. It is a sound you can dive into and lose yourself in, as you listen to album after album; a nostalgic nod to the past elevated to a level fit for the future.
Designed to appeal
This is a speaker that exudes authenticity, designed to appeal to the dedicated music-lover.

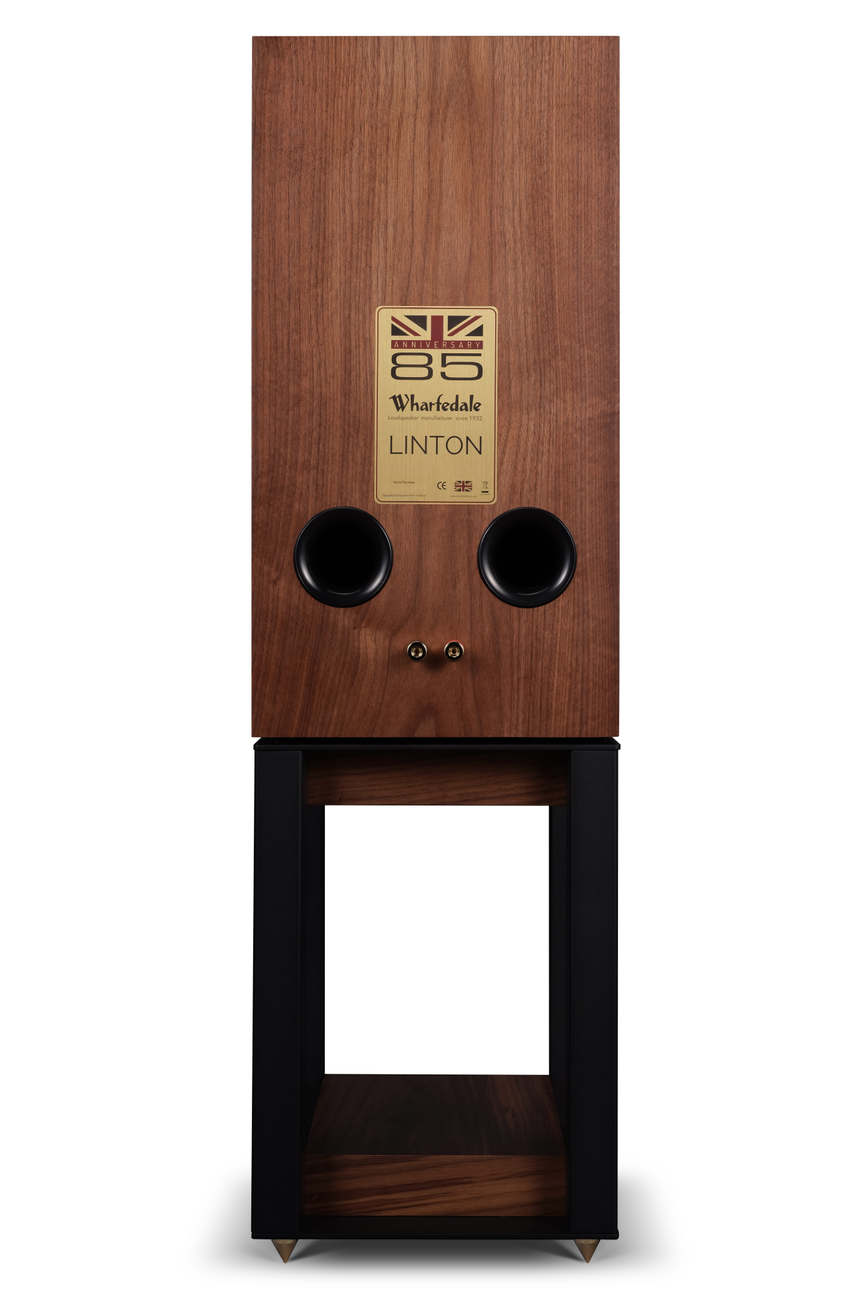

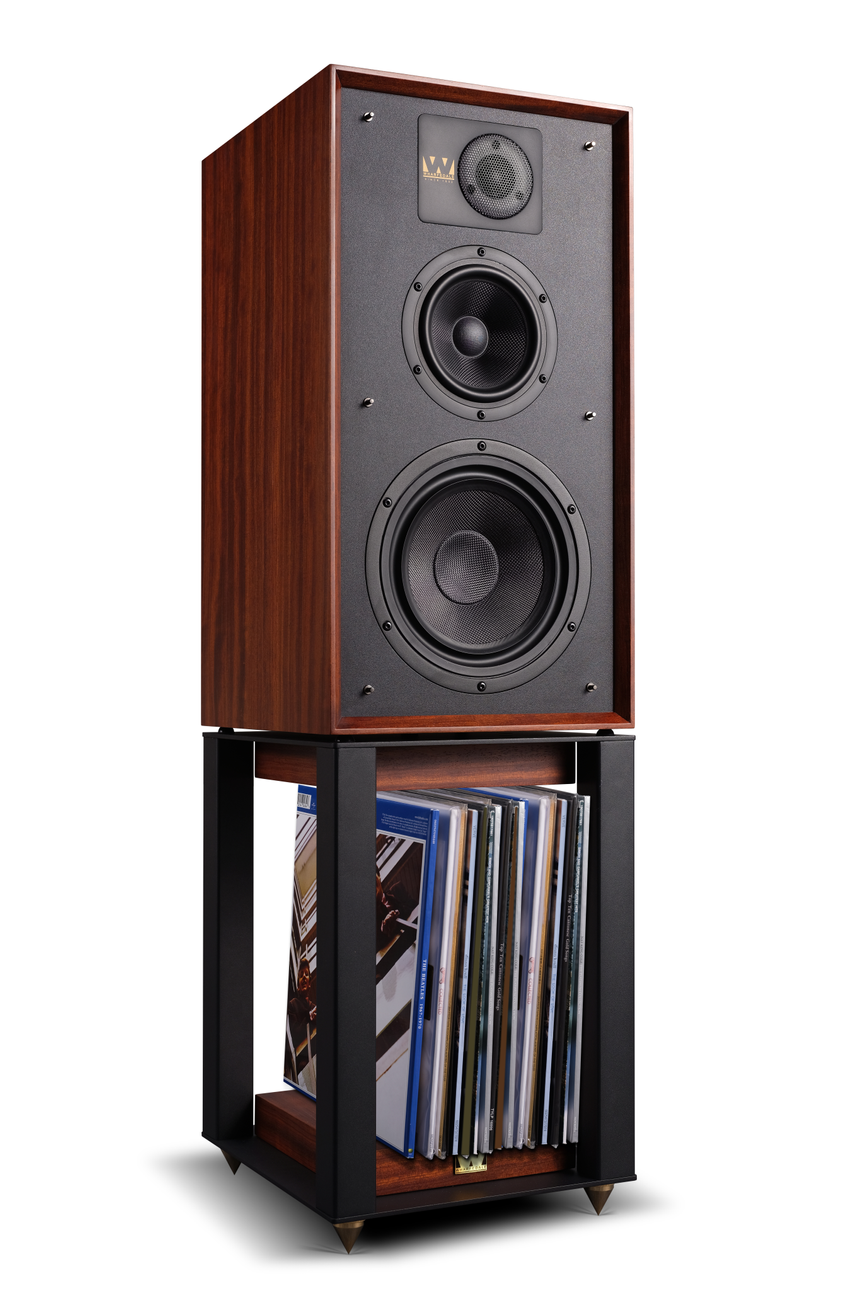

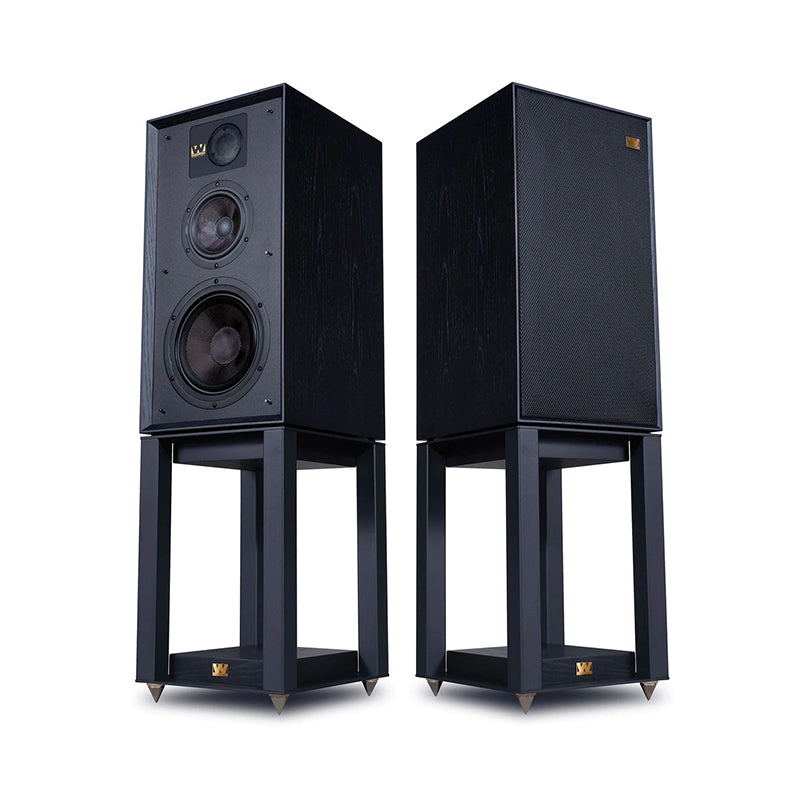

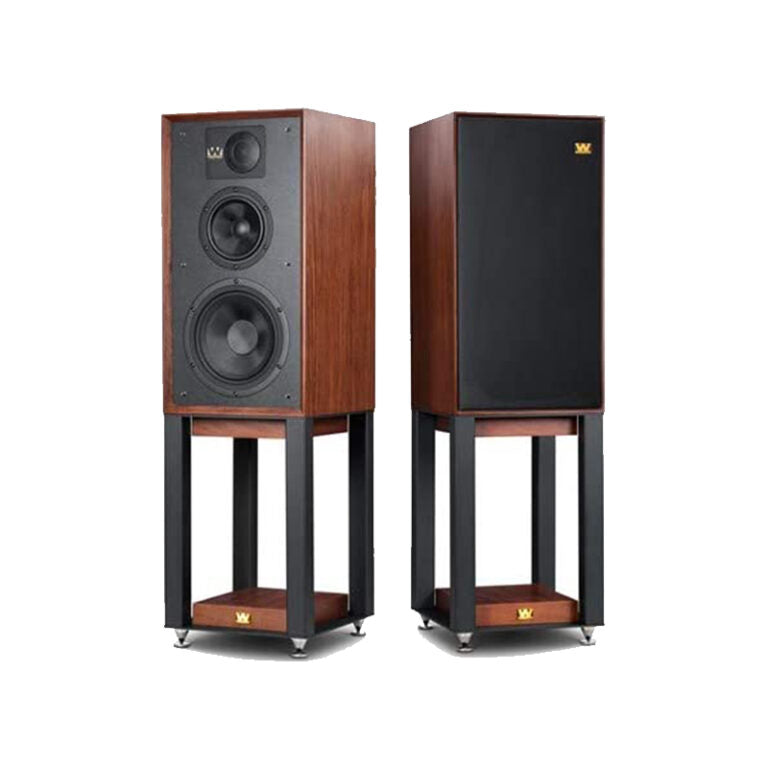

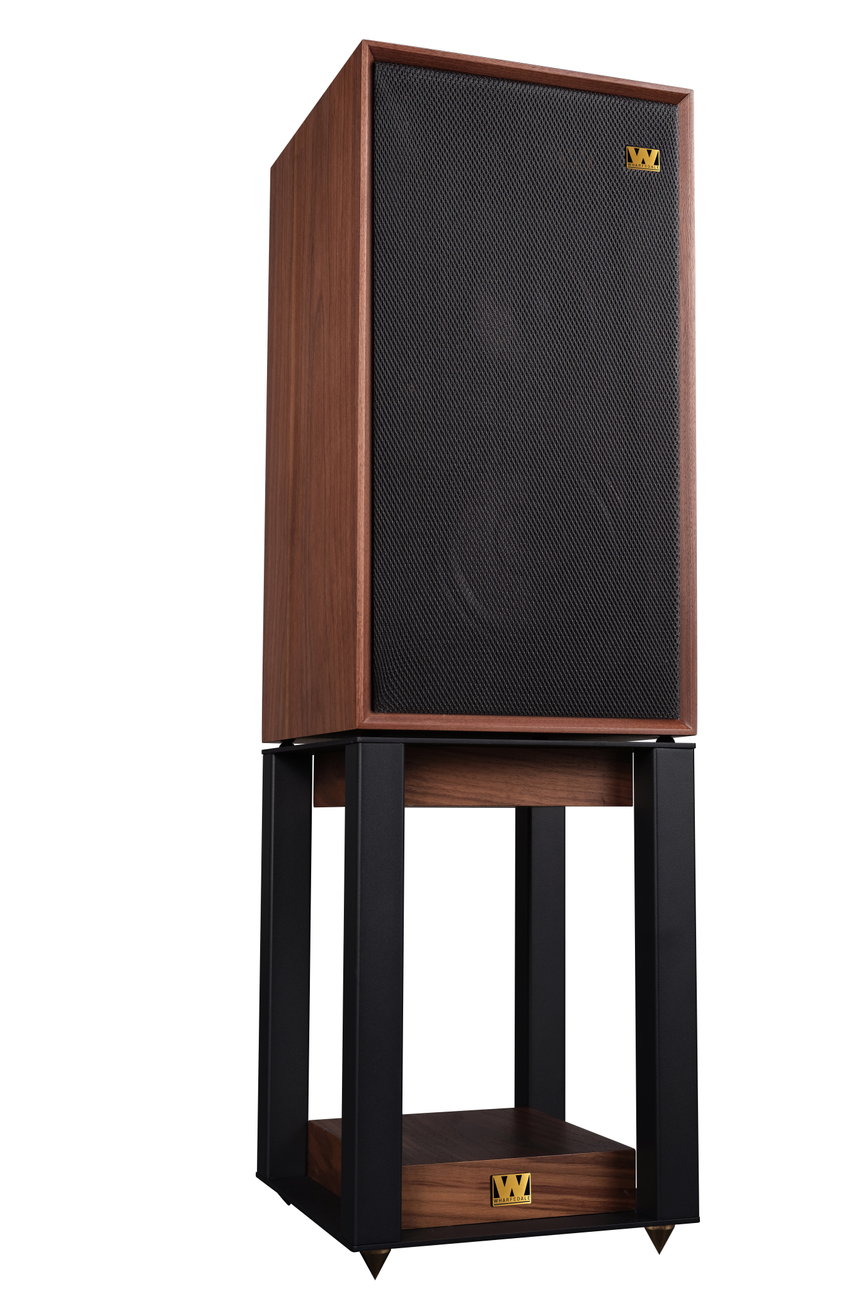

In keeping with a design intended to be treasured, the new Linton sports hand-matched wood veneers and optional matching stands with a similarly classic style. Custom-made to ensure each speaker is sited at the perfect height for a seated listener, the stand’s rigid metal frame ensures critical damping of unwanted vibrations, embellished with wood-veneered panels at the top and bottom to complement the speakers. The design even provides space to store vinyl records within the stand’s structure.
In keeping with a design intended to be treasured, the new Linton sports hand-matched wood veneers and optional matching stands with a similarly classic style. Custom-made to ensure each speaker is sited at the perfect height for a seated listener, the stand’s rigid metal frame ensures critical damping of unwanted vibrations, embellished with wood-veneered panels at the top and bottom to complement the speakers. The design even provides space to store vinyl records within the stand’s structure.
-----
| General Description | 3-way vented-box/standmount |
|---|---|
| Enclosure Type | Bass reflex |
| Transducer Complement | 3-way |
| Bass Driver | 8"(200mm) black woven Kevlar® cone |
| Midrange Driver | 5"(135mm) black woven Kevlar® cone |
| Treble Driver | 1" (25mm) soft dome |
| AV Shield | No |
| Sensitivity (2.83v @1m) | 90dB |
| Recommended Amplifier Power | 25-200W |
| Peak SPL | 110dB |
| Nominal Impedance | 6Ω |
| Minimum Impedance | 3.5Ω |
| Frequency Response(+/-3dB) | 40Hz ~ 20kHz |
| Bass Extension(-6dB) | 35Hz |
| Crossover Frequency | 630Hz & 2.4kHz |
| Height (on plinth) | 565mm |
| Width | 300mm |
| Depth (with terminals) | (330+30)mm |
| Net Weight 18.4kg | 18.4kg/pcs |
