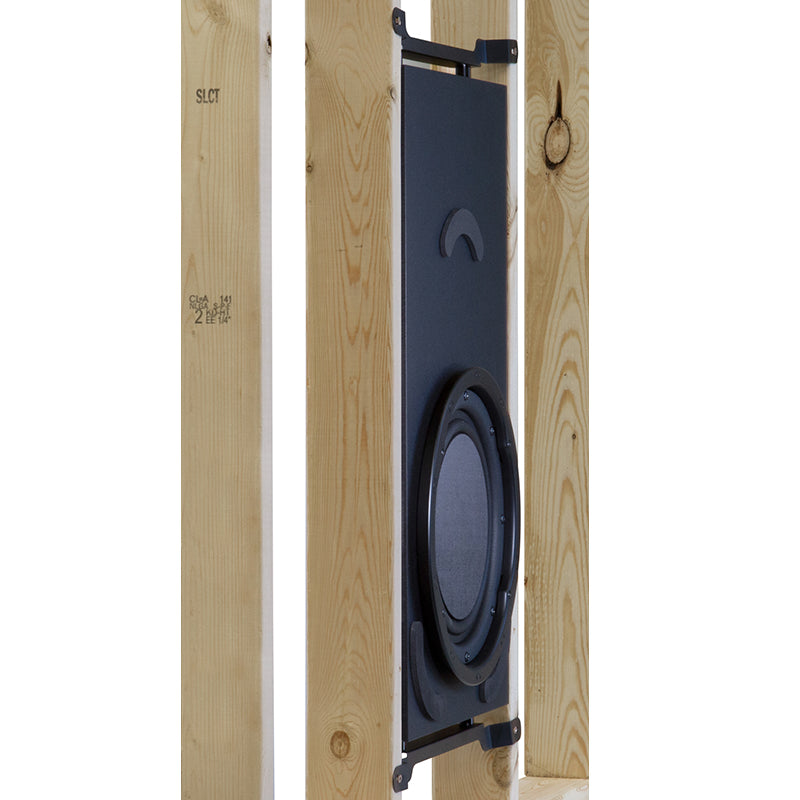

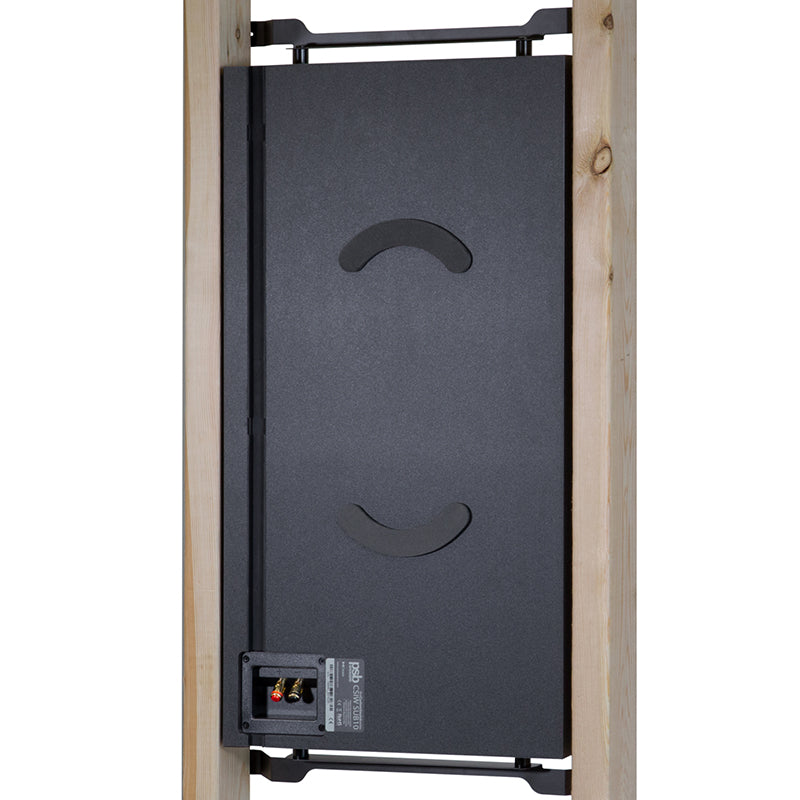

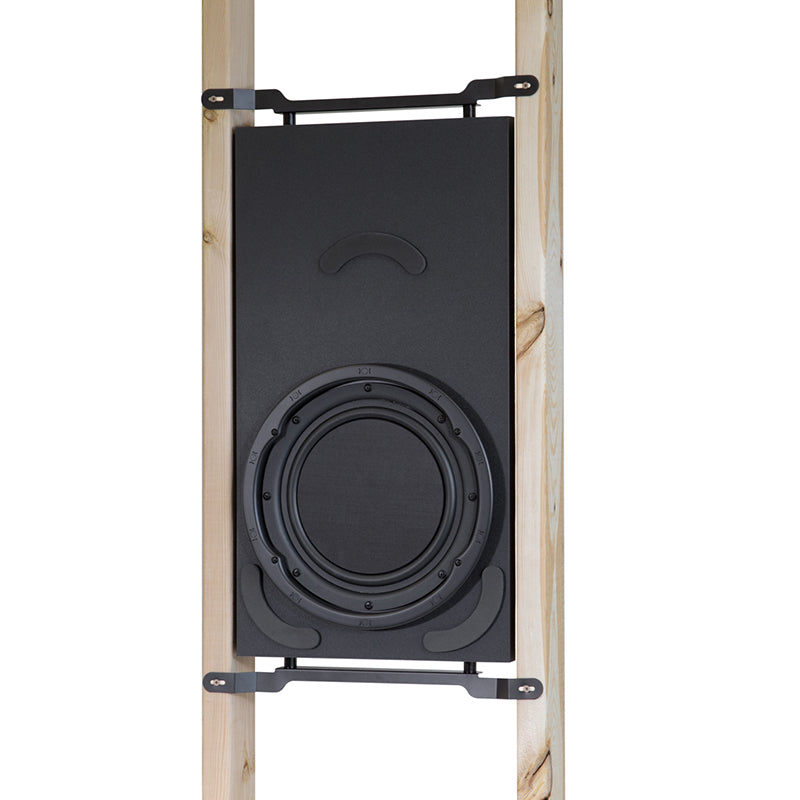

The unique design then couples the subwoofer cabinet directly to the stud beams and allows the grille to accommodate various wall thicknesses. A high excursion shallow driver delivers a bass response that is both precise and plentiful, precisely what you would expect from PSB.
The CSIW SUB10 is one of many high-performance speaker solutions that enables a system designer or installer the ability to simply pick the right tool for the job. To make implementation even easier, PSB has developed a complementary subwoofer amplifier (CS 500W) to power up to two subwoofers simultaneously.
Designed and voiced by the legendary Paul Barton at Canada’s famed NRC in Ottawa. All PSB subwoofer models are voiced to deliver the tight and detailed bass response and capable of reproducing the most demanding home theatre and music tracks.
Key Features of the PSB CSIW SUB10
- A unique in-wall sub design to cover a wide range of applications
- Well suited for either high-performance music or home theater systems
- Optional dedicated amplifier CS 500W that can easily drive any two of new subwoofer models simultaneously
- Design and final voicing engineered by Paul Barton
SPECIFICATIONS
- Frequency Response
On-Axis @ 0°±3dB
25-150Hz
- Sensitivity
Anechoic Chamber
88dB
Listening Room
90dB
- Impedance
Nominal
8 Ohms
- Acoustic Design
Woofer (Nominal)
10″ (254mm)
Glass fiber / PMI foam sandwich cone
Die Cast Basket
Rubber Surround
Balanced Drive motor structure
- Construction
Cabinet
MDF
Grille
Magnetic, Small Perforation Metal
- Size (W x H x D)
Net W
14″ (356mm)
Net H
26” (660mm)
Net D
3 7/8” (98mm)
- Shipping Information
Net W
TBD
Net H
TBD
Net D
TBD
Volume
TBD
Weight – Net – Shipping
TBD
