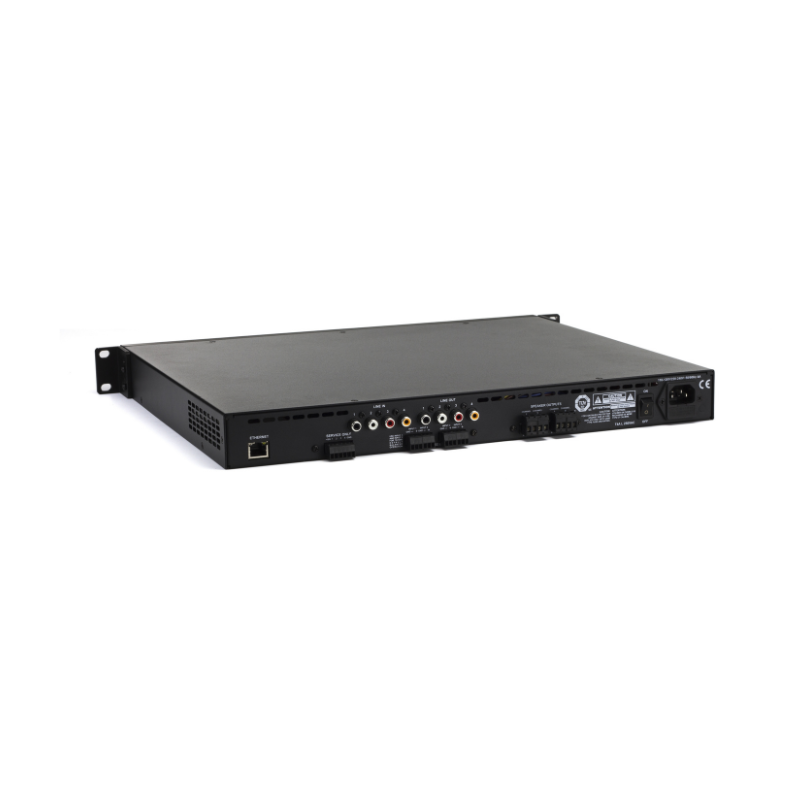

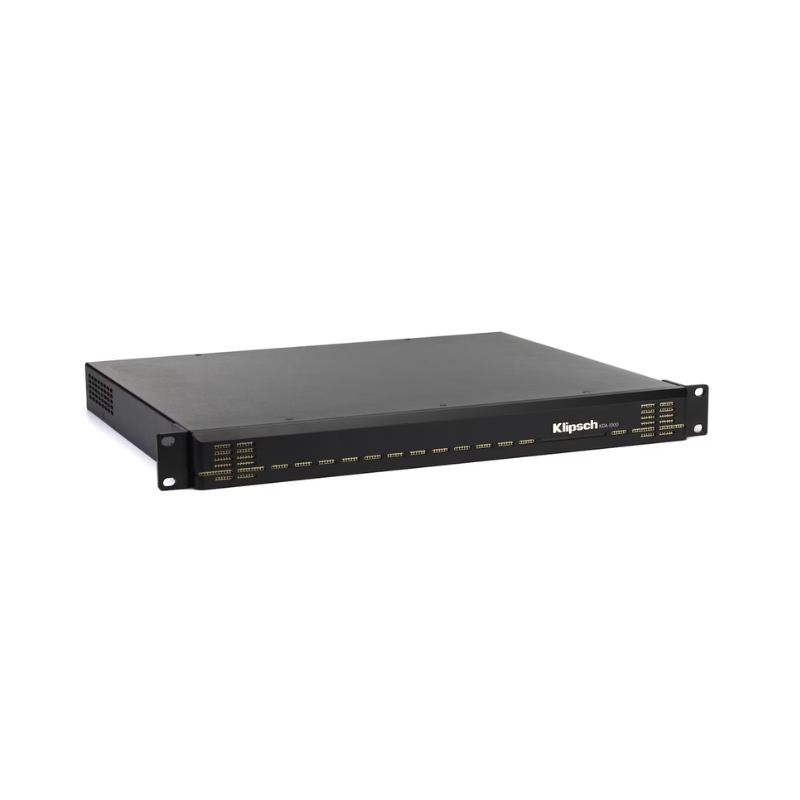

Features:

• 1000W Total System Power (4 x 250W)
• High performance power platform
• 70V / 100V / Low Impedance Compatibility
• Flexible I/O
• State-of-the-art DSP control and set-up

Specifications

Model: High Efficiency Class G/H Amplifier

Part Number:

• 120V: 1063258
• 230V: 1063261

Amplifier Type:

• High Efficiency Class G/H

Amplifier Power:

• 1000W Total System Power
• 4 x 250W Per Channel

Inputs:

• Balanced: 4 x Phoenix Line Level (up to 12 AWG wire)
• Unbalanced: 4 x RCA Line Level

Outputs:

• 4 x Phoenix Speaker Level (up to 12 AWG wire)
• 4 x RCA Line Level (Throughs)

Input Specifications:

• Input Sensitivity: 750mV Balanced, 0dBU
• Input Impedance: Balanced 40k

Performance:

• THD: <1% @ Rated Output
• Signal-To-Noise: -100dB Below Rated Output

Enclosure:

• Front Face: ABS Plastic
• Case: Machine Formed Steel

Rack Unit:

• 1RU

Product Dimensions:

• 1.73” x 19.02” x 14.29” (44mm x 483mm x 363mm)

Product Weight:

• 15 lbs (6.82 kg)

Mount Type:

• Removable 1RU Rack Ears, Removable Rubber Feet

Built From:

• 2016
