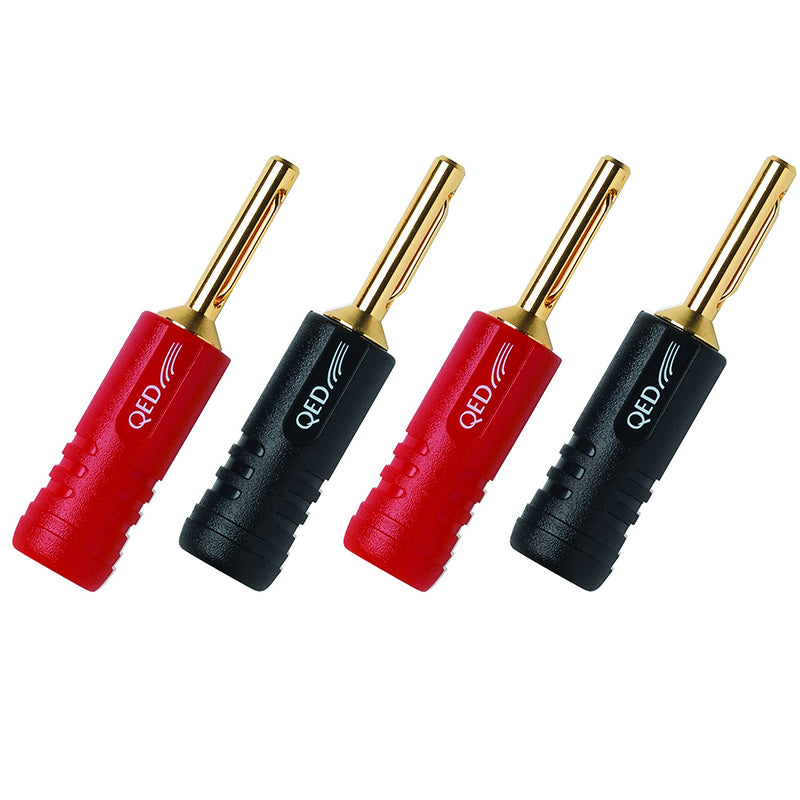

QED QE1880 Screwlock 4mm Banana Plugs - 2Red/2Blk

Regular price R 760.00

QEDQE1880

QED QE1880 Screwlock 4mm Banana Plugs - 2Red/2Blk
Ask a Question

E-CREDIT, NOW AVAILABLE
Backed by Merchant West, E-piphany's E-Credit offers finance on orders with a minimum value of R50 000. Learn More.

Merchant West Epiphany Finance

Product information

Warranty & Support
Manufacturer’s warranty can be requested from customer service. Click here to make a request to customer service.

Feedback
Would you like to tell us about a lower price? Please click here to provide feedback.

Product Specifications
Please refer to the below table for the most important specifications. You can also view the product description below the table for more details. Always feel free to contact our expert consultants by clicking here to find any additional information or to ensure that this product will work for you.

Product Description



Screwloc ABS 4mm Banana / Spade Plug

The screwloc forte 4mm Banana Plug and spades are the ideal finishing connection to ensure you get the best from your speaker cable

Designed for use where speed and convenience are the paramount concern, these connectors make the most of the Screwloc style termination providing a twin conductor clamp to suit cable diameters up to 3.25mm. The new forte plugs are 24k Gold Plated which has a resistivity almost as low as copper but more importantly does not oxidise in air.

FEATURES AND BENEFITS

The new Forte banana plug section is designed to maximise the contact area throughout the wide tolerance range encountered in a 4 mm amplifier and speaker sockets. Some can be quite tight whereas others may be loose, so the spring-loaded Forte blade is designed to fit into smaller and larger sockets with equal insertion force. This means that the contact area is maximised and the connection remains uniformly tight.

Screwloc spade plugs are 'duo' to enable secure contact with both standard and wide spade terminals.

Both the banana plugs and spades are made of brass which has roughly twice the resistivity of copper. For this reason, the plug was devised so that its cross-sectional area would be at least double that of the cable to which it was connected effectively cancelling out the extra resistance of the plug material. QED then plates the connector with high purity gold which has a resistivity almost as low as copper but more importantly does not oxidise in air.

Available in the following retail packs:

  • Screwloc 4 mm Banana plug 2R 2B
  • Screwloc 4 mm Banana plug 5R 5B
  • Screwloc Duo Spade plug 2R 2B
  • Screwloc Duo Spade plug 5R 5B
