Ultimate drive unit technology

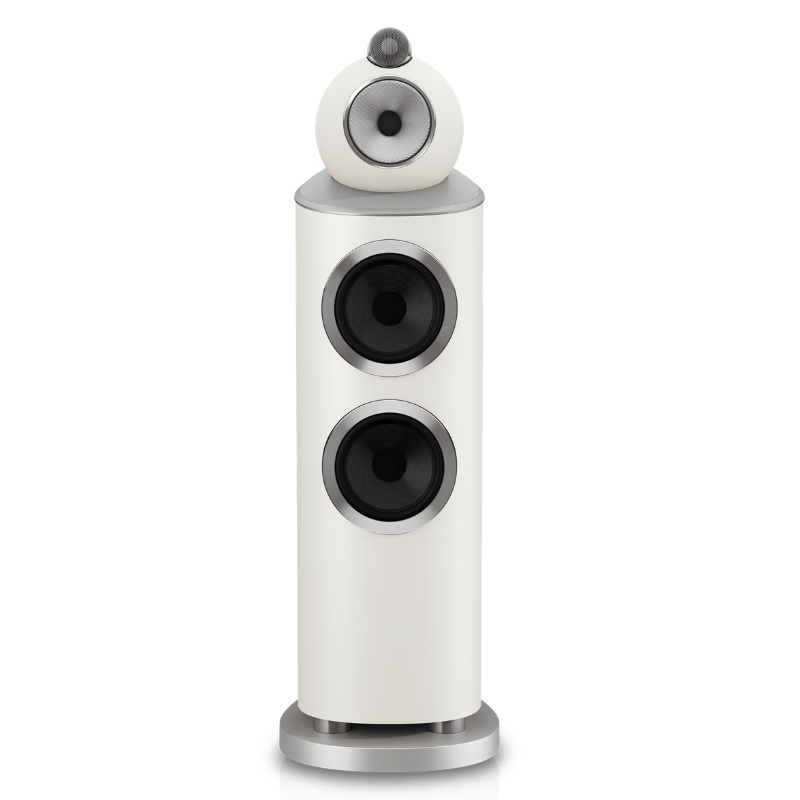

Pairing our most advanced and innovative drive unit technology, the 804 D5 delivers our purest sound ever. The Diamond dome tweeter pushes break-up frequency to 70kHz, delivering exceptional clarity, precision and openness, and the Continuum™ cone delivers voices and instruments with lifelike detail.
Optimised for pure performance
Every model in the new 800 Series Diamond range benefits from enhanced technology. An upgraded Matrix™ design reduces resonance and creates a more believable soundstage, while aluminium Space Frame Bracing and an all-new aluminium top section and midrange enclosure within the cabinet help deliver an even more spacious and immersive sound.
Crafted to be better by design

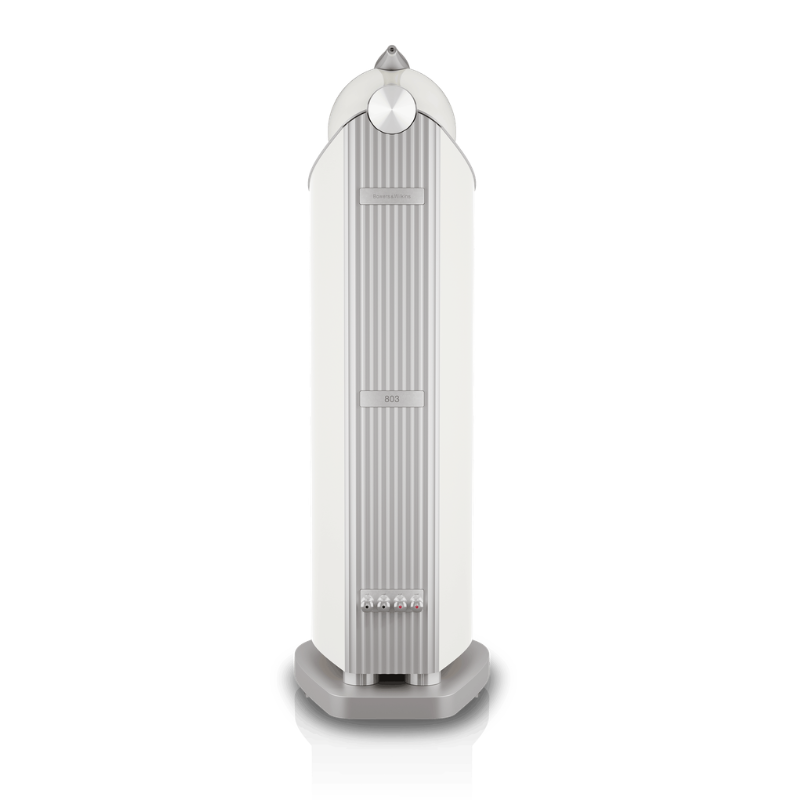

The 800 Series Diamond looks this way for a reason. Its shape is dictated by the science of sound. Our cabinets are formed from a single continuous curve, locked in place by a solid aluminium spine, so cabinet reflections are reduced. Complemented by the Tweeter-on-Top, musical performance is always as precise as possible.
Specifications
Size & weight
-
DimensionsHeight: 1101mm (43.3 in) including tweeter and plinth
Width: 238mm (9.4 in) cabinet only, 308mm (12.1in) including plinth
Depth: 337mm (13.3in) cabinet only, 392mm (15.4in) including grille and terminals
-
Net weight40.3kg (88.7lbs)
Technical details
-
Technical featuresDiamond dome tweeter
Solid body Tweeter-on-Top
Continuum™ cone FST midrange
Anti-Resonance plug
Biomimetic Suspension
Matrix™
Aerofoil™ base cones
Flowport™
-
Description3-way vented-box system
-
Drive units1x ø25mm (1in) Diamond dome high-frequency
1x ø130mm (5in) Continuum cone FST midrange
2x ø165mm (6.5in) Aerofoil™ bass
-
Frequency range-6dB 20Hz to 35kHz
-
Frequency response19Hz to 24kHz (+/-3dB)
-
Sensitivity89dB
-
Harmonic distortion2nd and 3rd harmonics (90dB, 1m on axis)
<1% 90Hz – 20kHz
<0.3% 120Hz – 8kHz
-
Nominal impedance8Ω (minimum 3.0Ω)
-
Recommended amplifier power50W – 1000W into 8Ω on unclipped programme
-
Max recommended cable impedance0.1Ω
Finishes
-

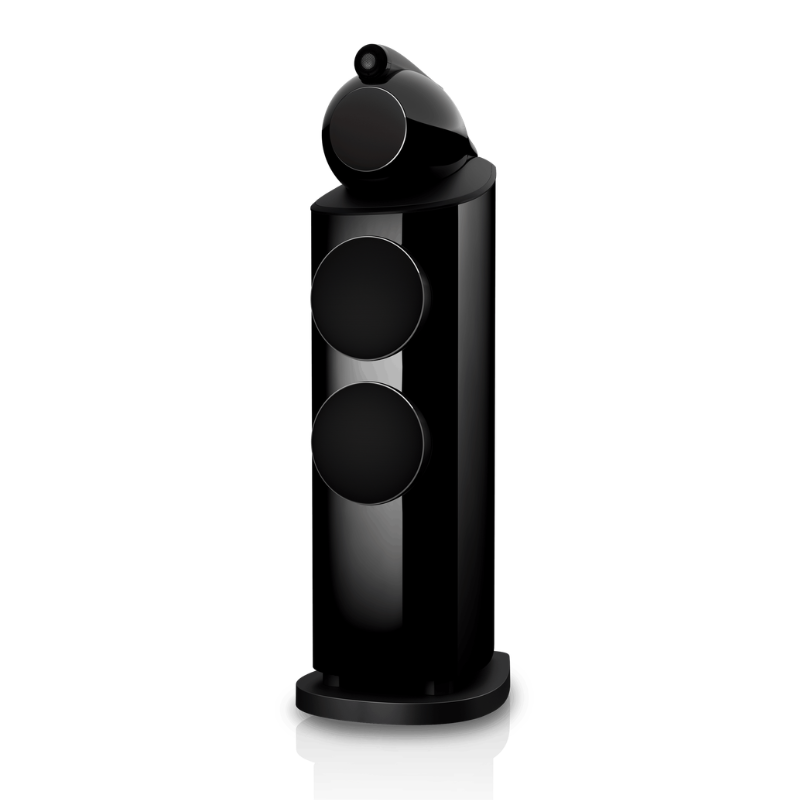

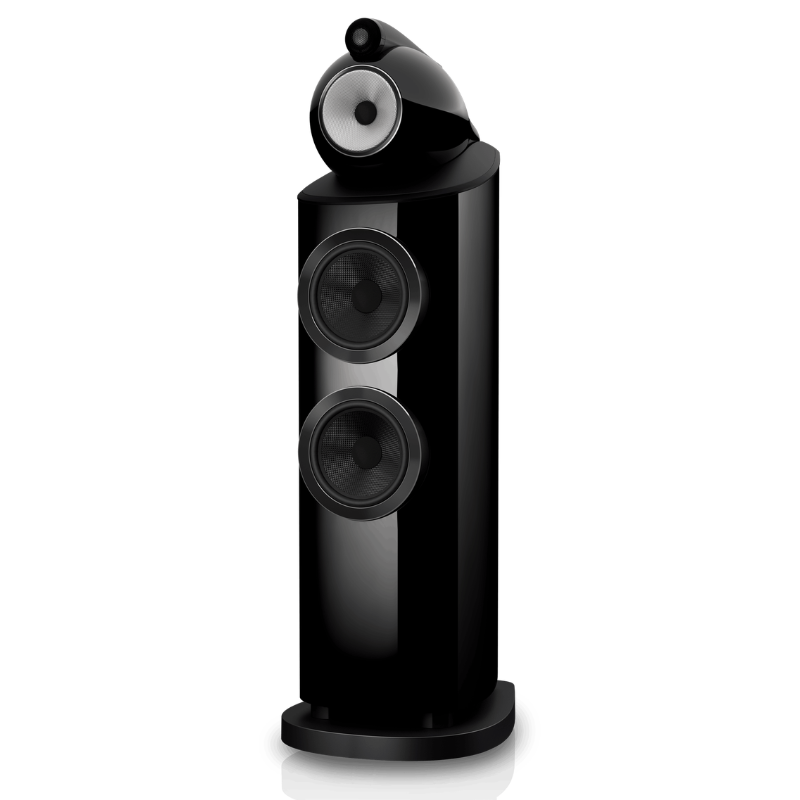

Cabinet finishesStealth Black

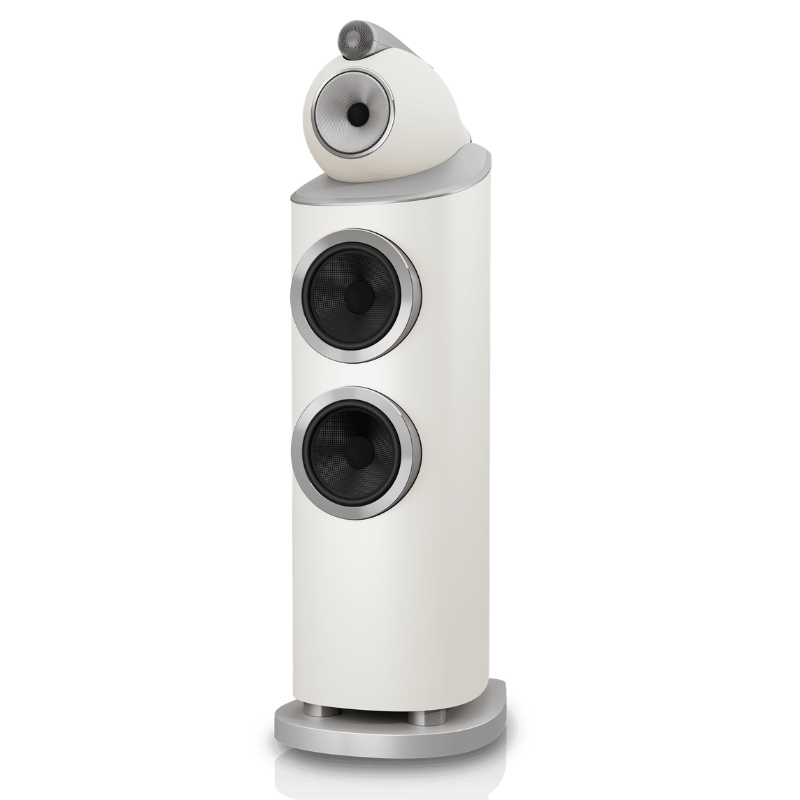

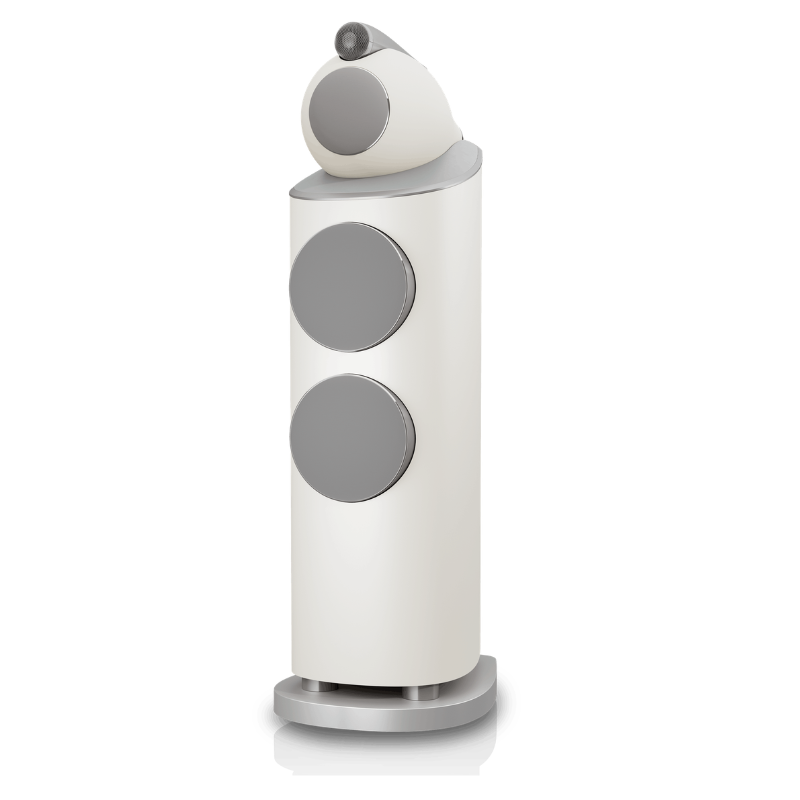

Warm White

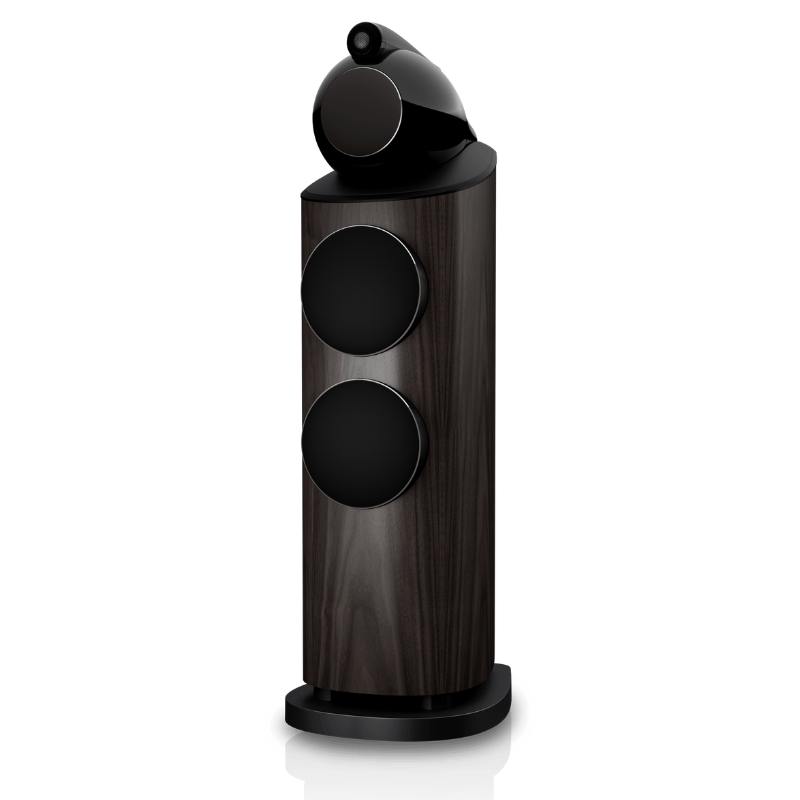

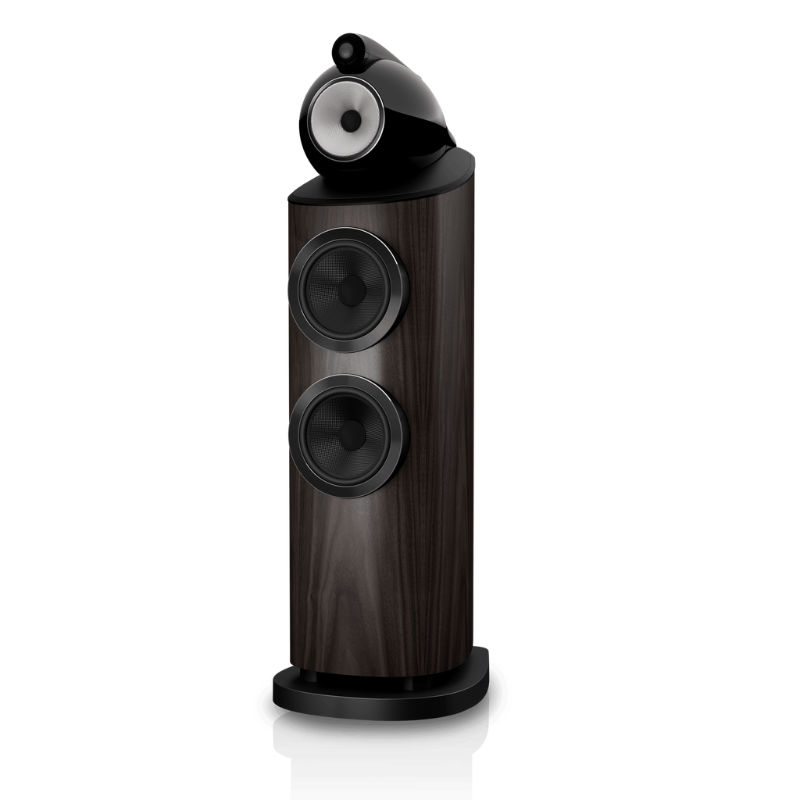

Dark Walnut

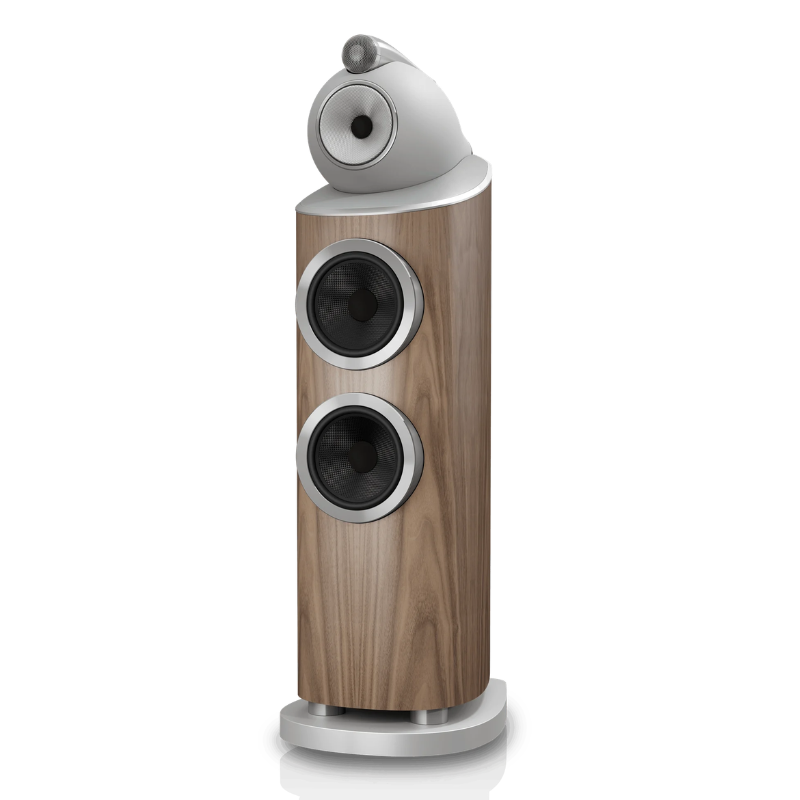

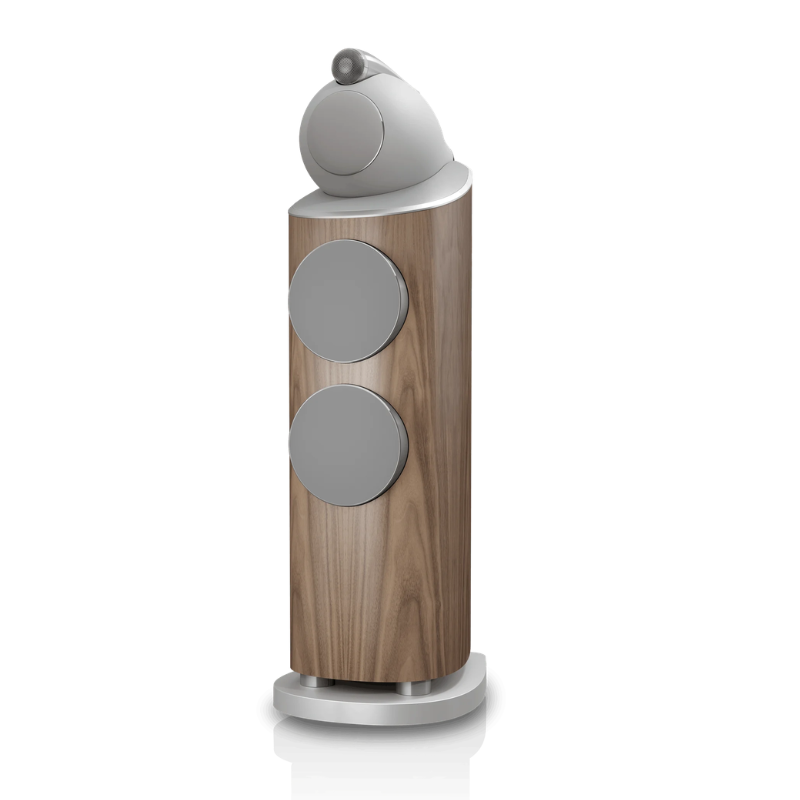

Light Walnut
-
Grille finishesBlack (Stealth Black and Dark Walnut)
Grey (Warm White and Light Walnut)
This item requires further consultation. If interested, please reach out to our team and a product specialist will reach out within the hour.
