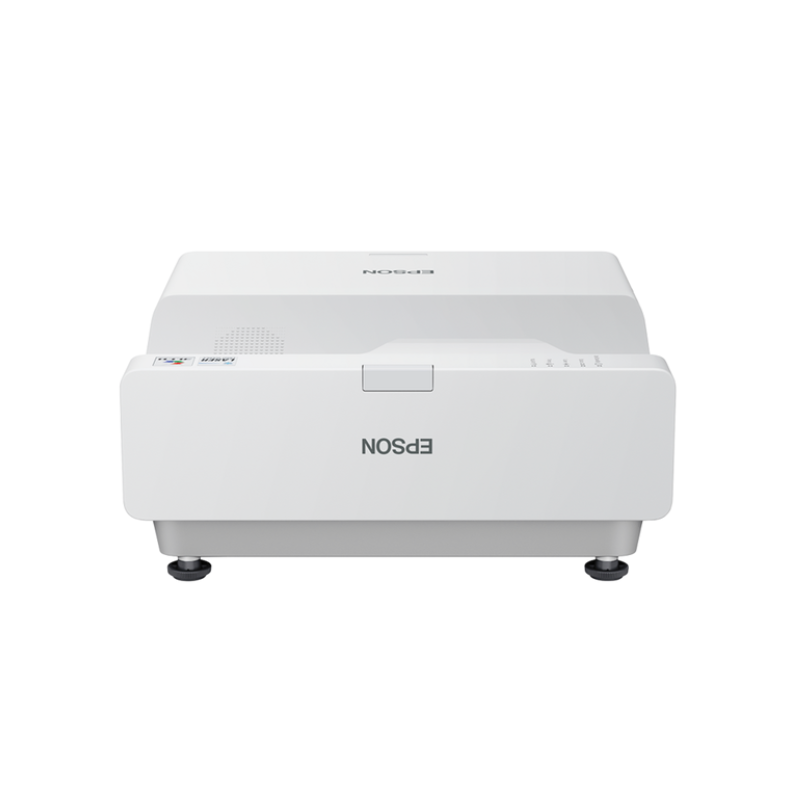

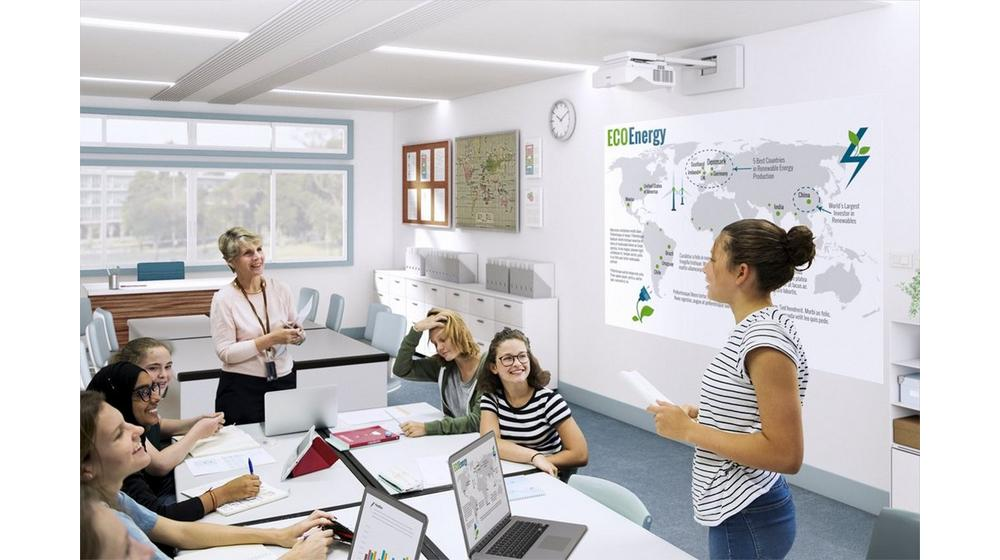

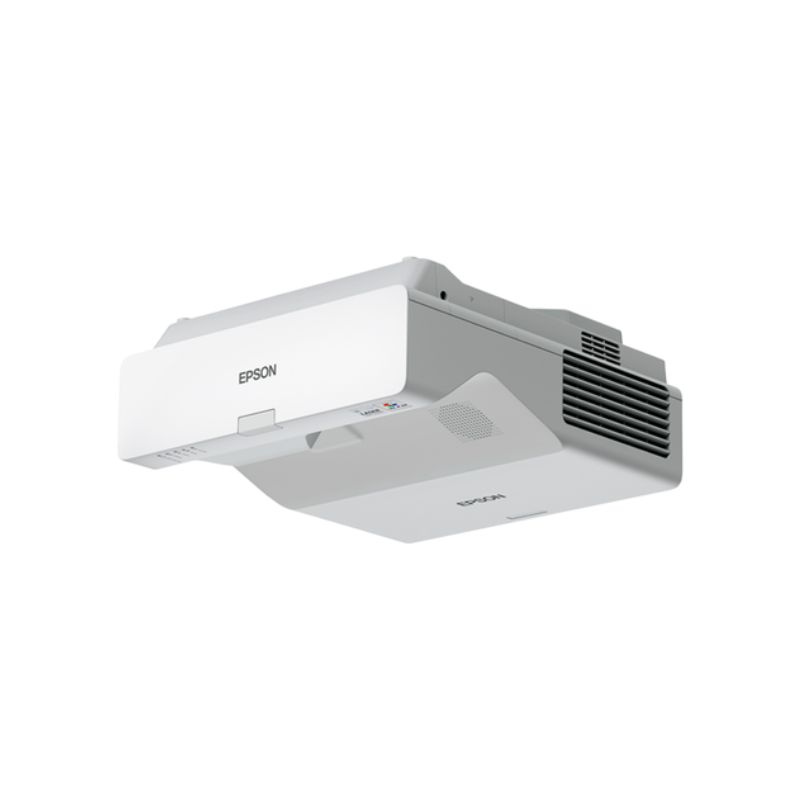

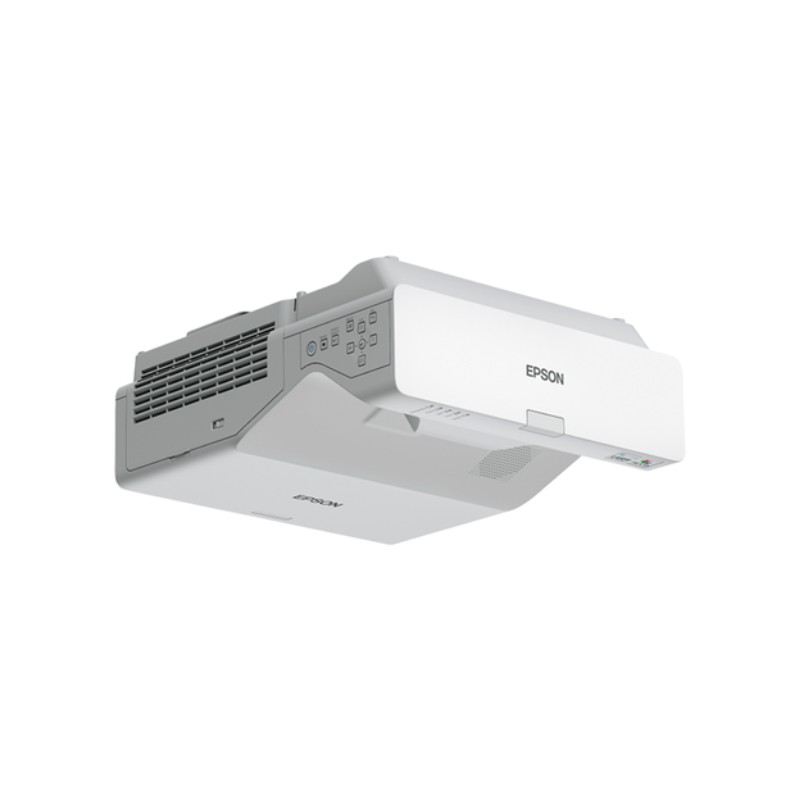

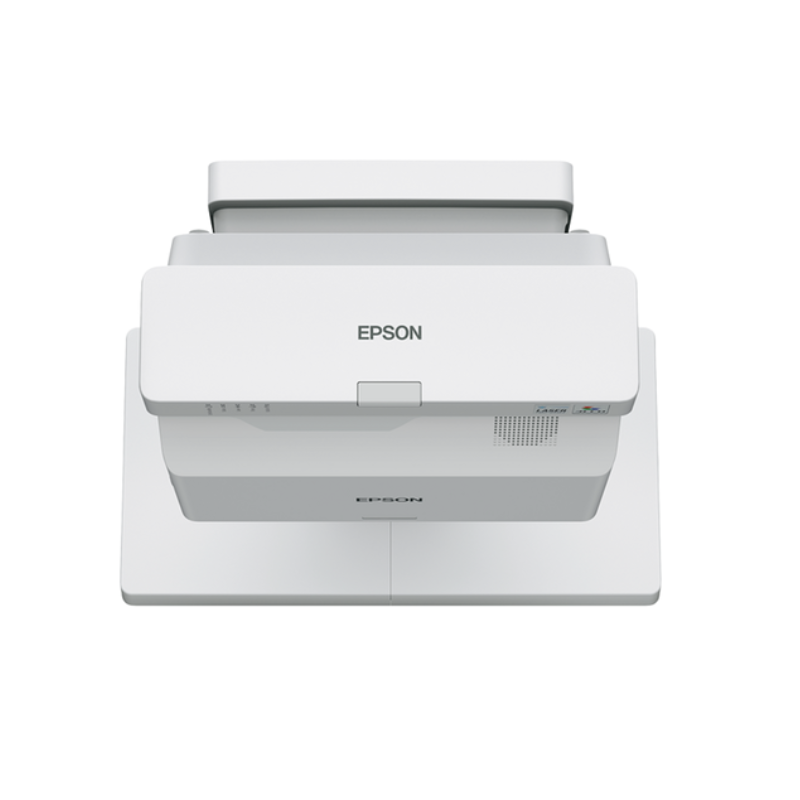

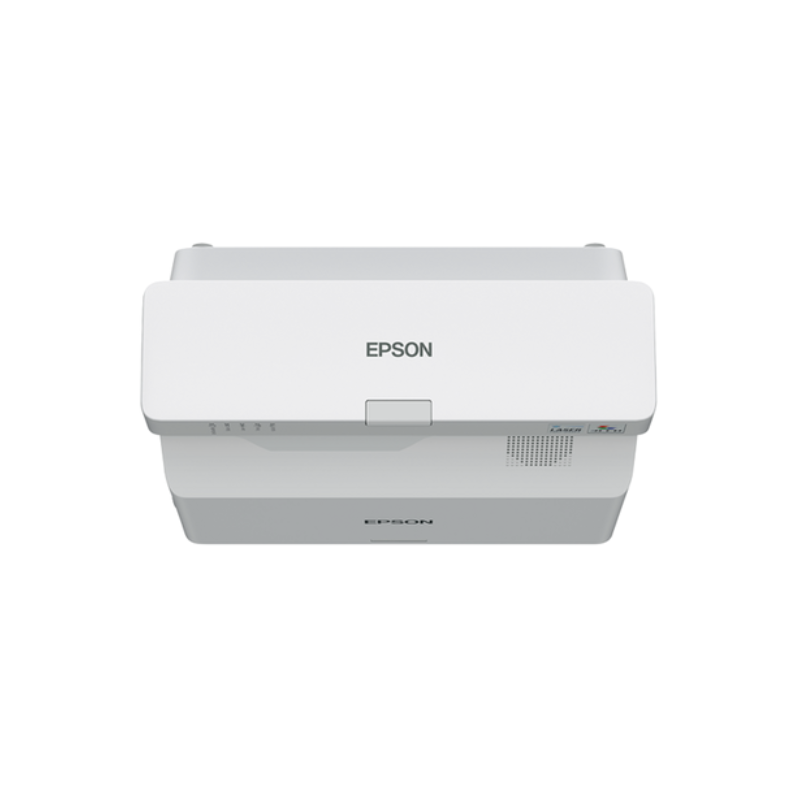

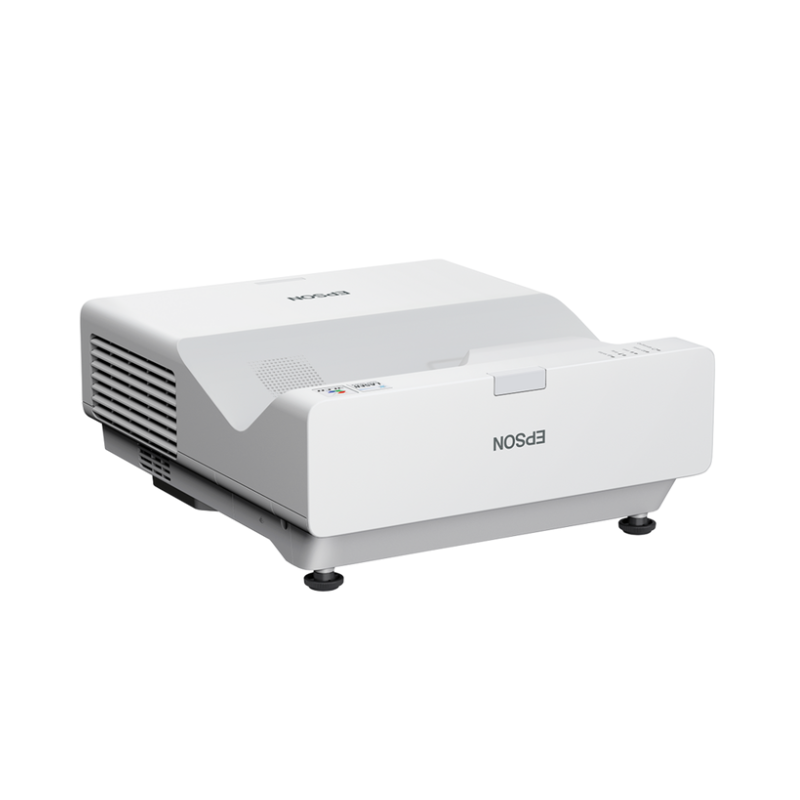

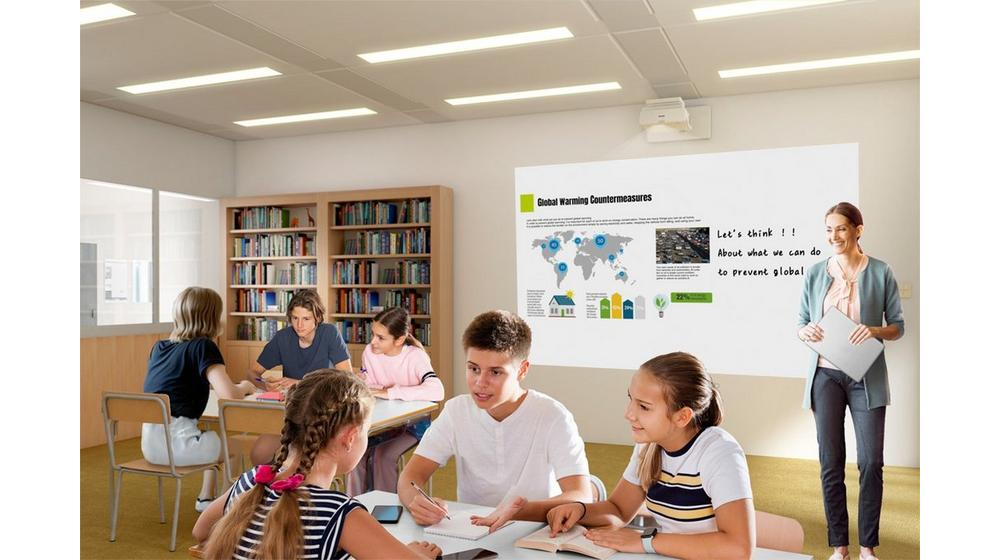

The EB-760W's ultra short throw lens allows safe, discreet positioning close to the display, enabling presenters free access to perform without casting shadows.

With 4,100 lumens Colour Light Output and Epson 3LCD technology, the display is bright and vibrant up-to 150", clearly visible from all angles and from a distance. The experience is immersive and user-friendly.

Projection also enables flexible display sizes, scalable from 49-150", display sizes can be optimised for each room with one familiar product and at a fixed cost

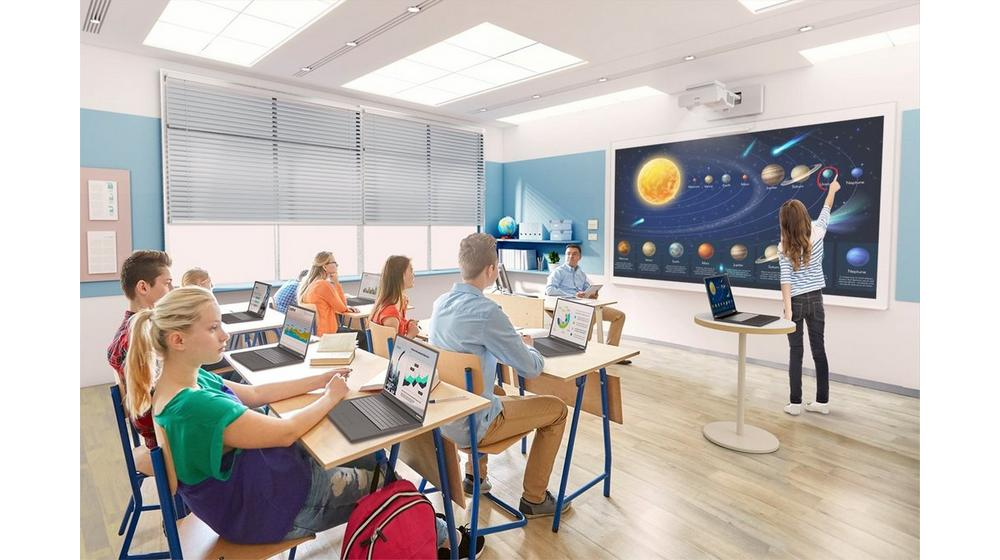

Versatile wired and wireless connectivity options, including screen mirroring via Miracast™, allow participants to effortlessly share content from their PCs or mobile devices. With a connected optional Epson visualiser, documents, presentations or 3D objects can be viewed with incredible detail.

Unlike a flat-panel display, there is no heavy, breakable, glass panel to create disruptive, reflected blind spots at certain angles, and teachers are not subjected to LCD panel direct blue light radiation, believed to damage eyes. Paired with a hygienic, antibacterial whiteboard, teachers can annotate presentations with dry-wipe pens, or to save energy, simply use the whiteboard with the display turned off.

Key Features

• Scalable HD display for any room 53-150" UST display for unrestricted viewing (no shadows/reflections)
• Bright and energy efficient laser 4,100lm CLO with 3LCD technology for brighter colours at only 205W
• Effortless connectivity options Auto-on, wired / wireless display with USB 2A output for smart sticks
• Simple to use and built to last Virtually maintenance free with 5-year, 12,000hr warranty
• Document camera compatibility Create and record a live, totally immersive lesson or presentation

Specifications

Technology:

• Projection System: 3LCD Technology, RGB liquid crystal shutter
• LCD Panel: 0.59 inch with C2 Fine

Brightness:

• Color Light Output: 4,100 Lumen (Normal), 2,800 Lumen (Economy) (In accordance with IDMS15.4)
• White Light Output: 4,100 Lumen (Normal), 2,800 Lumen (Economy) (In accordance with ISO 21118:2020)

Resolution:

• Resolution: WXGA
• Resolution Enhancement: HD Ready
• Aspect Ratio: 16:10
• Contrast Ratio: Over 5,000,000:1

Light Source:

• Type: Laser
• Laser Light Source Life:
  • 20,000 hours (High Mode)
  • 30,000 hours (Eco Mode)

Keystone Correction (Manual):

• Vertical: ± 3°
• Horizontal: ± 3°

Color Processing:

• Color Video Processing: 10 Bits
• 2D Vertical Refresh Rate: 100 Hz - 120 Hz
• Color Reproduction: Up to 1.07 billion colors

Optical:

• Throw Ratio: 0.27 - 0.37:1
• Zoom: Digital, Factor 1 - 1.35
• Lens: Optical
• Screen Size: 60 inches - 150 inches
• Projection Lens F Number: 1.6
• Projection Lens Focal Length: 3.7 mm
• Projection Lens Focus: Manual
• Offset: 6:1

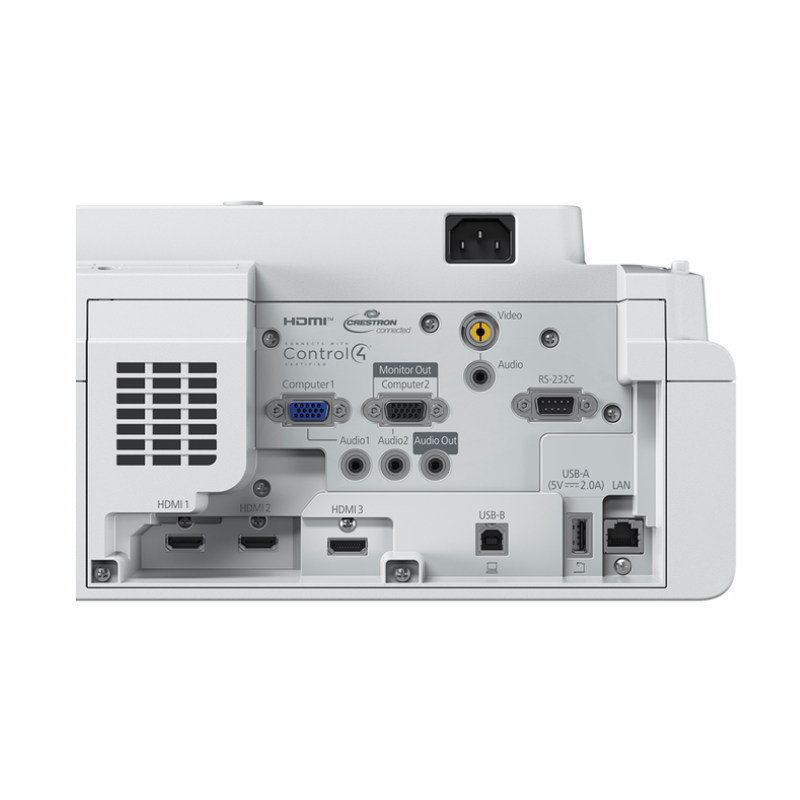

Connectivity:

• Interfaces:
  • USB 2.0-A (2x)
  • RS-232C
  • Ethernet interface (100 Base-TX / 10 Base-T)
  • Wireless LAN IEEE 802.11a/b/g/n/ac
  • VGA in (2x), VGA out
  • HDMI in (3x)
  • Composite in
  • Miracast
  • Jack plug out, Jack plug in (3x)
  • USB 2.0 Type B (Service Only)
  • Wi-Fi Direct
  • Microphone input
• Epson iProjection App: Ad-Hoc / Infrastructure
• Network Protocol: HTTPS, IPv4, IPv6, SNMP, ESC/VP.net, PJLink

Advanced Features:

• Security:
  • Kensington lock
  • Control panel lock
  • Padlock
  • Security cable hole
  • Wireless LAN unit lock
  • Wireless LAN security
  • Password protection
• Other Features:
  • A/V mute, Arc Correction, Auto Power On, Auto source search
  • Built-in speaker, CEC compatible, Customizable user logo
  • Digital zoom, Direct Power on/off, Document Camera Compatible
  • Email notification, Home Screen, Horizontal and vertical keystone correction
  • Image Shift, JPEG Viewer, Long light source life, Network projection
  • OSD copy function, PC Free, Power on button, Quick Corner
  • Schedule Function, Screen Mirroring, Ultra-wide display (16:6)
  • Web Control, Web Remote, Wireless LAN capable, iProjection App

Video Color Modes:

• Blackboard, Cinema, Dynamic, Presentation, sRGB

Projector Control:

• Via: Crestron Integrated Partner, Crestron RoomView, Extron IP Link, AMX Device Discovery, Control4 Simple Device Discovery Protocol

General:

• Power Consumption:
  • 197 W (Normal On-Mode)
  • 141 W (Eco On-Mode)
  • 263 W (Normal Peak-Mode)
  • 199 W (Eco Peak-Mode)
  • 0.5 W (Energy Saving Standby)
• Heat Dissipation: 895 BTU/hour (max)
• Supply Voltage: AC 100 V - 240 V, 50 Hz - 60 Hz
• Product Dimensions: 356 x 395 x 133 mm (Width x Depth x Height)
• Product Weight: 5.9 kg
• Noise Level:
  • 37 dB (A) (Normal)
  • 27 dB (A) (Economy)
• Supported Temperature: Storage -10°C - 60°C
• Supported Humidity: Operation 20% - 80%, Storage 10% - 90%

*Note: If the projector is suspended in environments with heavy oil smoke or chemicals, material degradation may occur, potentially causing the projector to drop. Contact support if concerned.

Included Software:

• EasyMP Multi PC Projection, Epson Projector Content Manager, Epson Projector Management

Options:

• Air filter, Ceiling mount, Connection and control box, External Speaker, Safety wire set, Visualiser camera, WP System - ELPWP10, Wall mount, Wireless LAN unit, Wireless transmitter - ELPWT01

Other Features:

• Loudspeaker: 16 W
• Room Type/Application: Meeting room / Classroom

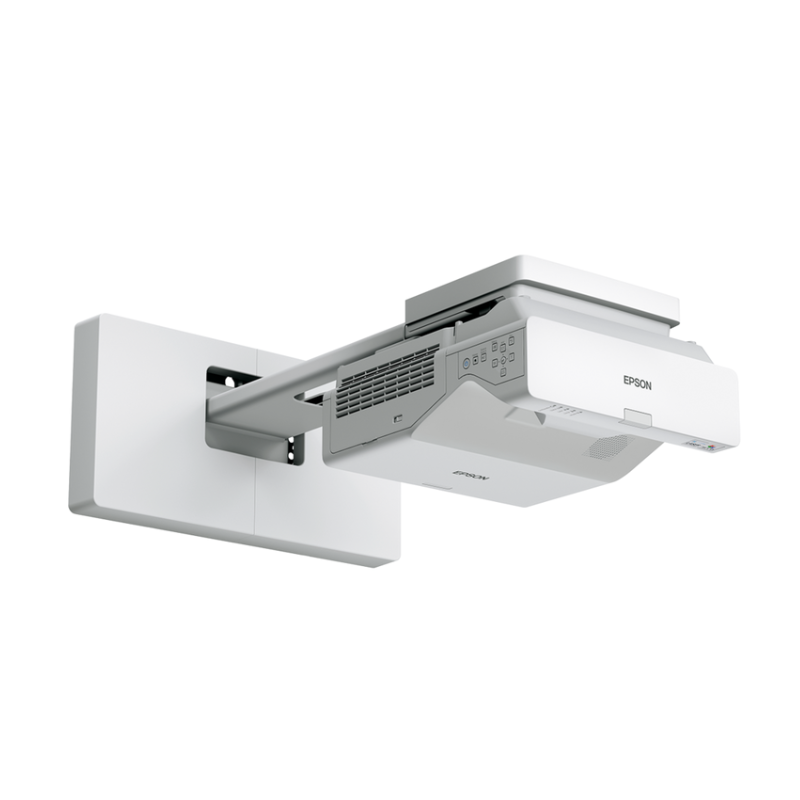

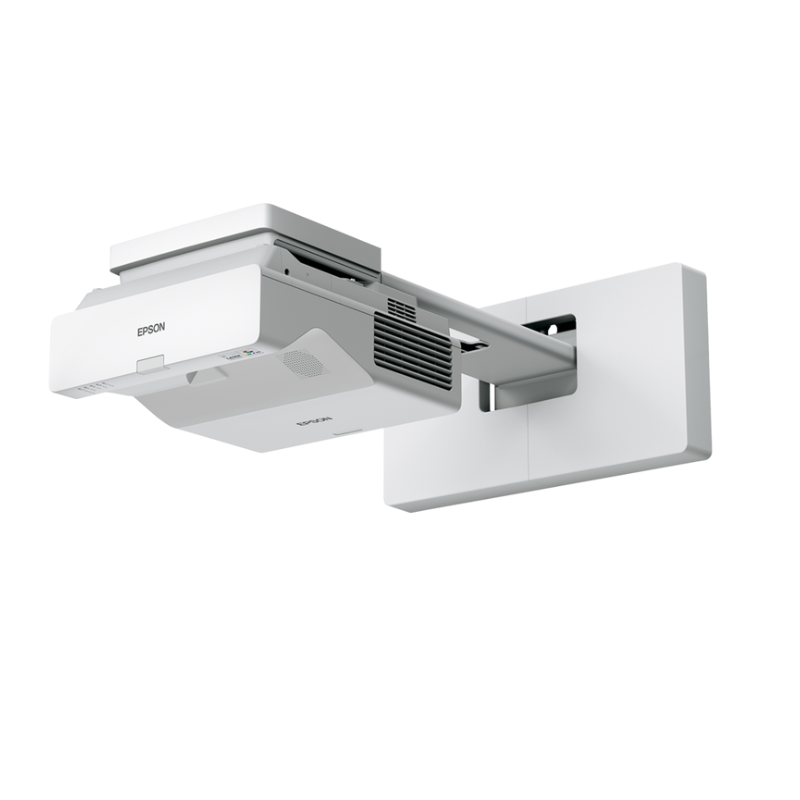

• Positioning: Ceiling Mounted, Desktop, Wall Mounted
• Colour: White

Warranty:

• 60 months Carry-in or 12,000 hours
