Create engaging displays

Epson's advanced laser technology makes this a flexible and easy to use digital signage solution. Create engaging displays up to 150" (larger when using 2 devices) at up to 4,100 lumens for easy visibility in bright environments.

Bring any surface to life, discretely

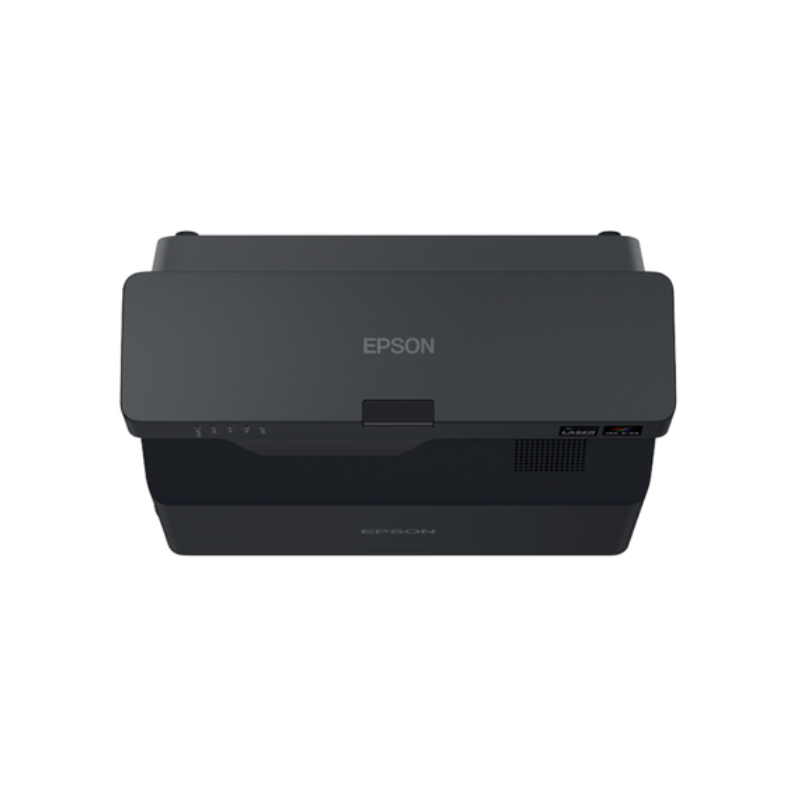

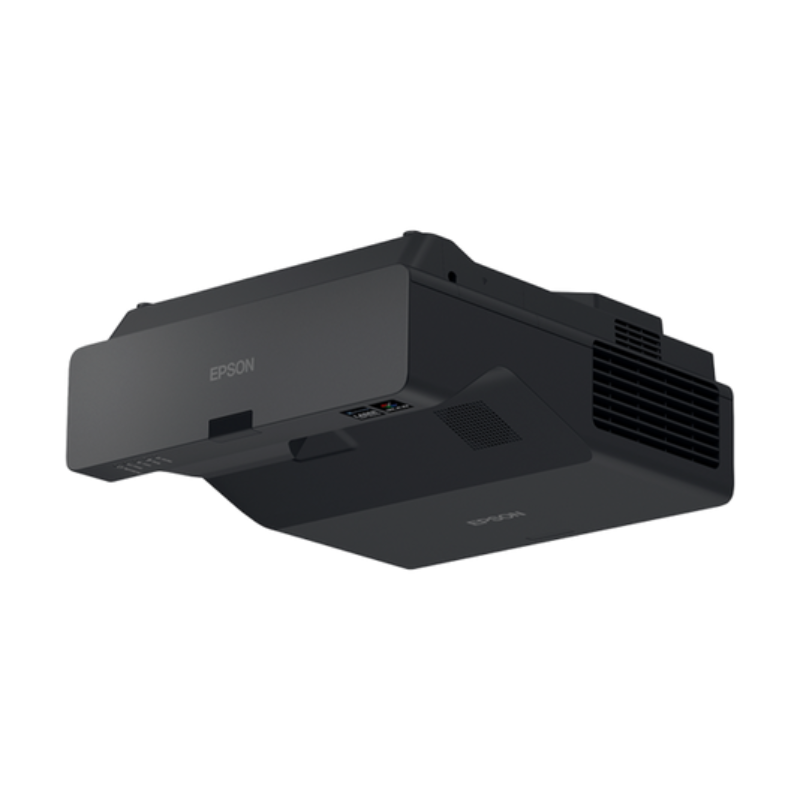

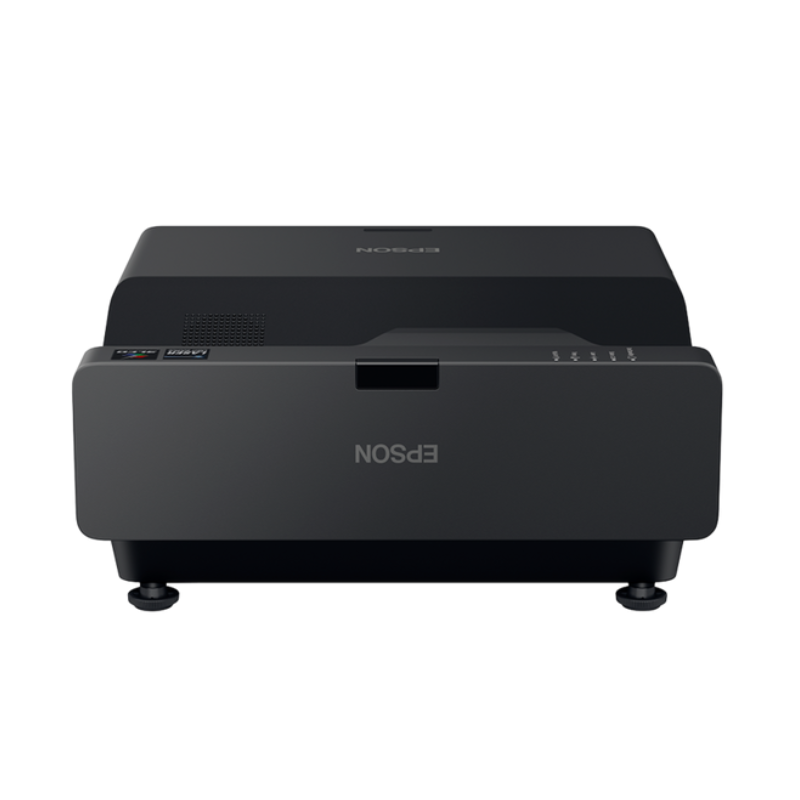

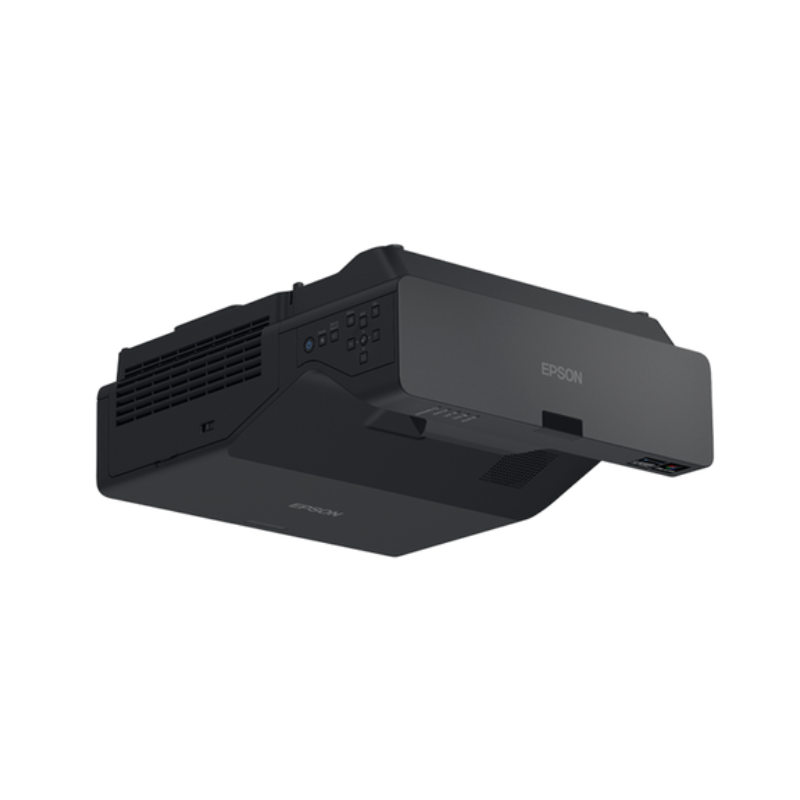

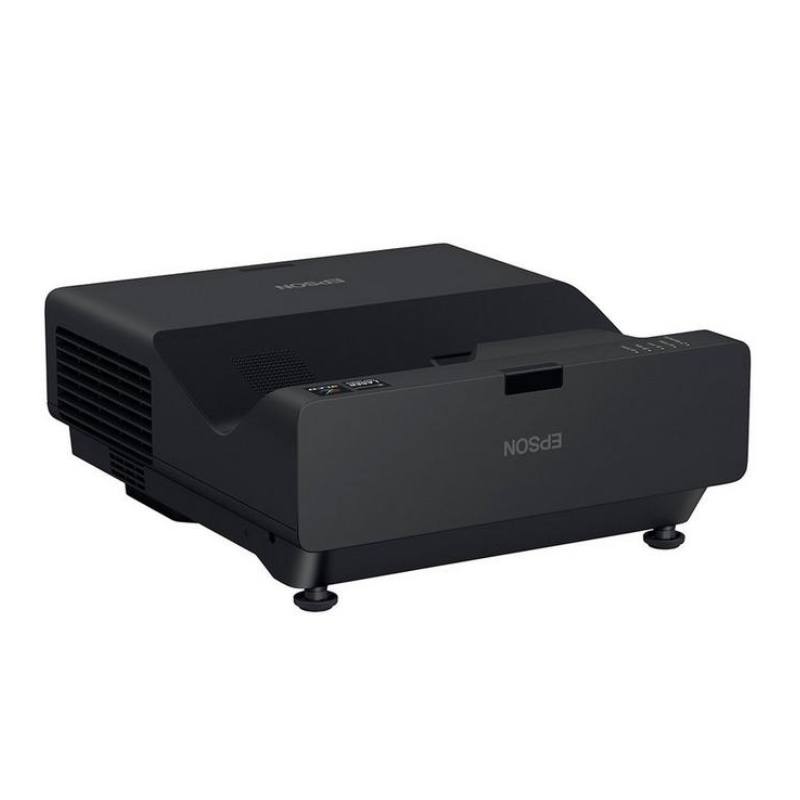

The EB-775F can be installed on wall or ceiling and can project onto almost any surface (even unconventional surfaces such as floor or pillars). It's UST design also makes it ideal for projecting large images in tight spaces. Choose between a black (EB-775F) or white (EB-770F) model to discretely blend it into your environment - it can even be hidden to create floating and borderless displays to surprise and delight audiences.

Robust, reliable and cost effective

Our laser technology is also robust and low maintenance. Offering up to 20,000 hours maintenance-free use and a 5 year warranty, this is a fit-and-forget display solution you can rely on at a cost-effective price.

Flexible playback options

Epson offers free apps for content creation (Epson Creative Projection & Epson Projector Content Management). Content can be played directly from USB (including playlists, videos, and signage content) via the built-in playback feature, or users can upload and playback content wirelessly with built-in Wi-Fi and Miracast.

Specifications

Technology:

• Projection System: 3LCD Technology, RGB Liquid Crystal Shutter
• LCD Panel: 0.61 inch with C2 Fine

Image:

• Color Light Output: 4,100 Lumen (2,800 Lumen in Economy Mode) [IDMS15.4]
• White Light Output: 4,100 Lumen (2,800 Lumen in Economy Mode) [ISO 21118:2020]
• Resolution: 1080p
• Resolution Enhancement: Full HD
• Aspect Ratio: 16:9
• Contrast Ratio: Over 5,000,000:1
• Light Source: Laser
  • Durability: 20,000 hours (High Mode), 30,000 hours (Eco Mode)
• Color Video Processing: 10 Bits
• 2D Vertical Refresh Rate: 192 Hz - 240 Hz
• Color Reproduction: Up to 1.07 billion colors

Optical:

• Throw Ratio: 0.25 - 0.35:1
• Zoom: Digital, Factor: 1 - 1.35
• Lens Type: Optical
• Screen Size: 60 inches - 150 inches
• Projection Distance Wide: 0.4 m (65-inch screen)
• Projection Distance Tele: 0.7 m (120-inch screen)
• Projection Lens F Number: 1.6
• Projection Lens Focal Length: 3.7 mm
• Projection Lens Focus: Manual
• Offset: 5:1

Connectivity:

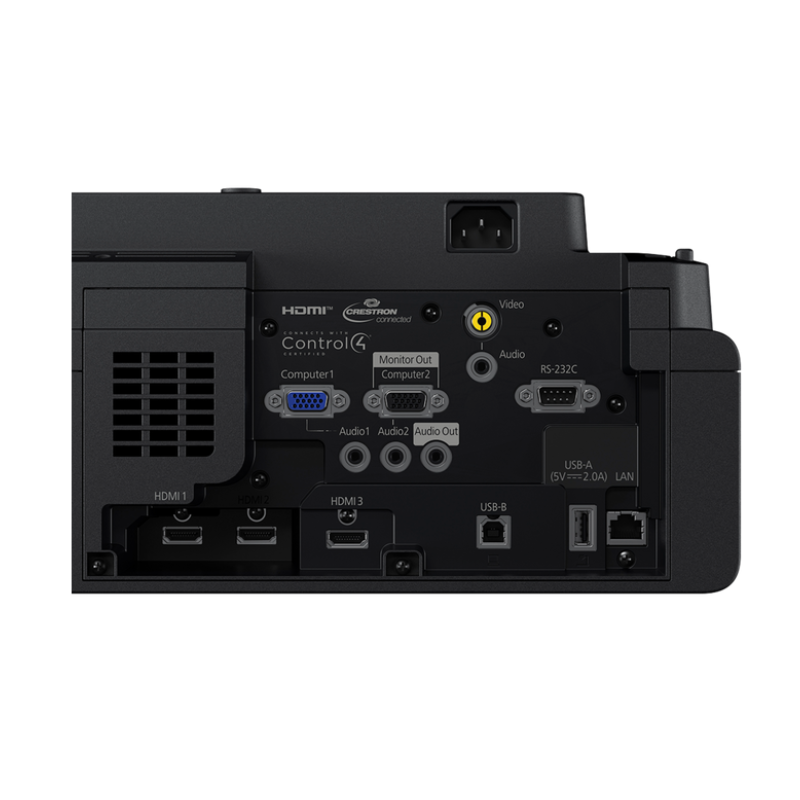

• Interfaces:
  • USB 2.0-A (2x)
  • USB 2.0
  • RS-232C
  • Ethernet Interface (100 Base-TX / 10 Base-T)
  • Wireless LAN IEEE 802.11a/b/g/n/ac
  • VGA In (2x)
  • VGA Out
  • HDMI In (3x)
  • Composite In
  • Miracast
  • Jack Plug Out
  • Jack Plug In (3x)
  • Wi-Fi Direct
• Epson iProjection App: Ad-Hoc / Infrastructure
• Network Protocol: HTTPS, IPv6, SNMP, ESC/VP.net, PJLink

Advanced Features:

• Security:
  • Kensington Lock
  • Control Panel Lock
  • Padlock
  • Security Cable Hole
  • Wireless LAN Unit Lock
  • Wireless LAN Security
  • Password Protection
• Other Features:
  • 21:9 Aspect Ratio Support
  • A/V Mute
  • Arc Correction
  • Auto Power On
  • Auto Source Search
  • Built-in Speaker
  • CEC Compatible
  • Customizable User Logo
  • Digital Zoom
  • Direct Power On/Off
  • Document Camera Compatible
  • Edge Blending
  • Email Notification
  • Home Screen
  • Horizontal and Vertical Keystone Correction
  • Image Shift
  • JPEG Viewer
  • Long Light Source Life
  • Network Projection
  • OSD Copy Function
  • PC Free
  • Power On Button
  • Quick Corner
  • Schedule Function
  • Screen Mirroring
  • Ultra-Wide Display (16:6)
  • Web Control
  • Web Remote
  • Wireless LAN Capable
  • iProjection App
• Video Color Modes: Blackboard, Cinema, Dynamic, Presentation, sRGB, DICOM SIM, Multi Projection

Projector Control:

• Via: Crestron Integrated Partner, Crestron RoomView, Extron IP Link, AMX Device Discovery, Control4 Simple Device Discovery Protocol

General:

• Power Consumption:
  • 200 Watt (Normal On-Mode)
  • 141 Watt (Eco On-Mode)
  • 263 Watt (Normal Peak-Mode)
  • 199 Watt (Eco Peak-Mode)
  • 0.5 Watt (Energy-Saving Standby)
• Heat Dissipation: 895 BTU/hour (max)
• Supply Voltage: AC 220 V - 240 V, 50 Hz - 60 Hz
• Product Dimensions: 356 x 395 x 133 mm (Width x Depth x Height)
• Product Weight: 5.9 kg
• Noise Level:
  • 37 dB (Normal)
  • 27 dB (Economy)
• Supported Temperature:
  • Storage: -10°C to 60°C
• Supported Humidity:
  • Operation: 20% - 80%
  • Storage: 10% - 90%
• Environmental Caution: In environments with heavy oil smoke, chemicals, or frequent aroma oil burning, parts of the projector may degrade over time, potentially causing it to drop if mounted on a ceiling or wall. Contact support if concerned about the installation environment.

Included Software:

• Epson Creative Projection
• EasyMP Multi PC Projection
• Epson Projector Content Manager
• Epson Projector Management

Options:

• Air Filter
• Ceiling Mount
• Connection and Control Box
• External Speaker
• Safety Wire Set
• Visualiser Camera
• WP System - ELPWP10
• Wall Hanging Bracket
• Wall Mount
• Wireless LAN Unit
• Wireless Transmitter - ELPWT01

Loudspeaker:

• 16 Watt

Room Type / Application:

• Signage / Retail
• Visitor Attraction

Positioning:

• Ceiling Mounted
• Desktop
• Wall Mounted

Color:

• Black

Warranty:

• 60 months Carry-in or 12,000 hours
