TECHNOLOGY
Projection System
3LCD Technology, RGB liquid crystal shutter
LCD Panel
1.43 inch with C2 Fine
Color Light Output
30,000 Lumen- 20,000 Lumen (economy) In accordance with IDMS15.4
White Light Output
30,000 Lumen - 20,000 Lumen (economy) In accordance with ISO 21118:2012
Portrait Colour Light Output
30,000 lm
Portrait White Light Output
30,000 lm
Resolution
WUXGA, 1920 x 1200, 16:10
High Definition
4K enhancement
Aspect Ratio
16:10
Contrast Ratio
Over 2,500,000 : 1
Native Contrast
3,500 : 1
Light source
Laser
Laser Light source
20,000 hours Durability High, 30,000 hours Durability Eco
Keystone Correction
Manual vertical: ± 45 °, Manual horizontal ± 30 °
Colour Video Processing
10 Bits
Colour Reproduction
Upto 1.07 billion colours
OPTICAL
Zoom
Motorized
Lens
Optical
Lens Shift
Motorized - Vertical ± 65 %, horizontal ± 30 %
Lens position memory
10 positions
Screen Size
100 inches - 1,000 inches
Projection Lens Focus
Motorized
Interchangeable Lens
Yes
Standard Lens
Not included
CONNECTIVITY

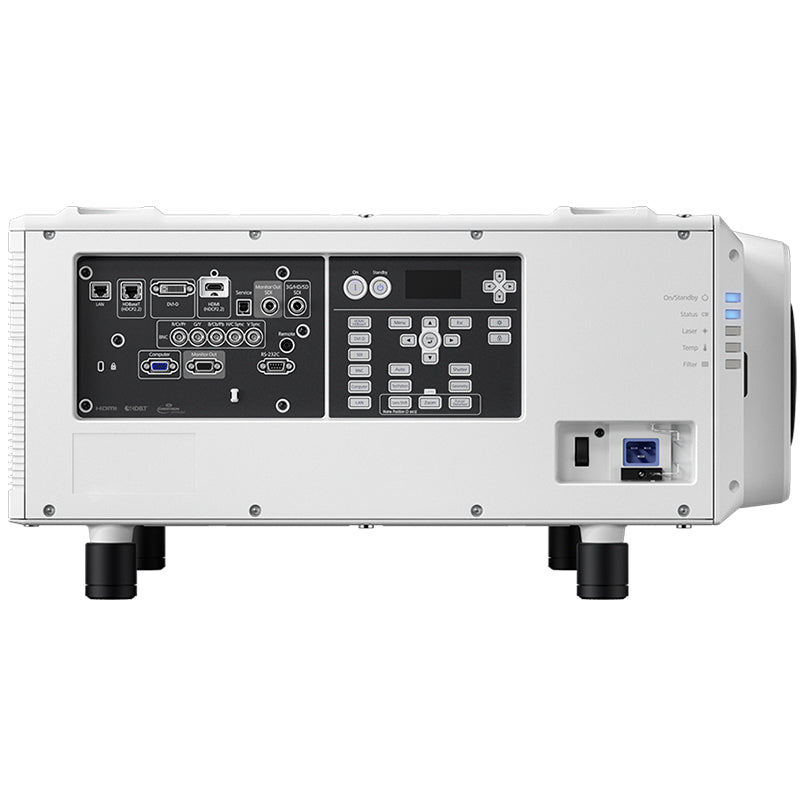

Interfaces
USB 1.1 Type A, USB 2.0 Type B (Service Only), Wired Network, Wireless LAN IEEE 802.11b/g/n (optional), VGA in, VGA out, DVI in, BNC in, HDBaseT, HD-SDI, HDMI (HDCP 2.2)
Epson iProjection App
Ad-Hoc / Infrastructure
ADVANCED FEATURES
Security
Security bar, Control panel lock, Password lock, Wireless LAN security, Password protection
Other features
4K enhancement, Absolute Black, Auto Calibration, Frame interpolation, Long light source life, Super resolution
Video Color Modes
Cinema, Dynamic, Natural, Presentation, DICOM SIM, Multi Projection, BT709
Projector control
via: AMX, Crestron, Extron XTP
GENERAL
Power consumption
2,325 Watt, 1,511 Watt (economy), 0.5 Watt (standby), On mode power consumption as defined in JBMS-84 1,748 Watt
Heat Dissipation
7,905 BTU/hour (max)
Supply Voltage
AC 200 V - 240 V, 50 Hz - 60 Hz
Product dimensions
790‎ x 710 x 299 mm (Width x Depth x Height)
Product weight
63.8 kg
Noise Level
Normal: 49 dB (A) - Economy: 41 dB (A)
Supported Temperature
Storage -10° C - 60° C
Supported Humidity
Operation 20% - 80%, Storage 10% - 90%
Included Software
EasyMP Monitor, iProjection
Options
Wireless LAN unit
What's in the box
HDMI Cable Clamp, Power cable, Remote control incl. batteries
Room Type / Application
Large Meeting Room / Auditorium, Projection Mapping, Rental / Staging, Visitor Attraction
Positioning
Ceiling Mounted, Flying Frame
Colour
White
