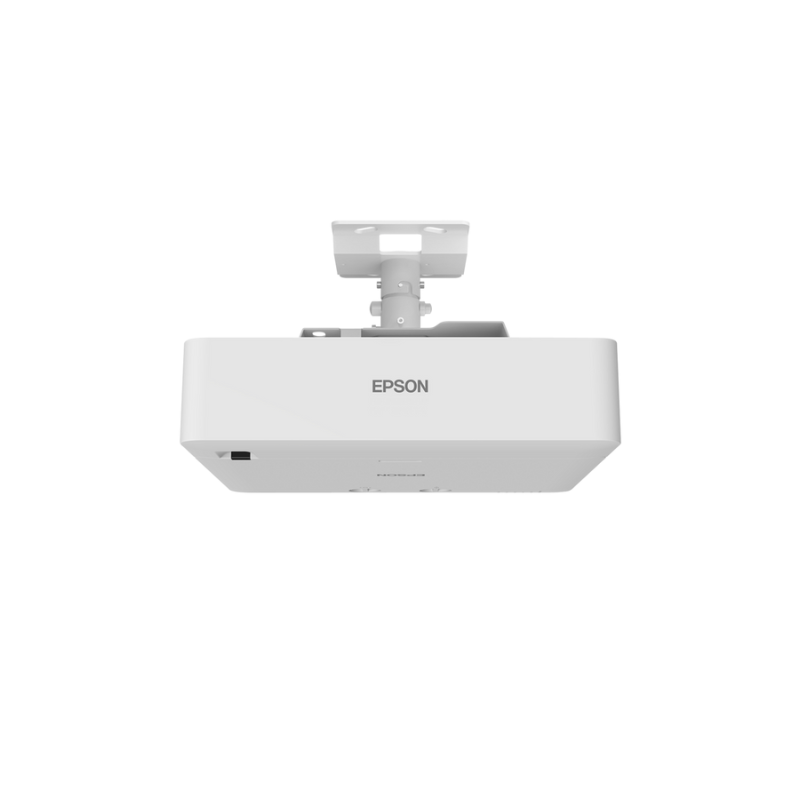

Epson EB-L570U - 4KE Laser Projector, 5200 lumens (Each)

Gallery
Description

Description

Incredible picture quality

Providing higher quality content output, more engaging and impactful displays even in brightly-lit environments, the EB-L570U offers impressive 5,200-lumen brightness, 4KE resolution and lens shift at an affordable price. The EB-L570U is also a scalable display from 50 to 500-inches.

Superior connectivity

This displays solution offers many ways to connect. BYOD connectivity with optional wireless or wired and HDBaseT. Offers MTR auto power-on function by HDMI signal detection. The EB-L570U comes equipped with future-proofed connectivity options including HDMI, HDBaseT and built-in media player. Compatible with iProjection software for easy connectivity with mobile devices and content sharing.

Effortless and flexible installation

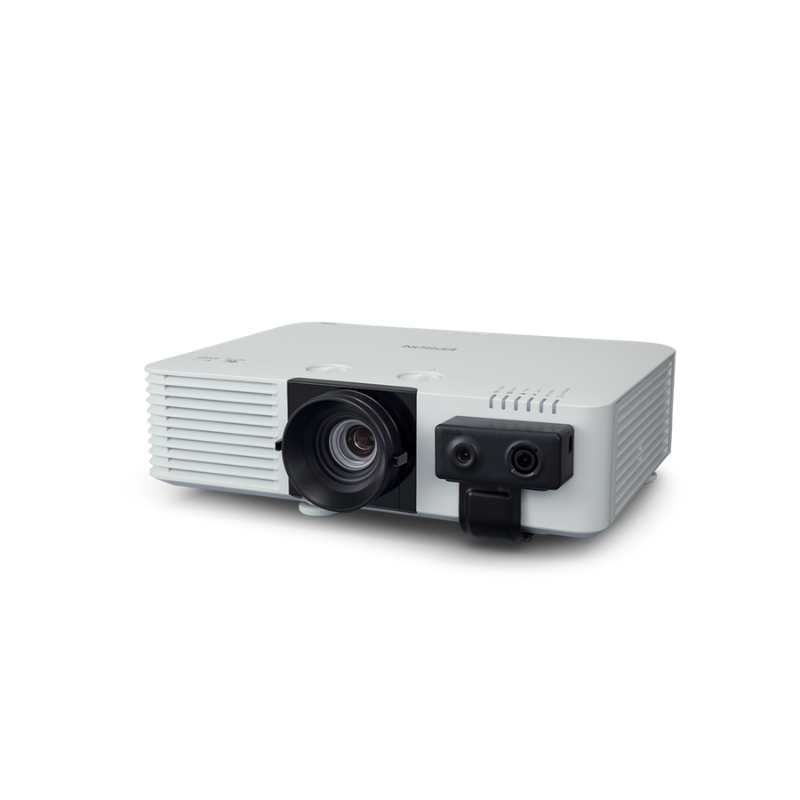

360-degree installation without compromising the display quality and supports 21:9 and 16:6 ultra-widescreen, lens shift and HDMI output. For projector installs offers premium multi-projection features - options that you would normally expect to see in higher range or priced models. Edge blending combined optional ELPEC01 camera enables simple stacking/ tiling features.

Peace of mind and long-lasting durability

Project for longer with exceptional reliability and a longer usage life of up to 30,000 hours in Eco Mode (20,000 hours normal).

Key Features

5,200-lumen brightness Sharp images and vivid colours, even in well-lit rooms
4KE resolution Sharp 4KE images for excellent clarity
BYOD connectivity with optional wireless or wired and HDBaseT
Effortless, flexible installation Compact with wide lens shift and multi-projection functions
Large image Scalable display size of up to 500 inches

Specifications

Technology:

Projection System: 3LCD Technology
LCD Panel: 0.67 inch with C2 Fine

Image:

Color Light Output: 5,200 Lumen (3,640 Lumen in Economy Mode) - In accordance with IDMS15.4
White Light Output: 5,200 Lumen (3,640 Lumen in Economy Mode) - In accordance with ISO 21118:2020
Resolution: WUXGA
Resolution Enhancement: 4K enhancement
Aspect Ratio: 16:10
On-Screen Pixel Count: 2,304,000 (1920x1200 x2)
Contrast Ratio: Over 5,000,000:1
Light Source: Laser
- Durability: 20,000 hours (High Mode), 30,000 hours (Eco Mode)
Keystone Correction:
- Manual Vertical: ±30°
- Manual Horizontal: ±30°
Color Video Processing: 10 Bits
Color Reproduction: Up to 1.07 billion colors
HDR Support: HDR10

Optical:

Throw Ratio: 1.35 - 2.20:1
Zoom: Manual, 1.6x
Lens Type: Optical
Lens Shift: Manual - Vertical ±50%, Horizontal ±20%
Screen Size: 50 inches - 500 inches
Projection Distance Wide: 1.4 m - 14.8 m
Projection Distance Tele: 2.4 m - 23.8 m
Projection Distance Wide/Tele: 1.44 m - 23.84 m
Projection Lens:
- F-Number: 1.5 - 1.7
- Focal Length: 20 mm - 31.8 mm
- Focus: Manual

Connectivity:

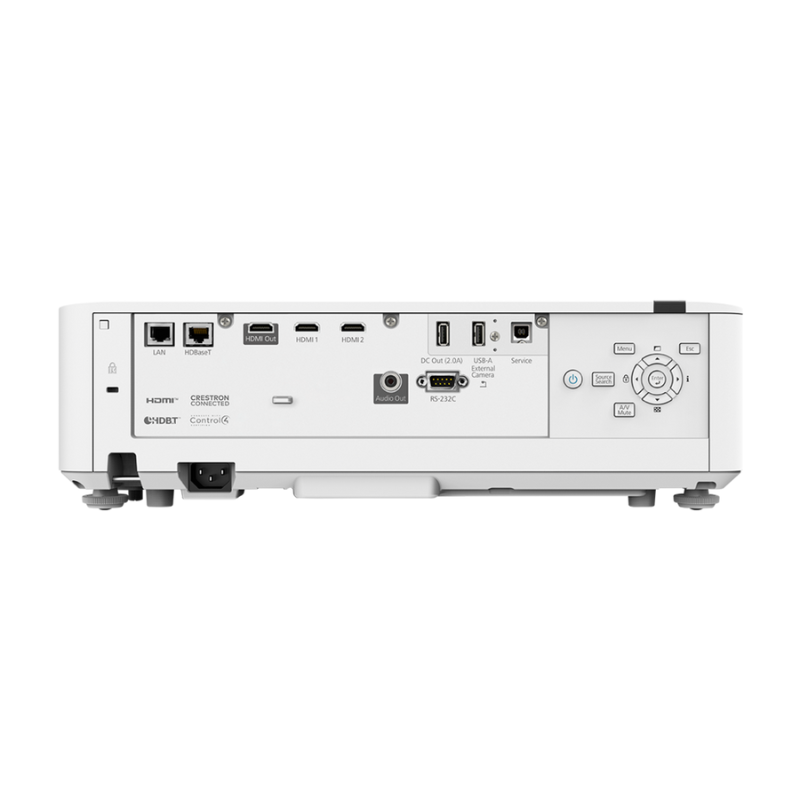

Interfaces:
- USB 2.0-A
- USB 2.0 Type B (Service Only)
- RS-232C
- HDMI In (2x)
- HDMI Out
- HDBaseT
- Jack Plug Out
- Ethernet Interface (100 Base-TX / 10 Base-T)
Epson iProjection App: Ad-Hoc / Infrastructure
Network Protocol: HTTPS, IPv6, SNMP, PJLink

Advanced Features:

Security:
- Kensington lock
- Padlock
- Security cable hole
- Wireless LAN unit lock
- Password protection
2D Color Modes: Dynamic, Natural, Cinema, Presentation, DICOM SIM
Other Features:
- 21:9 aspect ratio support
- 4K enhancement
- A/V mute
- Arc Correction
- Auto source search
- Built-in speaker
- CEC compatible
- Direct Power On/Off
- Document Camera Compatible
- Edge Blending
- PC Free
- Super resolution
- Ultra-wide display (16:6)
- iProjection App
Video Color Modes: Cinema, Dynamic, Natural, Presentation, DICOM SIM, Multi Projection, BT709

Projector Control:

Via: Crestron, Crestron Integrated Partner, Extron IP Link, Extron XTP, AMX Device Discovery, Control4 Simple Device Discovery Protocol

General:

Power Consumption:
- 201 Watt (Normal On-Mode)
- 177 Watt (Eco On-Mode)
- 260 Watt (Normal Peak-Mode)
- 199 Watt (Eco Peak-Mode)
- 0.5 Watt (Energy-saving standby)
Supply Voltage: AC 100 V - 240 V, 50 Hz - 60 Hz
Product Dimensions: 440 x 304 x 122 mm (Width x Depth x Height)
Product Weight: 8.3 kg
Noise Level:
- 31 dB (Normal)
- 23 dB (Economy)
Supported Temperature:
- Storage: -10°C to 60°C
Supported Humidity:
- Operation: 20% - 80%
- Storage: 10% - 90%
Included Software: Epson Projector Management

Options:

Air filter
Ceiling mount
Connection and control box
Document camera
External Speaker
Safety wire set
Visualizer camera
WP System - ELPWP20

Loudspeaker:

Output: 10 Watt

Room Type / Application:

Boardroom
Large Meeting Room / Auditorium
Meeting Room / Classroom
Projection Mapping
Signage / Retail
Visitor Attraction

Positioning:

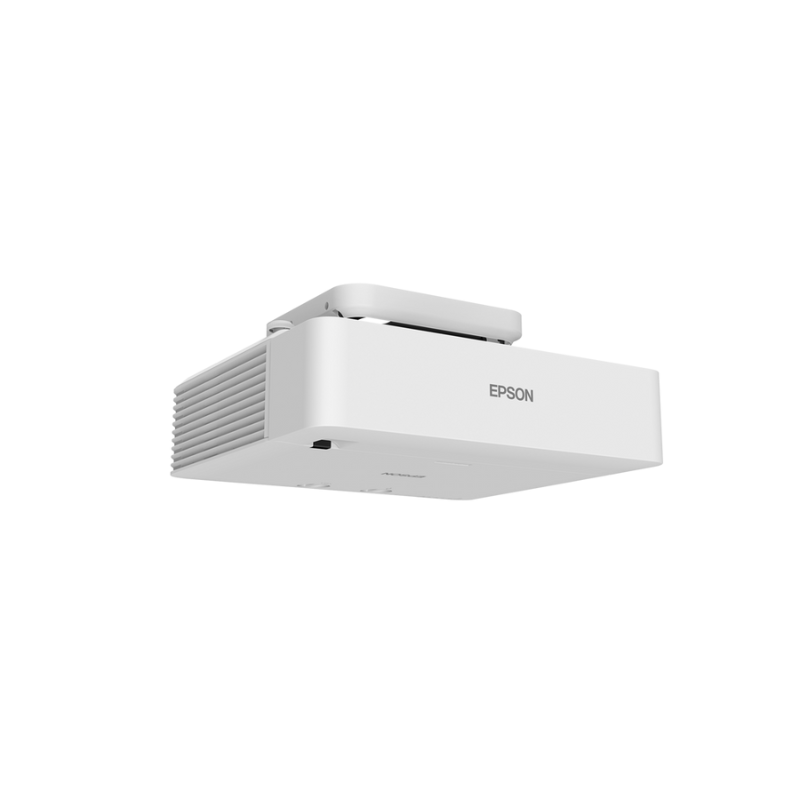

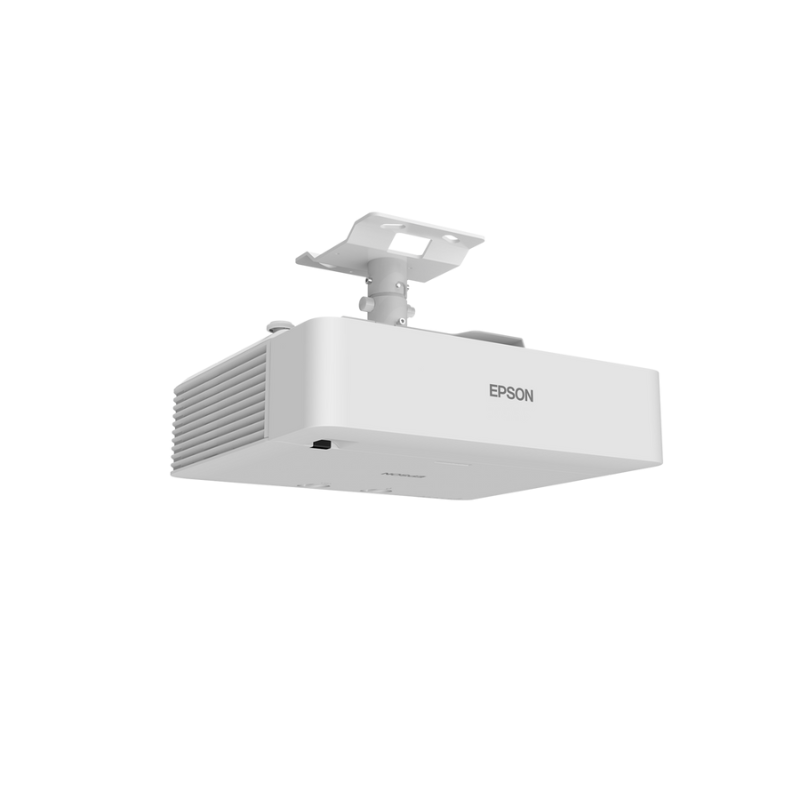

Ceiling Mounted
Desktop

Color:

White

Warranty:

36 months Carry in

EPSON EB-L570U

Epson EB-L570U - 4KE Laser Projector, 5200 lumens (Each)

R 80,210.00

4KE display solution
5,200 lumens brightness fixed lens laser projector, an ideal use for education, businesses and visitor attractions environments.
Exceed your vision with Epson compact 3LCD technology laser projector, delivers sharp and smooth 4K im Read more
