Outstanding, bright and clear

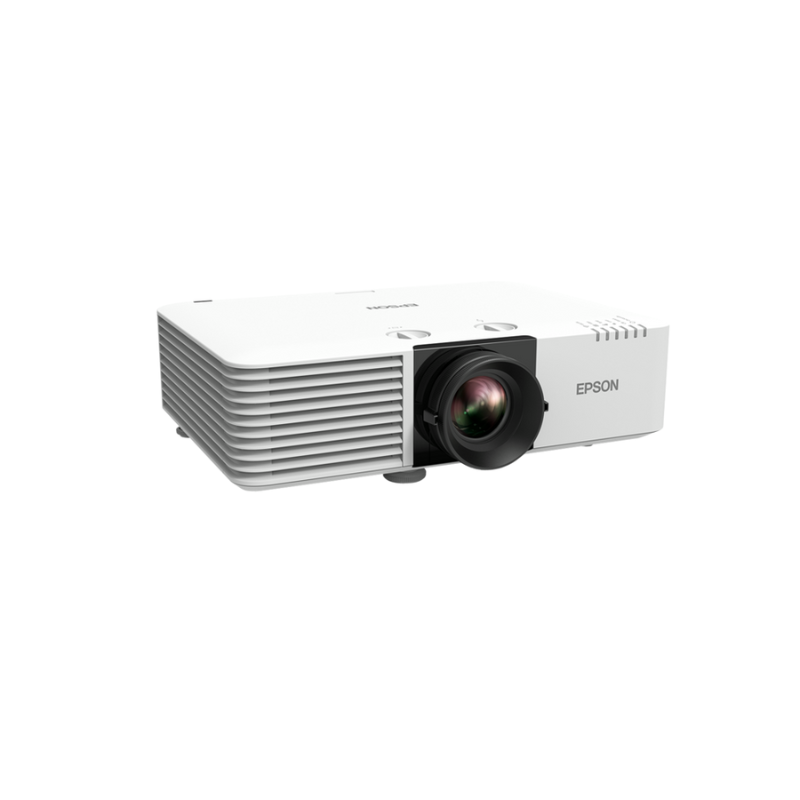

Providing higher quality image, more engaging and impactful displays even in brightly-lit environments, the EB-L770U offers impressive 7,000-lumen brightness, 4KE resolution and lens shift at an affordable price. The EB-L770U is capable to display from 50 to 500-inches, without any reduction in clarity or stunning detail.

Superior connectivity

This displays solution offers many ways to connect. BYOD connectivity with optional wireless or wired and HDBaseT. Offers MTR auto power-on function by HDMI signal detection. The EB-L770U comes equipped with future-proofed connectivity options including HDMI, HDBaseT and built-in media player. Compatible with iProjection software for easy connectivity with mobile devices and content sharing.

Effortless and flexible installation

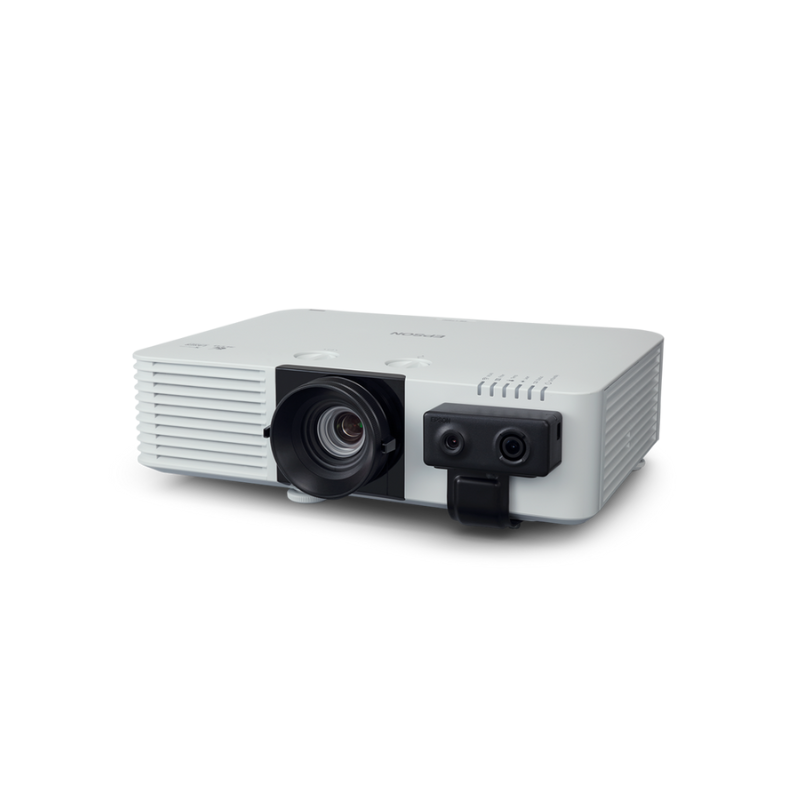

360-degree installation without compromising the display quality and supports 21:9 and 16:6 ultra-widescreen, lens shift and HDMI output. For projector installs offers premium multi-projection features - options that you would normally expect to see in higher range or priced models. Edge blending combined optional ELPEC01 camera enables simple stacking/ tiling features. Also available in black.

Peace of mind and long-lasting durability

Project for longer with exceptional reliability and a longer usage life of up to 30,000 hours in Eco Mode (20,000 hours normal).

Key Features

• 7,000-lumen brightness Sharp images and vivid colours, even in well-lit rooms
• 4KE resolution Sharp 4KE images for excellent clarity
• BYOD connectivity with optional wireless or wired and HDBaseT
• Effortless, flexible installation Lightweight and compact design with wide lens shift
• Large image Scalable display size of up to 500 inches

Specifications

Technology:

• Projection System: 3LCD Technology
• LCD Panel: 0.67 inch with C2 Fine

Image:

• Color Light Output: 7,000 Lumen (4,900 Lumen in Economy Mode) - In accordance with IDMS15.4
• White Light Output: 7,000 Lumen - In accordance with ISO 21118:2020
• Resolution: WUXGA
• Resolution Enhancement: 4K enhancement
• Aspect Ratio: 16:10
• On-Screen Pixel Count: 2,304,000 (1920x1200 x2)
• Contrast Ratio: Over 5,000,000:1
• Light Source: Laser
  • Durability: 20,000 hours (High Mode), 30,000 hours (Eco Mode)
• Keystone Correction:
  • Manual Vertical: ±30°
  • Manual Horizontal: ±30°
• Color Video Processing: 10 Bits
• Color Reproduction: Up to 1.07 billion colors
• HDR Support: HDR10

Optical:

• Throw Ratio: 1.35 - 2.20:1
• Zoom: Manual, 1.6x
• Lens Type: Optical
• Lens Shift: Manual - Vertical ±50%, Horizontal ±20%
• Screen Size: 50 inches - 500 inches
• Projection Lens:
  • F-Number: 1.5 - 1.7
  • Focal Length: 20 mm - 31.8 mm
  • Focus: Manual

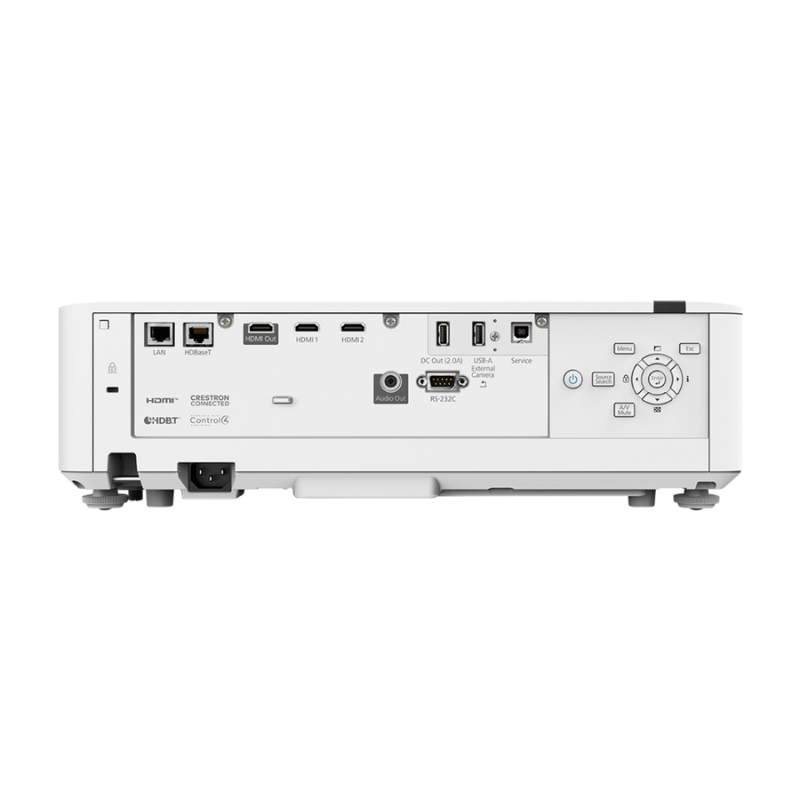

Connectivity:

• Interfaces:
  • USB 2.0-A
  • USB 2.0 Type B (Service Only)
  • RS-232C
  • HDMI In (2x)
  • HDMI Out
  • HDBaseT
  • Jack Plug Out
  • Ethernet Interface (100 Base-TX / 10 Base-T)
• Epson iProjection App: Ad-Hoc / Infrastructure
• Network Protocol: HTTPS, IPv6, SNMP, PJLink

Advanced Features:

• Security:
  • Kensington lock
  • Padlock
  • Security cable hole
  • Wireless LAN unit lock
  • Password protection
• 2D Color Modes: Dynamic, Natural, Cinema, Presentation, DICOM SIM
• Other Features:
  • 21:9 aspect ratio support
  • 4K enhancement
  • A/V mute
  • Arc Correction
  • Auto source search
  • Built-in speaker
  • CEC compatible
  • Direct Power On/Off
  • Document Camera Compatible
  • Edge Blending
  • PC Free
  • Super resolution
  • Ultra-wide display (16:6)
  • iProjection App
• Video Color Modes: Cinema, Dynamic, Natural, Presentation, DICOM SIM, Multi Projection, BT709

Projector Control:

• Via: Crestron, Crestron Integrated Partner, Extron IP Link, Extron XTP, AMX Device Discovery, Control4 Simple Device Discovery Protocol

General:

• Power Consumption:
  • 300 Watt (Normal On-Mode)
  • 209 Watt (Eco On-Mode)
  • 366 Watt (Normal Peak-Mode)
  • 277 Watt (Eco Peak-Mode)
  • 0.5 Watt (Energy-saving standby)
• Supply Voltage: AC 100 V - 240 V, 50 Hz - 60 Hz
• Product Dimensions: 440 x 304 x 122 mm (Width x Depth x Height)
• Product Weight: 8.5 kg
• Noise Level:
  • 38 dB (Normal)
  • 27 dB (Economy)
• Supported Temperature:
  • Storage: -10°C to 60°C
• Supported Humidity:
  • Operation: 20% - 80%
  • Storage: 10% - 90%
• Included Software: Epson Projector Management

Options:

• Air filter

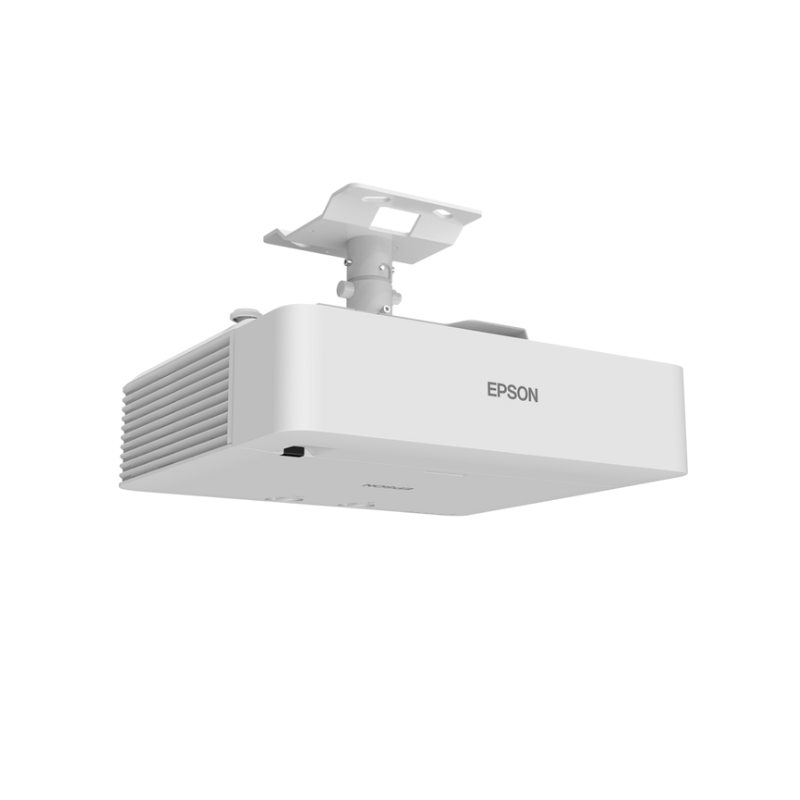

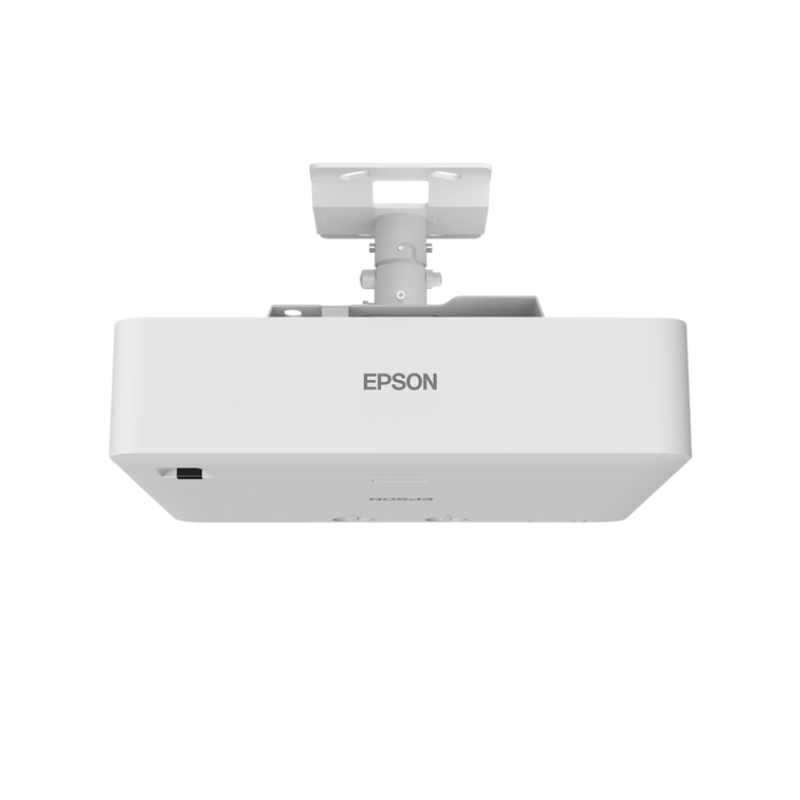

• Ceiling mount
• Connection and control box
• Document camera
• External Speaker
• Safety wire set
• Visualizer camera
• WP System - ELPWP20

Loudspeaker:

• Output: 10 Watt

Room Type / Application:

• Boardroom
• Large Meeting Room / Auditorium
• Meeting Room / Classroom
• Projection Mapping
• Signage / Retail
• Visitor Attraction

Positioning:

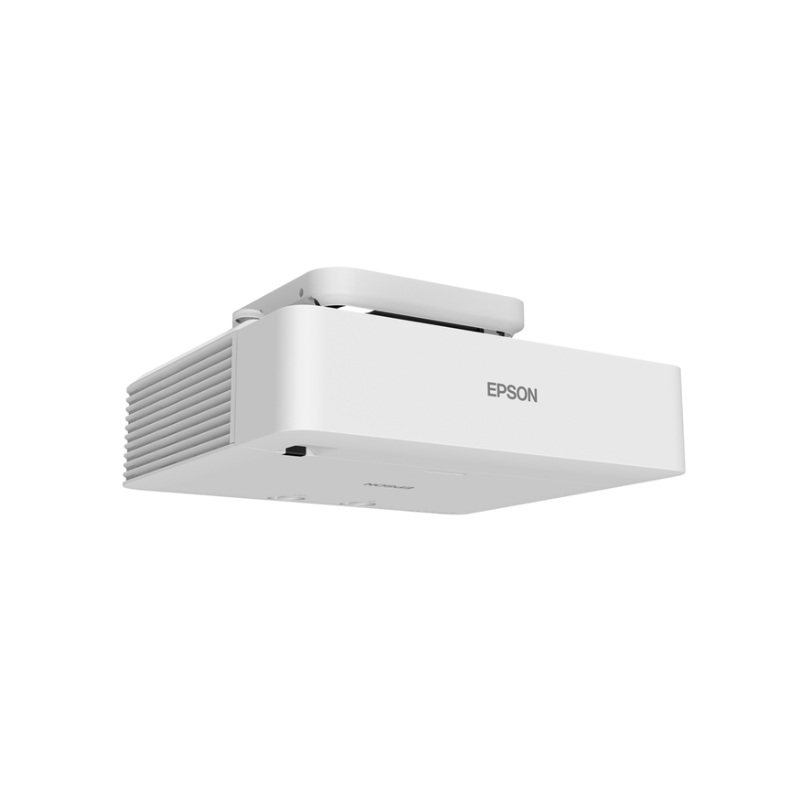

• Ceiling Mounted
• Desktop

Color:

• White

Warranty:

• 36 months Carry in
