Compact and lightweight

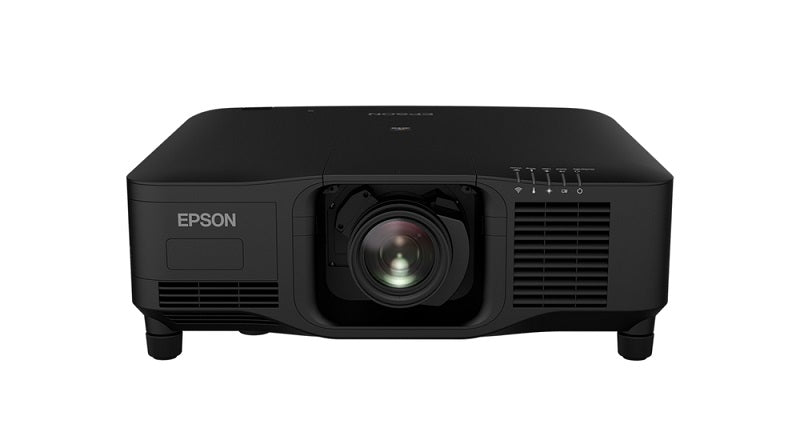

The EB-PU2220B is 70% smaller and 50% lighter than its predecessor, the EB-L20000U. The reduced weight and size mean the projector is easier to store, transport, and install, saving on warehouse space as well as labour and delivery costs.

Outstanding image quality

This high lumen, 3LCD projector offers WUXGA resolution with 4K enhancement and HDR for rich textures and sharper images.

Flexibility

The EB-PU2220B's functionality enables simple installation, stacking, lens flexibility, and control. It includes in-built processing for PC-free stacking which means two supported projectors can be stacked to double the brightness without the need for external computerware.

Reliability

Includes improved dust proofing as the hermetically sealed optical engine, and laser light source unit, preventing dust contamination to ensure enhanced durability.

Specifications

Image and Display:

• Projection System: 3LCD Technology
• LCD Panel: 1.03 inch with C2 Fine
• Color Light Output: 20,000 Lumen (IDMS15.4) - 14,000 Lumen (economy)
• White Light Output: 20,000 Lumen - 14,000 Lumen (economy) (ISO 21118:2020)
• Resolution: WUXGA
• Resolution Enhancement: 4K enhancement
• Aspect Ratio: 16:10
• Contrast Ratio: Over 5,000,000:1
• Native Contrast: 2,000:1
• Colour Reproduction: Up to 1.07 billion colours
• HDR Support: HDR10, HLG
• Colour Video Processing: 10 Bits

Lamp and Lens:

• Light Source: Laser
• Laser Light Source Life:
  • 20,000 hours (High Durability)
  • 30,000 hours (Eco Durability)
• Throw Ratio: 0.35 - 7.41:1
• Zoom: Motorized, Factor: 1 - 1.6
• Lens Shift: Motorized - Vertical ± 60%, Horizontal ± 18%, varies by lens
• Lens Position Memory: 10 positions
• Screen Size: 60 inches - 1,000 inches (varies by lens)
• Projection Distance: Varies by lens
• Projection Lens F Number: Varies by lens
• Projection Lens Focal Length: Varies by lens
• Projection Lens Focus: Motorized
• Interchangeable Lens: Yes
• Standard Lens: Not included
• Mechanical Shutter: Yes

Connectivity and Features:

• Interfaces:
  • USB 2.0-A (2x)
  • USB 2.0 Type B (Service Only)
  • RS-232C
  • Ethernet Interface (1000 Base-T/100-Base TX/10-Base-T)
  • VGA in
  • DVI in
  • HDMI in
  • HDBaseT
  • Jack plug out
  • 3G-SDI Input
  • 3G-SDI Output
  • Wireless LAN IEEE 802.11a/b/g/n (optional)
  • Near Field Communication (NFC)
  • USB content playback
  • Remote
• Network Protocol: HTTPS, IPv6, SNMP, ESC/VP.net, PJLink
• Security Features: Kensington lock, Security bar, Password lock, Wireless LAN unit lock, Wireless LAN security, Password protection
• Other Features:
  • 21:9 aspect ratio support
  • 4K enhancement
  • Auto Power On
  • Auto source search
  • Direct Power on/off
  • Edge Blending
  • Freeze image
  • Horizontal and vertical keystone correction
  • Lens position memory
  • Long light source life
  • OSD copy function
  • Point correction
  • Power on button
  • Quick Corner
  • Schedule Function
  • Split-Screen-Function
  • Super resolution
  • Web Control
  • Web Remote
  • iProjection App
• Video Color Modes: Cinema, Dynamic, Natural, Presentation, DICOM SIM, Multi Projection, BT709
• Projector Control: AMX, Crestron, Extron

Build and General Specifications:

• Sealed Light Source Module: Yes, IP5X rated
• Sealed Optical Engine: Yes, IP5X rated
• Power Consumption:
  • Normal On-Mode: 1,143 Watt
  • Normal Peak-Mode: 1,301 Watt
  • Eco Peak-Mode: 899 Watt
  • Energy Saving Standby: 0.4 Watt
• Heat Dissipation: 4,423 BTU/hour (max)
• Supply Voltage: AC 200 V - 240 V, 50 Hz - 60 Hz
• Product Dimensions: 586 mm x 492 mm x 218 mm (WxDxH)
• Product Weight: 24.4 kg
• Noise Level:
  • Normal: 45 dB (A)
  • Economy: 37 dB (A)
• Supported Temperature:
  • Storage: -10° C - 60° C
• Supported Humidity:
  • Operation: 20% - 80%
  • Storage: 10% - 90%
• Included Software: Epson Creative Projection, Epson Projector Config Tool, Epson Projector Content Manager, Epson Projector Management, Epson Projector Professional Tool
• Options: Camera module, Ceiling mount, Wireless LAN unit
• Room Type / Application: Boardroom, Large Meeting Room / Auditorium, Meeting room / Classroom, Projection Mapping, Rental / Staging, Signage / Retail, Visitor Attraction
• Positioning: Ceiling Mounted, Desktop, Flying Frame
• Colour: Black
