Reimagine Projection.
Introducing a new generation of compact and efficient high-lumen projection from Epson.

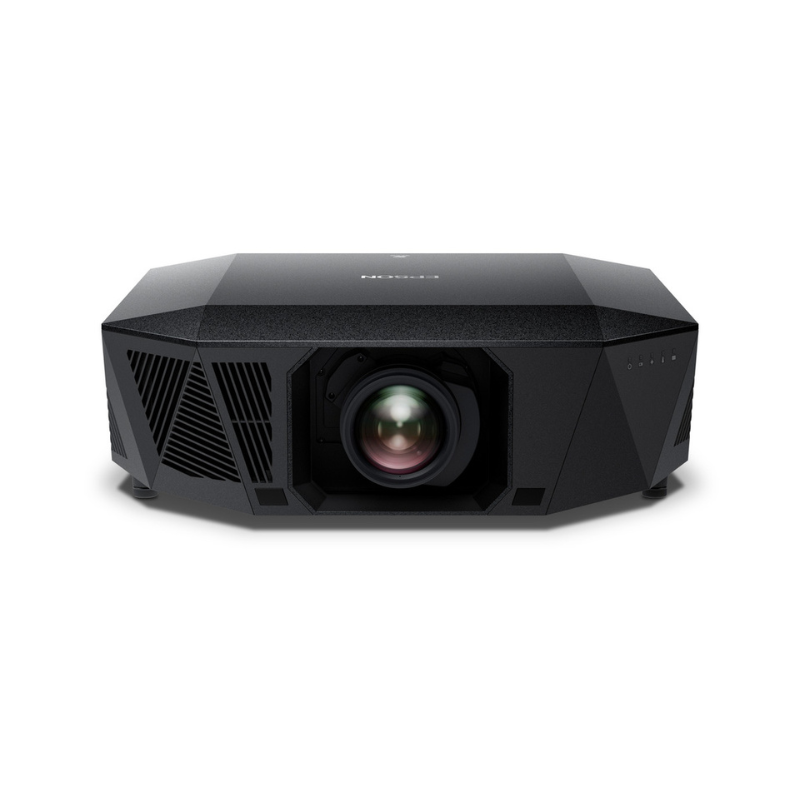

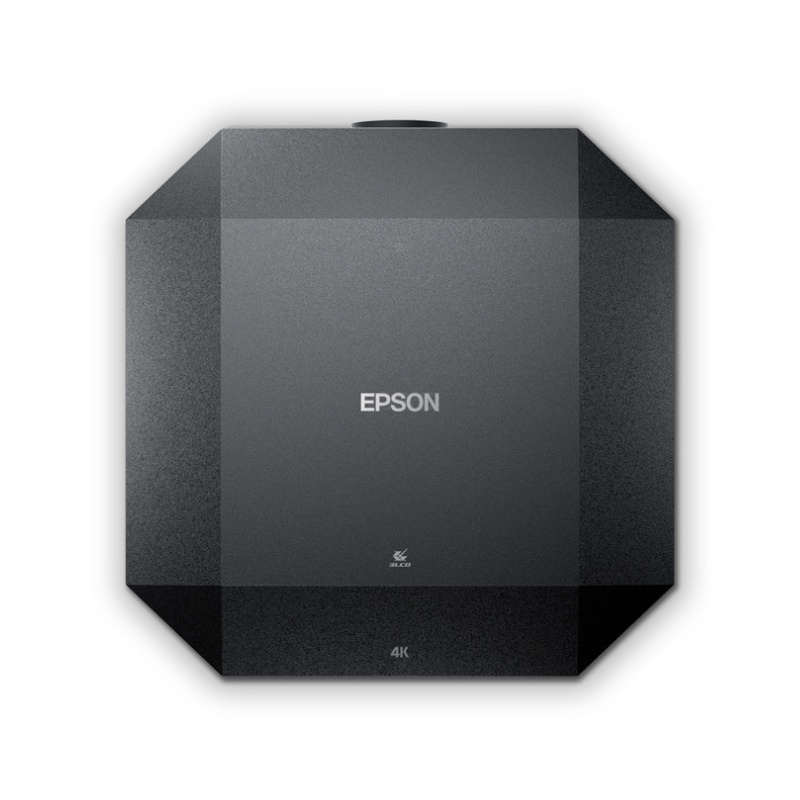

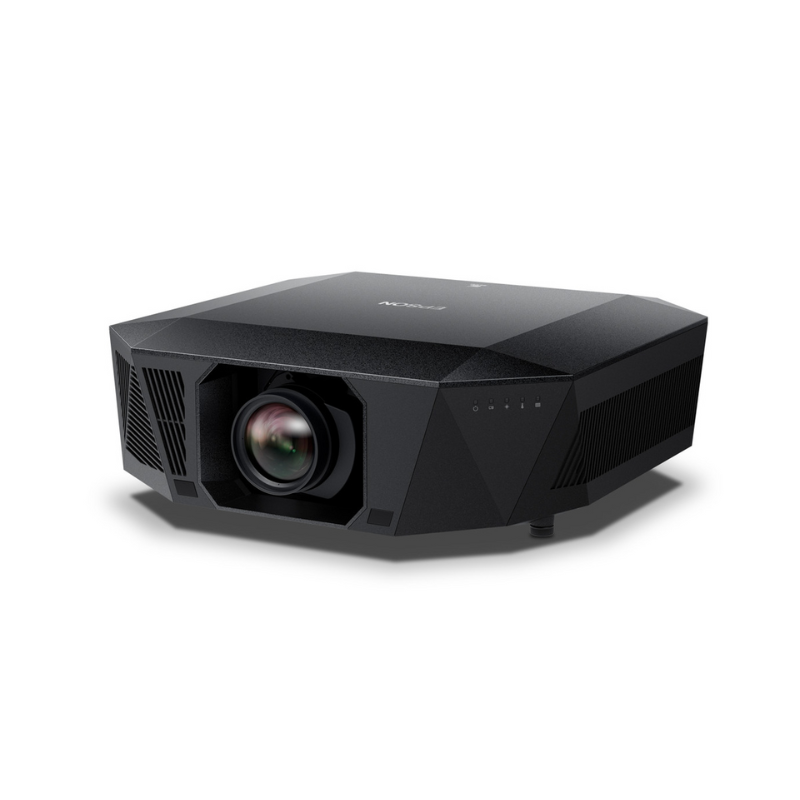

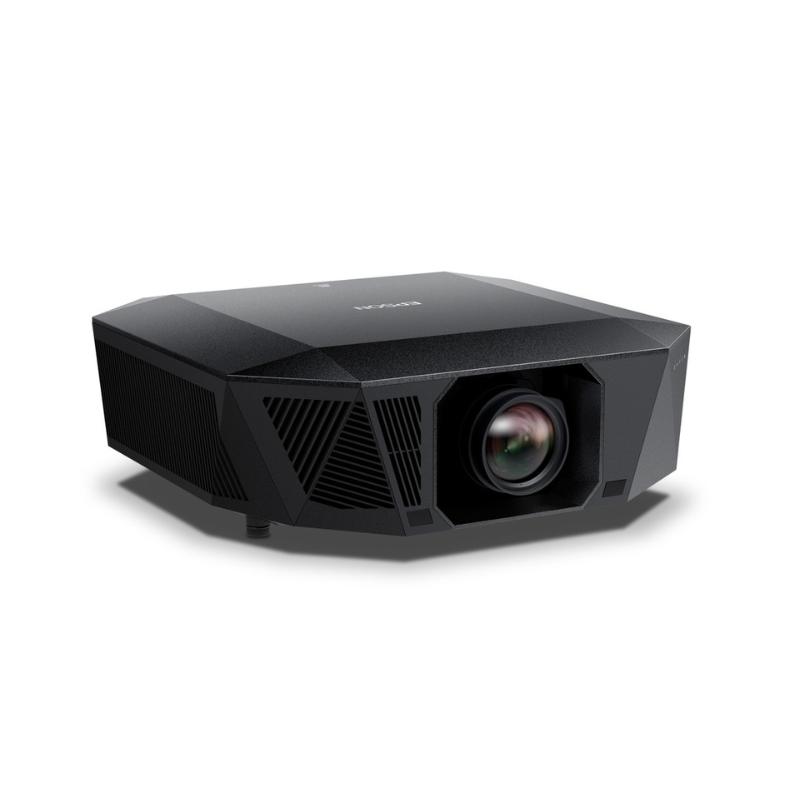

The all-new QL7000 4K 3LCD Laser Projector with HDR.
Developed specifically for creating immersive big screen entertainment experiences with an unprecedented level of picture brightness, color and detail, the Epson QL7000 produces a stunning 4K HDR picture up to 300".
Perfect for today’s active multipurpose and dedicated entertainment spaces, the Epson QL7000 cuts through ambient light with up to 10,000 lumens1 of color brightness (IDMS rated) and up to 10,000 lumens of white brightness (ISO rated)2.

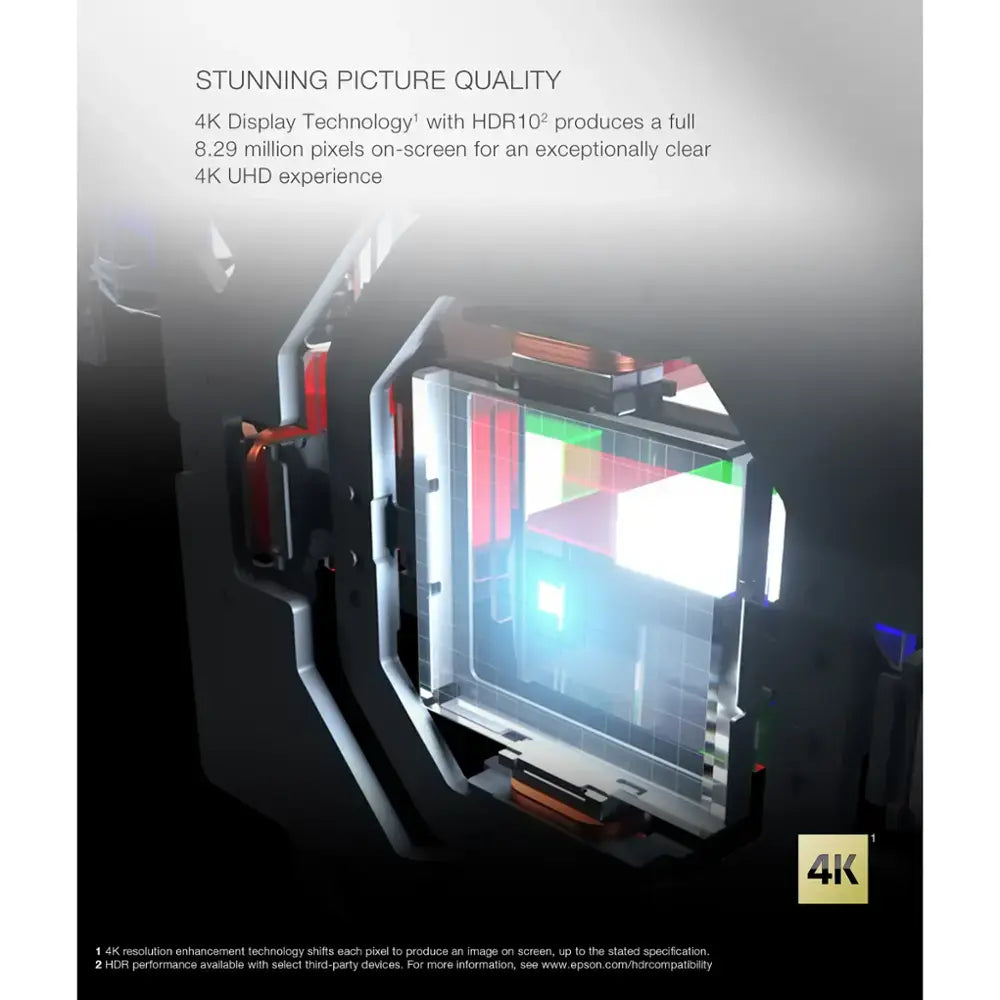

Incorporating our most advanced projection technologies to date, the QL7000 combines proprietary 4K Display Technology3 with HDR104 and our true 3-chip 3LCD thermal-controlled and Double Micro-Lens Array technologies to produce a full 8.29 million pixels on-screen—resulting in a picture with stunning clarity and color brightness.

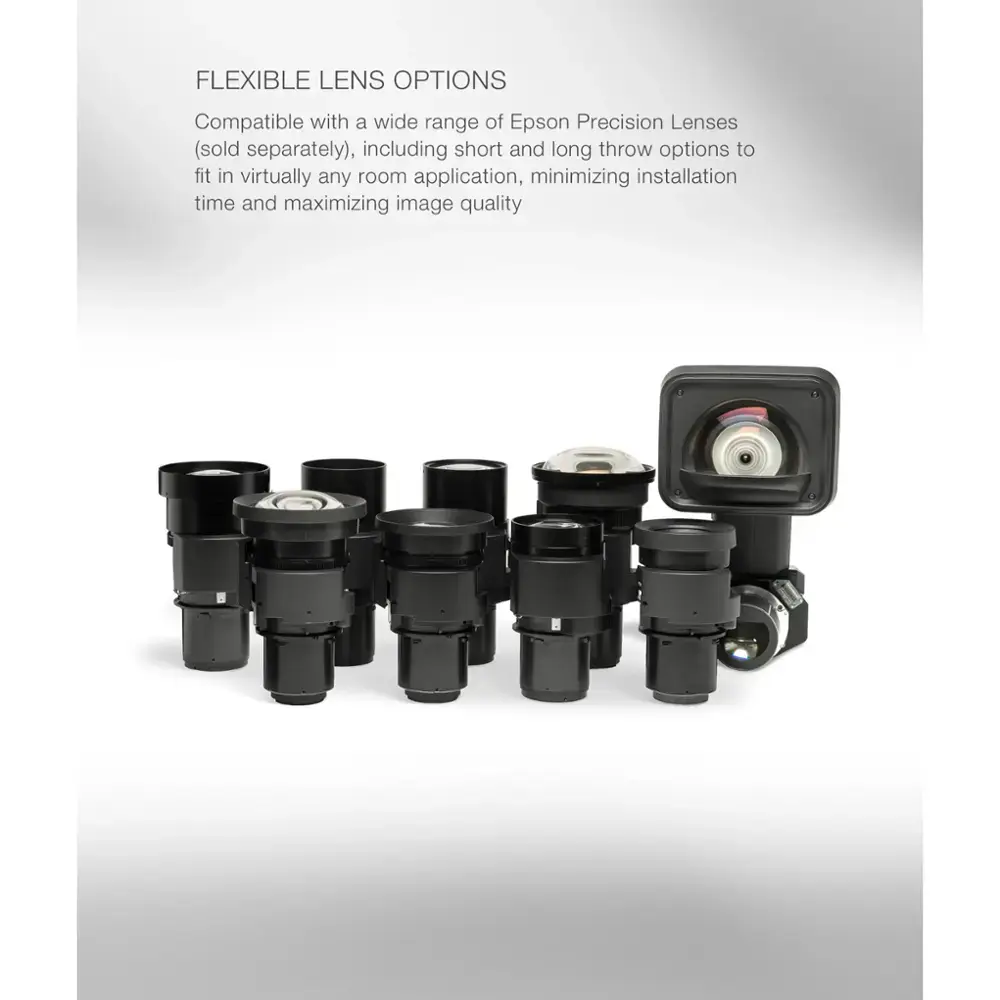

And like all Epson QL-Series projectors, the QL7000 comes as “Body Only”—without a lens—giving you the option to use our entire family of high-precision Epson lenses to design an optimal projection solution for virtually any application.
Epson continues to set the industry benchmark for projection picture quality. And with the all-new QL-Series generation of high-lumen 4K HDR projectors, Epson has once again reset expectations for big screen entertainment.
- High Frame Rate Support – Supports gaming up to 4K HDR at 120 Hz; Auto Low Latency Mode helps minimize input lag and advanced frame interpolation optimizes content below 120 Hz

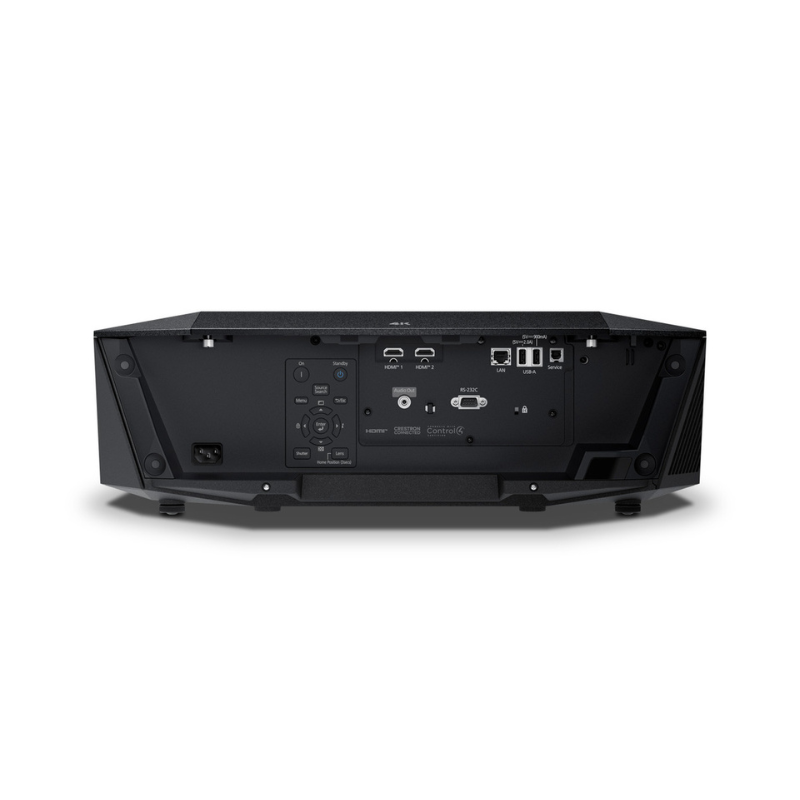

- Enhanced Connectivity – Dual 40 Gbps HDMI® 2.1 ports support up to 120 Hz at 4:2:2 in 8-, 10- and 12-bit color modes, including 10- and 12-bit “Deep Color” signals
- Smart Home Control – Easily integrates into home automation and remote monitoring systems, including Control4® and Crestron® control systems
- Virtually Maintenance-Free – 20,000-hour solid-state laser light source with an advanced vapor-cooled thermal transfer design provides instant Power-On with no bulbs to be replaced
- Outstanding Service & Support – Includes a 3-year limited warranty with full-unit replacement and free technical phone support for the life of the product
- ISF® Certified – The Imaging Science Foundation has been setting standards for the display industry since 1994 and has been dedicated to improving the quality of electronic imaging. Epson shares this passion for image quality and has developed technologies to allow an ISF Certified Technician to professionally calibrate the Epson QL7000 projector to the highest level of image quality
Eco Features
- RoHS compliant
- End-of-life options available
- Epson America, Inc. is a SmartWay® Transport Partner
------
Specifications
Projection System: Epson 3LCD
Chip Design (Architecture): 3-chip
Light Source: True Laser Diode Array
Projection Method: Front, Front-Ceiling, Rear, Rear-Ceiling

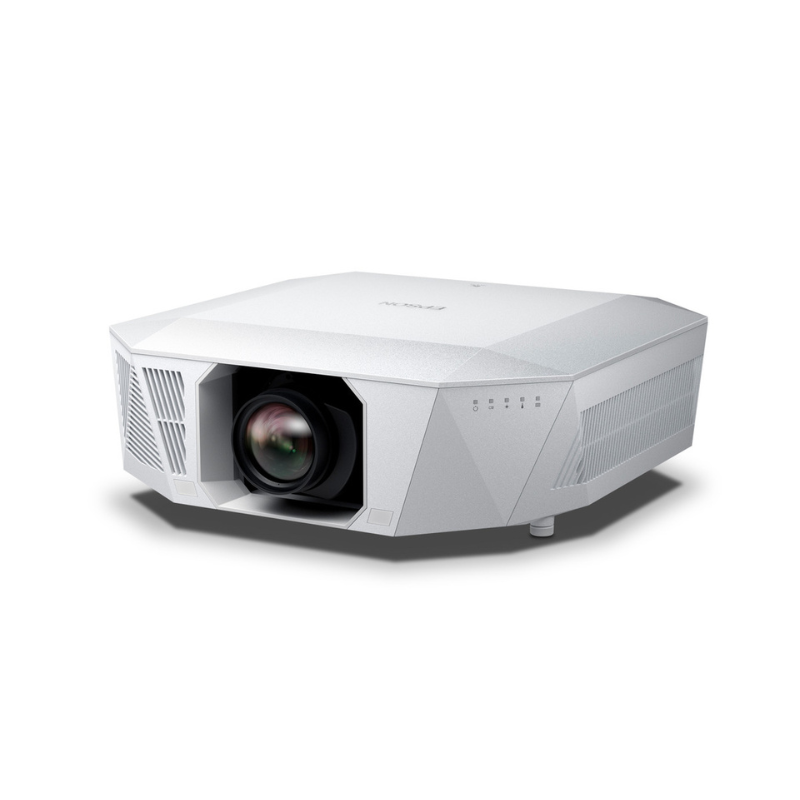

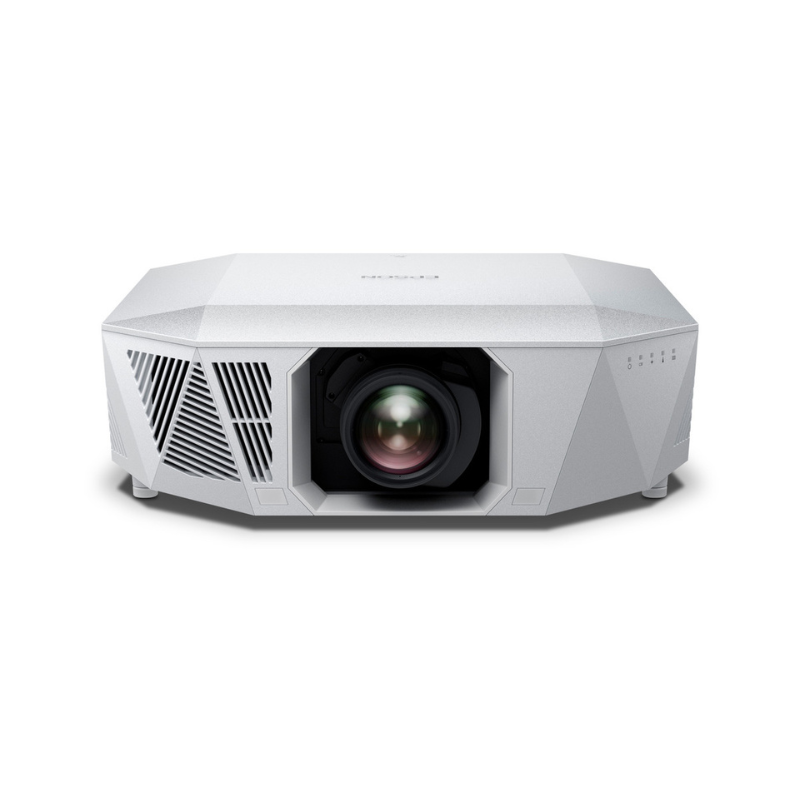

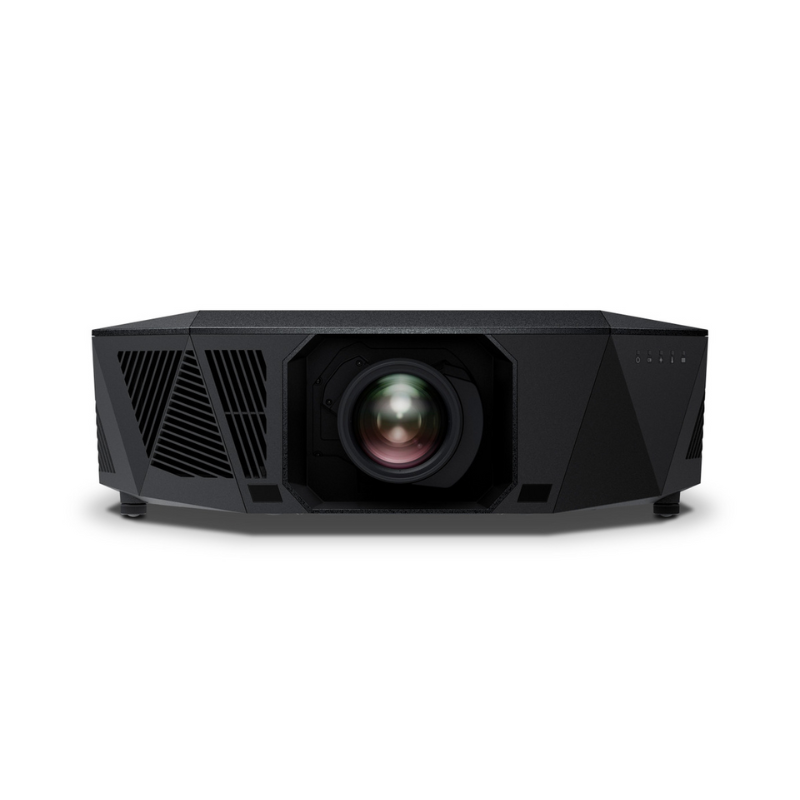

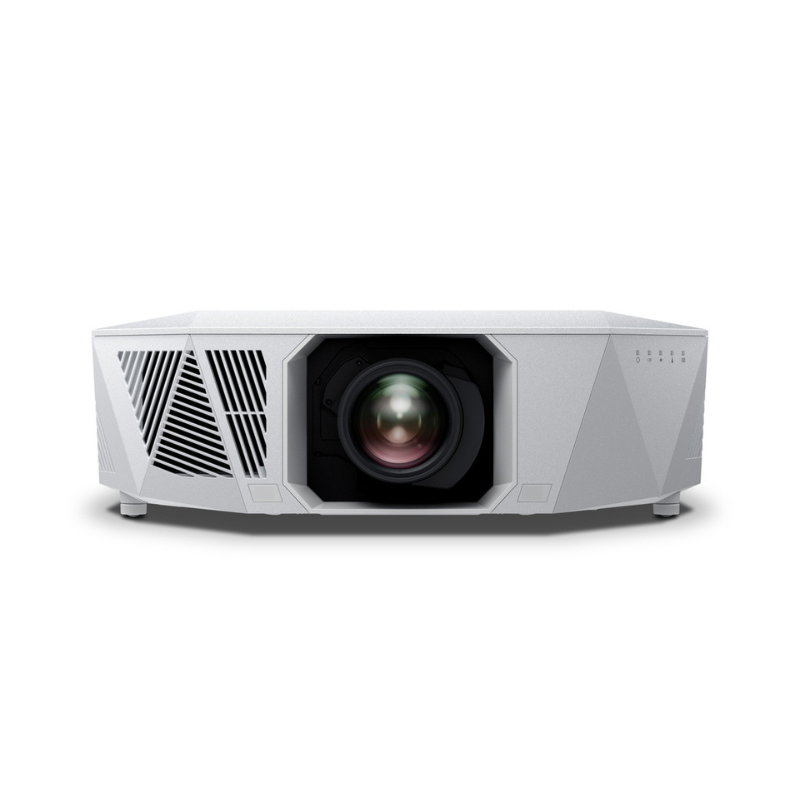

Product Color: Black or White
Driving Method: Poly-Silicon TFT Active Matrix, 1.04" wide panel with Double Micro-Lens Array, 12-bit
Output Resolution: 4K Display Technology1 3840 x 2160 (dual-axis: 1920 x 1080)
Maximum Input Resolution: 4096 x 2160
Maximum Refresh Rate: 120 Hz
Supported Resolutions: 4K 2160p, 2K Full HD 1080p/i, HD 720p, 576p/i, 480p/i
Native Aspect Ratio: 16:9 widescreen
Resize Aspect Ratio Support: 1.9:1 (4096 x 2160), 21:9 (2560 x 1080), 4:3 (1600 x 1200), 9:6 (720 x 480), 5:4 (720 x 576); compatible with Normal, Full or Zoom Modes
Color Brightness: 10,000 lumens (IDMS Rated)
White Brightness: 10,000 lumens (ISO Rated)
Contrast Ratio: Up to and over 5,000,000:1, with Dynamic Contrast in Normal or High Speed setting
White Balance: Color temperature is between 3,200K ~ 10,000K
Color Reproduction: Full-color (up to 1.07 billion colors)
Size (Projected Distance): 60" to 300", based on attached Epson High Precision Lens
Keystone Correction: Vertical/Horizontal: ± 30 degrees
HDR Color Processing: Full 10-bit

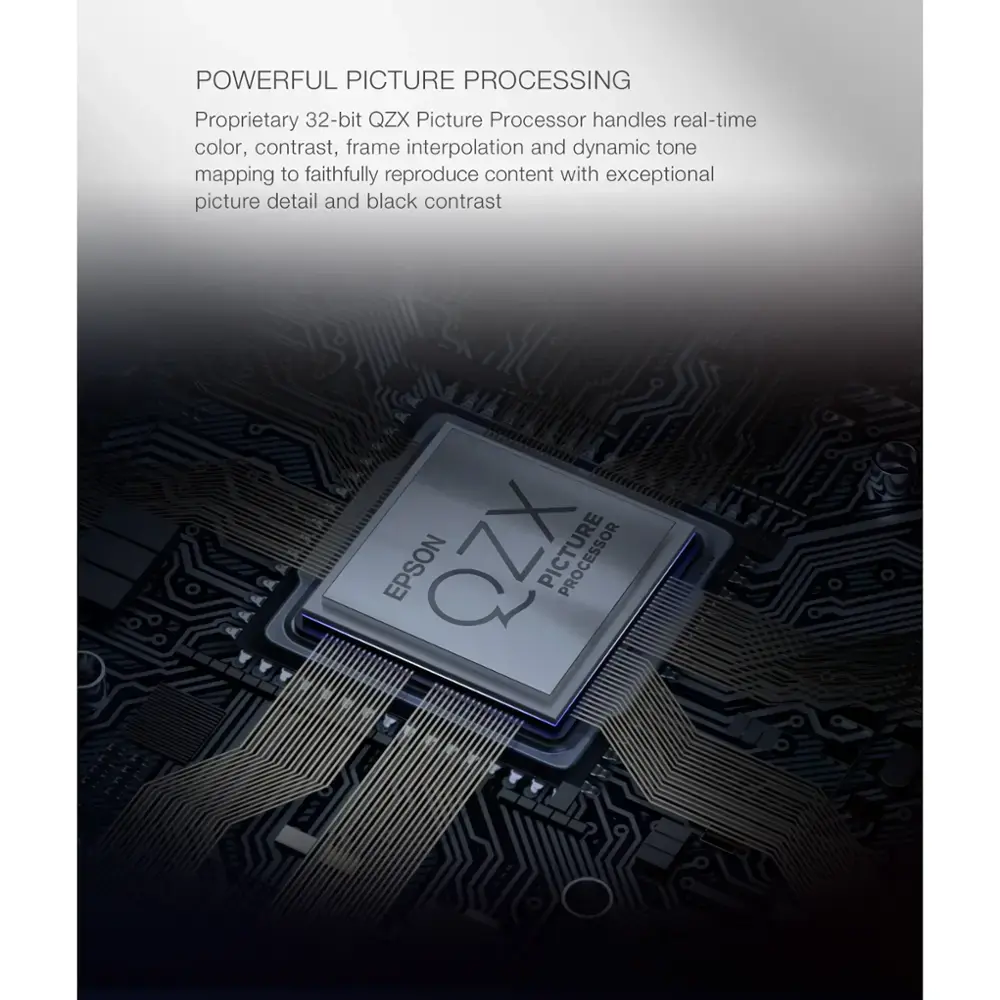

Epson QZX Picture Processor: Full 12-bit
Light Source Life:
- Normal Mode: Up to 20,000 hours
- Medium Mode: Up to 20,000 hours
- Eco Mode: Up to 20,000 hours
Standard Projection Lens (Sold Separately)
Standard Lens: ELPLM15 (sold separately)
Type: Powered shift/focus/zoom
F-Number: 1.8 – 2.3
Focal Length: 36.0 mm – 57.4 mm
Zoom Ratio: Optical Zoom: 1.0 – 1.6
Throw Ratio Range: 1.52 – 2.47
Lens Shift:
- Vertical: -64 % to +64 %
- Horizontal: -16 % to +16 %
Other Features

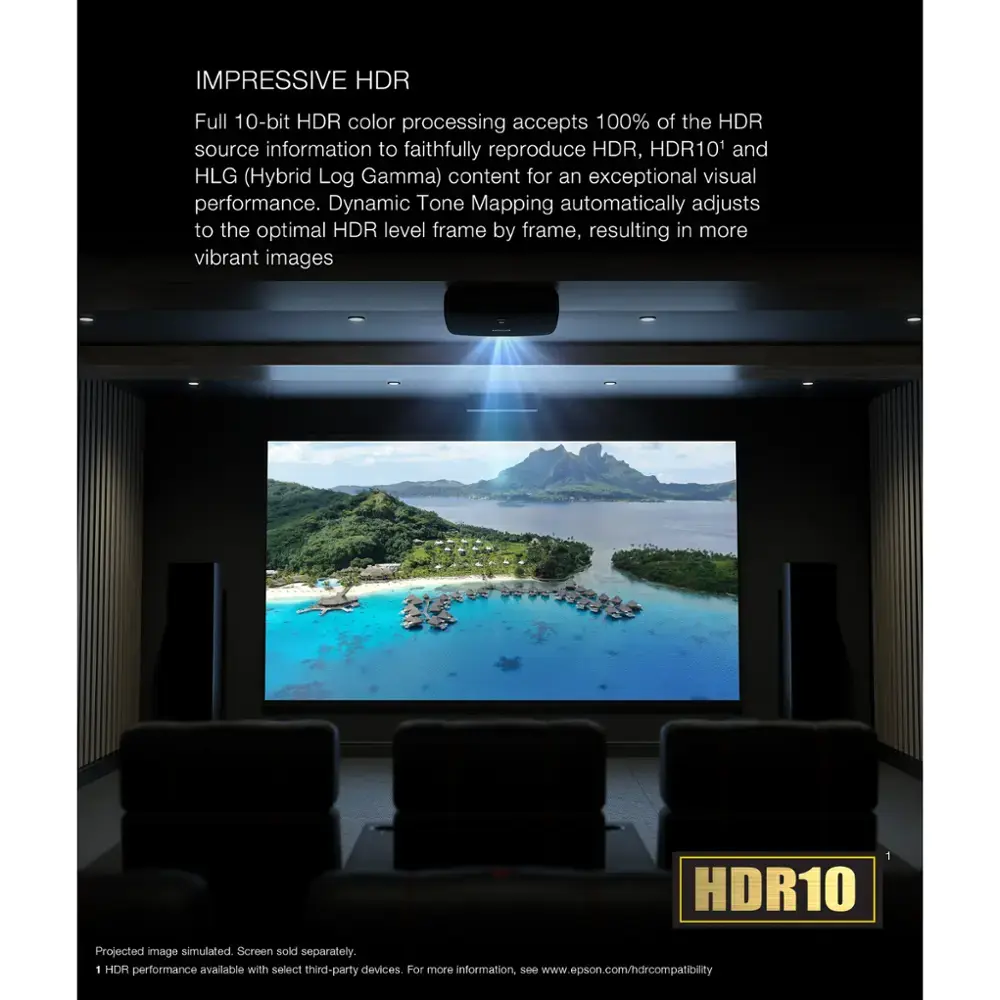

Dynamic Range Support: HDR10, HLG
HDR Adjustment: 16 steps, real-time
Color Modes: Dynamic, Vivid, Cinema, Natural
Aspect Adjustment: Yes (Auto/Full/Zoom/Anamorphic Wide/Horizontal Squeeze)
Anamorphic Lens Option: Compatible with third-party options; Anamorphic Lens Kit sold separately
Frame Interpolation: Input up to 4K at 60 Hz, output up to 4K at 120 Hz
Operating Temperature: 41 ºF to 95 ºF (5 ºC to 35 ºC)
Power Supply Voltage: 100 – 240 V AC ± 10%, 50/60 Hz
Power Consumption:
- Normal Mode: 636 W
- Quiet/Extended Mode: 328 W
- Network Standby: 2.0 W
-
Energy Saving: 0.5 W
Fan Noise: - Normal Mode: 33 dB
-
Quiet Mode: 26 dB
Security: Kensington® security lock port
Dimensions (W x D x H)
-
Projector, Including Feet: 22.4" x 22.4" x 7.5"
Weight: 46.5 lb -
Packaging: 33.7" x 27.2" x 14.1"
Weight: 64.59 lb
Remote Control
Features: Front, Ceiling, Rear
Operating Distance: 32 ft (10 m)
Operating Angle:
- Front Right/Left: ± 60 degrees
- Upper/Lower: +30 to -20 degrees
- Rear Right/Left: ± 30 degrees
- Upper/Lower: +50 to +10 degrees
-
What’s Included
QL7000 projector, top cover, cable cover, power cord, remote control with (2) AA batteries, Quick Setup Guide
Color Space (YCbCr)
| Resolution | Refresh Rate (Hz) | 4:2:0 | 4:2:2 | 4:4:4 |
|---|---|---|---|---|
| 3840 x 2160 | 30 | - | SDR | HDR* |
| - | HDR* | HDR* | ||
| 60 | SDR | HDR* | HDR* | |
| SDR | HDR* | HDR* | ||
| 120 | SDR | HDR* | - |
*HDR: Support for HDR10 and HLG. For more information, visit epson.com/hdrcompatibility
