Product Description

PERFECT FOR MOVIES & FILMS

Enjoy your favourite movies, TV-shows, soundtracks and games with high-resolution and room-filling sound.

Our engineers have used top tier components expertly voiced and validated with countless hours to offer you an incredible experience.

CRYSTAL-CLEAR HIGH FREQUENCIES An all-new 1-inch tweeter featuring a copper faraday ring which increases sensitivity and reduces non-linear distortion carries out the high-frequency duties. The tweeter and surround are made from fabric and exhibit excellent distortion characteristics and wide bandwidth for a non-fatiguing yet detailed sound.

NATURAL BASS The bass drivers feature embossed paper cones, high strength motor assemblies incorporating aluminium inductance shorting rings that enhance power handling and lower distortion. The aluminium shorting ring lowers distortion for clean, dynamic bass and increases power handling as the aluminium ring acts as a heat sink. The embossed paper cone with Thor's Hammer detailing increases the rigidity to improve the transient response for that snappy yet natural bass.

INSPIRED BY NORDIC NATURE

Jamo chose the Studio7 range's colours from the chromatic palette of Scandinavian landscapes. Norwegian fjords inspire the dark blue, while the grey finish channels the hue of fog hanging over a Finnish forest. The Jamo Studio7 will enhance your living space no matter which colour you choose.

------

Specifications

DESIGN

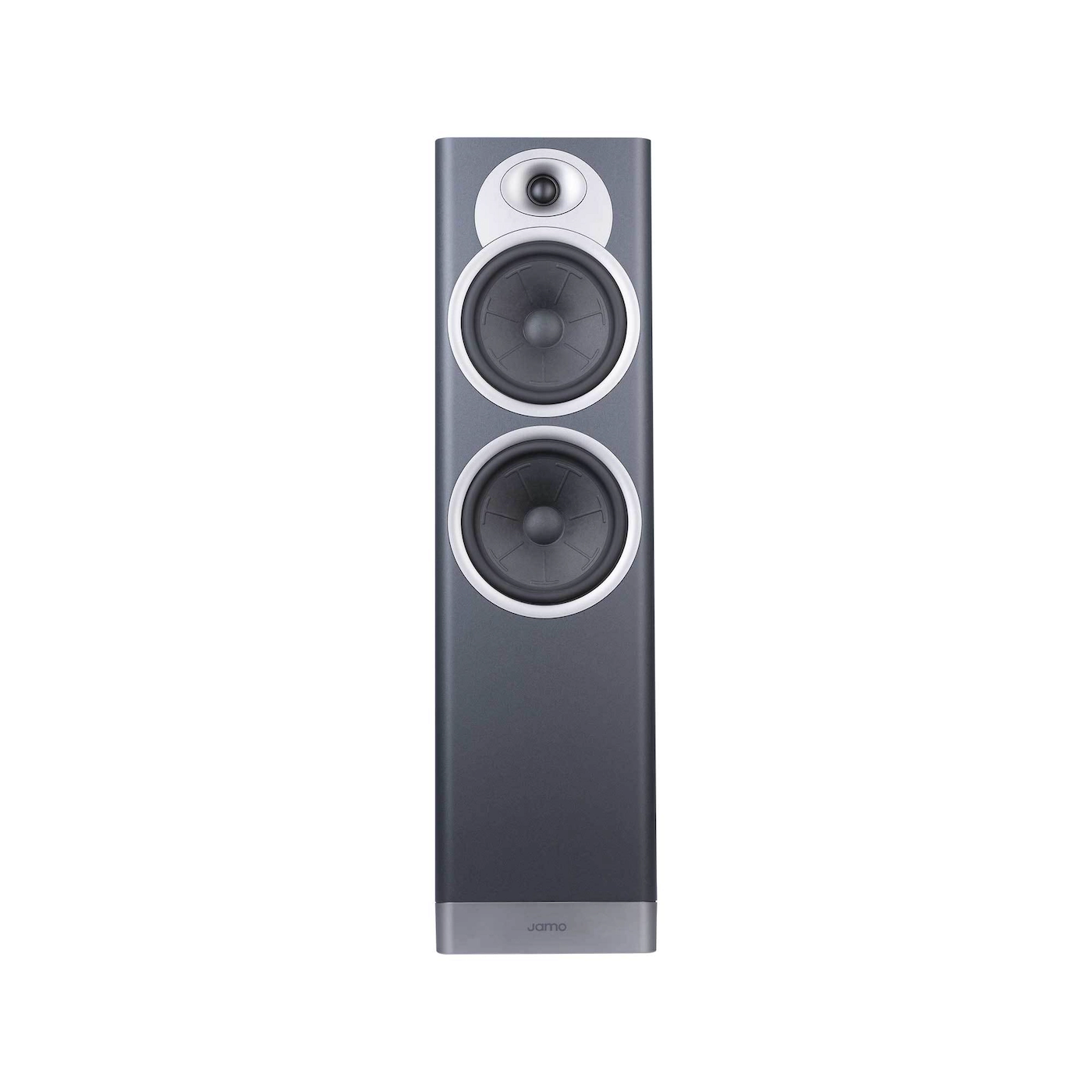

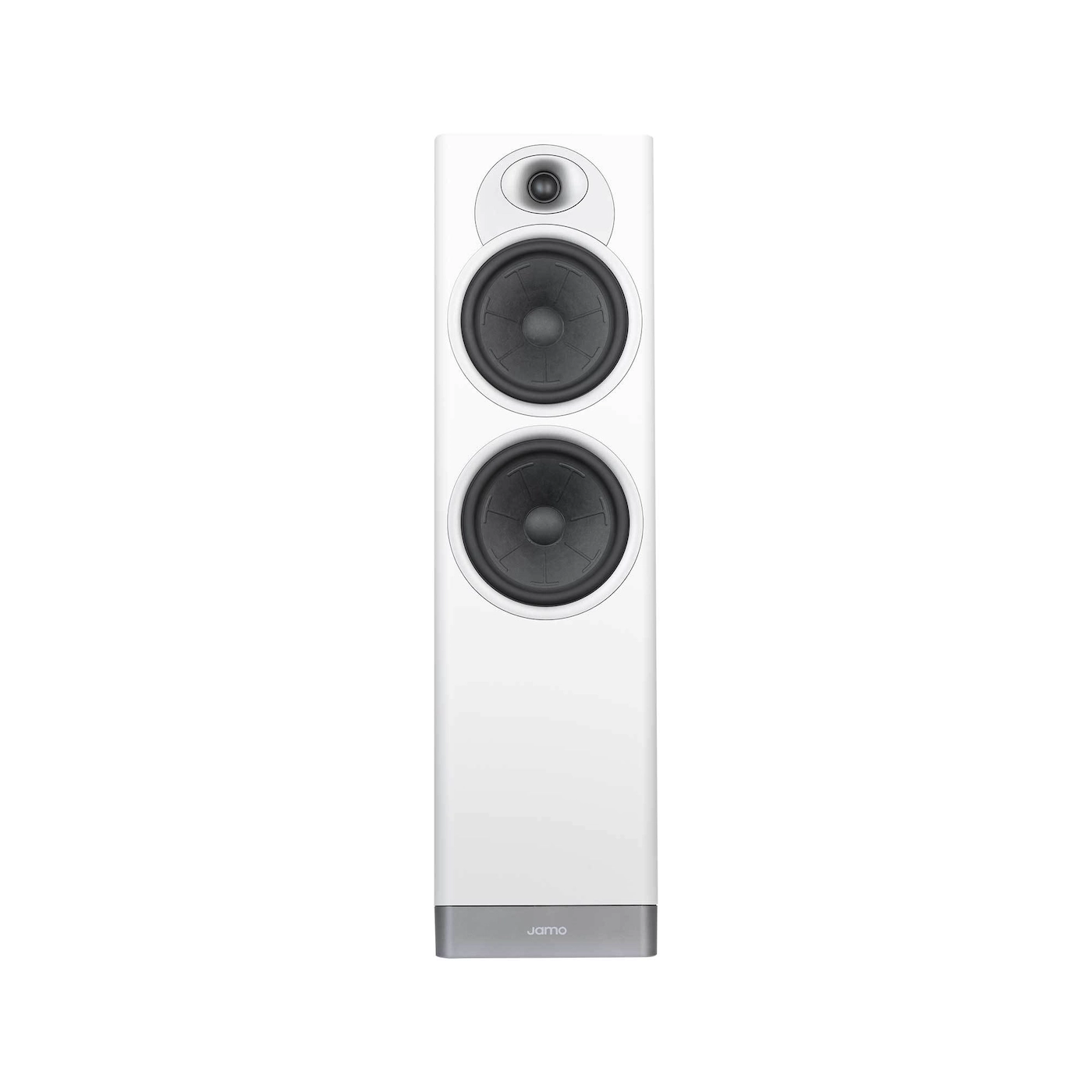

• 2-Way bass reflex

HF

• 1’’/2.54 cm
• Vented tweeter
• with a fabric dome

LF

• Dual 6.69’’ / 17 cm
• woofers – Embossed paper
• cone with thor’s hammer

Sensitivity*

• 90 dB @ 2.83 V/1 m

Frequency response (±3 dB)

• 67 Hz – 21 kHz

Frequency range in bass section (-6 dB)

• 54 Hz – 28 kHz

Crossover frequency

• 1 629 Hz

Impedance

• 4 ohms

Enclosure material

• Mdf

Enclosure type

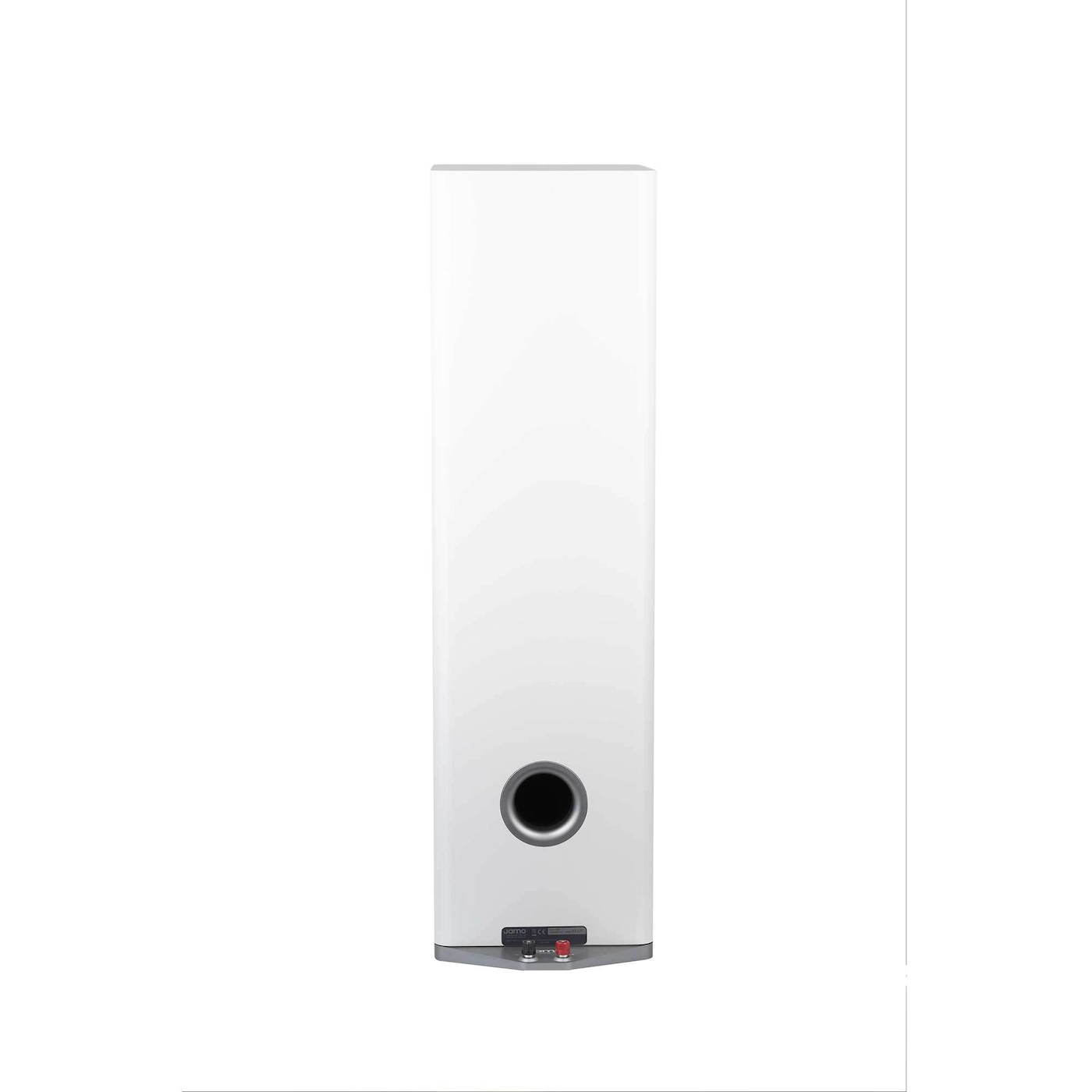

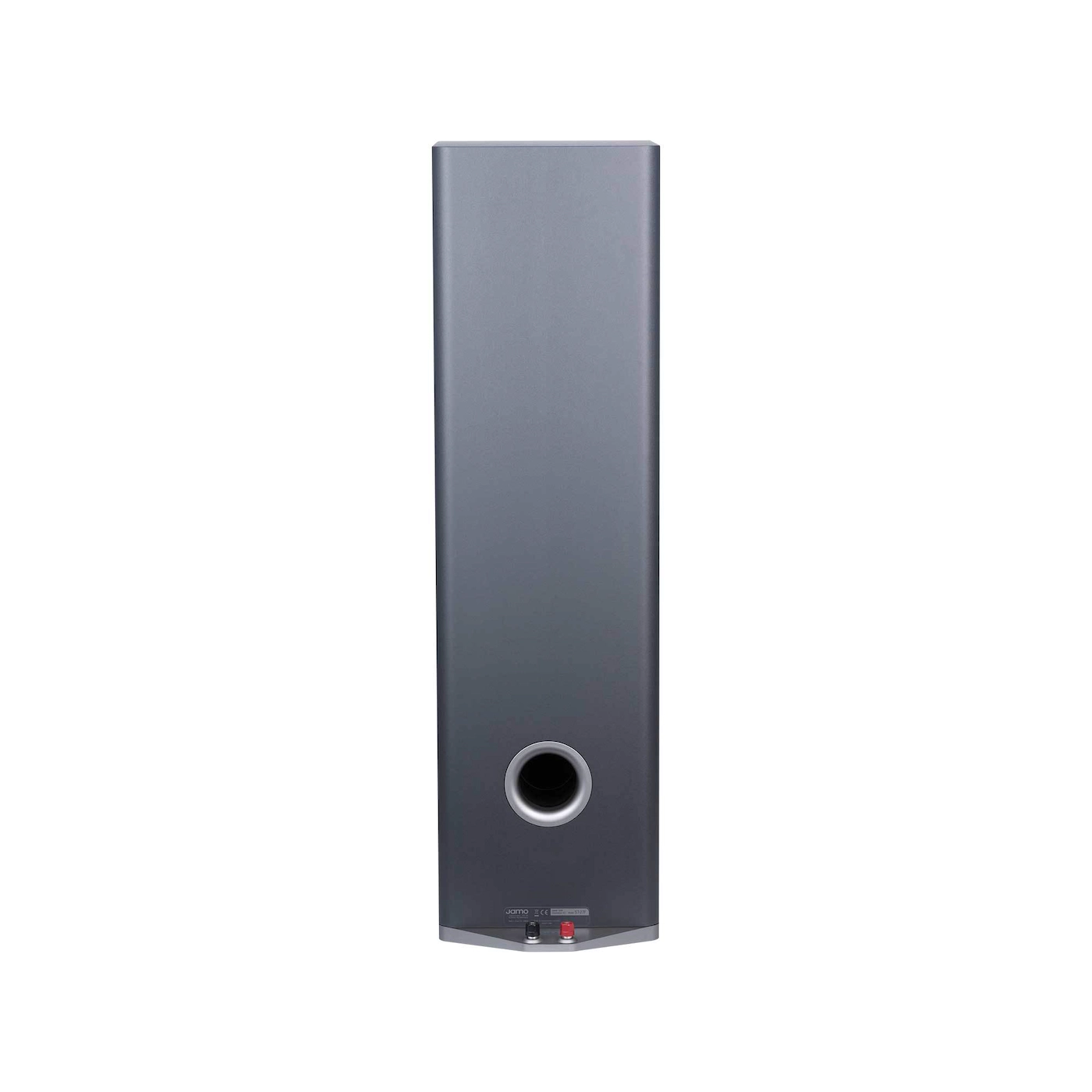

• Bass reflex

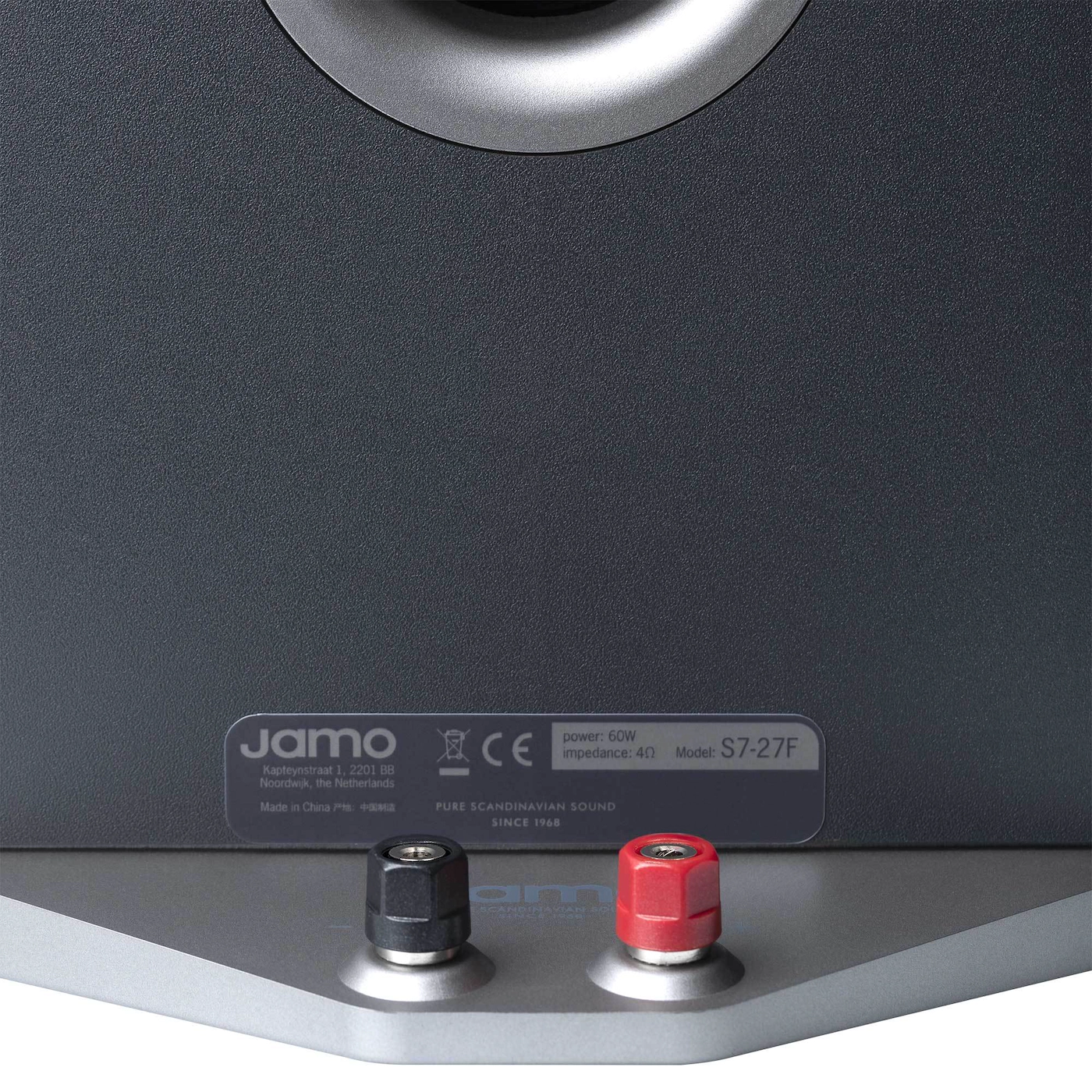

Inputs

• Single binding posts

Dimensions (unit) (H x W x D)

• 85.5 x 23 x 38 cm
• 33.6 x 9 x 15 inches

Product Weight (unit)

• 17.93 kg / 39.5 lbs

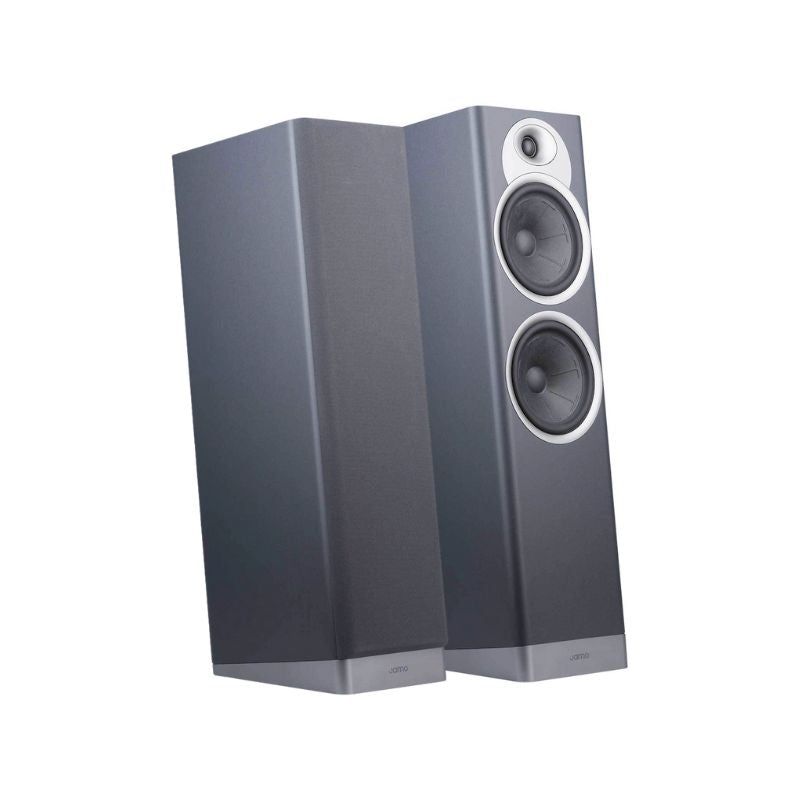

Finish

• Blue Fjord vinyl
• Grey Cloud vinyl

Included accessories

• Metal spikes (8)
• Rubber feet (8)
