Description

 Features:

  • 6.5” Injection Molded Graphite (IMG) Woofer
  • 1” Pivot Aluminum Dome ABS Tractrix® Horn-Loaded Tweeter
  • Exclusive, modular SecureFit™ Installation System
  • Bezel-Free square and round paintable magnetic grilles
  • Controlled Dispersion™ Technology
  • Magnetic paint shield

Specifications

Here is the neatly formatted text for your online shop:


High Efficiency Class G/H Amplifier

Part Number:

  • 120V: 1063258
  • 230V: 1063261

Amplifier Type:

  • High Efficiency Class G/H

Amplifier Power:

  • 1000W Total System Power
  • 4 x 250W Per Channel

Inputs:

  • Balanced: 4 x Phoenix Line Level (up to 12 AWG wire)
  • Unbalanced: 4 x RCA Line Level

Outputs:

  • 4 x Phoenix Speaker Level (up to 12 AWG wire)
  • 4 x RCA Line Level (Throughs)

Input Specifications:

  • Input Sensitivity: 750mV Balanced, 0dBU
  • Input Impedance: Balanced 40k

Performance:

  • THD: <1% @ Rated Output
  • Signal-To-Noise: -100dB Below Rated Output

Enclosure:

  • Front Face: ABS Plastic
  • Case: Machine Formed Steel

Rack Unit:

  • 1RU

Product Dimensions:

  • 1.73” x 19.02” x 14.29” (44mm x 483mm x 363mm)

Product Weight:

  • 15 lbs (6.82 kg)

Mount Type:

  • Removable 1RU Rack Ears, Removable Rubber Feet

Built From:

  • 2016

Model: In-Wall Speaker

Frequency Range:

  • 63Hz - 23kHz +/- 3dB

High Frequency Driver:

  • 1" (2.54cm) Aluminum Dome Tweeter mated to a 90°x90° Tractrix® Horn

Low Frequency Driver:

  • 6.5" (16.51cm) IMG Woofer

Sensitivity:

  • 93 dB @ 2.83V / 1m

Coverage Angle:

  • 90° x 90°

Power Handling:

  • 50W RMS / 200W Peak

Impedance:

  • 8 Ohm Compatible

Enclosure Type:

  • ABS/Infinite Baffle

Finish:

  • Black Baffle/Frame, White Paintable Grille

Product Dimensions:

  • 9.0” W x 14.1” H x 3.9” D (22.8cm W x 35.8cm H x 9.8cm D)

Mounting Depth:

  • 3.78” (9.6cm)

Cutout Dimensions:

  • 13” H X 8” W (33.0cm H X 20.3cm W)

Product Weight:

  • 7.2lbs (3.25kg)

Included:

  • Flat Magnetic Grille, Paint Shield

Installation Kit:

  • IK-650-W II or IK-650-W (Sold Separately)

Fire Rated Enclosure:

  • ME-650-W (Sold Separately)

Built From:

  • 2017
Price on Request
This item requires further consultation. If interested, please reach out to our team and a product specialist will reach out within the hour.

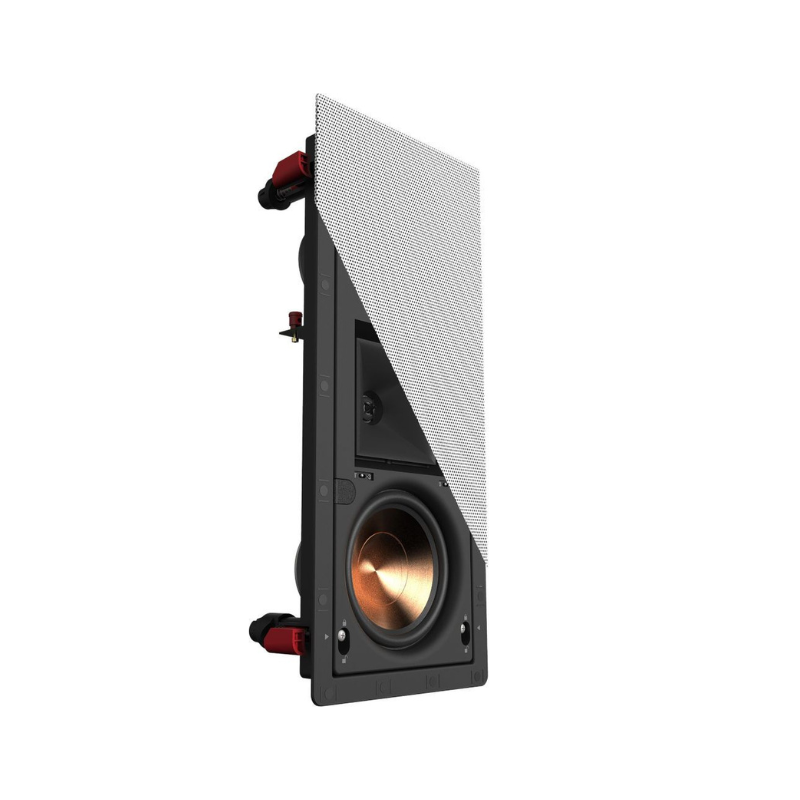

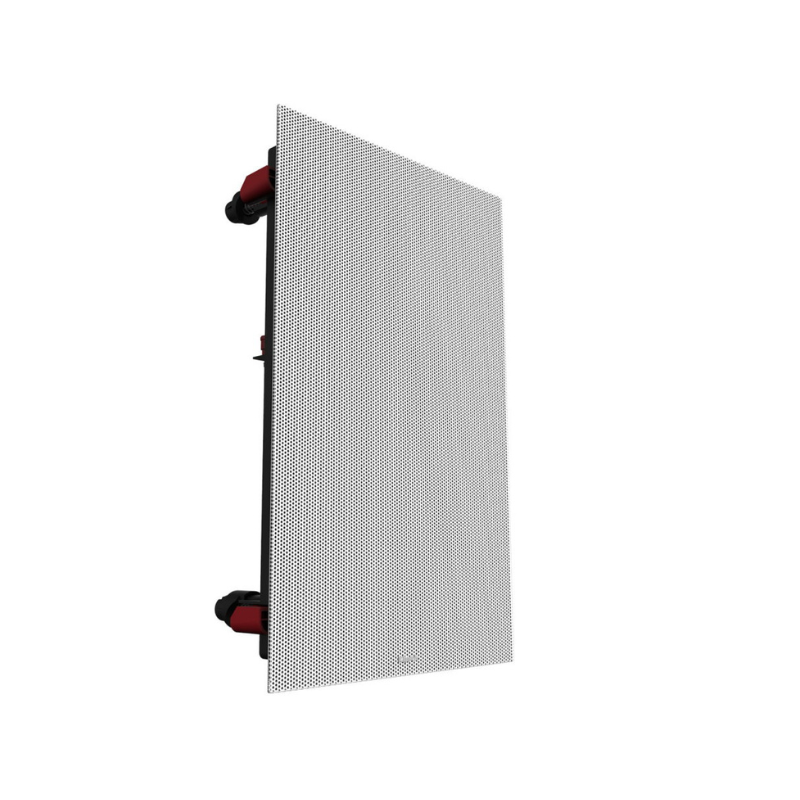

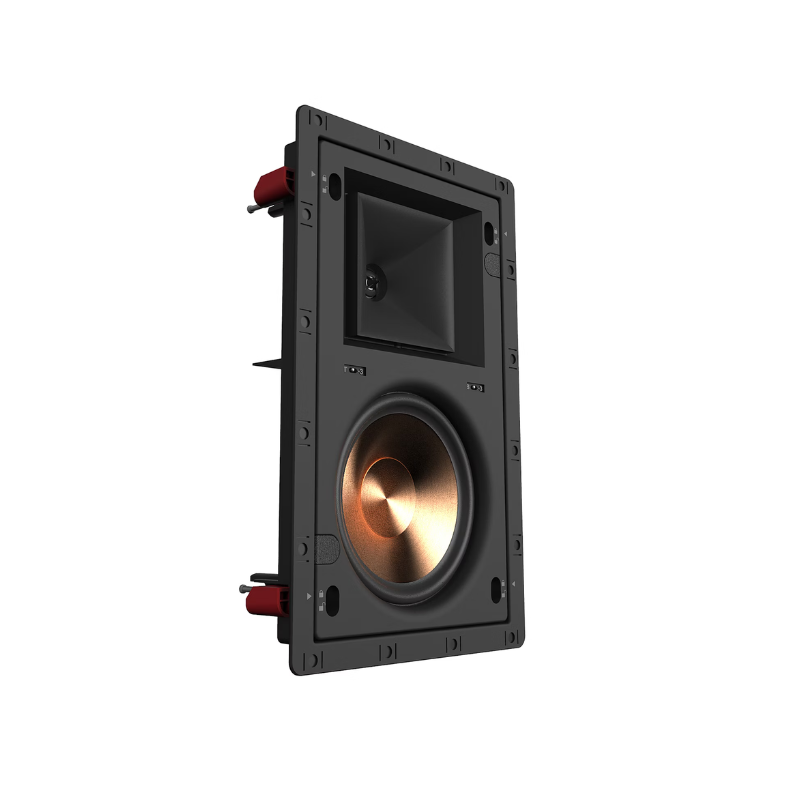

Klipsch Reference Pro-16-RW

Klipsch Reference Pro-16-RW In-Wall Speaker (Each)

Price On Request

Featuring a 6.5” Injection Molded Graphite (IMG) Woofer and 1” Pivot Aluminum Dome ABS Tractrix® Horn-Loaded Tweeter, the PRO-16RW brings incredible acoustics with the signature Klipsch sound. Featuring the SecureFit™ Installation System, the Klipsch Professional Series Reference speakers are the id Read more

 Features:

  • 6.5” Injection Molded Graphite (IMG) Woofer
  • 1” Pivot Aluminum Dome ABS Tractrix® Horn-Loaded Tweeter
  • Exclusive, modular SecureFit™ Installation System
  • Bezel-Free square and round paintable magnetic grilles
  • Controlled Dispersion™ Technology
  • Magnetic paint shield

Specifications

Here is the neatly formatted text for your online shop:


High Efficiency Class G/H Amplifier

Part Number:

  • 120V: 1063258
  • 230V: 1063261

Amplifier Type:

  • High Efficiency Class G/H

Amplifier Power:

  • 1000W Total System Power
  • 4 x 250W Per Channel

Inputs:

  • Balanced: 4 x Phoenix Line Level (up to 12 AWG wire)
  • Unbalanced: 4 x RCA Line Level

Outputs:

  • 4 x Phoenix Speaker Level (up to 12 AWG wire)
  • 4 x RCA Line Level (Throughs)

Input Specifications:

  • Input Sensitivity: 750mV Balanced, 0dBU
  • Input Impedance: Balanced 40k

Performance:

  • THD: <1% @ Rated Output
  • Signal-To-Noise: -100dB Below Rated Output

Enclosure:

  • Front Face: ABS Plastic
  • Case: Machine Formed Steel

Rack Unit:

  • 1RU

Product Dimensions:

  • 1.73” x 19.02” x 14.29” (44mm x 483mm x 363mm)

Product Weight:

  • 15 lbs (6.82 kg)

Mount Type:

  • Removable 1RU Rack Ears, Removable Rubber Feet

Built From:

  • 2016

Model: In-Wall Speaker

Frequency Range:

  • 63Hz - 23kHz +/- 3dB

High Frequency Driver:

  • 1" (2.54cm) Aluminum Dome Tweeter mated to a 90°x90° Tractrix® Horn

Low Frequency Driver:

  • 6.5" (16.51cm) IMG Woofer

Sensitivity:

  • 93 dB @ 2.83V / 1m

Coverage Angle:

  • 90° x 90°

Power Handling:

  • 50W RMS / 200W Peak

Impedance:

  • 8 Ohm Compatible

Enclosure Type:

  • ABS/Infinite Baffle

Finish:

  • Black Baffle/Frame, White Paintable Grille

Product Dimensions:

  • 9.0” W x 14.1” H x 3.9” D (22.8cm W x 35.8cm H x 9.8cm D)

Mounting Depth:

  • 3.78” (9.6cm)

Cutout Dimensions:

  • 13” H X 8” W (33.0cm H X 20.3cm W)

Product Weight:

  • 7.2lbs (3.25kg)

Included:

  • Flat Magnetic Grille, Paint Shield

Installation Kit:

  • IK-650-W II or IK-650-W (Sold Separately)

Fire Rated Enclosure:

  • ME-650-W (Sold Separately)

Built From:

  • 2017
This item requires further consultation. If interested, please reach out to our team and a product specialist will reach out within the hour.
