SECUREFIT™ INSTALLATION SYSTEM
The exclusive modular installation system allows for the dog legs to be engaged by hand to a preset clamping force, eliminating the possibility of overtorquing. The speaker module is fixed to the bezel using machine screws instead of traditional drywall screws for a more robust, acoustically stable installation.
CONTROLLED DISPERSION™ TECHNOLOGY
Controlled Dispersion™ Technology allows for the tweeter and woofer to be aimed up to 15° in any direction. This provides the perfect on-axis frequency response to off-center listening positions and the ideal solution for challenging installation positions.

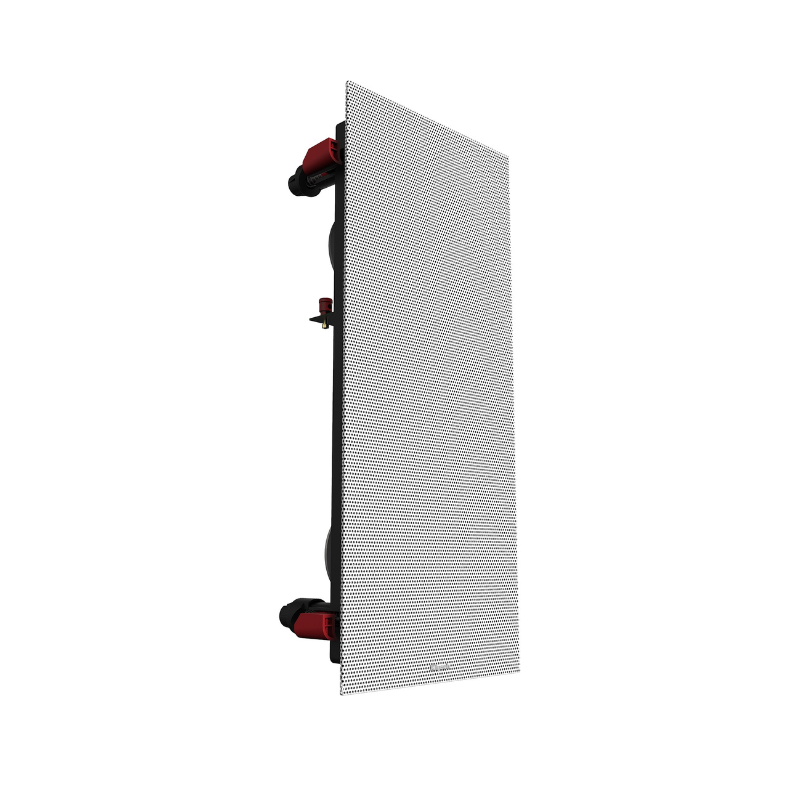

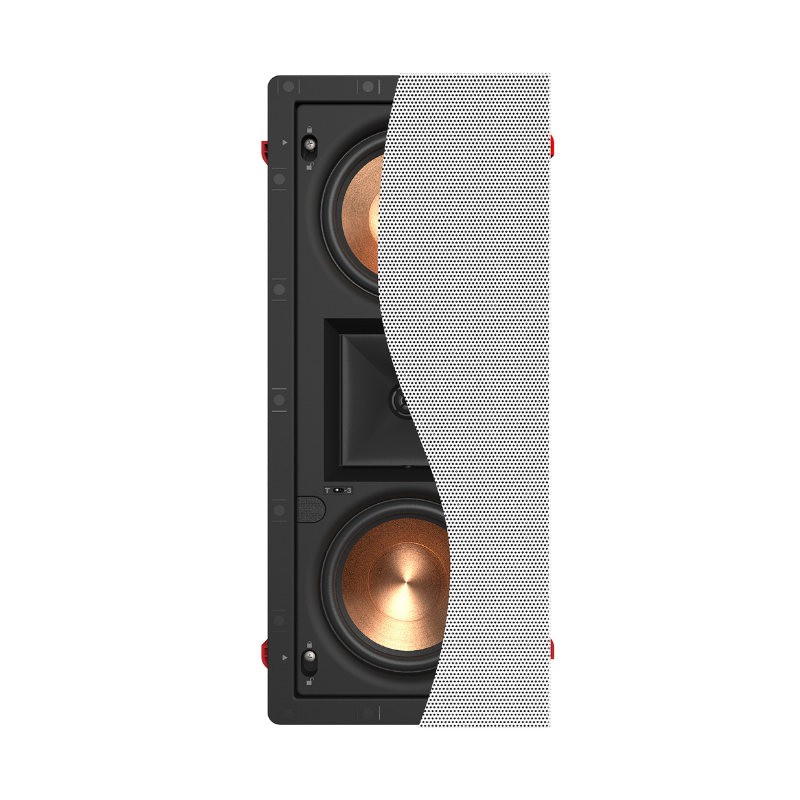

ALL NEW, BEZEL-FREE MAGNETIC GRILLE
A completely redesigned powder coated magnetic steel grille eliminates the bezel for seamless, pristine integration into the living space.
PVC PAINT SHIELD INCLUDED
Also included is a magnetic PVC paint shield that can be used to cover the speaker module to protect it from paint or construction dust during renovations or remodels.
Specifications
- Frequency Range: 56Hz - 23kHz +/- 3dB
- High Frequency Driver: 1" (2.54cm) Aluminum Dome Tweeter mated to a 90°x90° Tractrix® Horn
- Low Frequency Driver: Dual 5.25" (13.34cm) IMG Woofers
- Sensitivity: 93 dB @ 2.83V / 1m
- Coverage Angle: 90° x 90°
- Power Handling: 75W RMS / 300W Peak
- Impedance: 8 Ohm Compatible
- Enclosure Type: ABS/Infinite Baffle
- Finish: Black Baffle/Frame, White Paintable Grille
- Product Dimensions: 7.5” W x 17.4” H x 3.8” D (19.1cm W x 44.2cm H x 9.6cm D)
- Mounting Depth: 3.78” (9.35cm)
- Cutout Dimensions: 16.5” H X 6.5” W (41.9cm H X 16.5cm W)
- Product Weight: 6.5 lbs (2.95 kg)
- Included: Grille, Paint Shield
- Installation Kit: IK-502-W II or IK-502-W (Sold Separately)
- Built From: 2017
