Features:
- All-New 1 3/4" Titanium Compression Driver
- 90x90 Compressed Molded-Rubber Tractrix Horn
- 2 1/2 Way Network Crossover Design
- Quad 6.5" Cast Basket Cerametallic Woofers
- Premium, Furniture-Grade Wood Veneers
- Assembled in Hope, AR
90° x 90° TRACTRIX® HORN
The redesigned Tractrix horn utilizes a circular horn throat paired to a square horn mouth to further improve high-frequency response and extension while enhancing imaging and dynamics. The compressed molded rubber construction adds high-frequency damping to reduce harshness and improve detail. This creates the cleanest, most natural sound possible.
NEW 1 3/4 TITANIUM DIAPHRAGM COMPRESSION DRIVER
The compression driver features a new phase plug design to improve phase coherency at the throat of the horn, resulting in improved sound pressure linearity at high frequencies.
SPUN COPPER CERAMETALLIC WOOFERS™
Cerametallic woofers represent the pinnacle of Klipsch driver design, maintaining exceptional rigidity, and lightweight construction, for minimal cone breakup and distortion. When paired with the Tractrix horn-loaded compression driver, it provides speaker efficiency highest in its class.
CAST FRAME WOOFER DESIGN
Each 6.5” woofer feature a heavy-duty cast aluminum frame for resonant-free operation.
2 1/2 WAY NETWORK CROSSOVER DESIGN
The sophisticated design of the RC-64 III network attenuates the outer woofers' output at higher frequencies to minimize horizontal interference off-axis to the loudspeaker. This maintains a wide and even sound distribution — ensuring each listener hears the center channel information exactly as intended.
FURNITURE GRADE WOOD VENEERS

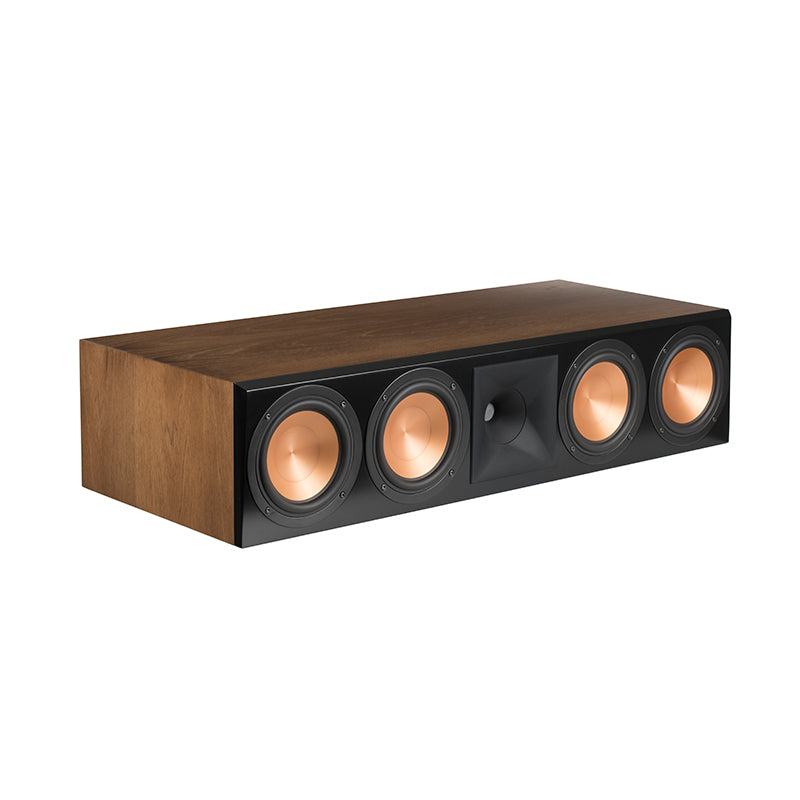

RC-64 III enclosures all utilize furniture grade wood veneers and are available in Black Ash, Cherry & Walnut.
SPECIFICATIONS
| Frequency Response ± 3dB | 57 Hz to 24 kHz |
| Power Handling | RMS: 200 W Peak: 800 W |
| Sensitivity | At 3.3' / 1 m (2.83 V): 99 dB |
| Nominal Impedance | 8-Ohm Compatible |
| High-Frequency Horn | 6.25" / 15.9 cm Square 90 x 90° Tractrix Horn |
| High-Frequency Driver | 1.75" / 4.45 cm Titanium Diaphragm Compression Driver |
| Crossover Frequencies | 1000 and 1400 Hz |
| Low-Frequency Drivers | 4 x 6.5" / 16.5 cm Cerametallic Cone Woofers |
| Inputs | Dual Binding Posts, Bi-Wire, Bi-Amp |
| Enclosure Type | Sealed |
| Dimensions | 8.0 x 35.8 x 15.0" / 20.3 x 91.0 x 38.1 cm |
| Weight | 55 lb / 25 kg |
