Features:
- 1” Titanium LTS Vented Tweeters with Hybrid Tractrix® Horns
- 5.25" Spun Copper Cerametallic™ Woofers
- Switchable Crossover Setting for Dolby Atmos or Surround Sound
- Keyhole Mounting for On-Wall Elevation/Surround Sound
- Premium Scratch-Resistant Finish
- Strong, Flexible Removable Magnetic Grille
- Dimensions: 7.39” x 6.81” x 11.16”
DOLBY ATMOS
To put it simply, Dolby Atmos® is the greatest advancement in home and cinema audio since surround sound. The addition of elevation speakers reflects sound from the ceiling to put sound anywhere in your room - making you feel like you’re truly in the middle of the action.
ELEVATE AND SURROUND

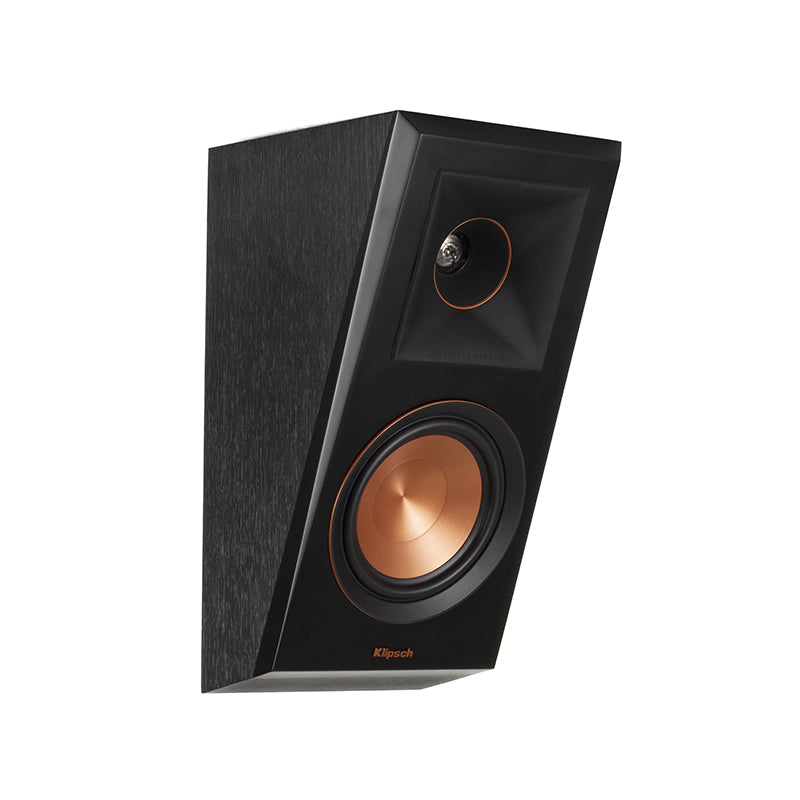

In addition to delivering overhead sound effects as a Dolby Atmos speaker topper, The RP-500SA is designed to be wall-mounted as a front, rear or side elevation speaker - or as a versatile side or rear surround sound speaker. A pre-configured switchable crossover setting makes the transition easy from Dolby Atmos to surround sound.
The keyhole mounting system makes it easy to add these incredible sound effects to your home theater system for a true cinema-grade listening experience.
HYBRID TRACTRIX® HORN TECHNOLOGY
Klipsch proprietary Tractrix® horn-loaded technology ensures high-frequency energy of the RP-500SA is aimed directly at the listener and reduces unwanted, artificial reverb caused by indirect sound bouncing off walls - meaning you experience the clearest, detailed, lifelike sound possible.
HORN ANATOMY
Klipsch Reference Premiere series speakers feature a compressed molded silicon face that is matted to the 90° x 90° Tractrix horn to reduces horn resonance for smoother frequency response. Klipsch computer modeled phase plugs act as a mechanical filter to further ensure a smooth, flat frequency response while protecting the tweeter from damage.
HORN ANATOMY
Klipsch Reference Premiere series speakers feature a compressed molded silicon face that is matted to the 90° x 90° Tractrix horn to reduces horn resonance for smoother frequency response. Klipsch computer modeled phase plugs act as a mechanical filter to further ensure a smooth, flat frequency response while protecting the tweeter from damage.
CERAMETALLIC™ WOOFERS
Klipsch Proprietary Cerametallic™ woofers are the RP-500SA speaker's signature statement for both sound and aesthetics. This extremely light, rigid material holds its shape while being able to deliver lower frequencies with maximum efficiency.
WOOFER ANATOMY
Klipsch Cerametallic™ cones are matted to a dual-layer, copper-wound voice coil for exceptional conductivity.
Reference Premiere woofers are housed in a non-resonating, stamped-steel basket that’s secured to a large magnet motor for exceptional efficiency and low distortion, and matched to our horn-loaded tweeters for optimal acoustic execution.
FINISHED TO PERFECTION
The RP-500SA Dolby Atmos speaker's ebony finish boasts a satin painted baffle with a scratch-resistant design for an elegant audio solution to your home theater system.
Strong, flexible, magnetic grilles provide protection and a sleek aesthetic to compliment your home's decor.
SPECIFICATIONS
| Speaker Configuration | 2-Way |
| Power Handling | 73 W RMS per Channel 300 W Peak per Channel |
| Bi-Amp Capability | None |
| Drivers |
1 x 1" / 25.4 mm Titanium Tweeter (per Speaker) 1 x 5.25" / 133.35 mm Cerametallic Cone Woofer (per Speaker) |
| Enclosure Type | Sealed |
| Ports | None |
| Impedance | 8 Ohms |
| Wired Connectivity | 1 x Binding Post Pair |
| Placement & Mounting Options | Speaker Topper Wall-Mount |
| Cabinet Material | MDF |
| Dimensions | 6.8 x 7.4 x 11.2" / 173 x 188 x 284 mm (Each) |
| Weight | 8.0 lb / 3.6 kg (Each) |
