With custom drivers and low distortion, Oscar Trio offers dynamic range, longer excursion and deep bass performance.
To keep the same Marten sound we designed brand new drivers, allowing more control of the details.

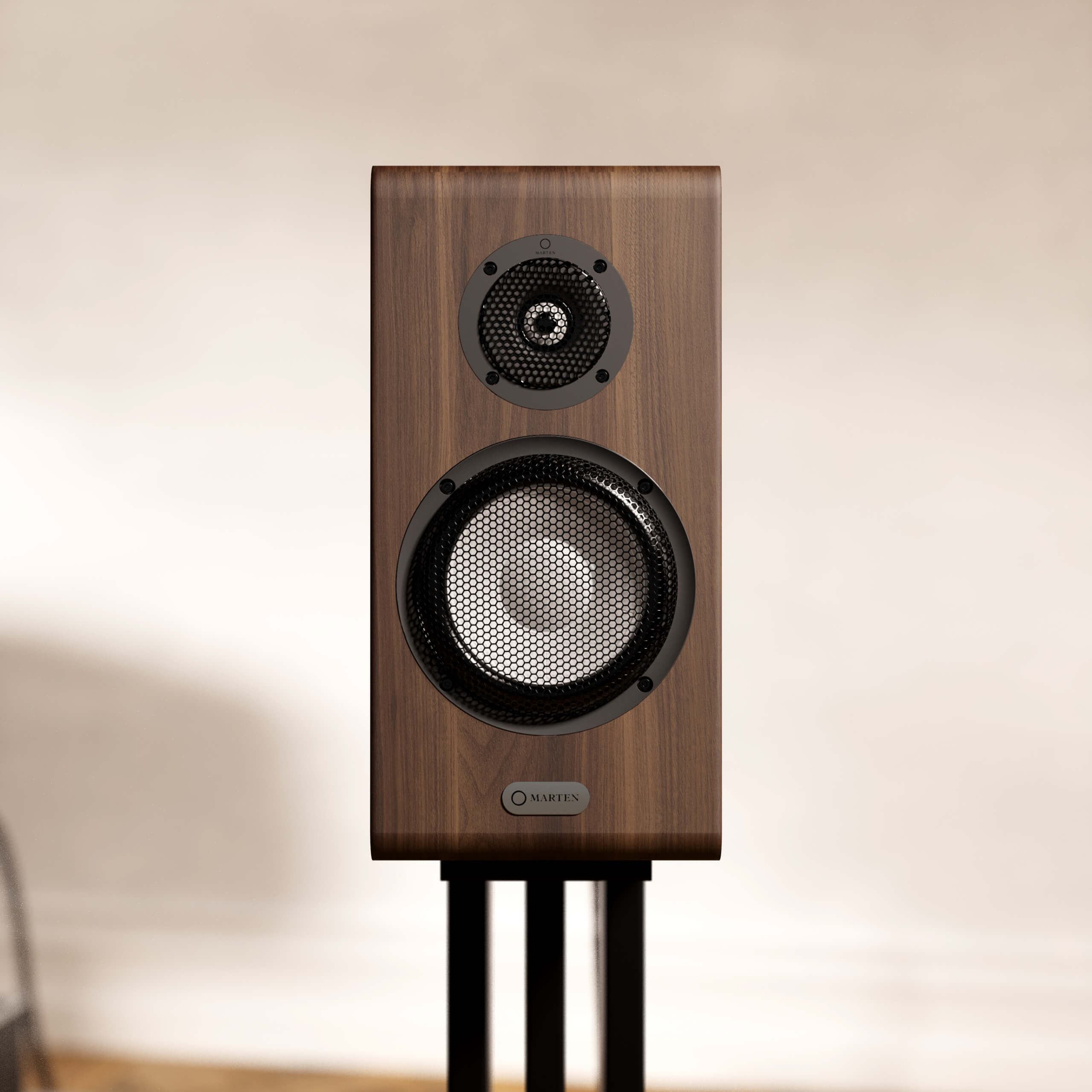

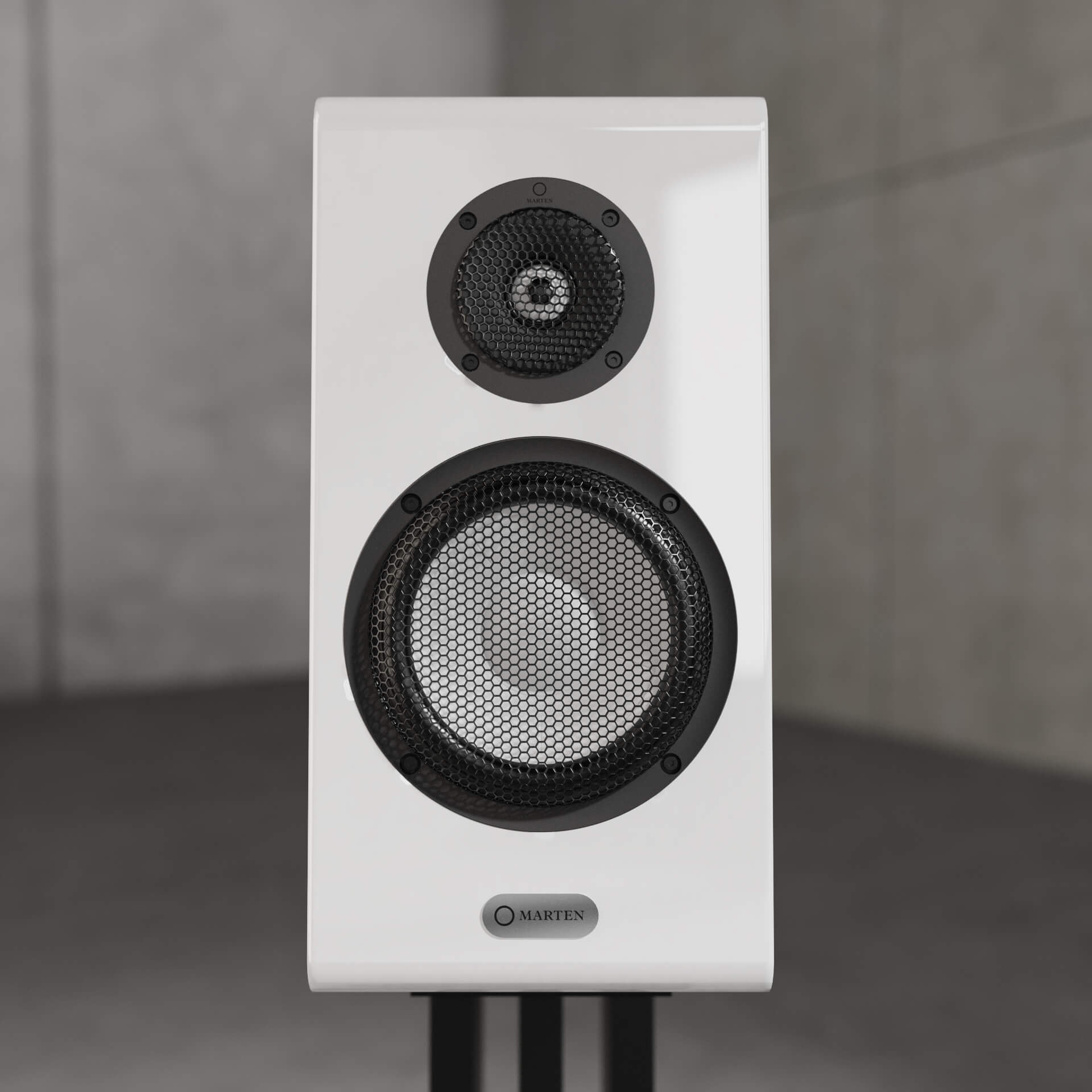

Hard ceramic is light, yet extremely rigid, making it one of the best materials for speaker membranes – it’s also known as Sapphire.
Our ceramic cones have a high internal damping factor, because of a refined electrochemical process. The membrane also has a high material resonance frequency, meaning distortion is minimal; offering a level of clarity that is the holy grail for high end speaker cones.

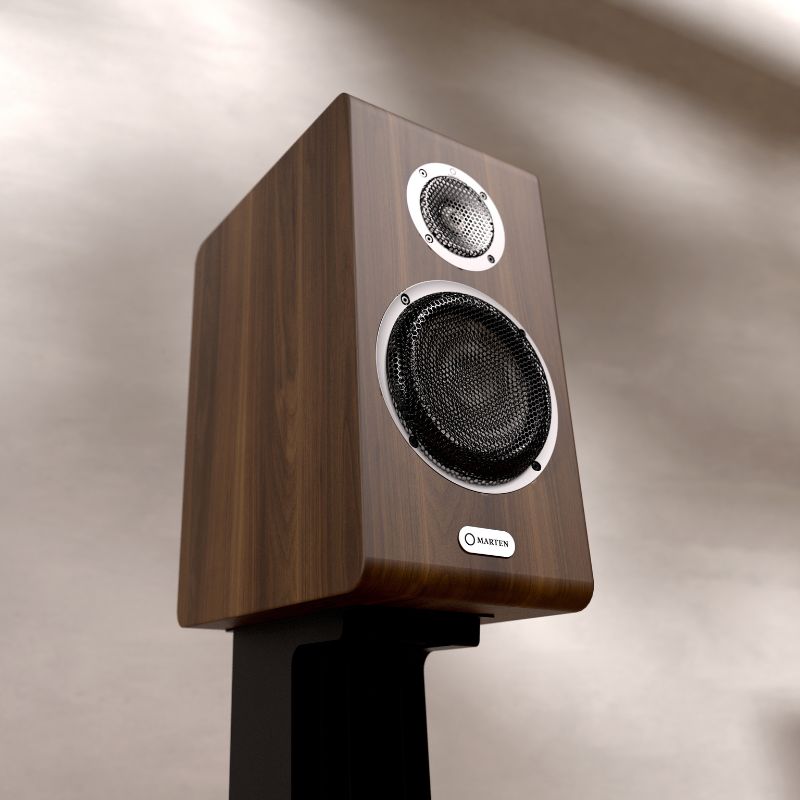

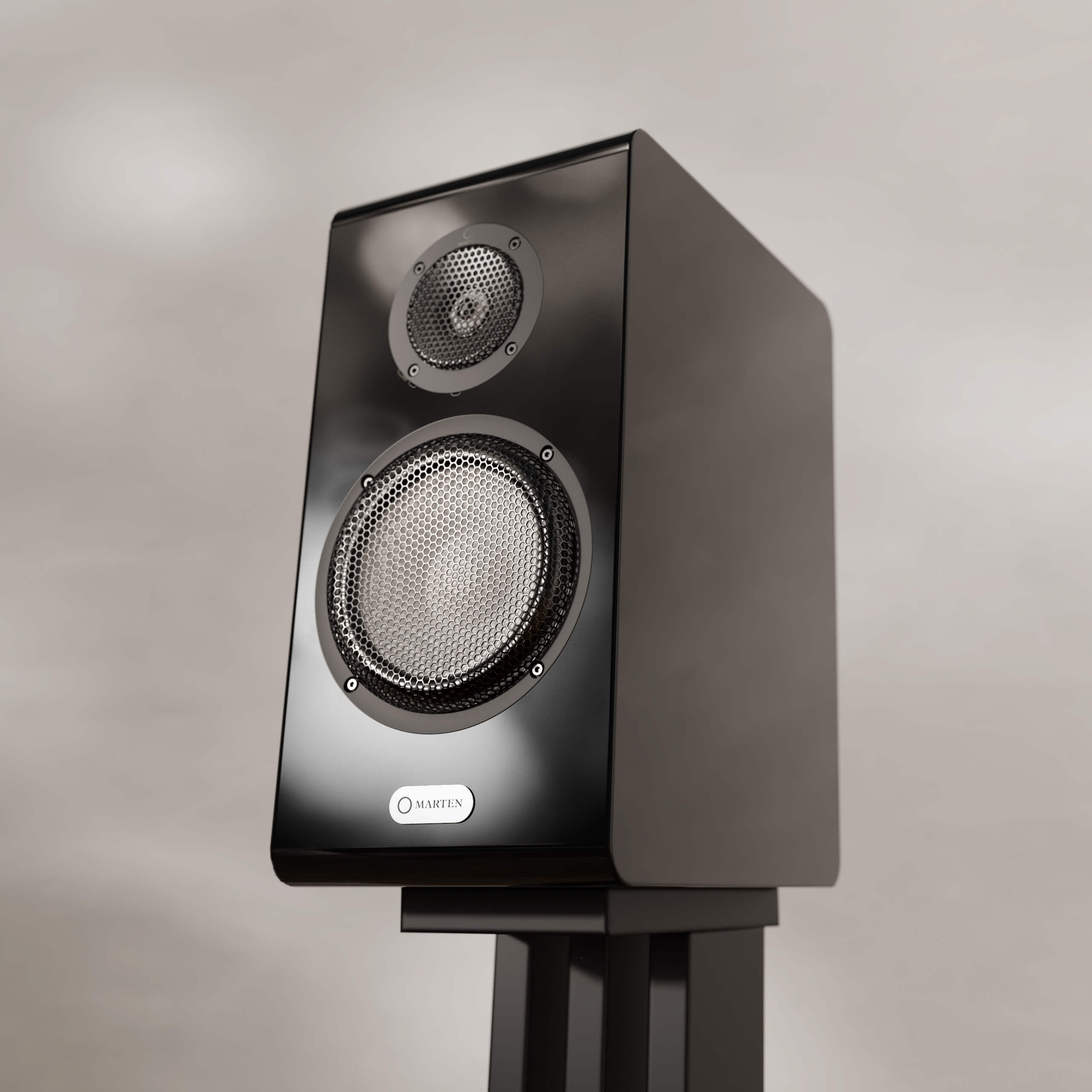

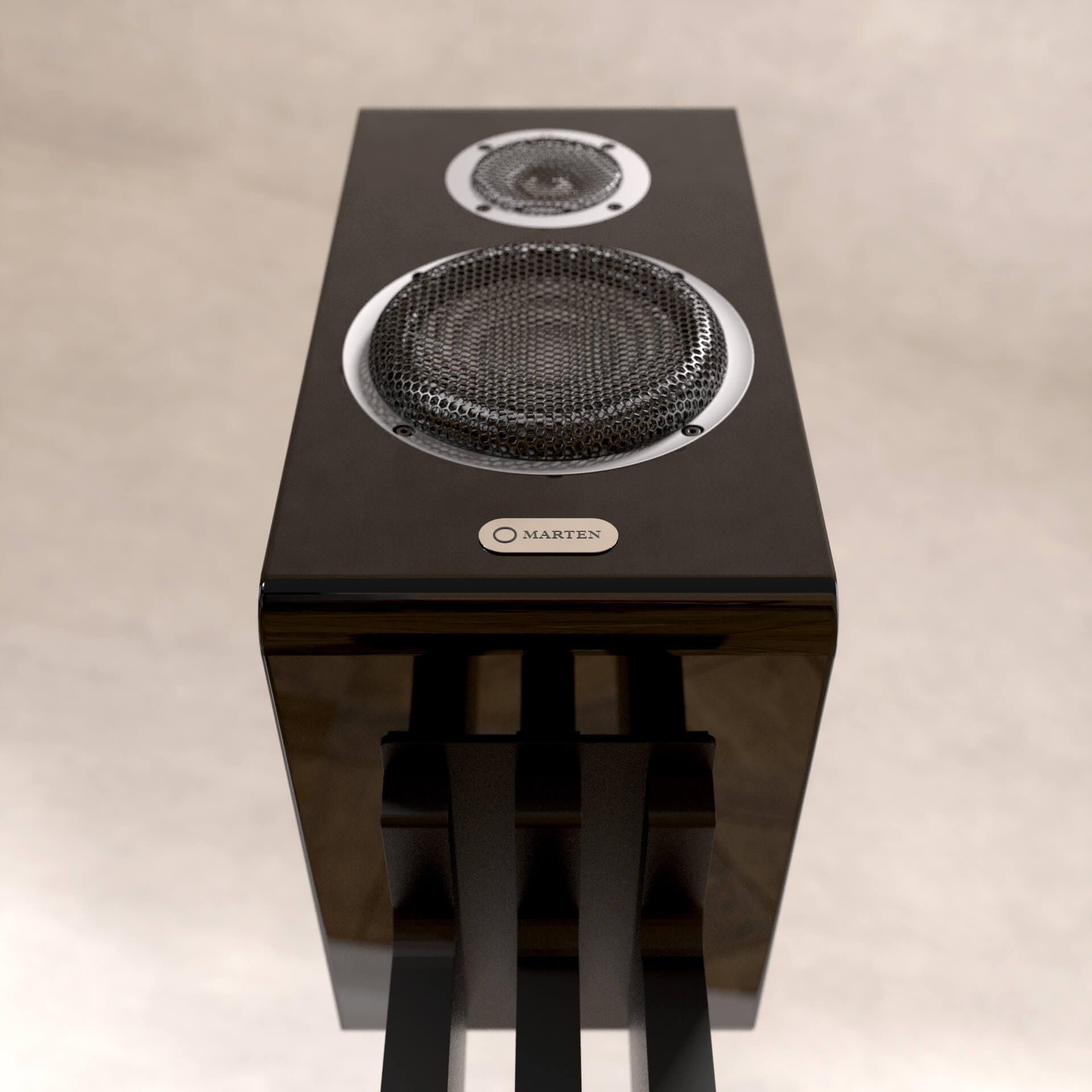

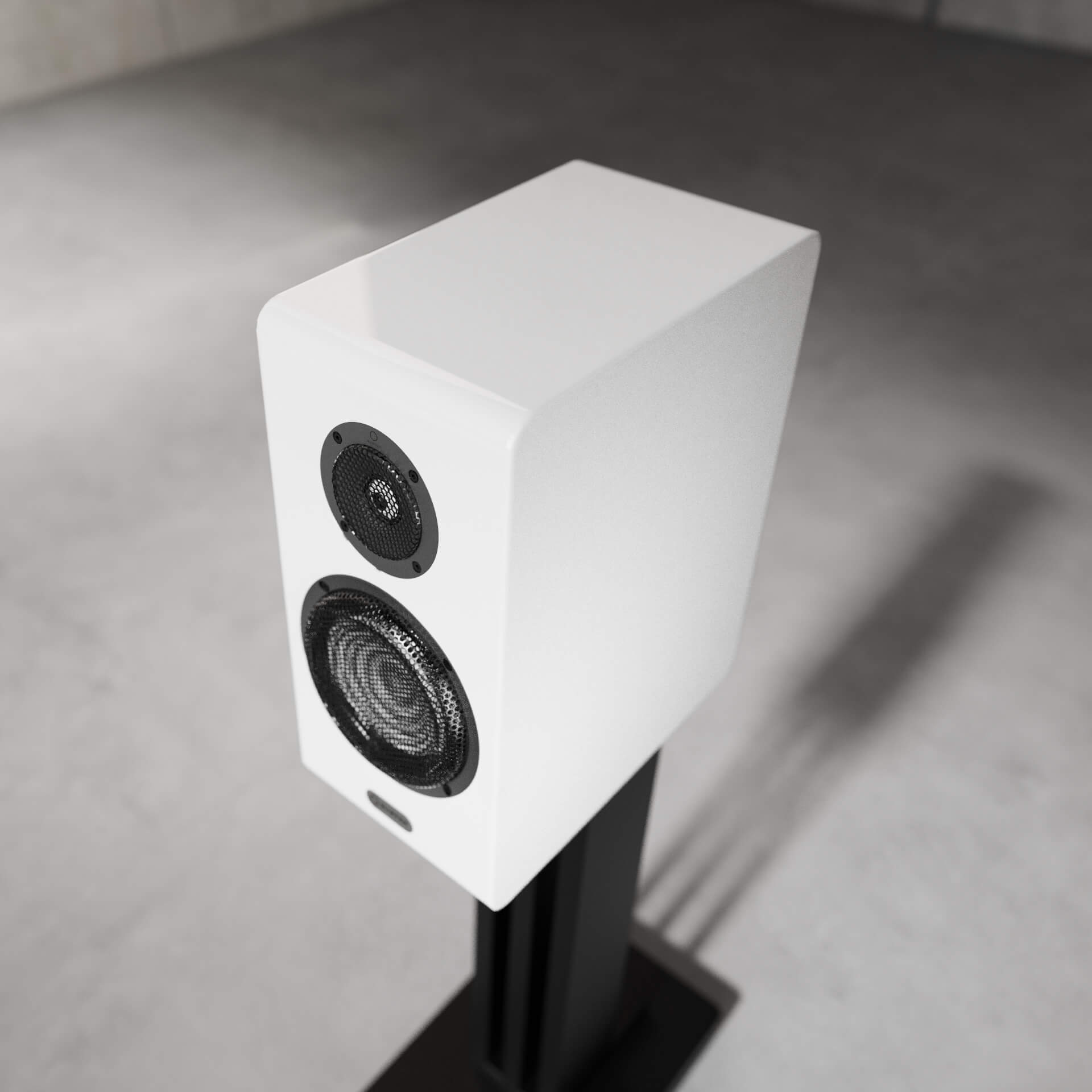

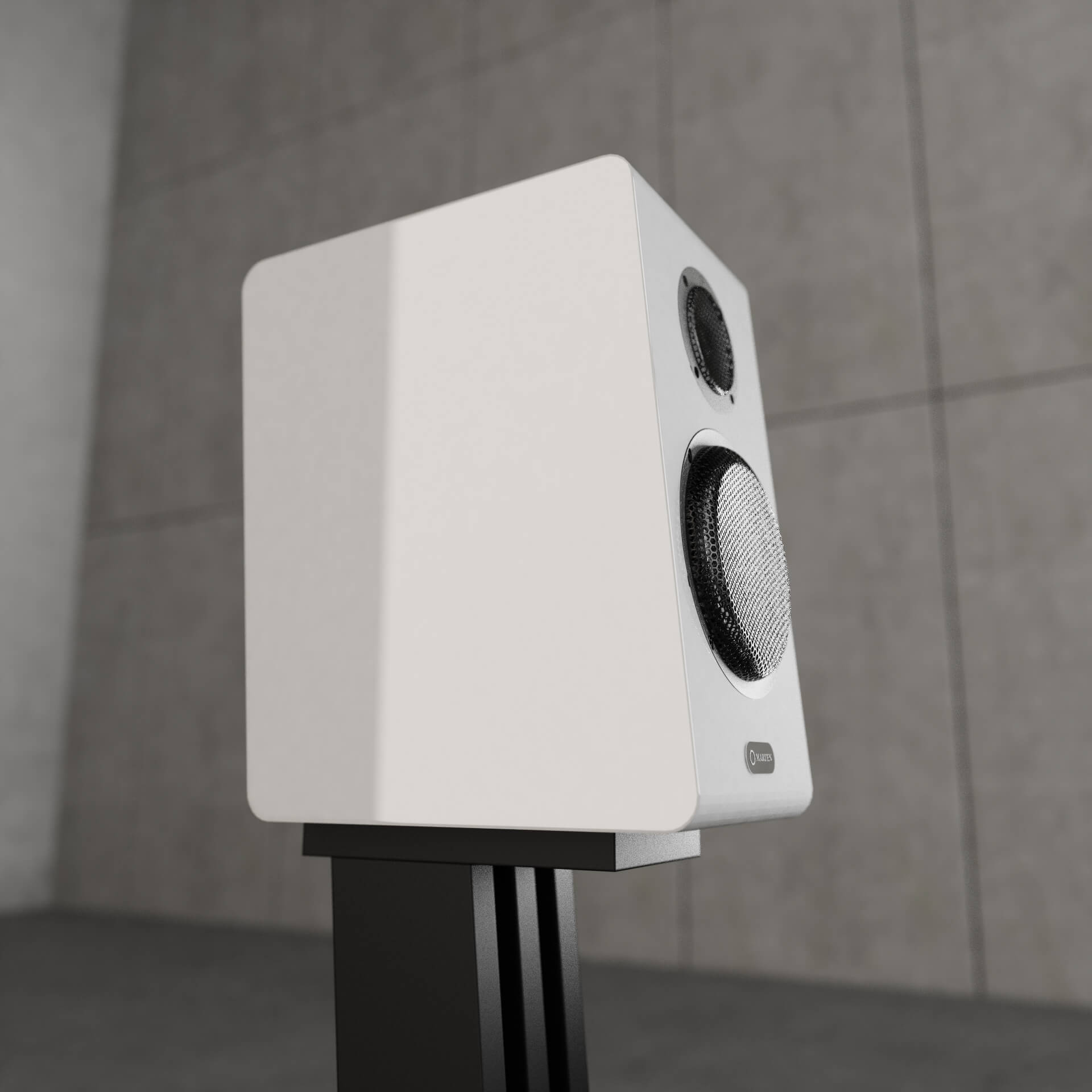

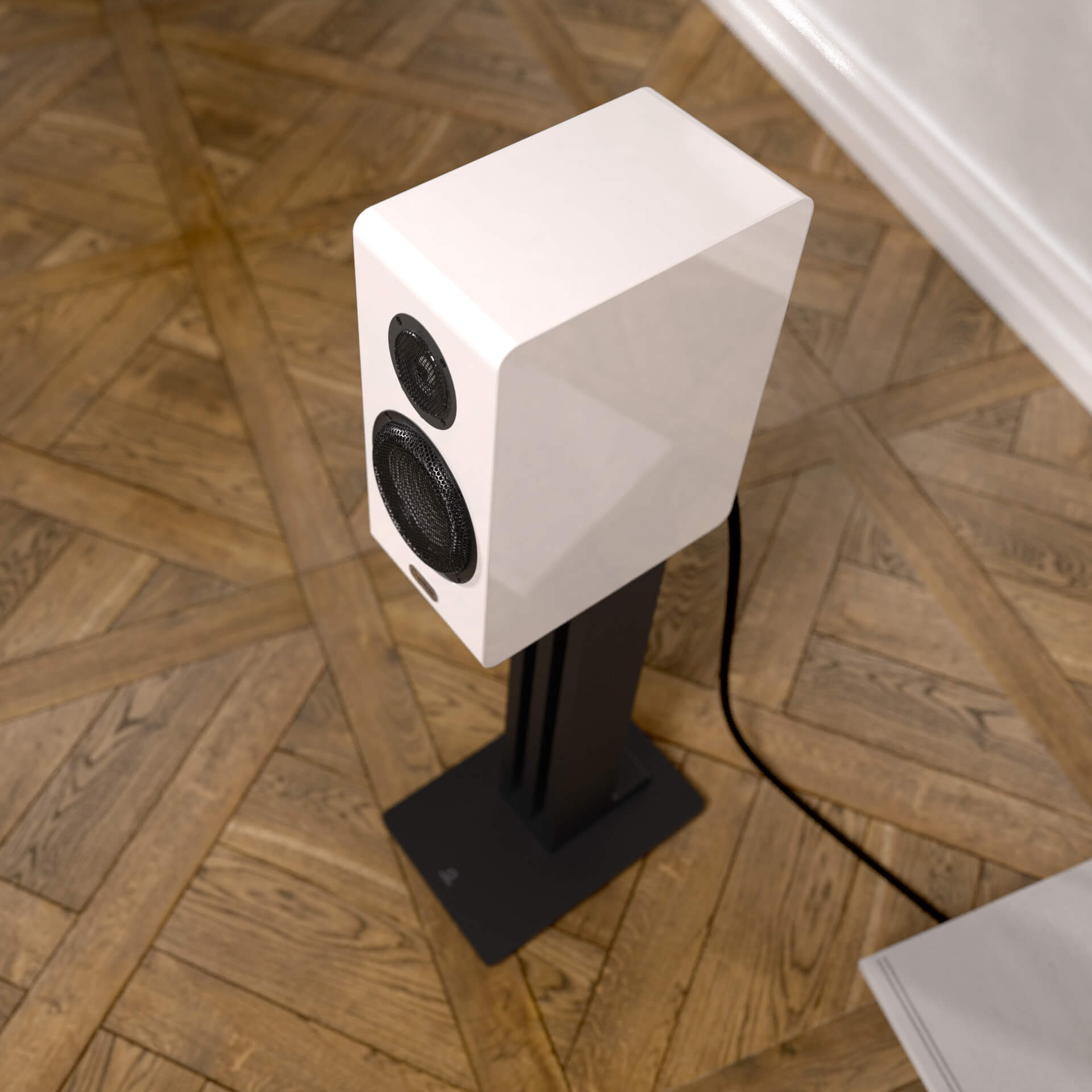

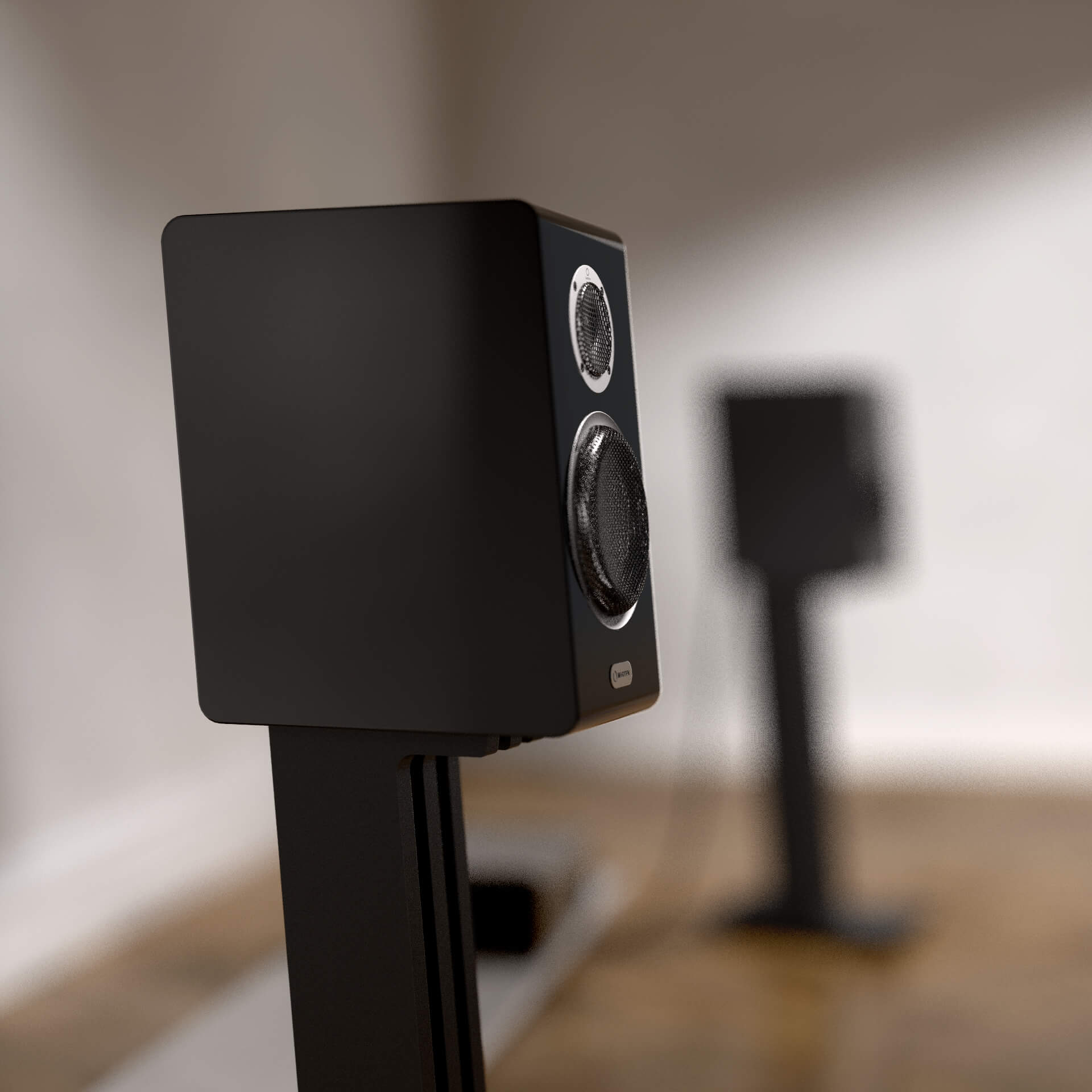

The exterior is an exercise in minimalist design – no unnecessary details; no embellishment. Marten cabinet design is a balance of strength and elegance: the perfect compliment to the sound.

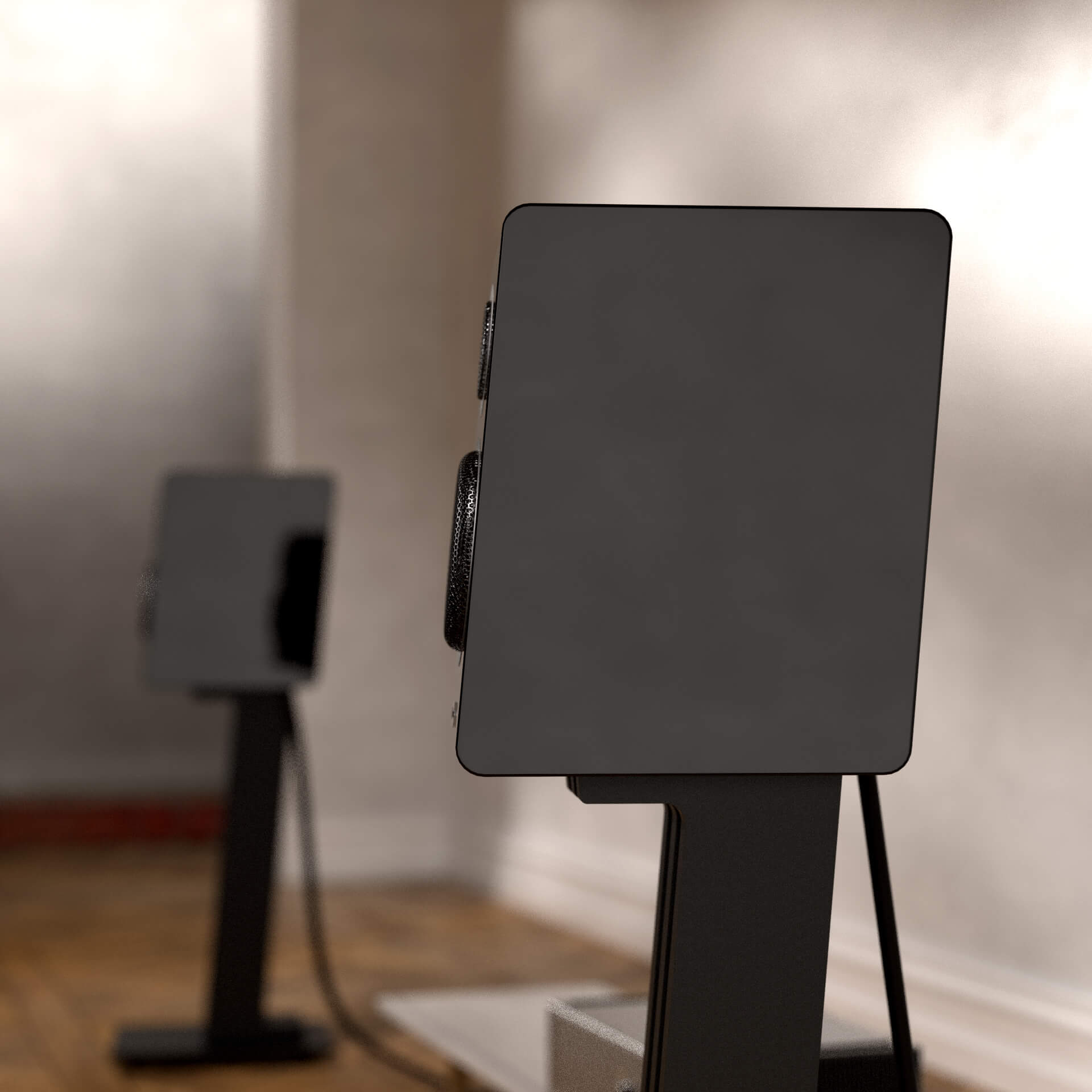

The optional magnetic cover snaps on with a satisfying click, instantly streamlining the form without changing the sound.

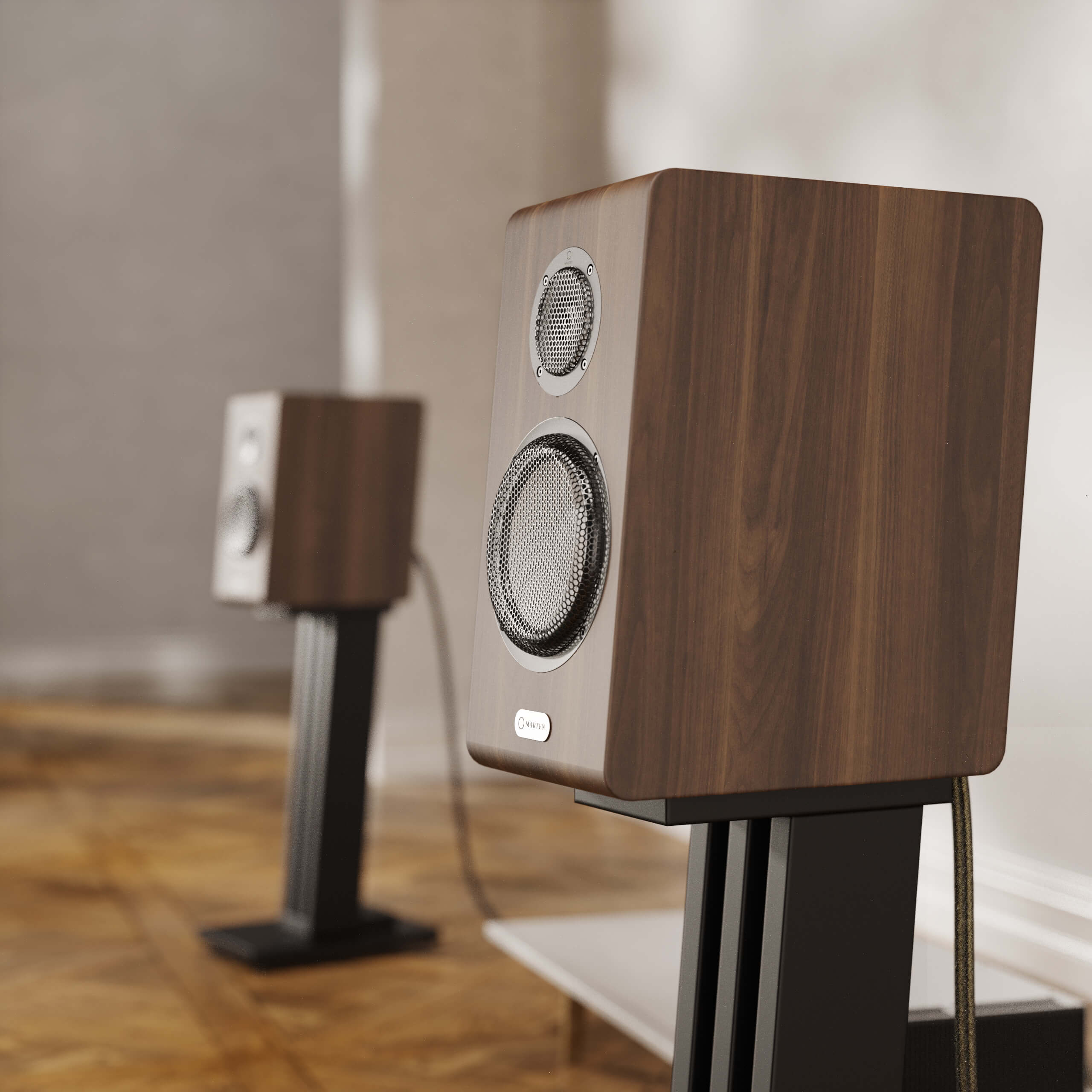

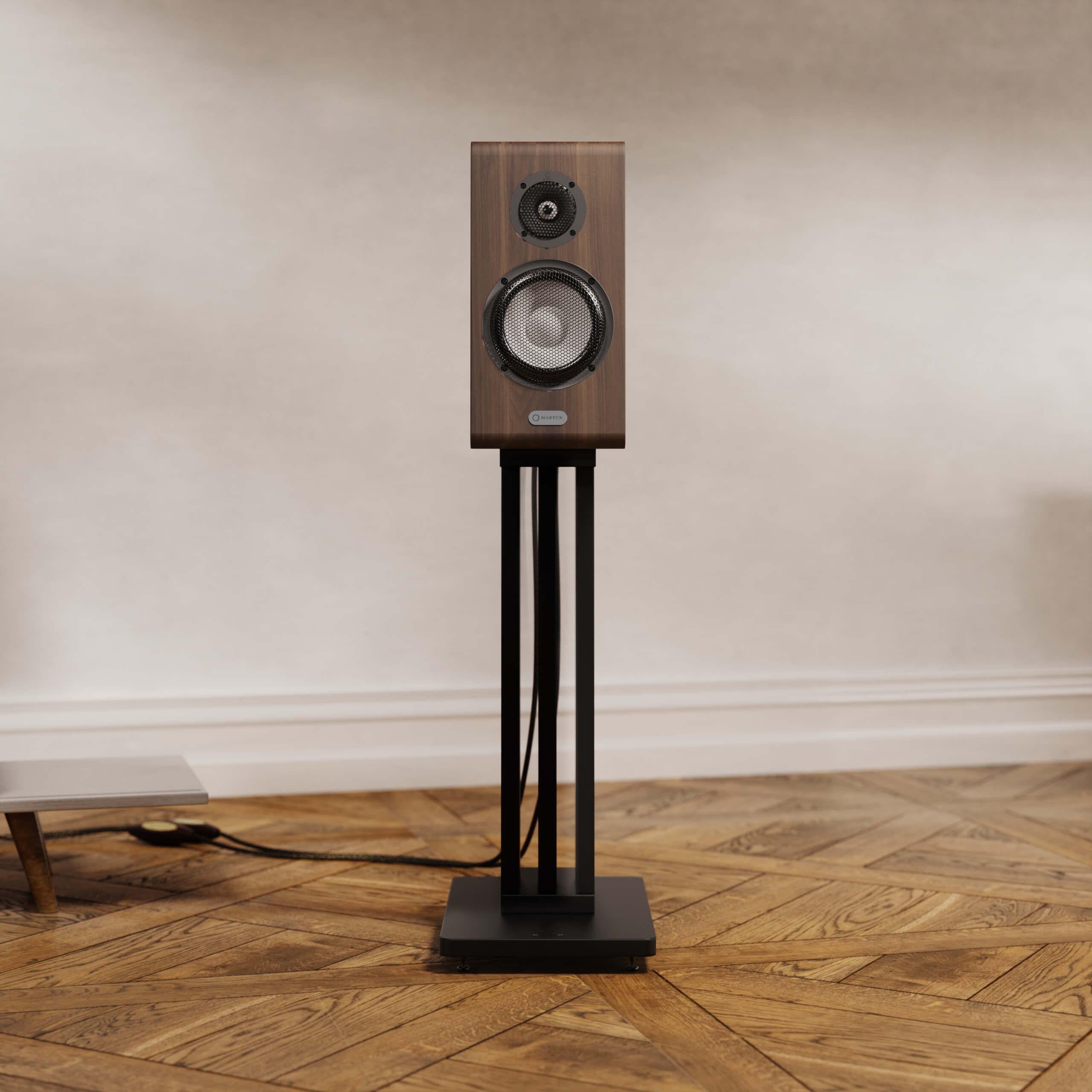

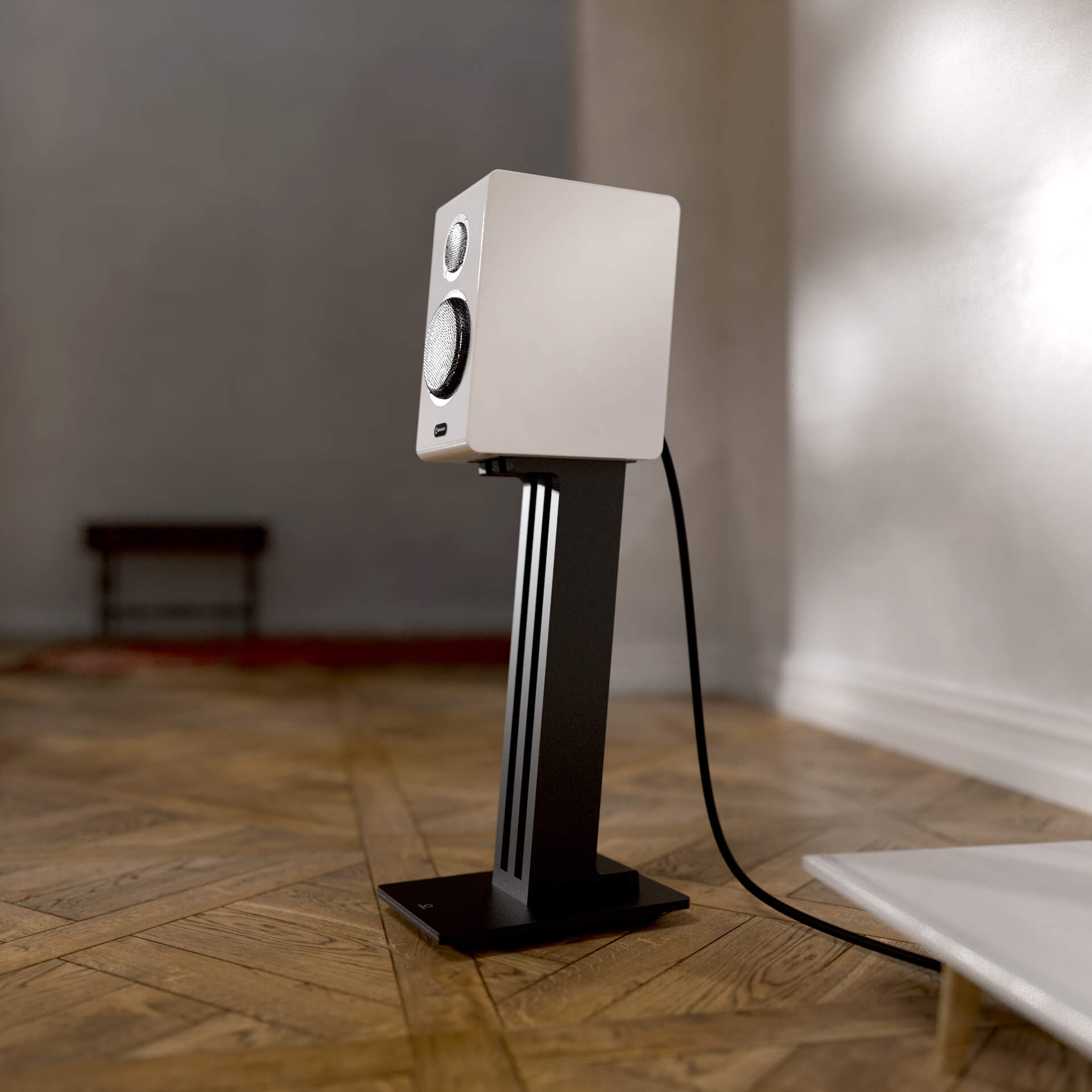

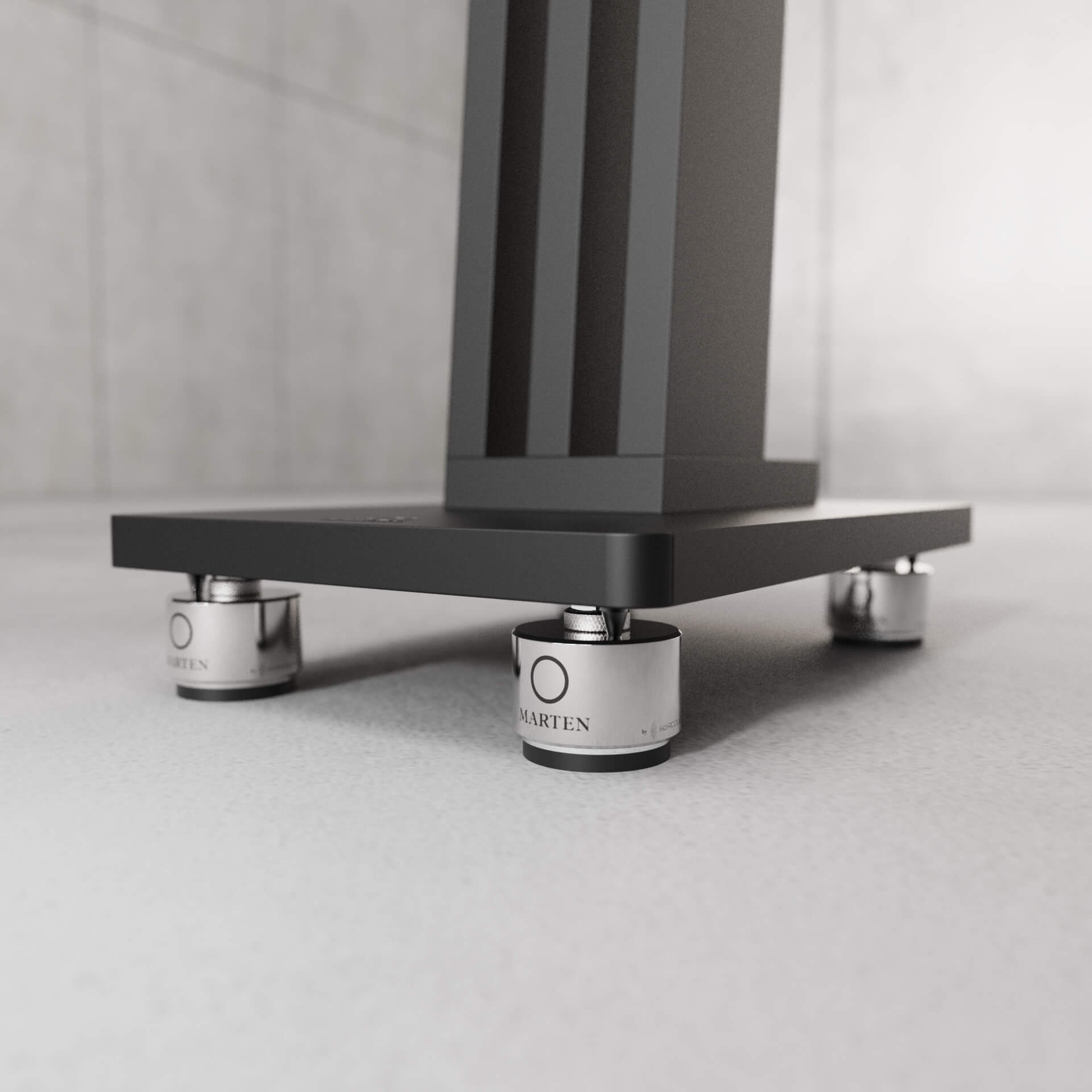

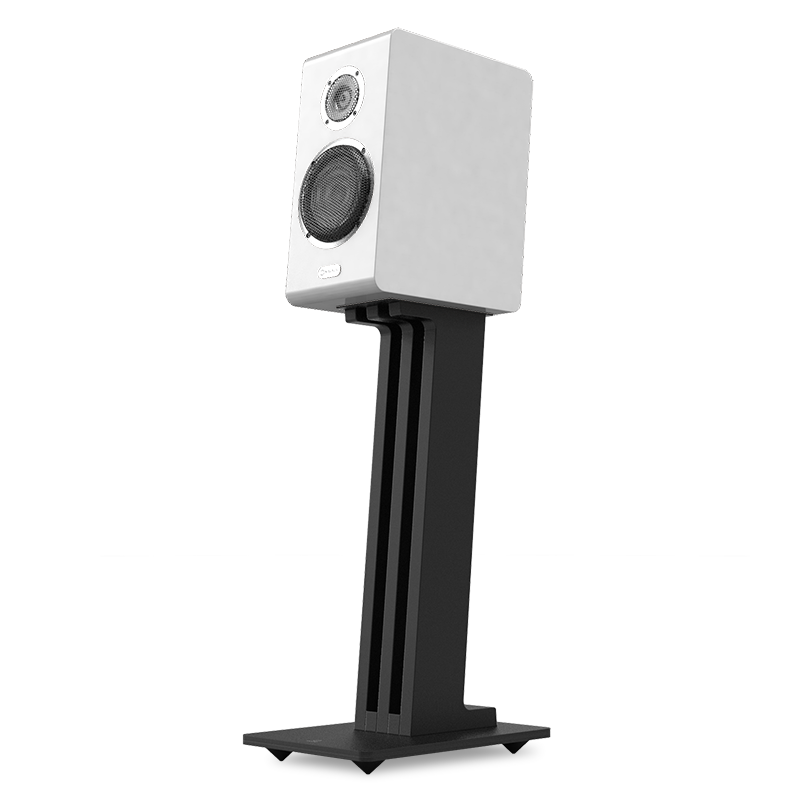

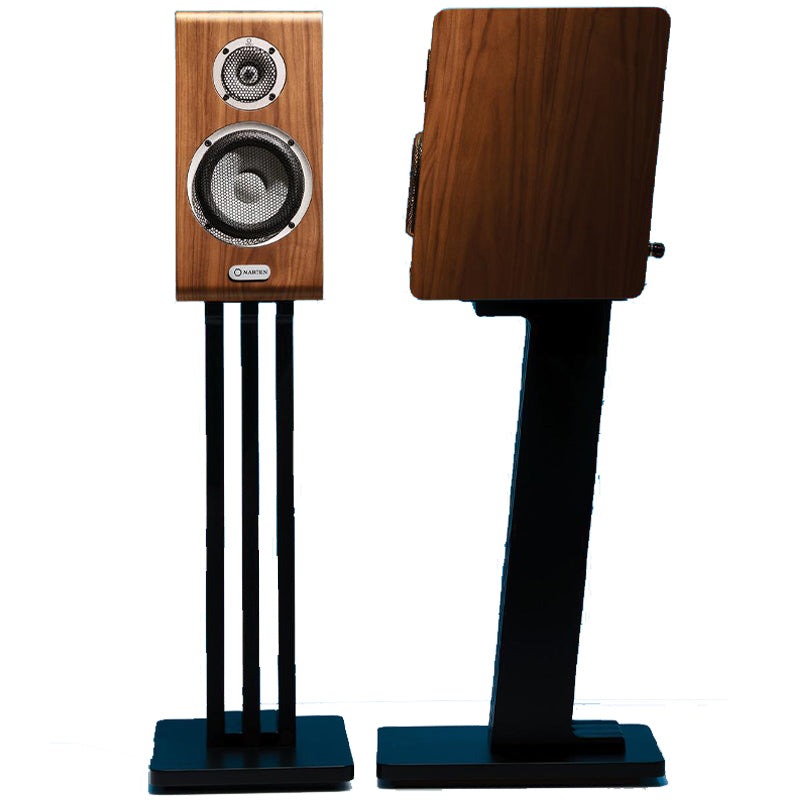

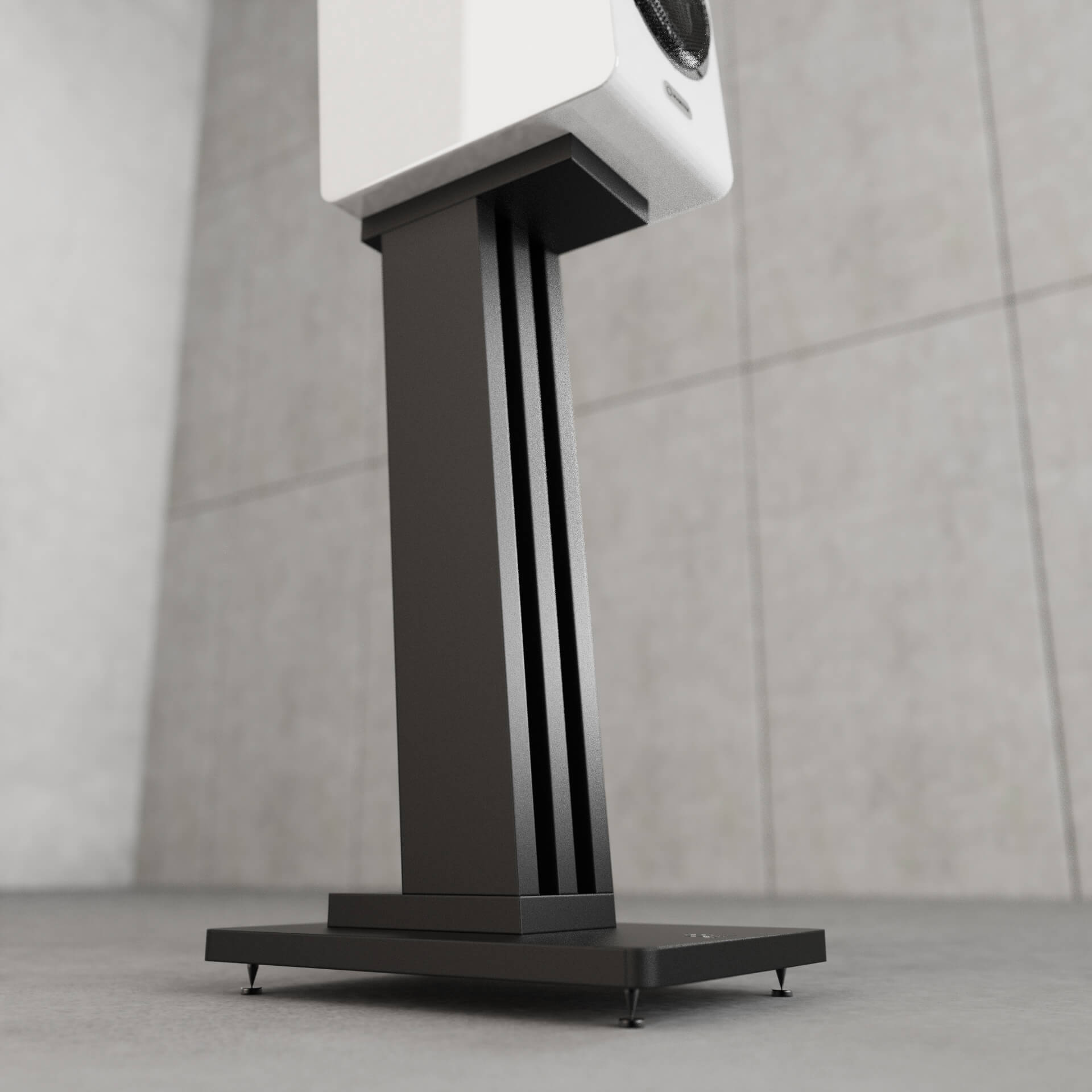

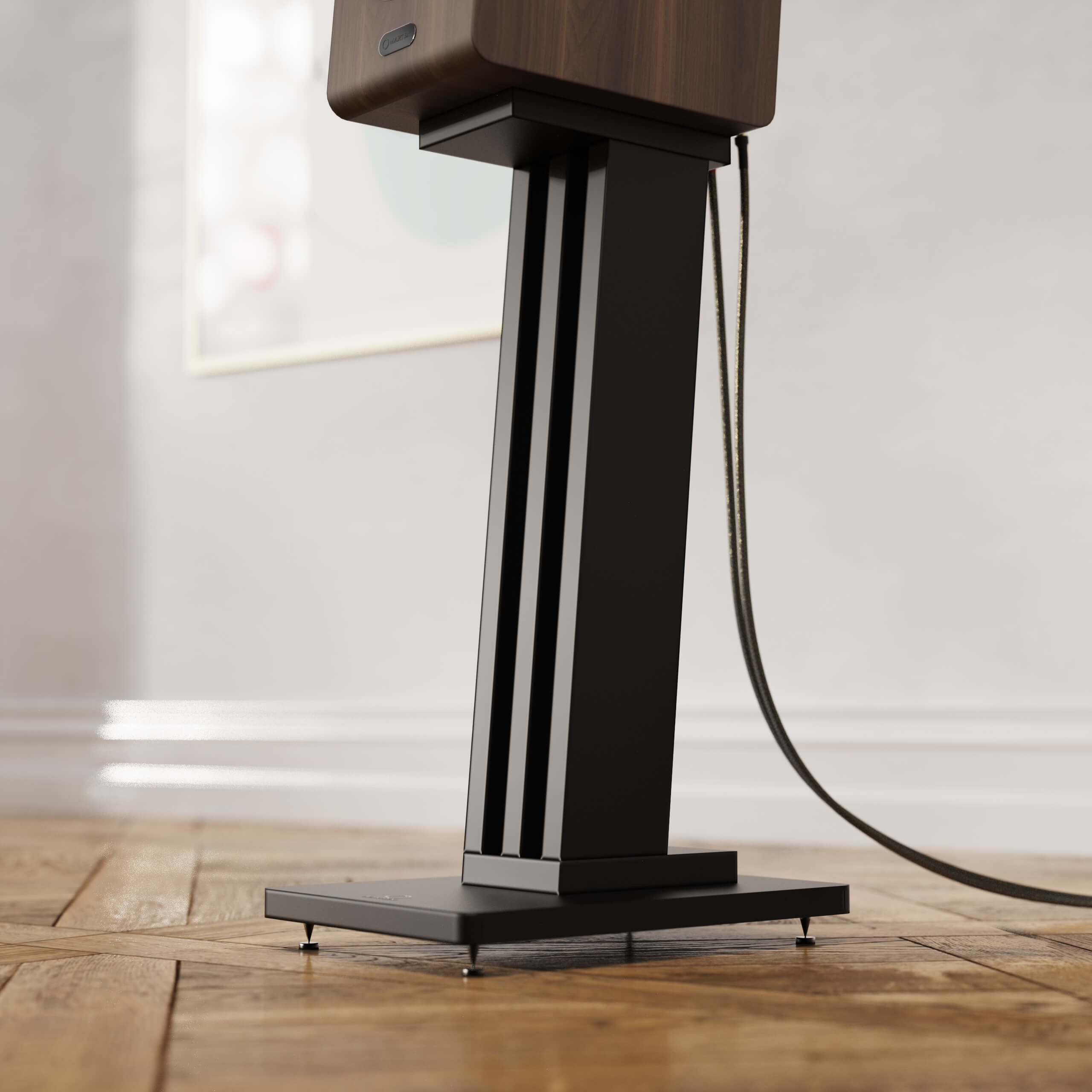

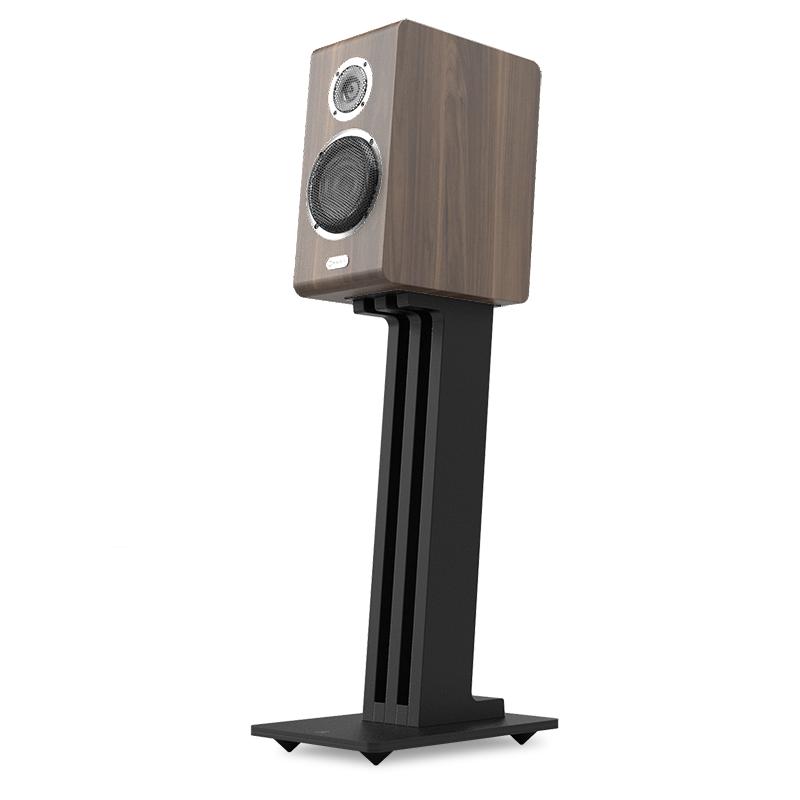

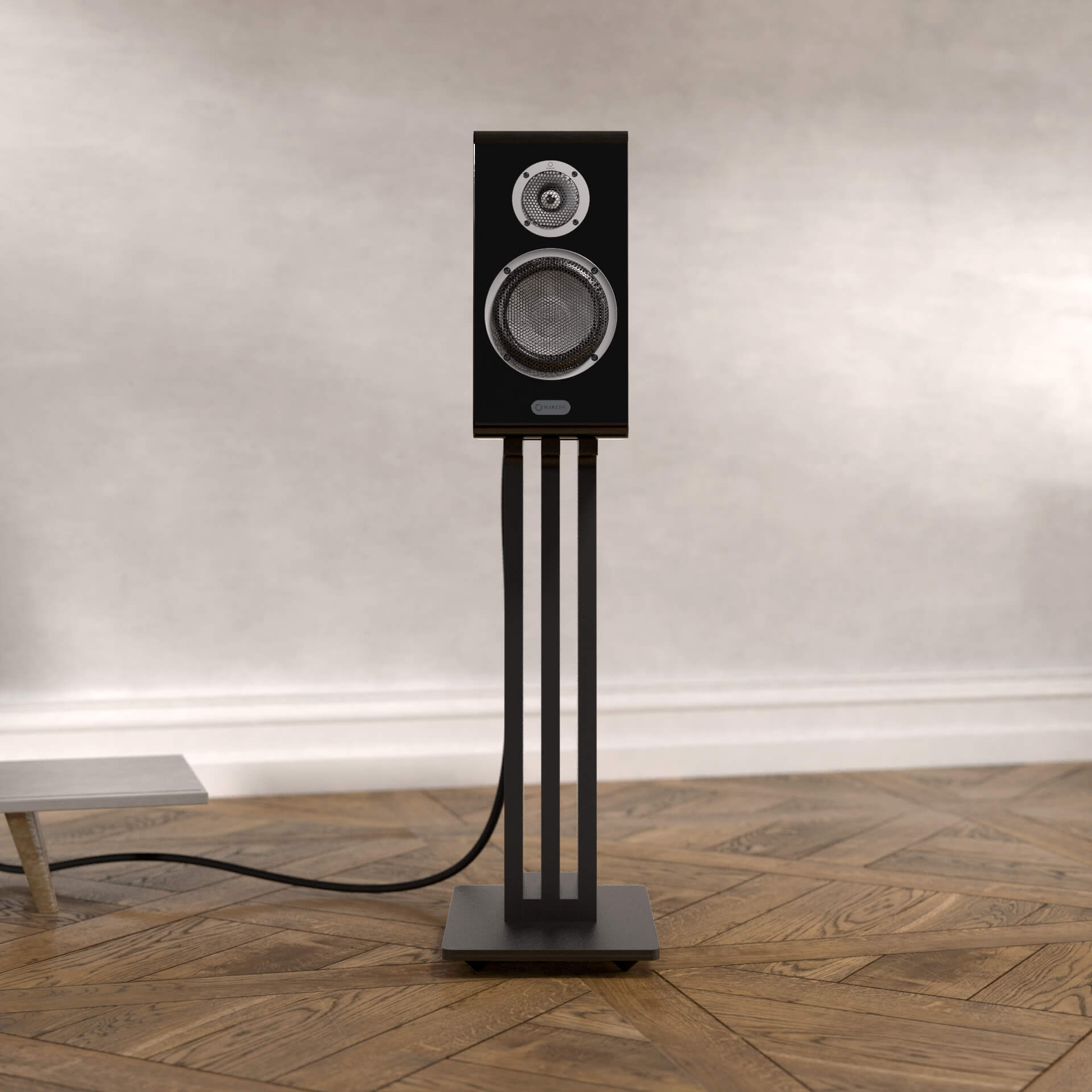

To ensure the stand would work perfectly with Oscar Duo, we designed it ourselves – with as much consideration to resonance, as to form.

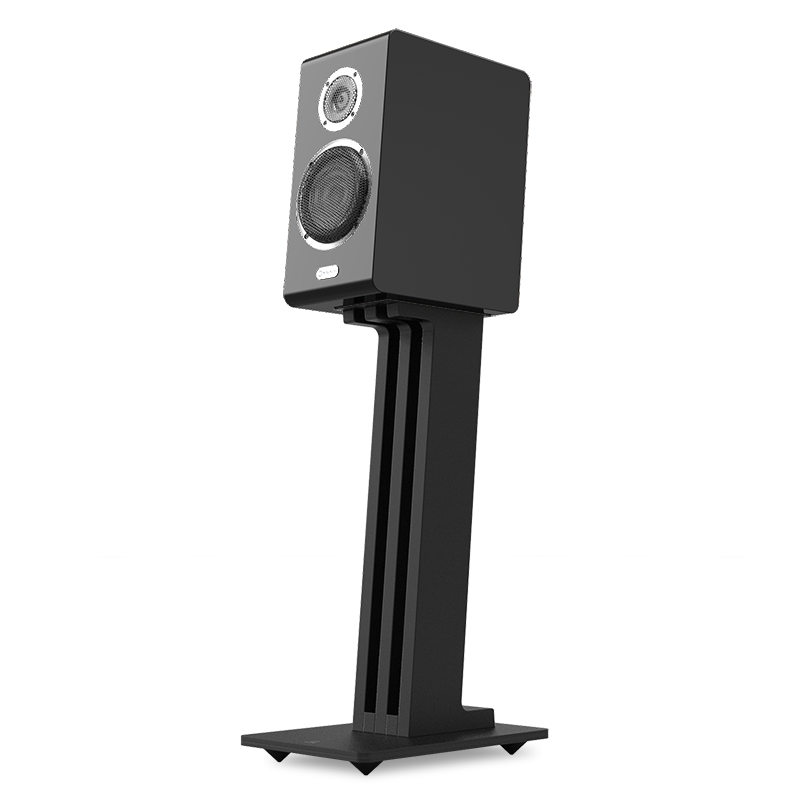

It had to be rigid enough to deal with vibrations, but also look good. After many iterations, we settled on a triple pillar design: making the overall appearance lighter, while keeping it stable.
We prefer to use lower order crossovers, as the higher-order crossovers tend to limit the dynamics and details. Our second order crossover has been creatively designed to make the best of the dynamic range.
- Copper foil air core coils
- Silver/Gold capacitors
- Supreme resistors
- Jorma internal cabling
TECHNICAL SPECIFICATIONS
Speaker (front)
1 x 7 ” Ceramic
1 x 1 ” Ceramic
Frequency range
37-20000 Hz +-3dB
Power rating
150 W
Sensitivity
86 dB / 1 m / 2.83V
Impedance
6 ohm (3.1 Ohm min)
Type
2-way
Crossover frequency
Second order 2500 Hz

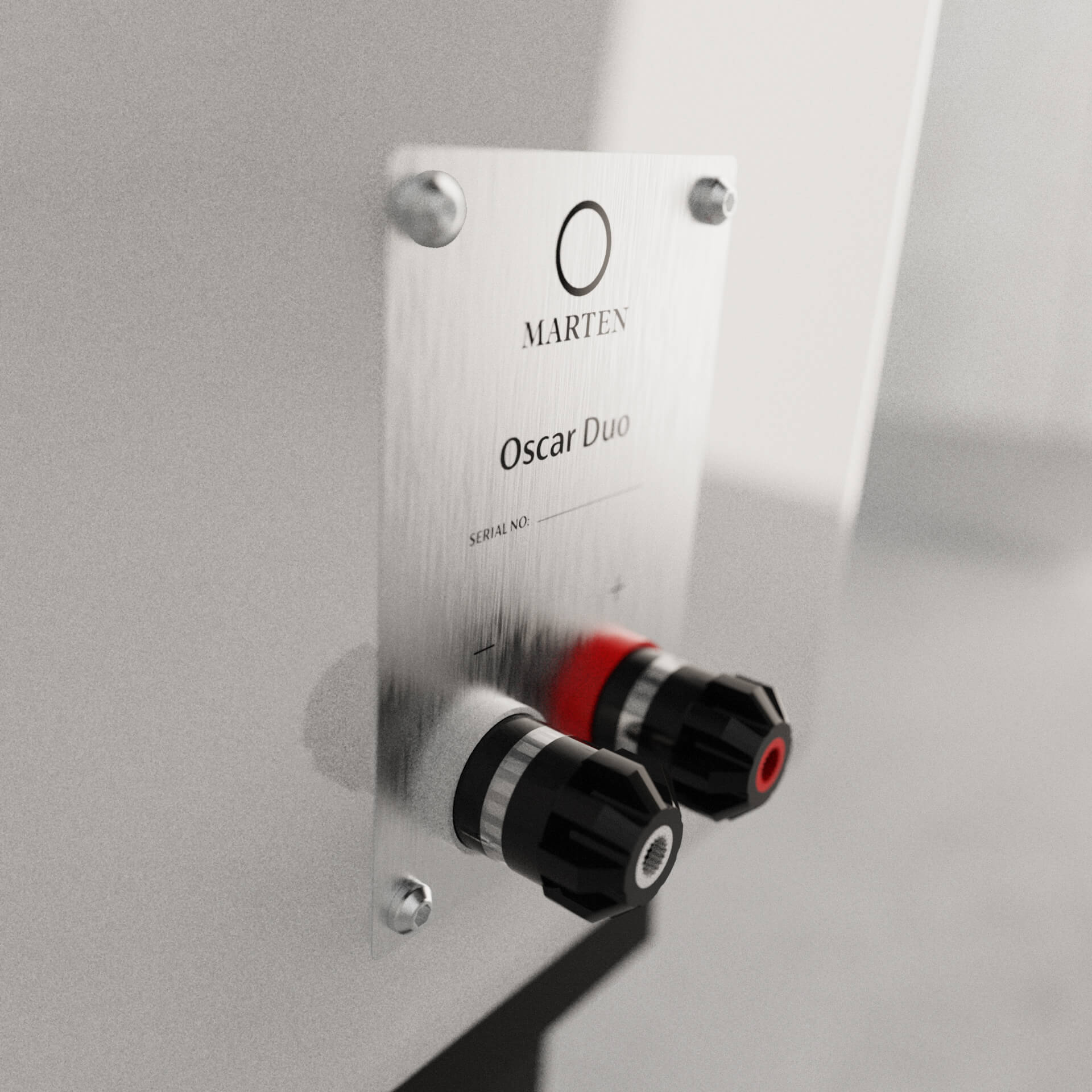

Terminals
Single-wiring WBT Nextgen
Internal wiring
Jorma Design
Cabinet

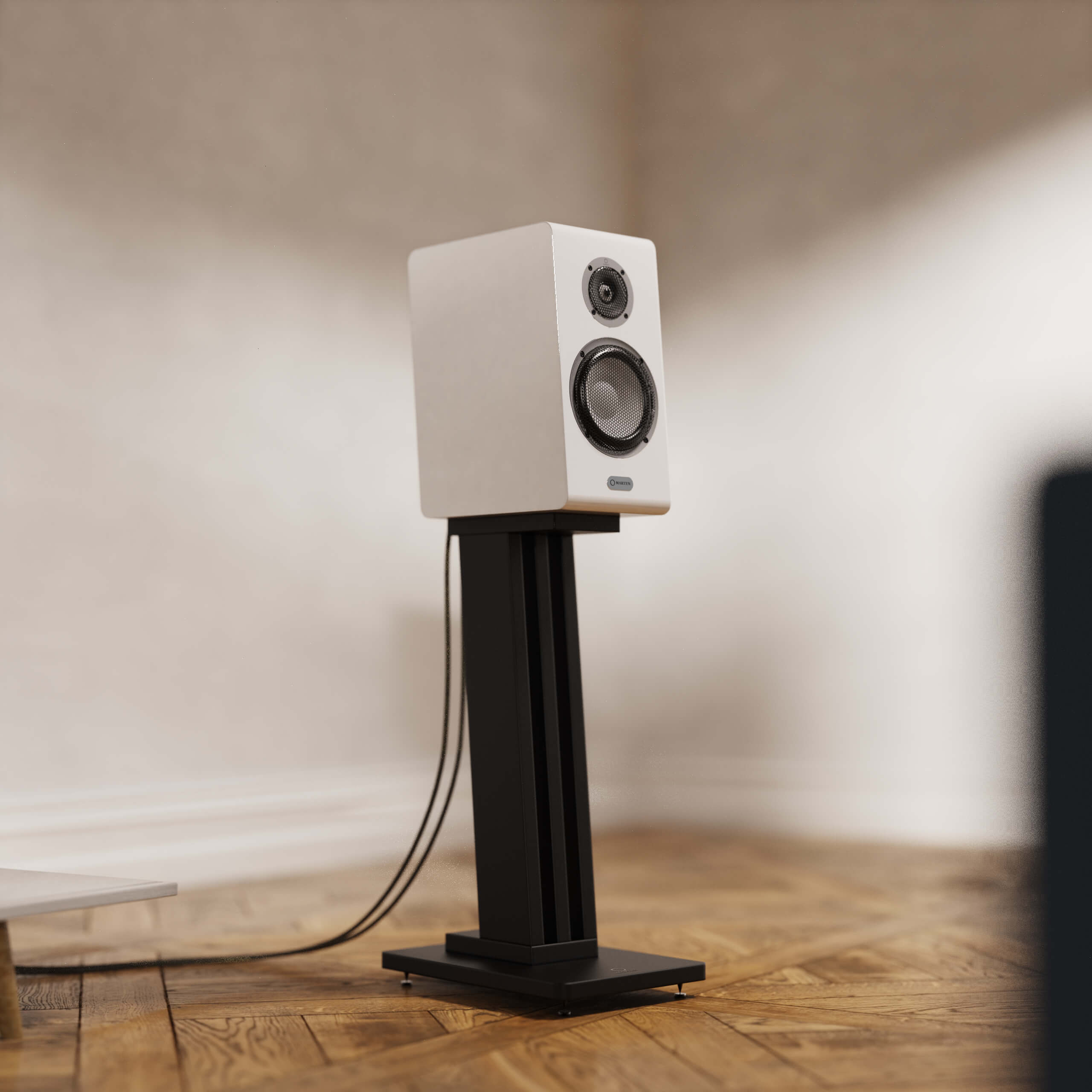

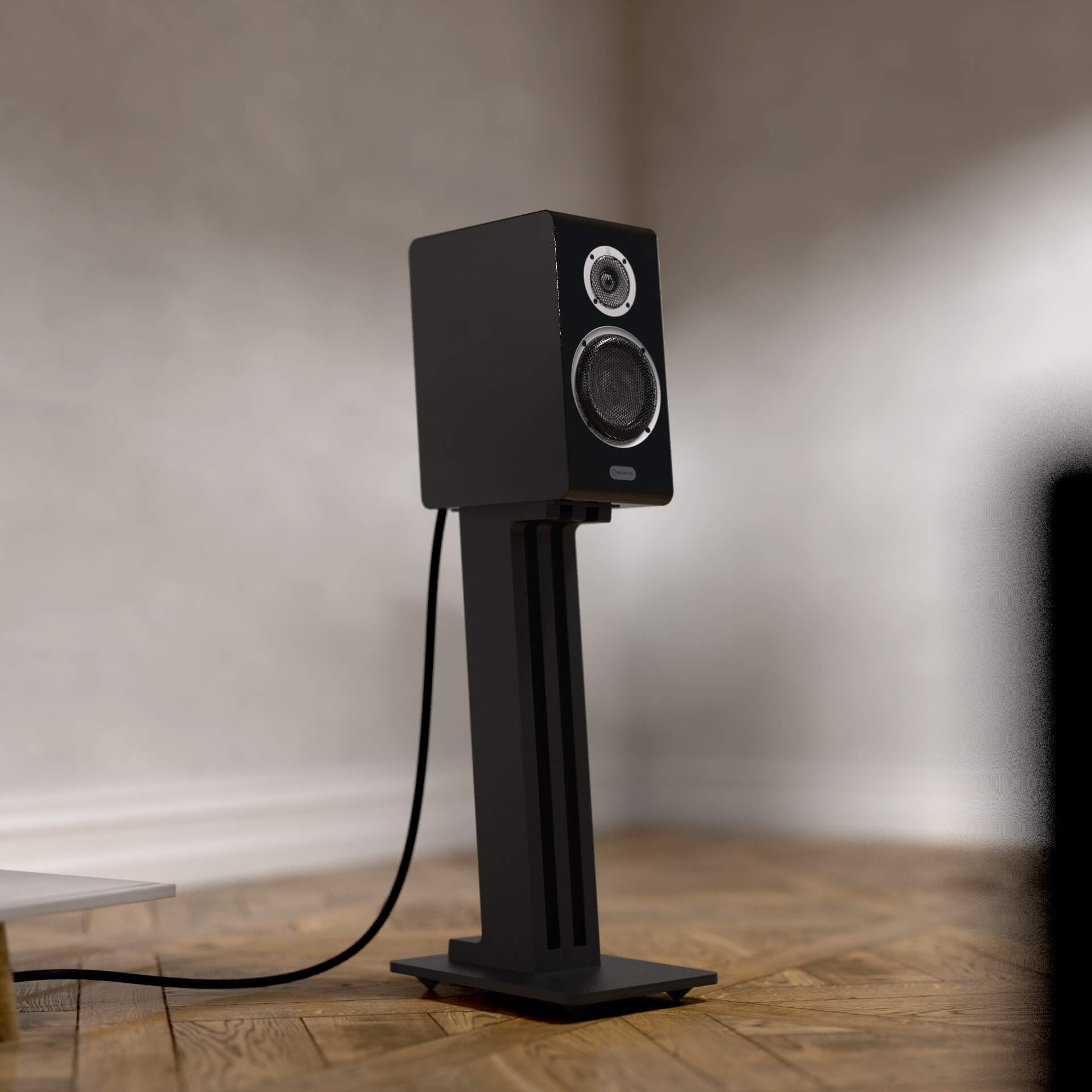

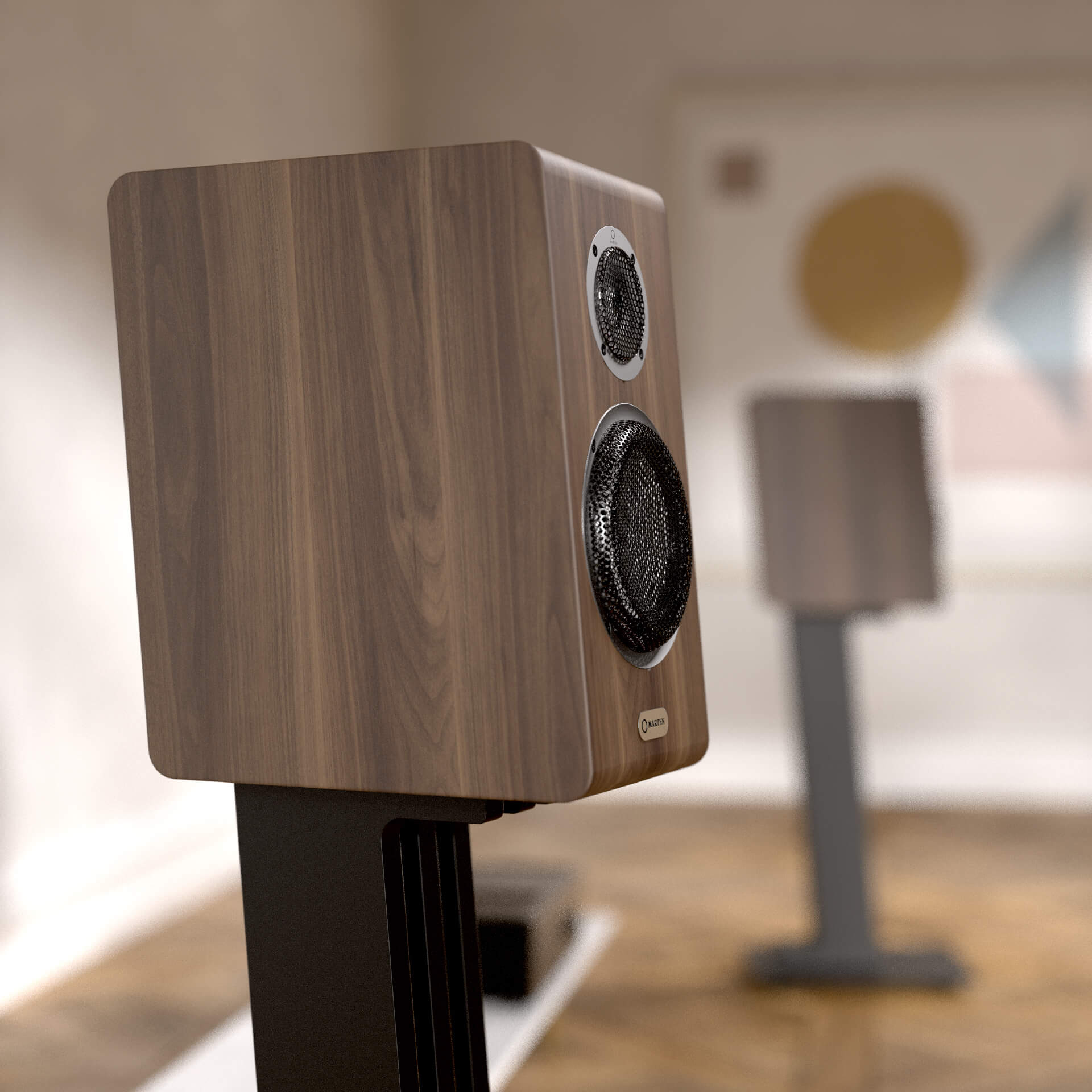

25 mm fibre laminate Matte Walnut, Piano Black or White
Dimensions W x H x D
20 x 40 x 32 cm (7.9 x 15.7 x 12.6 ”)
Net weight
13 Kg (29 lbs)
