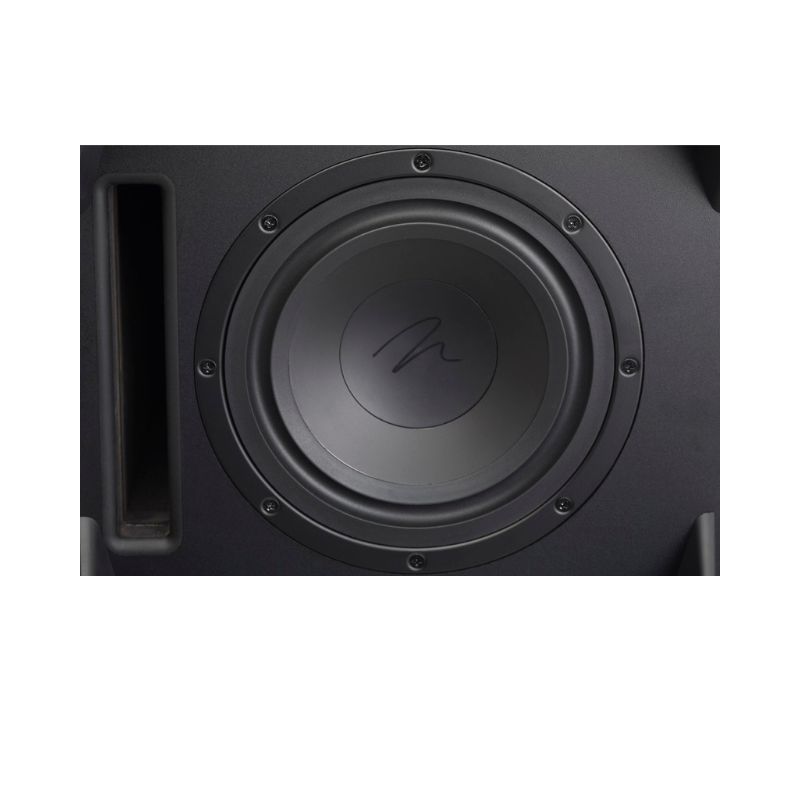

POWERFUL, HIGH-EXCURSION, LOW-TURBULENCE, INVERTED SURROUND WOOFERS

The latest generation of MartinLogan Dynamo subwoofers feature advanced-design woofers with inverted surrounds and powerful magnet, motor, and suspension designs. In front-fire mode the unique inverted surround design maximizes excursion clearance behind the grill cover. When positioned in a down-firing configuration, the inverted surround significantly reduces airflow related turbulence for an articulate and detailed low-frequency experience. These advanced-technology woofers pair a high-power magnet structure (significantly more robust than previous generations) with low-mass diaphragms to provide massive excursions while perfectly preserving the tiniest bass detail. The exceptional damping properties of the cone ensure a smooth, non-resonant response necessary for truly seamless blending with high-performance loudspeakers. Every element of Dynamo subwoofers has been meticulously designed to deliver a staggering low-frequency performance – all without a hint of distortion.

ADVANCED ULTRA-EFFICIENT SWITCH MODE POWER SUPPLIES AND CLASS-D AMPLIFIERS

Dynamo subwoofer class-D amplifiers operate with extremely low levels of distortion and deliver dynamic impact with plenty of overhead. Low- noise, high-power switching power supplies produce clean power efficiently in a small space and effortlessly provide tremendous levels of current. Both feature high-quality MOSFET transistors, transformers, noise-suppression networks, and control circuitry. The switching power supply combined with reliable class-D technology means there’s virtually no energy lost in the subwoofer system.

Specifications

Frequency Response:
27–200 Hz ±3 dB. Anechoic in LFE mode.

Impedance:

• RCA: 8,300 Ohms
• Speaker Level: 2,000 Ohms (red to black)

Low Frequency Transducer:
10” (25.4 cm) high-excursion, inverted surround, polypropylene cone in a stamped steel basket with extended throw driver assembly. Ported.

Amplifier:
120 Watts (240 peak)

Software:

• Sub Control App: iOS and Android
• Anthem Room Correction: iOS, Android, and PC

Room Correction:
Anthem Room Correction (ARC)

Controls (Backplate):

• Level: Min–Max
• Setting Control: Local, App
• Power Mode: On, Auto

Controls (via Bluetooth):

• Level: -40 to 12 dB
• Low-Pass Filter (Frequency): 35–120 Hz
• Low-Pass Filter (Order): Bypass, Third, Fourth
• Phase: 0–180° (1° Increments)
• Phase (Polarity): Normal, Inverted
• Preset Listening Modes: Music, Night, Movie
• 20–30 Hz Level: ±10 dB
• Anthem Room Correction (ARC): On, Off
• Tone Sweep (20–120 Hz): On, Off, Pause (Frequency)

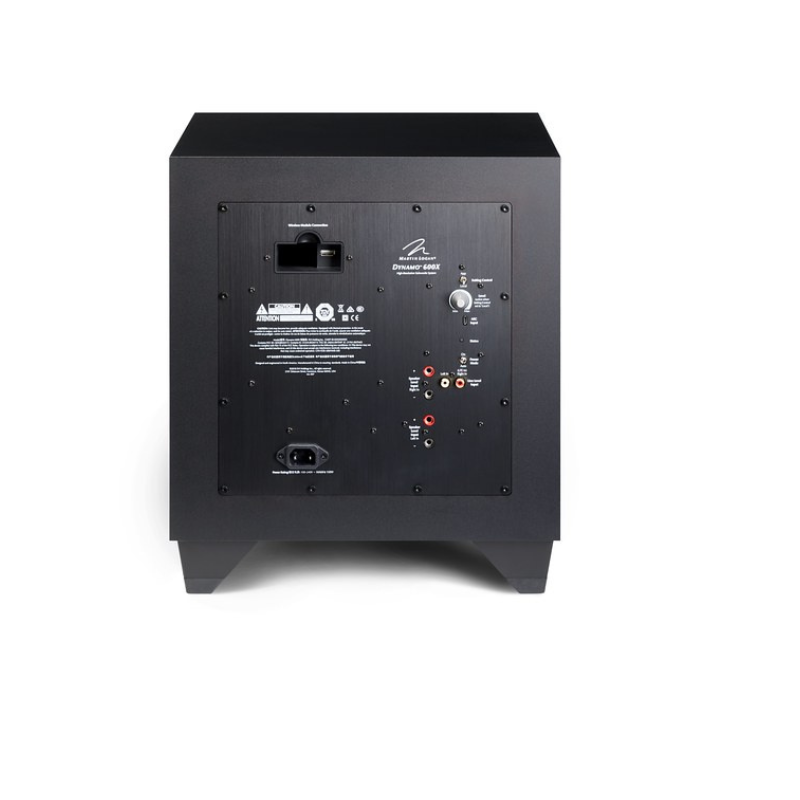

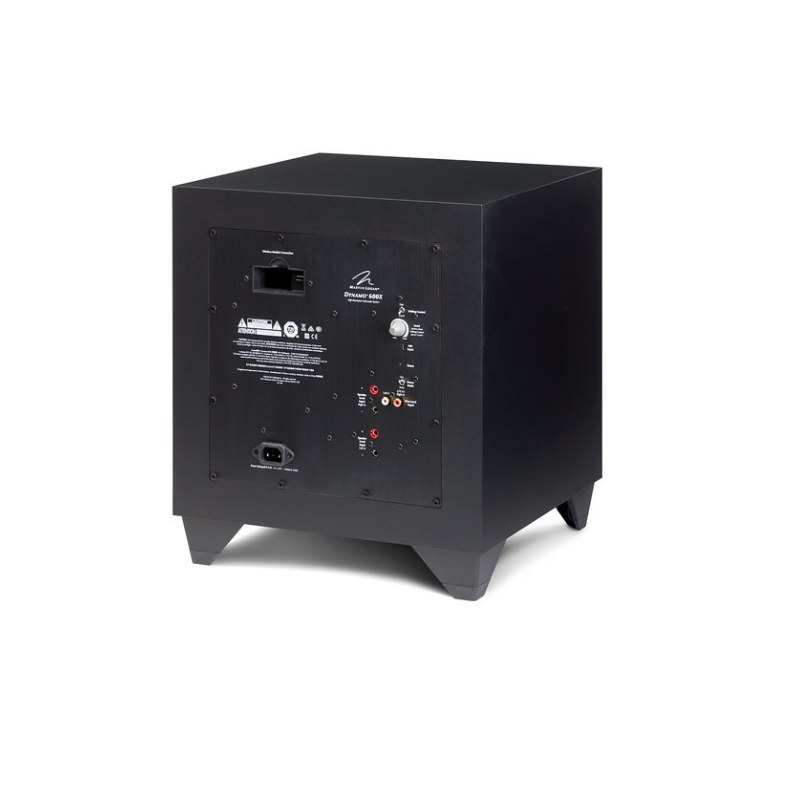

Inputs (Audio):

• Line Level: Left, Right/LFE
• Speaker Level: Left and Right via banana jacks

Inputs (Audio, Wireless):

• SWT-X Receiver & Transmitter (sold separately)

Inputs (Other):

• USB: Micro USB (for ARC/Firmware Update)

Power Draw:

• Typical: 30W
• Max: 150W
• Idle: 4W
• Standby: 0.5W

Feet:
Rubber

Weight:
35.5 lbs. (16.1 kg)

Dimensions:
16.3" x 14.5" x 14.9"
(41.5 cm x 36.7 cm x 37.8 cm)

Finish:
Satin Black
