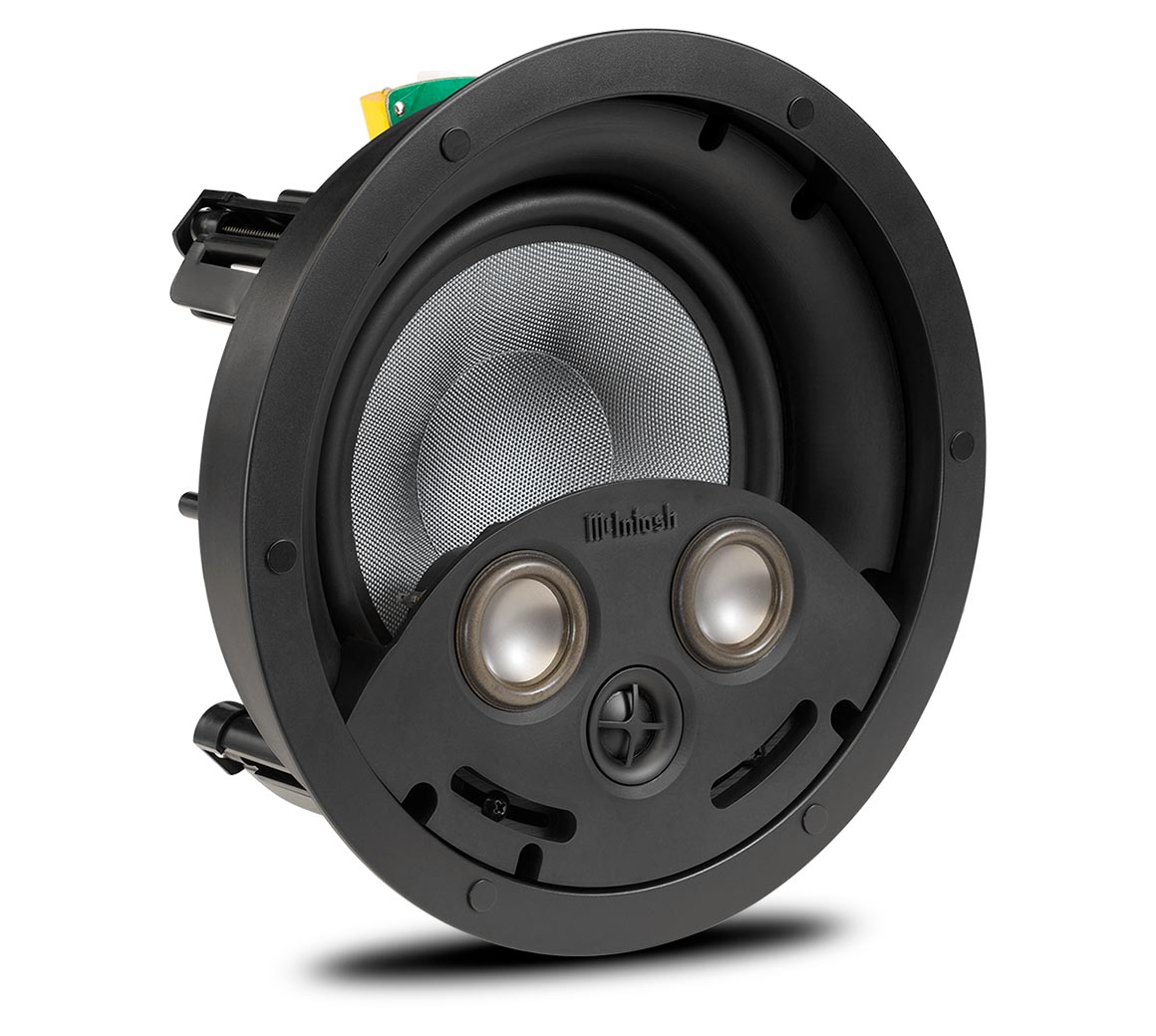

The CS200 In-Ceiling Loudspeaker is a perfect choice to use in custom whole home distributed audio installations when paired with our MI128 or MI254 distribution amplifiers. It is voice matched to our WS500 and WS300 in-wall speakers, making for a cohesive sound experience where a combination of the CS200 and wall speakers are used. It's also a great surround sound speaker to use in dedicated home theaters with any of our A/V processors and multi-channel amplifiers.

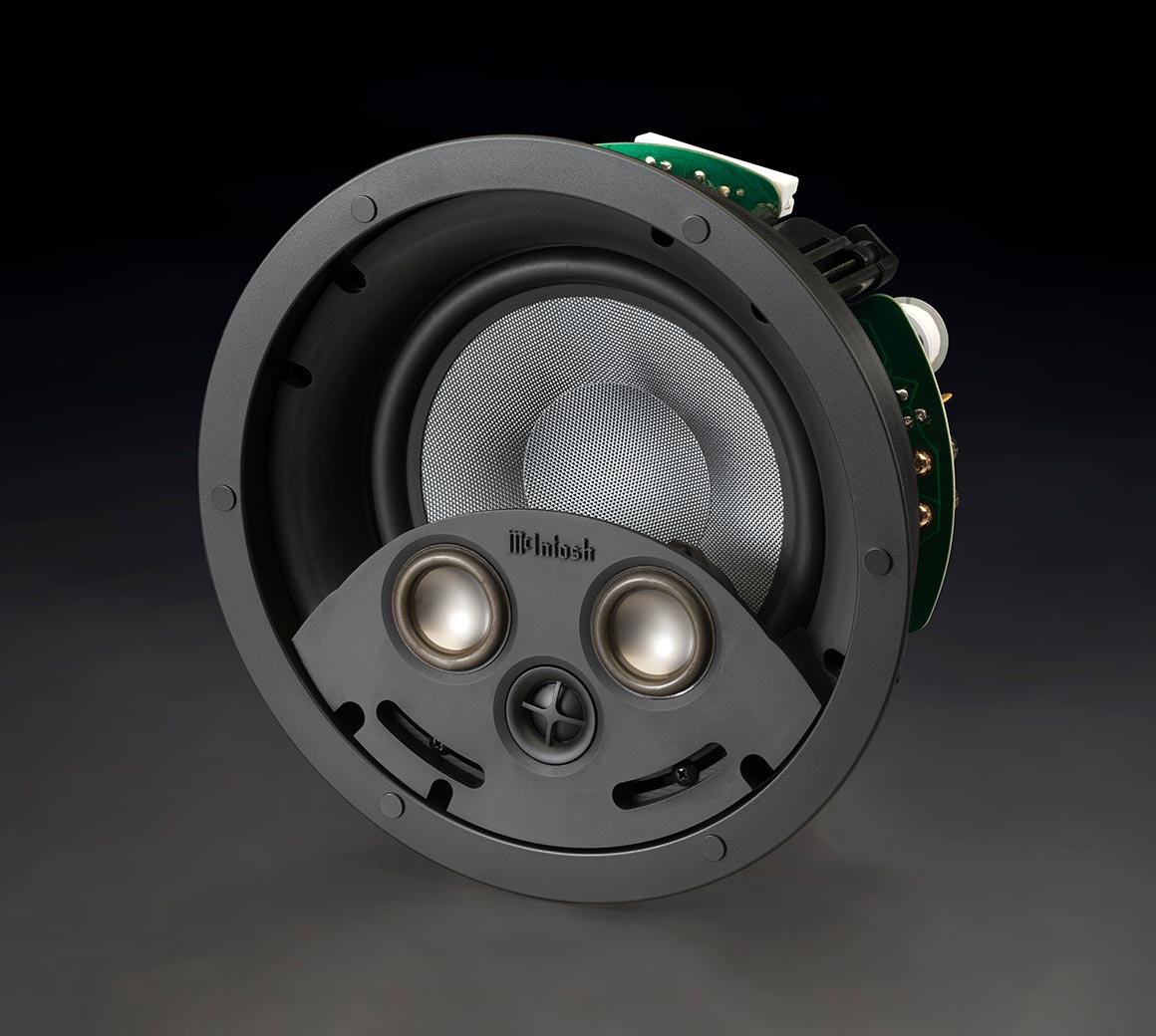

This 3-way in-ceiling speaker features an 8" woven glass fiber woofer, two 2" inverted Titanium dome midranges and one 3/4" Titanium dome tweeter. The midranges and tweeter are housed in a rotating array so the already incredible sonic performance of each speaker can be maximized in each individual space. The midranges and tweeter are the same drivers used in our XR50 and XR100 home audio speakers, meaning you'll receive the same high level performance from the CS200 as from our home audio speakers.

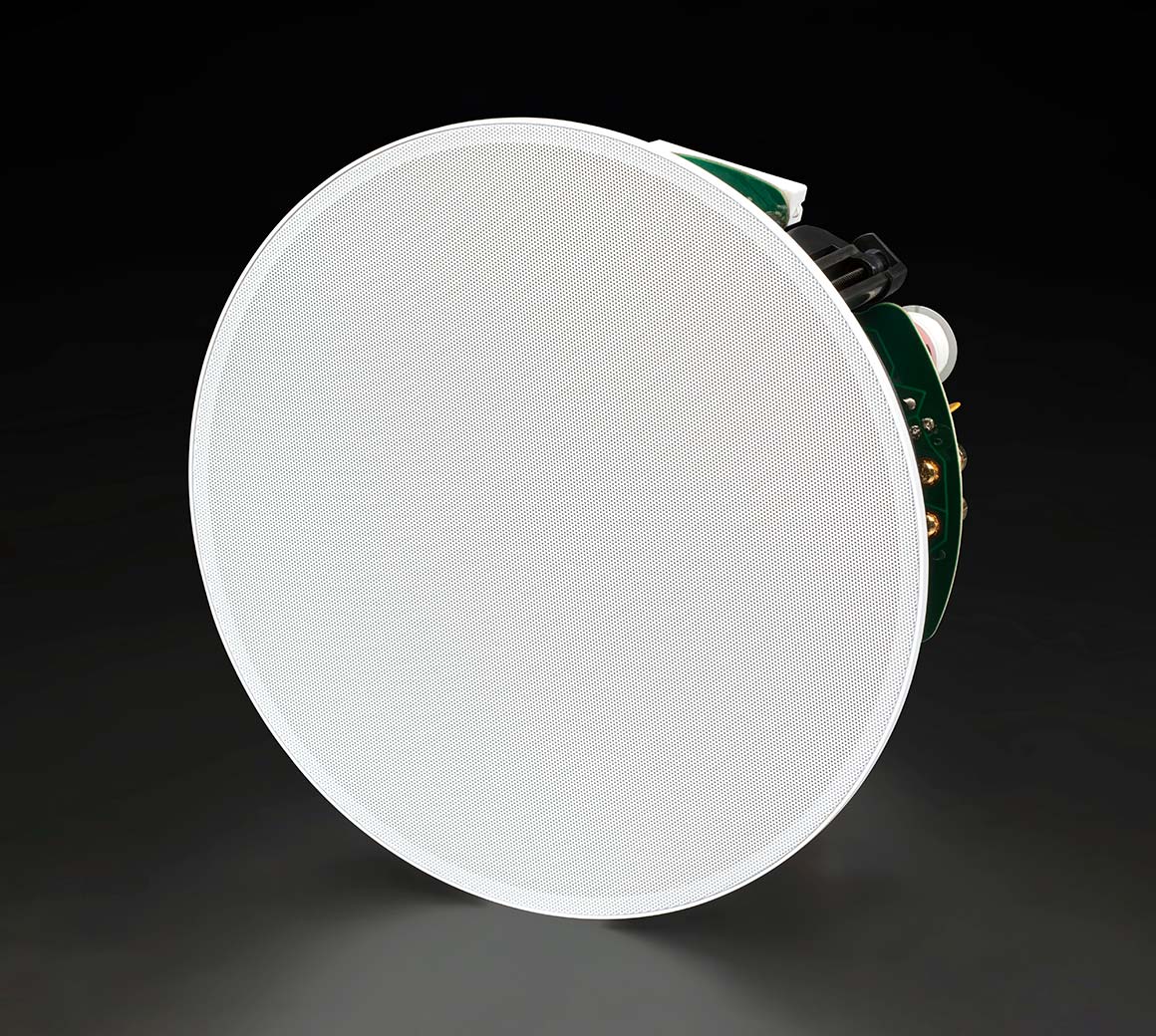

The grille magnetically attaches for easy removal. The grille is also paintable and will leave little to no visible edge of the mounting flange so the speaker can virtually disappear into its surroundings. An optional rough-in kit (#RK200) is available if needed. Contact your local dealer to learn more.
ELECTRONIC SPECIFICATIONS
-
- Impedance Nominal
- 6 Ohms
-
- Power Rating
- 15 to 250 Watts
-
- Frequency Response
- 48Hz to 22kHz
-
- Sound Pressure Level, 2.8V/1m
- 89dB
-
- Crossover
- 1,100Hz, 3,000Hz
DRIVER SPECIFICATIONS
-
- Number of Woofers
- 1
-
- Woofer Size
- 8"
-
- Woofer Type
- Woven Glass Fiber
-
- Number of Midranges
- 2
-
- Midrange Size
- 2"
-
- Midrange Type
- Inverted Titanium Dome
-
- Number of Tweeters
- 1
-
- Tweeter Size
- 3/4"
-
- Tweeter Type
- Titanium Dome
GENERAL SPECIFICATIONS
-
- System Type
- 3-Way In-Ceiling
-
- Grille
- Magnetic metal mesh
-
- Available Finishes
- Black chassis with white paintable grille
WEIGHTS & DIMENSIONS
-
- Dimensions (W x H x D)
- 11" (27.94cm) x 11" (27.94cm) diameter x 5" (12.7cm) tall
-
- Weight
- 5.5 lbs (2.49 kg)
-
- Shipping Weight
- 7 lbs (3.18 kg)
