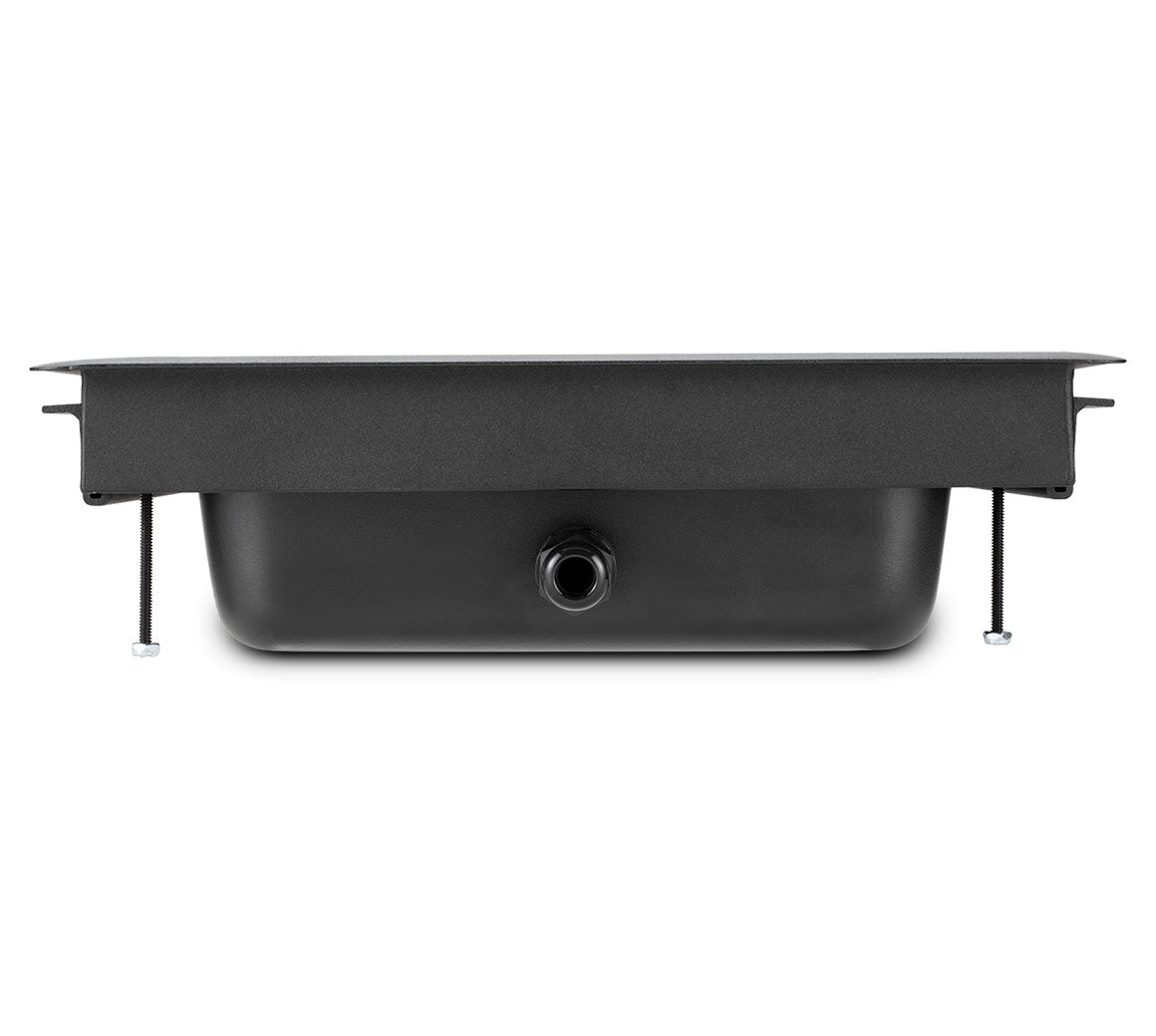

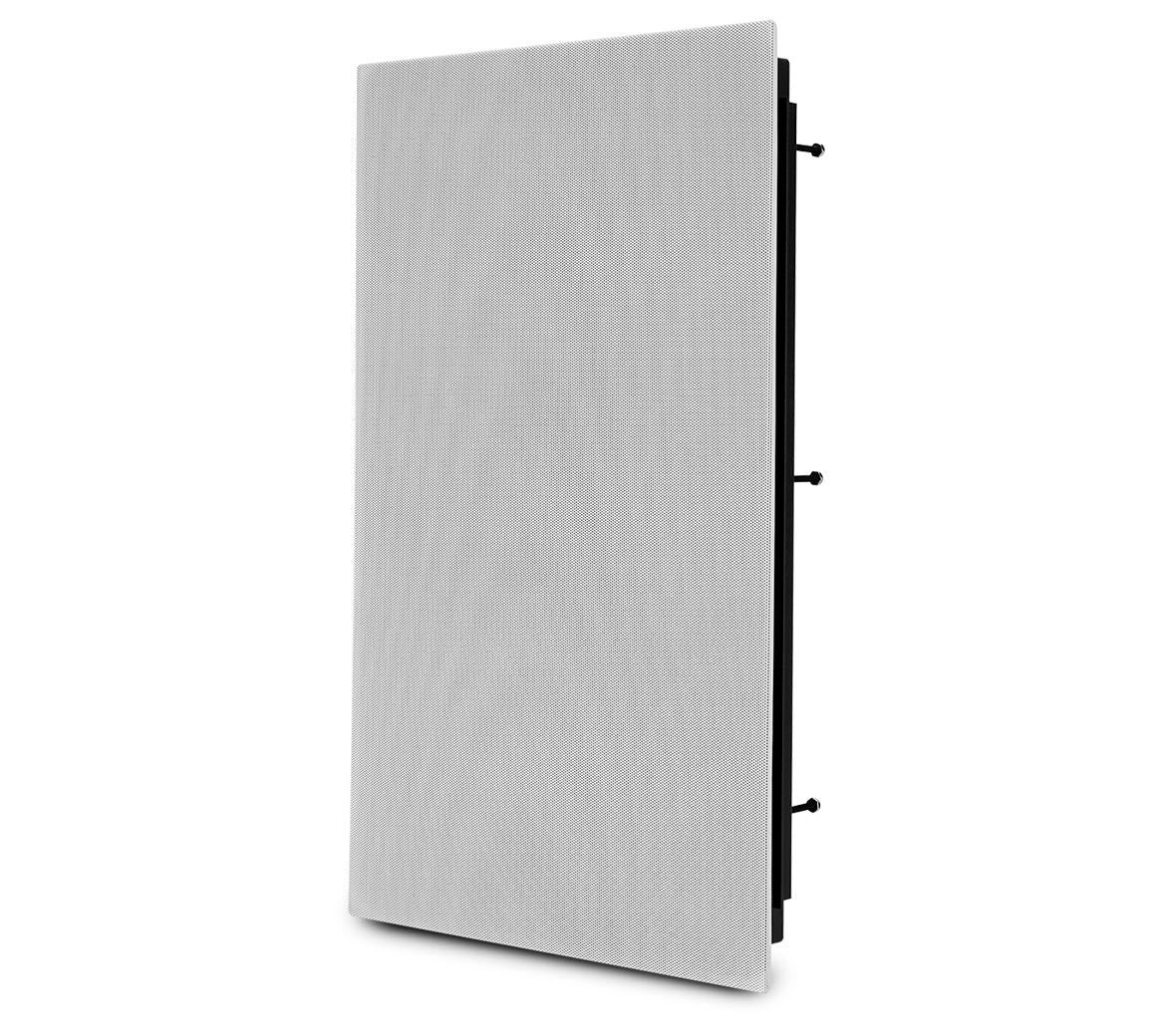

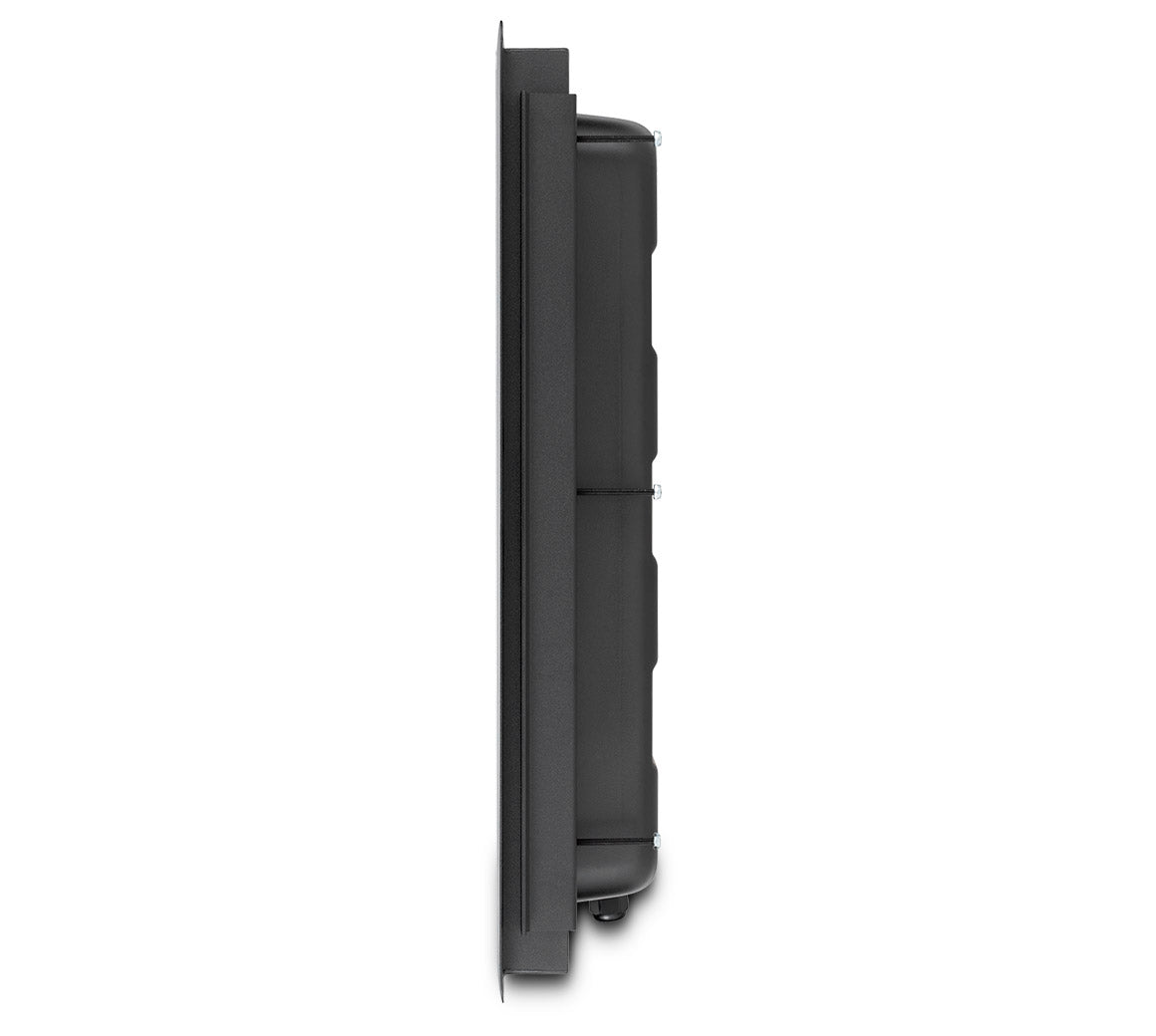

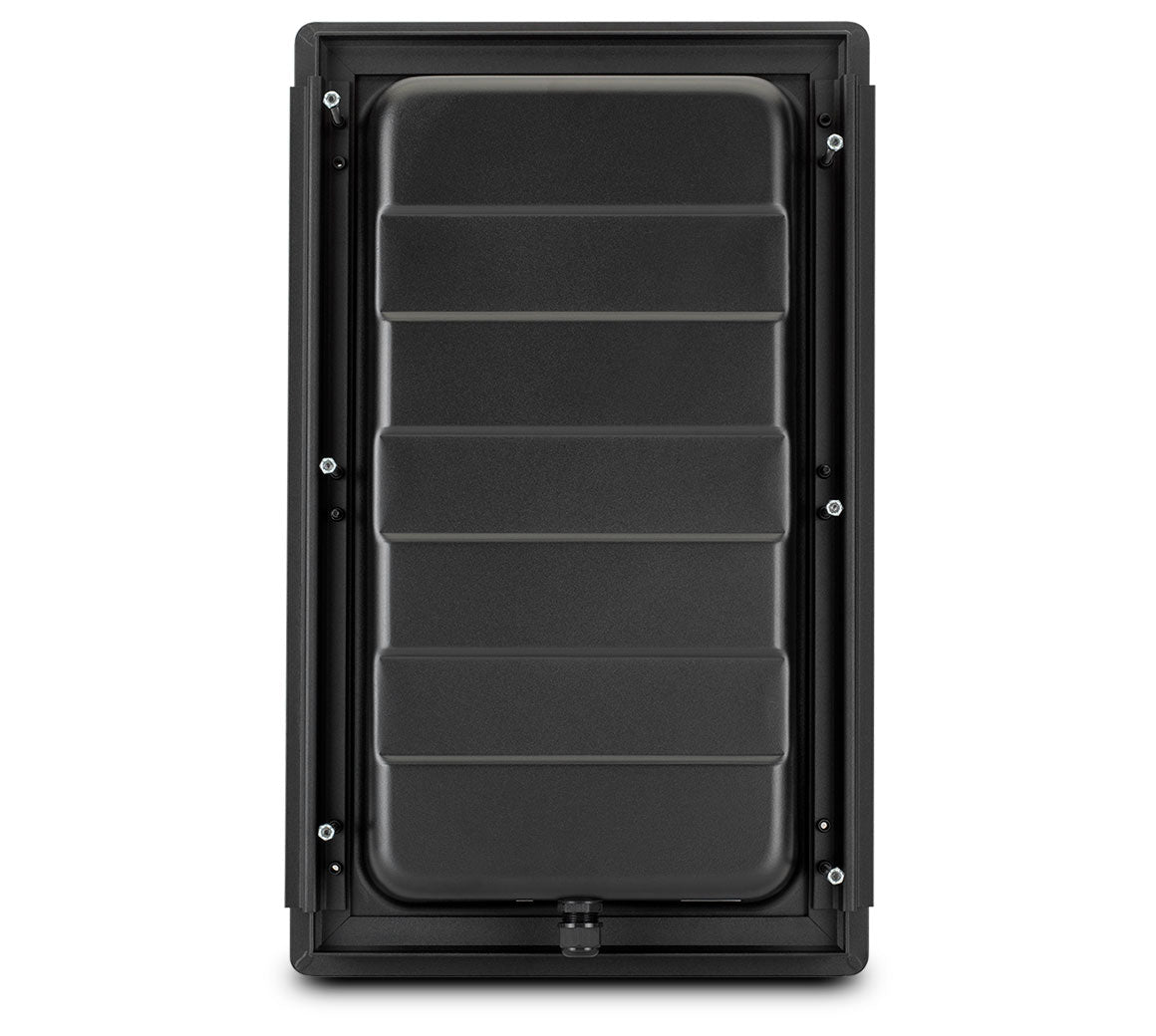

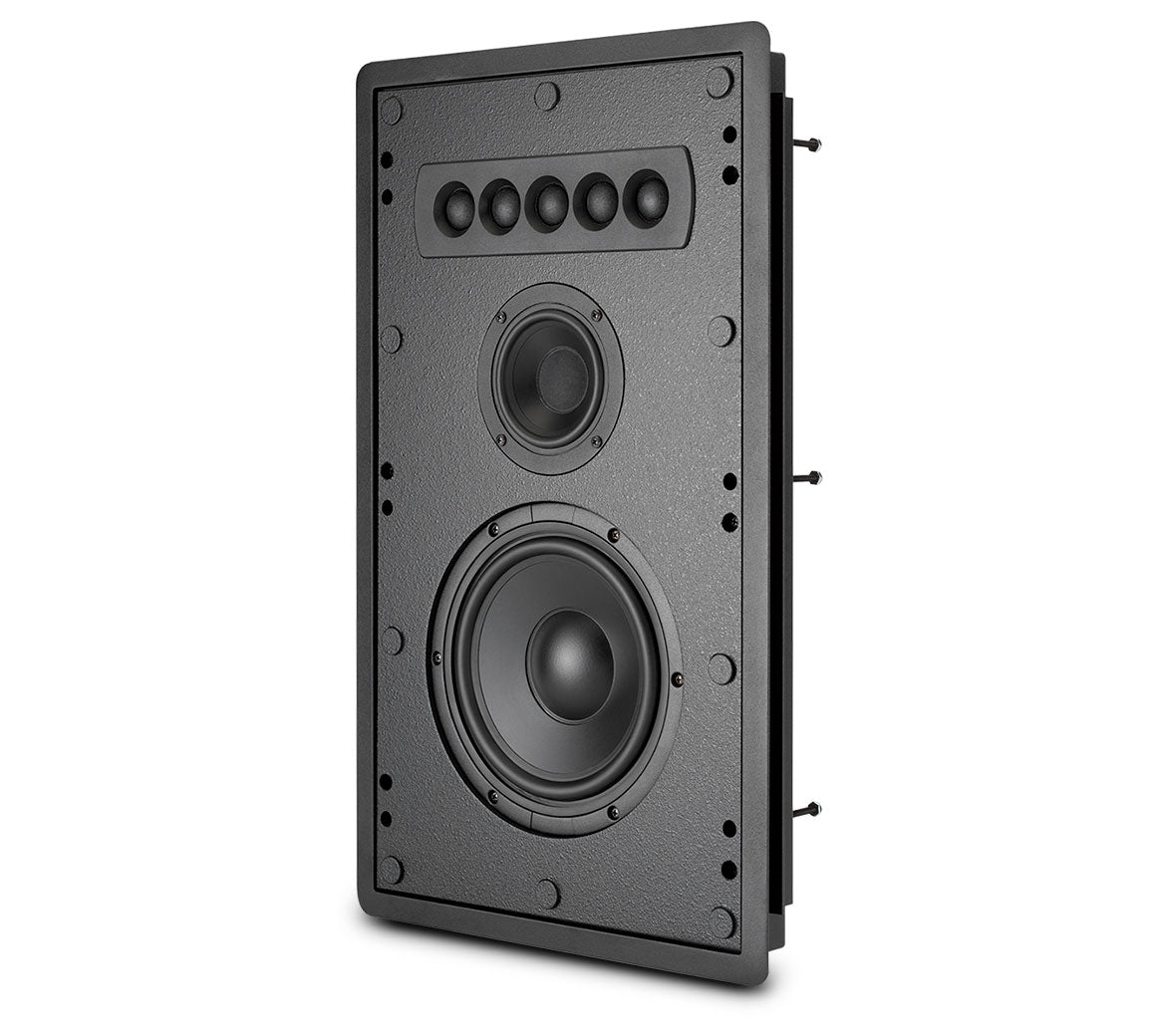

The key to the WS350 In-Wall Loudspeaker’s performance lies in the unique deep drawn aluminum back enclosure that houses the driver array. This design minimizes sound transmission into adjoining rooms, keeping the sound from escaping through the walls of the listening room and helping to deliver encompassing surround sound. The WS350 features one 8” woofer, one 4” midrange and five 1” tweeters. The black frame’s flanges can be painted to match your wall color. A white aluminum grille magnetically attaches to the frame and covers the entire speaker and frame; the grille can also be painted to match your wall color.
A wall cutout template and paint mask are included. Contact your local dealer to learn more.
ELECTRONIC SPECIFICATIONS
-
- Impedance Nominal
- 4 Ohms
-
- Power Rating
- 200 Watts
-
- Frequency Response
- 60Hz to 20kHz
-
- Sound Pressure Level, 2.8V/1m
- 85dB
-
- Crossover
- 300Hz, 1.5kHz
DRIVER SPECIFICATIONS
-
- Number of Woofers
- 1
-
- Woofer Size
- 8"
-
- Woofer Type
- LD/HP® Poly Cone
-
- Number of Midranges
- 1
-
- Midrange Size
- 4"
-
- Midrange Type
- Poly Cone
-
- Number of Tweeters
- 5
-
- Tweeter Size
- 1"
-
- Tweeter Type
- Bessel Array
GENERAL SPECIFICATIONS
-
- System Type
- Sealed 3-Way In-Wall
-
- Grille
- Neutral white metal
-
- Available Finishes
- Neutral white
WEIGHTS & DIMENSIONS
-
- Dimensions (W x H x D)
- 14" (35.5cm) x 23.5" (59.7cm) x 3.65" (9.3cm)
-
- Weight
- 25 lbs (11.3 kg)
-
- Shipping Weight
- 32 lbs (14.5 kg)
