Installation is simple, thanks to the requirement for the speaker to be wired in a mono configuration and powered by one amplifier channel. The other amplifier channel can be used to power the subwoofer. This configuration allows the levels between bass and mid-high range to be easily equalised. Alternatively, the system can be designed to provide stereo operation if desired by creating stereo left/right zones.

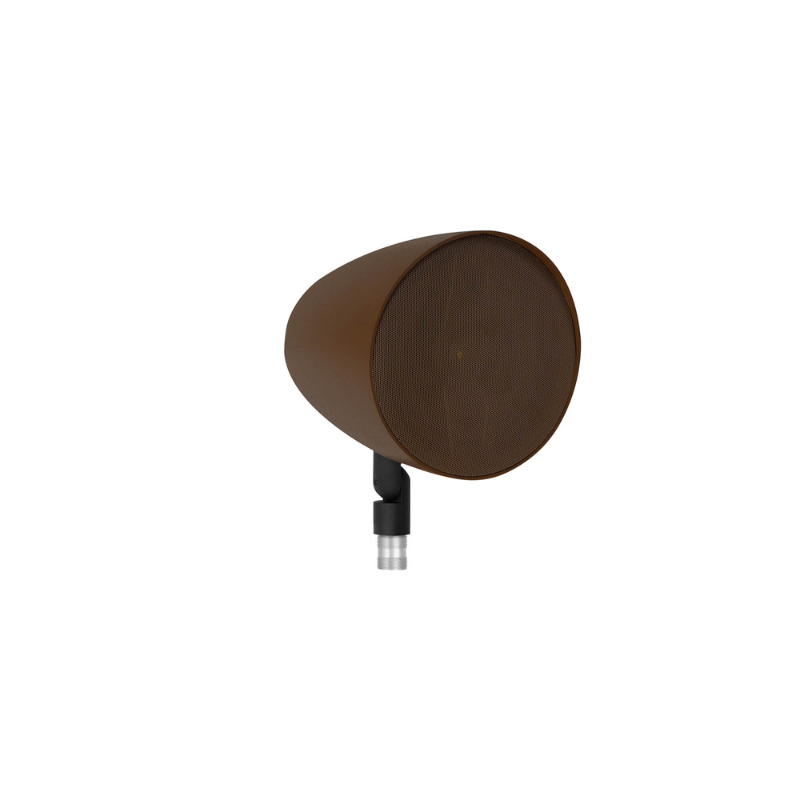

Despite being installed outside, the aesthetics of the speakers are just as important. Finished in dark brown, the CLG160 blends seamlessly into this environment to provide high quality sound for outdoor entertainment, whilst not distracting from the landscape. The speaker casing can be painted a different colour, if required.
Frequency Response (-6 dB)
80 Hz — 30 kHz
Sensitivity (1W@1M)
89 dB
Line Level Voltage
70/100 Volt line level
Maximum SPL
107 dBA
Power Handling (RMS)
60 Watts (crossover set to minimum 80 Hz @12 dB/Octave)
Recommended Amplifier Requirements
10 — 60 W per speaker
Drive Unit Complement
1 x 6" MMP II cone bass-mid driver
1 x 25 mm C-CAM Gold Dome tweeter – Coaxially oriented
Crossover Frequency
80 Hz at a minimum of 12 dB/Octave (24 dB/Octave optimum)

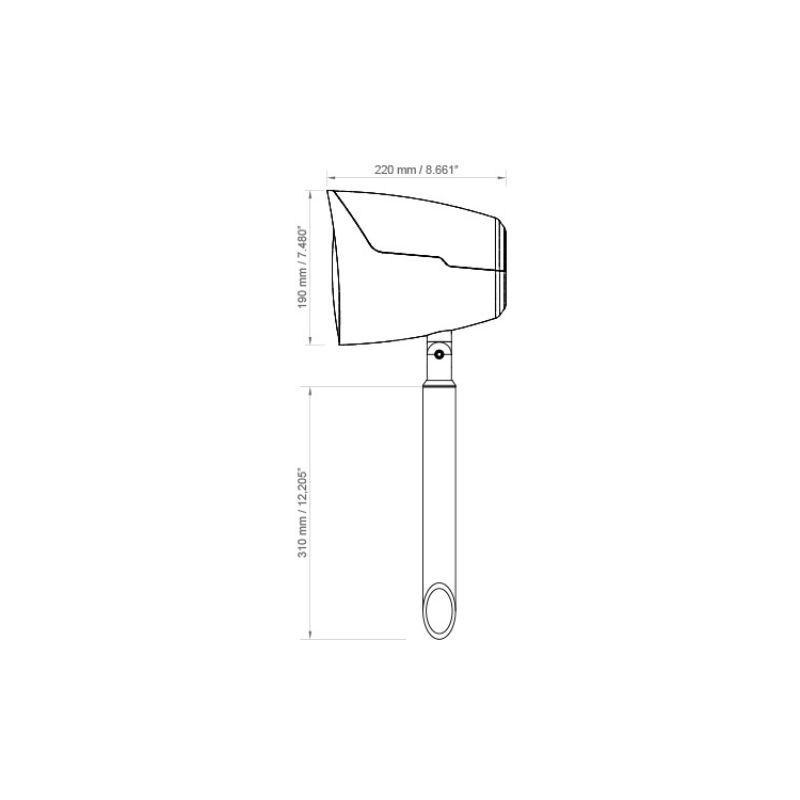

External Dimensions (Excluding Spike and Mount (H x W x D))
190 x 220 mm (71/2 x 811/16")

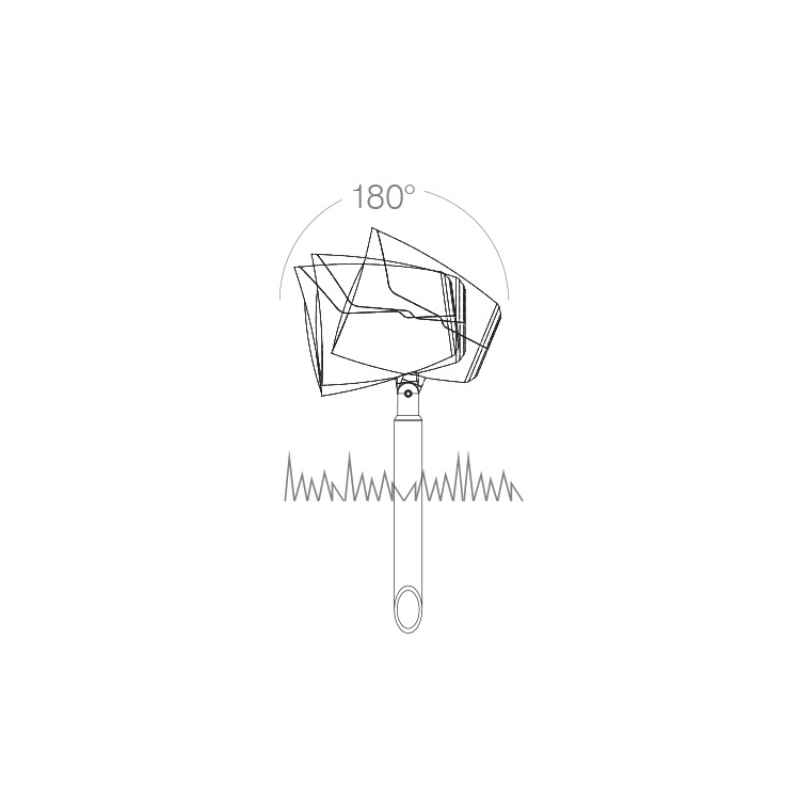

Total Bracket Pivot Angle
180 degrees
Connection
Encapsulated cable connection
Environmental Protection Rating
IP55
Operating Temperature Range
-20° to 70° C / -4° to 158° F
Colour / Finish
Dark Brown
Dispersion
60 degrees
Weight
2.76 kg (6 lb 2 oz)
Sold As
Single Unit
