Technology
Dual 4" C-CAM mid-range drivers – featuring underhung voice coil
25 mm (1") C-CAM Gold Dome tweeter

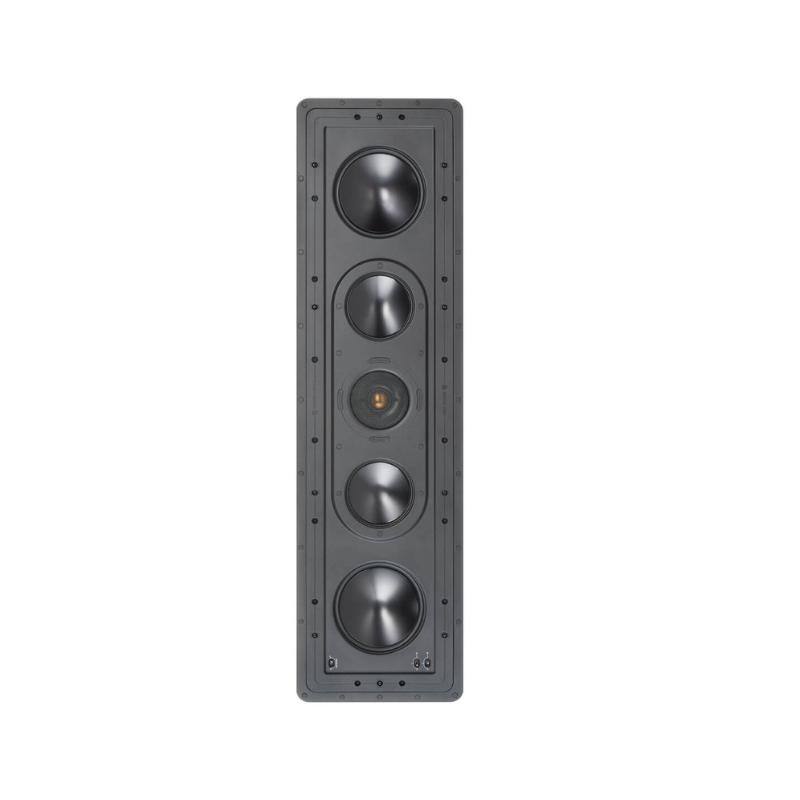

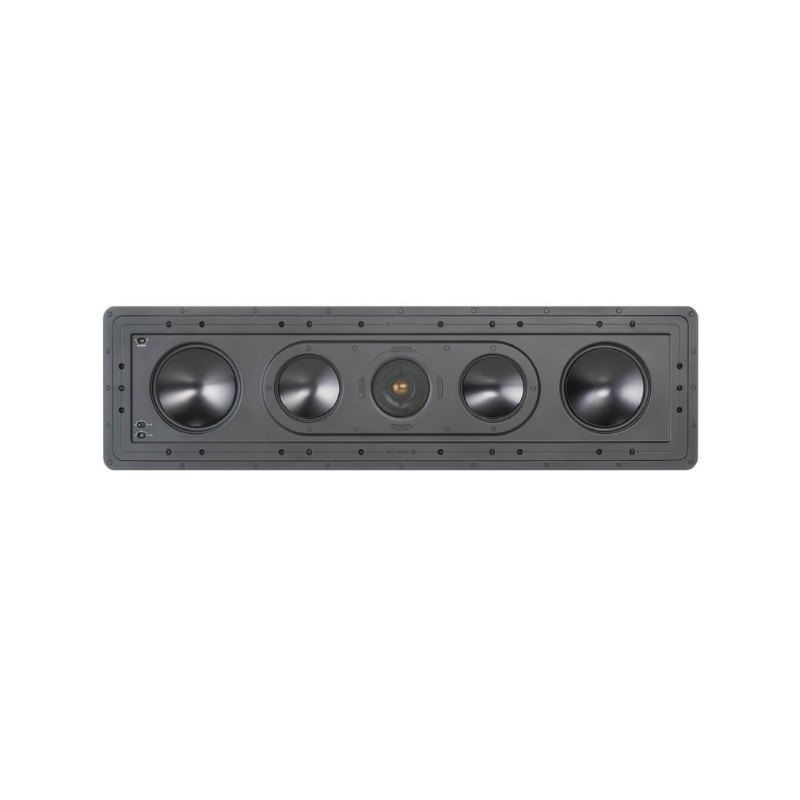

Portrait or landscape orientation

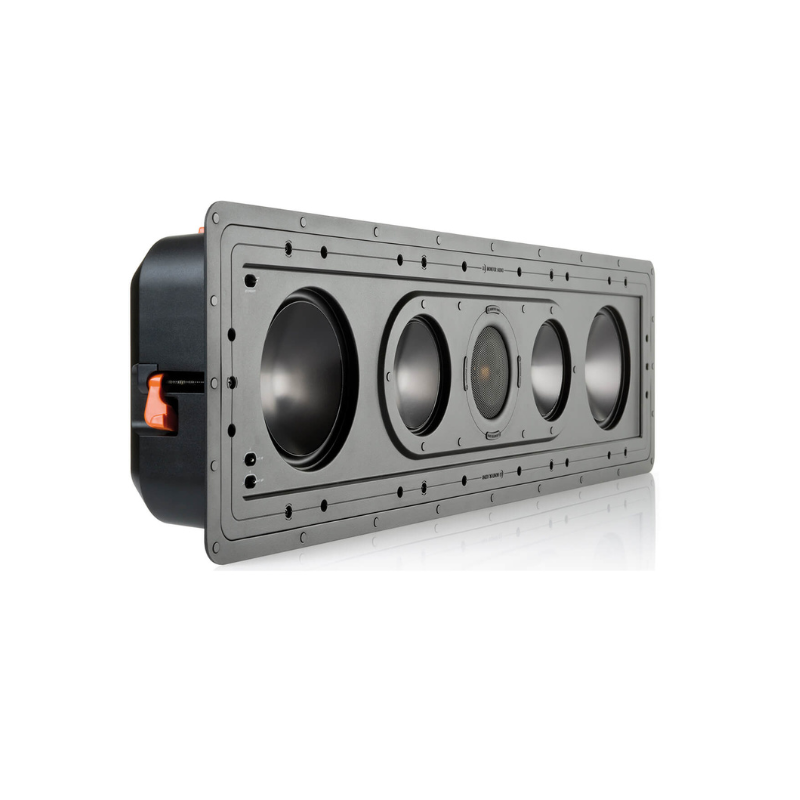

Integrated back-box to provide rear sound isolation resulting in ‘controlled performance’
Cast Polymer enclosure – designed to provide high degree of rigidity and acoustic damping properties
High overall efficiency and maximum SPL for powerful home theatre installations
High power handling
Three-way design in a symmetrical ‘B-M-T-M-B’ configuration
High-end crossover design – featuring low loss inductors and audiophile grade Polypropylene capacitors

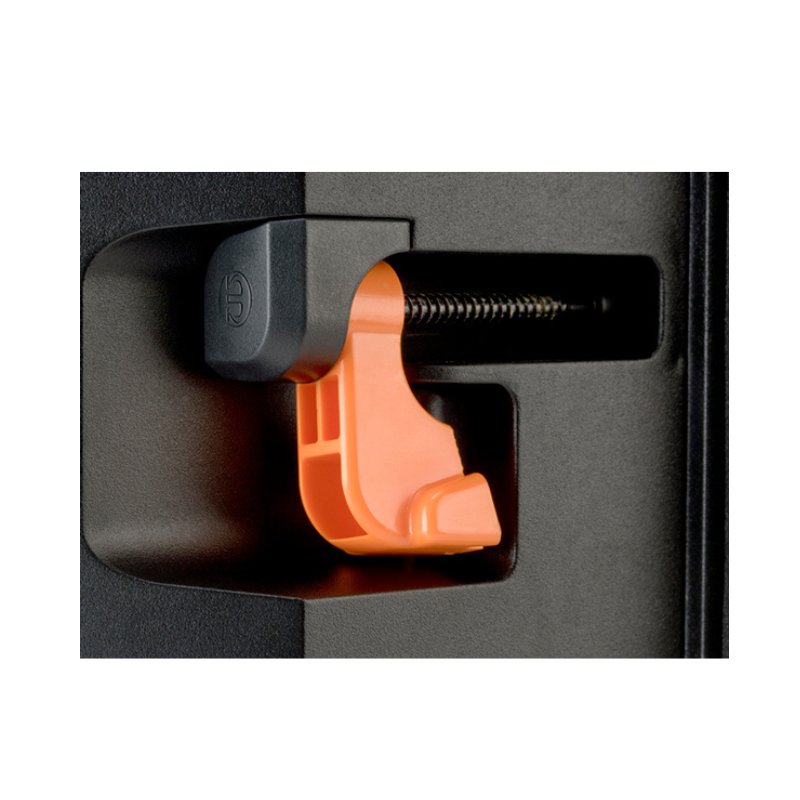

Patented Tri-Grip fixing system is easier to install than conventional clamping systems providing three times the surface area and improved sealing
Trim-less, low profile magnetic grilles provide attractive, discreet visual aspect and easy installation and servicing

Specifications

Frequency Response: 50 Hz – 30 kHz (-6 dB typical in room response)

Nominal Impedance: 6 ohms

Sensitivity (1W@1M): 89 dB

Maximum SPL: 113.8 dBA

Power Handling (RMS): 150 W

Recommended Amplifier Requirements: 60 – 150 W

Crossover Frequency:

• L.F: 500 Hz @ 12 dB/Octave
• M.F: 500 Hz @ 12 dB/Octave, 3 kHz @ 18 dB/Octave
• H.F: 3 kHz @ 18 dB/Octave

Drive Unit Complement:

• 2 x 6.5" C-CAM Bass drivers
• 2 x 4" C-CAM Mid-range drivers
• 1 x 25 mm (1") C-CAM Gold Dome tweeter

Adjustment Controls:

• Boundary Compensation (On/Off)
• MF Level: +1/0/-1 (dB)
• HF Level: +1/0/-1 (dB)

Overall Dimensions (H x W x D): 907 x 257 mm (35 3/4 x 10 1/8")

Overall Depth (Including Grille): 102 mm (4")

Cut-Out Dimensions: 880 x 230 mm (34 21/32 x 9")

Mounting Depth: 96 mm (3 3/4")

Fixing Type: 10 x Tri-Grip Dog leg fixings

Construction Material: Cast Polymer enclosure (RoHS2 Compliant)

Weight: 11.98 kg (26 lb 6 oz)

Pre-Construction Bracket: WB12 Pre-Construction Bracket (Green)

Sold As: Single Unit
