Description

 CP-IW460X

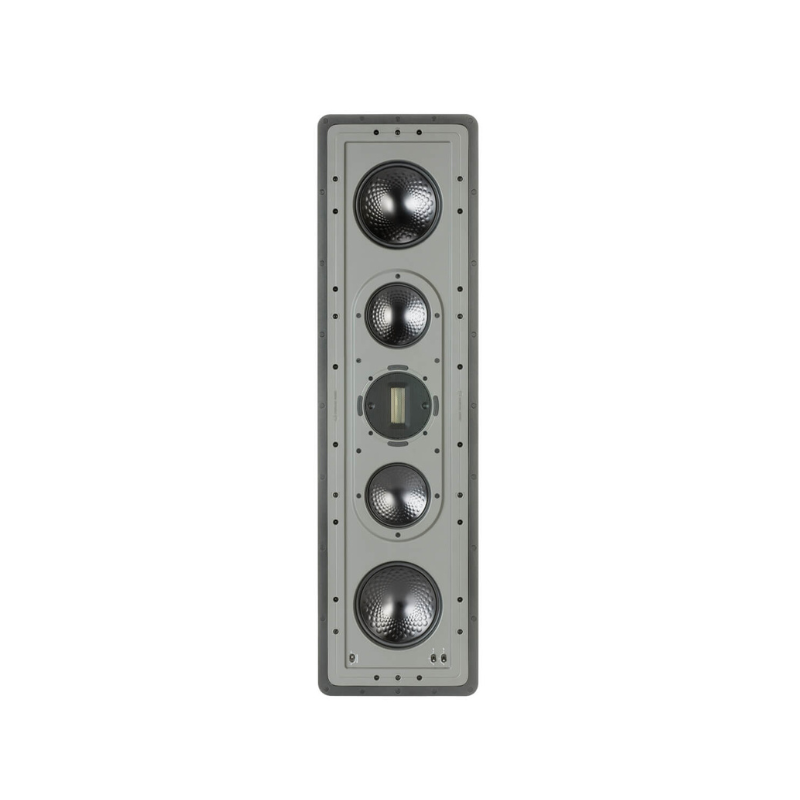

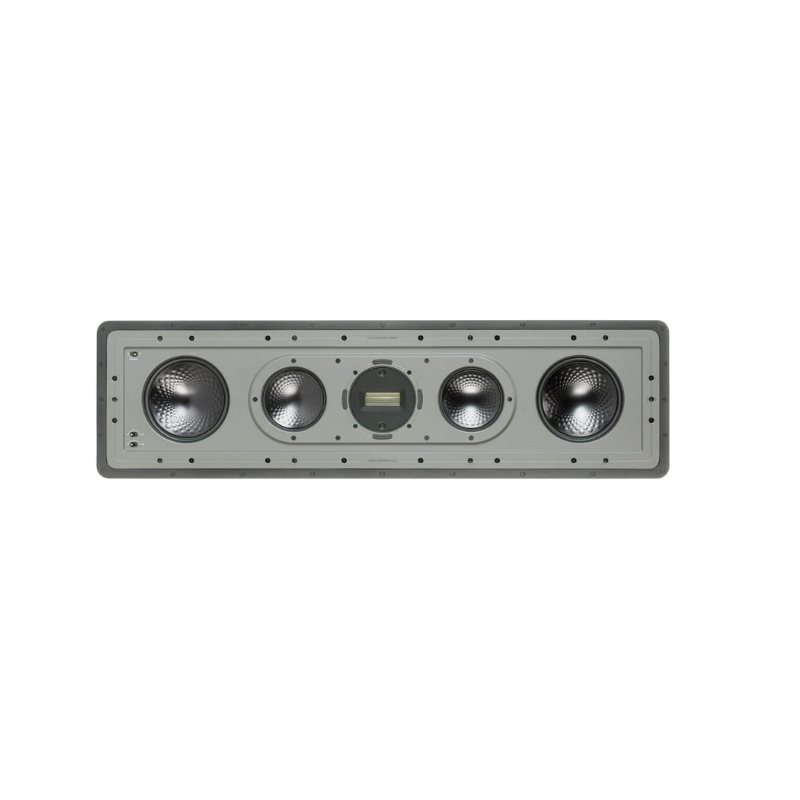

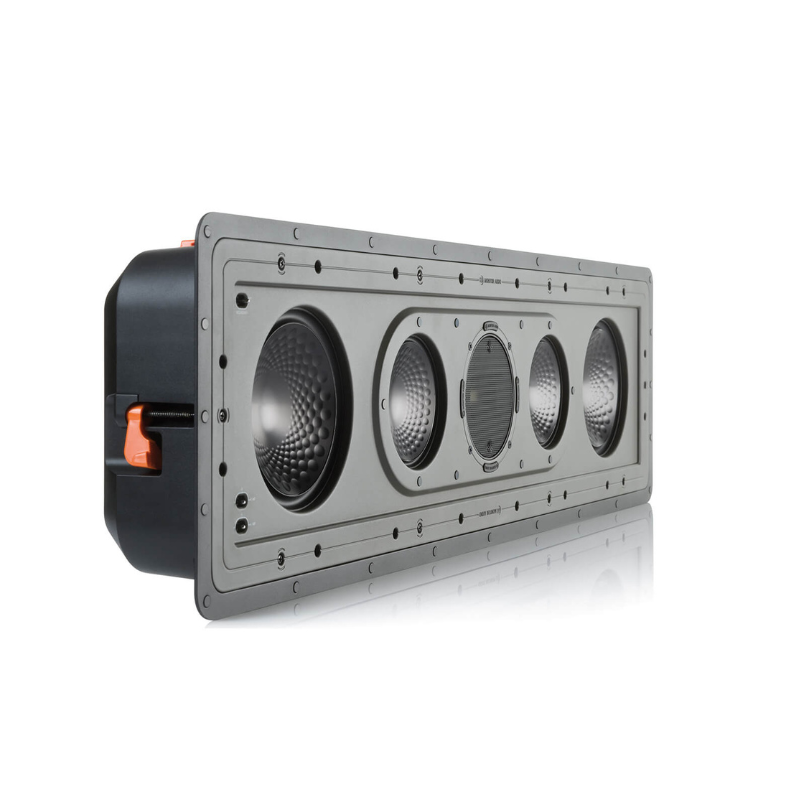

The luxury CP-IW260X and CP-IW460X in-wall speakers combine Monitor Audio’s latest drivers in compact three-way, five-driver configurations, built into closed-box designs to deliver optimum audio performance.

Technology

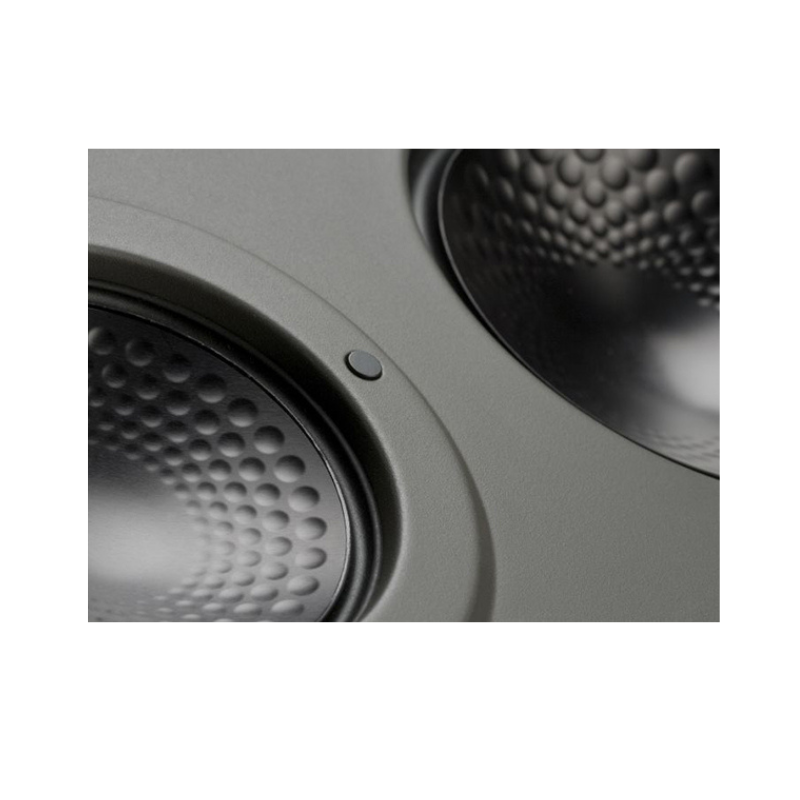

Dual 6.5” C-CAM bass drivers featuring RST ‘dimpled’ cone technology
Die-cast alloy bass driver chassis provides rigidity; results in punch bass and clean mid-range performance due to reduced transfer of vibrations
Dual 4” C-CAM mid-range drivers featuring RST ‘dimpled’ cone and underhung voice coil technologies

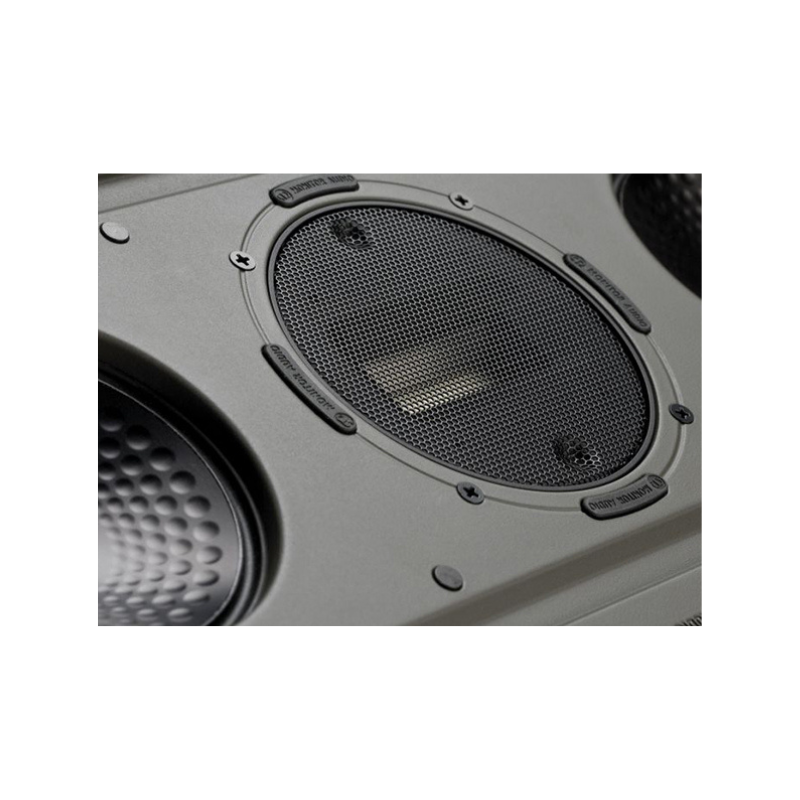

C-CAM Ribbon High Frequency transducer
Innovative HF rotating system to facilitate portrait or landscape orientation
Integrated back-box to provide rear sound isolation resulting in ‘controlled performance’
Cast Polymer enclosure – designed to provide high degree of rigidity and acoustic damping properties
High overall efficiency and maximum SPL for powerful home theatre installations
High power handling
Three-way design in a symmetrical ‘B-M-T-M-B’ configuration
High-end crossover design – featuring low loss inductors and audiophile grade Polypropylene capacitors

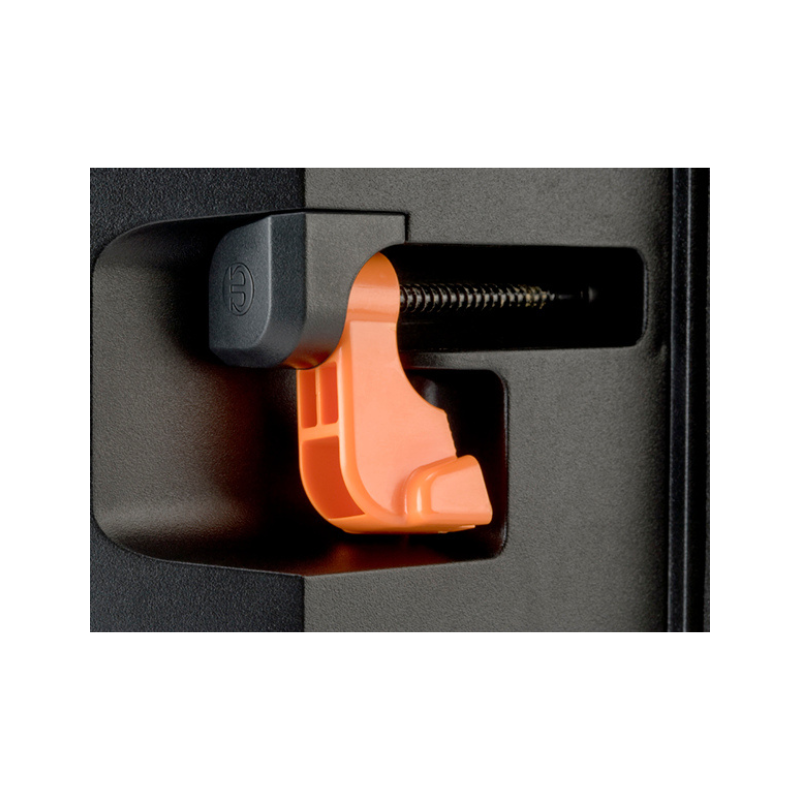

Patented Tri-Grip fixing system is easier to install than conventional clamping systems providing three times the surface area and improved sealing
Trim-less, low profile magnetic grilles provide attractive, discreet visual aspect and easy installation and servicing

Specifications

Frequency Response: 50 Hz – 60 kHz (-6 dB typical in room response)

Nominal Impedance: 6 ohms

Sensitivity (1W@1M): 89 dB

Maximum SPL: 113.8 dBA

Power Handling (RMS): 150 W

Recommended Amplifier Requirements: 60 – 150 W

Crossover Frequency:

  • L.F: 500 Hz @ 12 dB/Octave
  • M.F: 500 Hz @ 12 dB/Octave, 3 kHz @ 18 dB/Octave
  • H.F: 3 kHz @ 18 dB/Octave

Drive Unit Complement:

  • 2 x 6.5” C-CAM Bass drivers with RST cone technology
  • 2 x 4” C-CAM Mid-range drivers with RST cone technology
  • 1 x C-CAM H.F ribbon transducer

Adjustment Controls:

  • Boundary Compensation (On/Off)
  • MF Level: +1/0/-1 (dB)
  • HF Level: +1/0/-1 (dB)

Overall Dimensions (H x W x D): 907 x 257 mm (35 3/4 x 10 1/8")

Overall Depth (Including Grille): 102 mm (4")

Cut-Out Dimensions: 880 x 230 mm (34 21/32 x 9")

Mounting Depth: 96 mm (3 3/4")

Fixing Type: 10 x Tri-Grip Dog leg fixings

Construction Material: Cast Polymer enclosure with die-cast Aluminium baffle (RoHS2 Compliant)

Weight: 12.98 kg (28 lb 6 oz)

Pre-Construction Bracket: WB12 Pre-Construction Bracket (Green)

Sold As: Single Unit



Price on Request
This item requires further consultation. If interested, please reach out to our team and a product specialist will reach out within the hour.

Monitor Audio CP-IW460X

Monitor Audio CP-IW460X In-Wall Speaker (Each)

Price On Request

The CP-IW460X features Monitor Audio’s signature C-CAM (Ceramic-Coated Aluminium/Magnesium) cone material with RST (Rigid Surface Technology) deployed in dual 6.5" bass drivers and twin 4" mids astride a high frequency, air motion ribbon tweeter in a symmetrical ‘B-M-T-M-B’ configuration. All within Read more
Description

 CP-IW460X

The luxury CP-IW260X and CP-IW460X in-wall speakers combine Monitor Audio’s latest drivers in compact three-way, five-driver configurations, built into closed-box designs to deliver optimum audio performance.

Technology

Dual 6.5” C-CAM bass drivers featuring RST ‘dimpled’ cone technology
Die-cast alloy bass driver chassis provides rigidity; results in punch bass and clean mid-range performance due to reduced transfer of vibrations
Dual 4” C-CAM mid-range drivers featuring RST ‘dimpled’ cone and underhung voice coil technologies
C-CAM Ribbon High Frequency transducer
Innovative HF rotating system to facilitate portrait or landscape orientation
Integrated back-box to provide rear sound isolation resulting in ‘controlled performance’
Cast Polymer enclosure – designed to provide high degree of rigidity and acoustic damping properties
High overall efficiency and maximum SPL for powerful home theatre installations
High power handling
Three-way design in a symmetrical ‘B-M-T-M-B’ configuration
High-end crossover design – featuring low loss inductors and audiophile grade Polypropylene capacitors
Patented Tri-Grip fixing system is easier to install than conventional clamping systems providing three times the surface area and improved sealing
Trim-less, low profile magnetic grilles provide attractive, discreet visual aspect and easy installation and servicing

Specifications

Frequency Response: 50 Hz – 60 kHz (-6 dB typical in room response)

Nominal Impedance: 6 ohms

Sensitivity (1W@1M): 89 dB

Maximum SPL: 113.8 dBA

Power Handling (RMS): 150 W

Recommended Amplifier Requirements: 60 – 150 W

Crossover Frequency:

  • L.F: 500 Hz @ 12 dB/Octave
  • M.F: 500 Hz @ 12 dB/Octave, 3 kHz @ 18 dB/Octave
  • H.F: 3 kHz @ 18 dB/Octave

Drive Unit Complement:

  • 2 x 6.5” C-CAM Bass drivers with RST cone technology
  • 2 x 4” C-CAM Mid-range drivers with RST cone technology
  • 1 x C-CAM H.F ribbon transducer

Adjustment Controls:

  • Boundary Compensation (On/Off)
  • MF Level: +1/0/-1 (dB)
  • HF Level: +1/0/-1 (dB)

Overall Dimensions (H x W x D): 907 x 257 mm (35 3/4 x 10 1/8")

Overall Depth (Including Grille): 102 mm (4")

Cut-Out Dimensions: 880 x 230 mm (34 21/32 x 9")

Mounting Depth: 96 mm (3 3/4")

Fixing Type: 10 x Tri-Grip Dog leg fixings

Construction Material: Cast Polymer enclosure with die-cast Aluminium baffle (RoHS2 Compliant)

Weight: 12.98 kg (28 lb 6 oz)

Pre-Construction Bracket: WB12 Pre-Construction Bracket (Green)

Sold As: Single Unit



Price on Request
This item requires further consultation. If interested, please reach out to our team and a product specialist will reach out within the hour.
