C1M

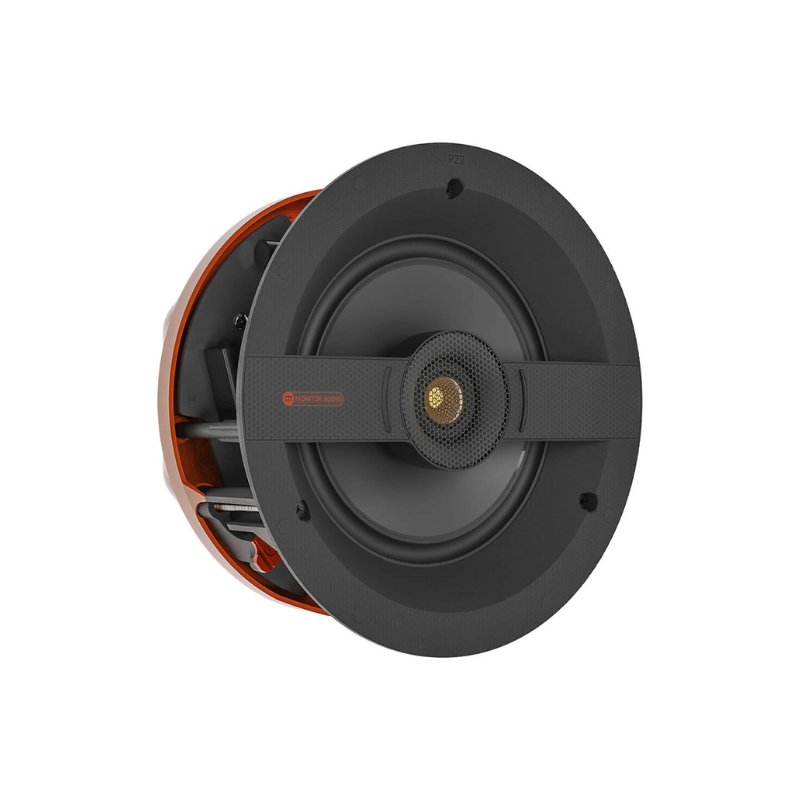

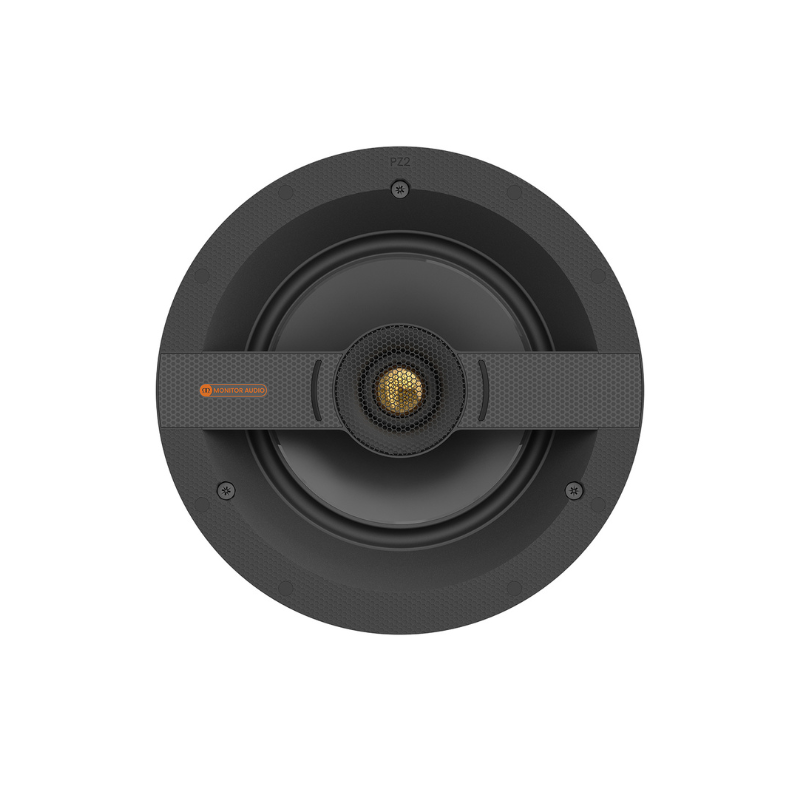

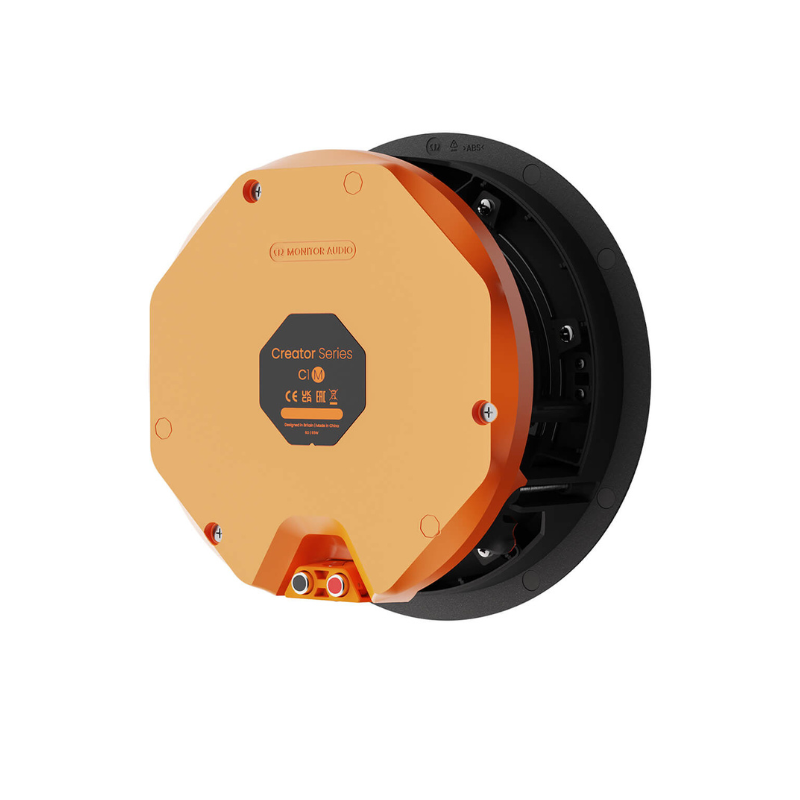

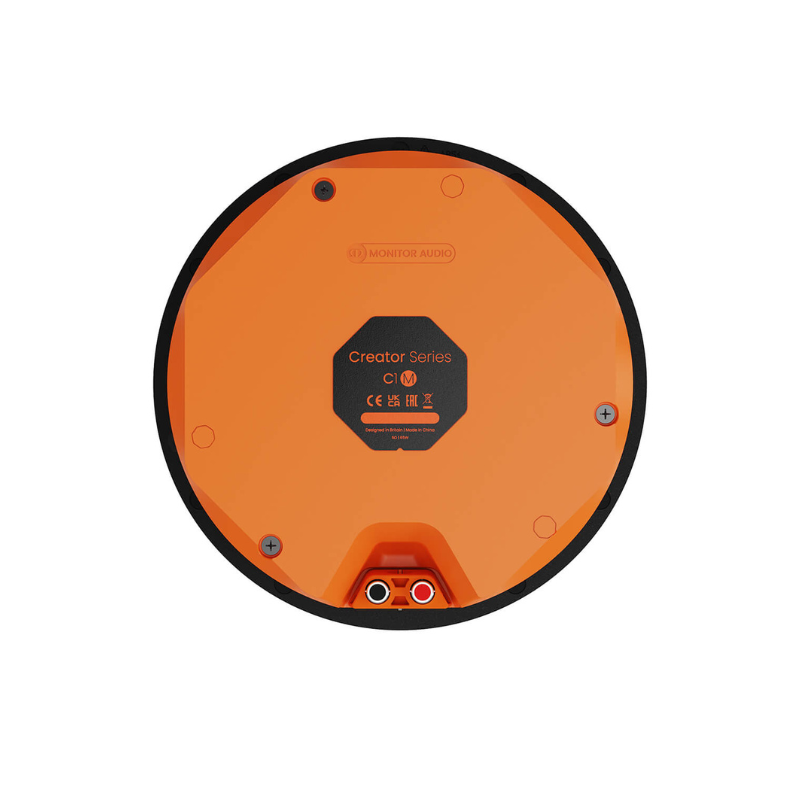

This medium Tier 1 in-ceiling loudspeaker is a two-way model featuring a C-CAM mid-bass driver and C-CAM tweeter. It has a cut-out dimension of 212 mm, revolutionary patented Quik-Link speaker cable connector and Tri-Grip II for quick, simple, reliable and strong installation and fitting.
Key Features
- Ideal for cost-effective installations, where product simplicity and solid acoustic performance is required
- Two-way design
- 1 x 1" (25 mm) C-CAM tweeter with UD Waveguide I for lifelike sound
- 1 x 7" (178 mm) C-CAM mid-bass driver for clear mid-range and full bass
- Patented Quik-Link speaker cable connector for quicker installation (UK patent application no. 2216966.8)
- Tri-Grip II for easy and secure fitment
-
System Format
- System Type: 2-Way
- Channels: 1
Audio Performance
- Frequency Response (-6dB): 35 Hz – 30 kHz
- Nominal Impedance: 8 ohm
- Minimum Impedance (20Hz to 20kHz): 6.5 Ohm @ 150 Hz
- Sensitivity (2.83Vrms@1m, Installed): 86 dB
- Maximum Peak SPL (single speaker @ 1m Z-Weighted): 113 dB
- Continuous Power Handling (RMS into Nominal Impedance, Pink Noise with 6dB Crest Factor): 65 W
- Recommended Amplifier Power (RMS into 8 OHM, Music Signal): 35 – 130 W
Drive Units
- Mid-Bass Driver: 1 x 7" (178 mm) C-CAM mid-bass driver
- Tweeter: 1 x 1" (25 mm) C-CAM tweeter
- Crossover Frequency: LF/HF: 2 kHz
Physical Characteristics
- Mounting Depth: 99 mm (3 7/8")
- Cut-Out Hole Diameter: 212 mm (8 3/8")
- External Dimensions (Including Grille): 242 x 242 x 103 mm (9 1/2 x 9 1/2 x 4 4/16")
- Weight (each): 1.9 kg (4 lb 3 oz)
Construction and Finish
- Cabinet Finish: Matt black & Orange
- Pre-Construction Bracket: CM-B
Packaging and Sales
- Sold As: Single Unit
