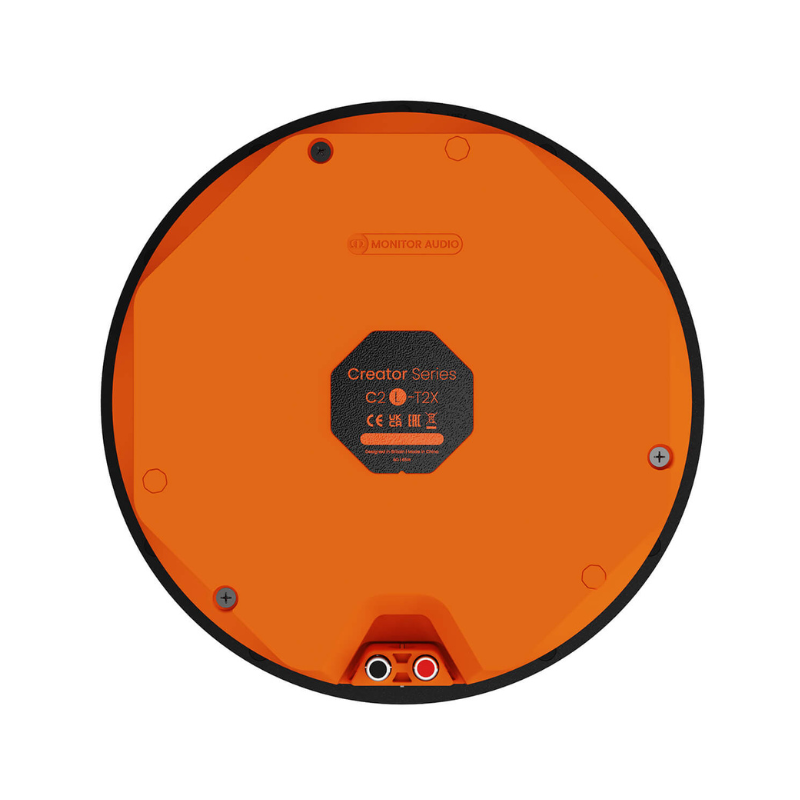

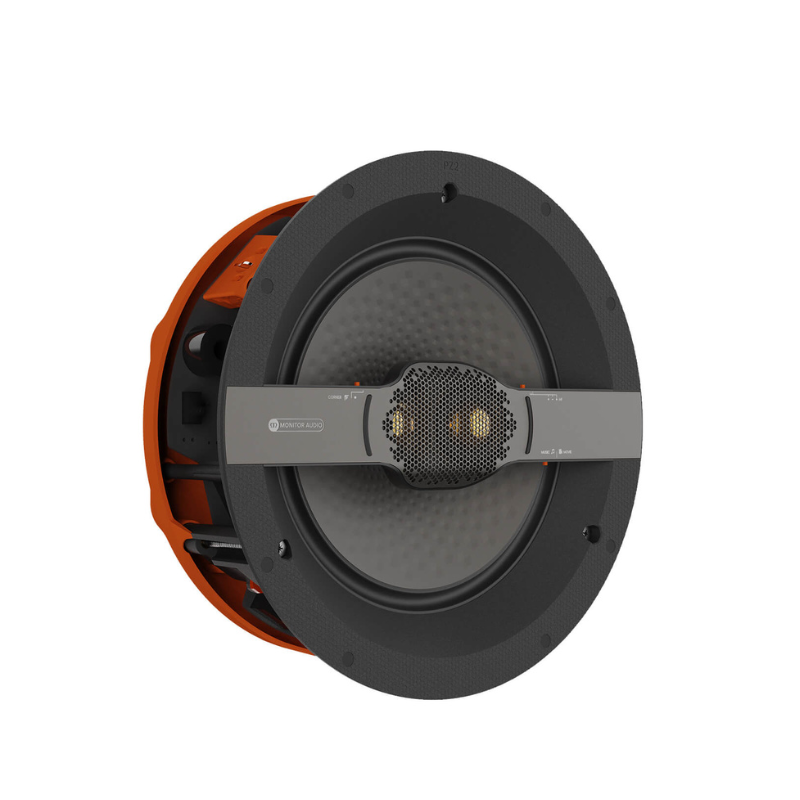

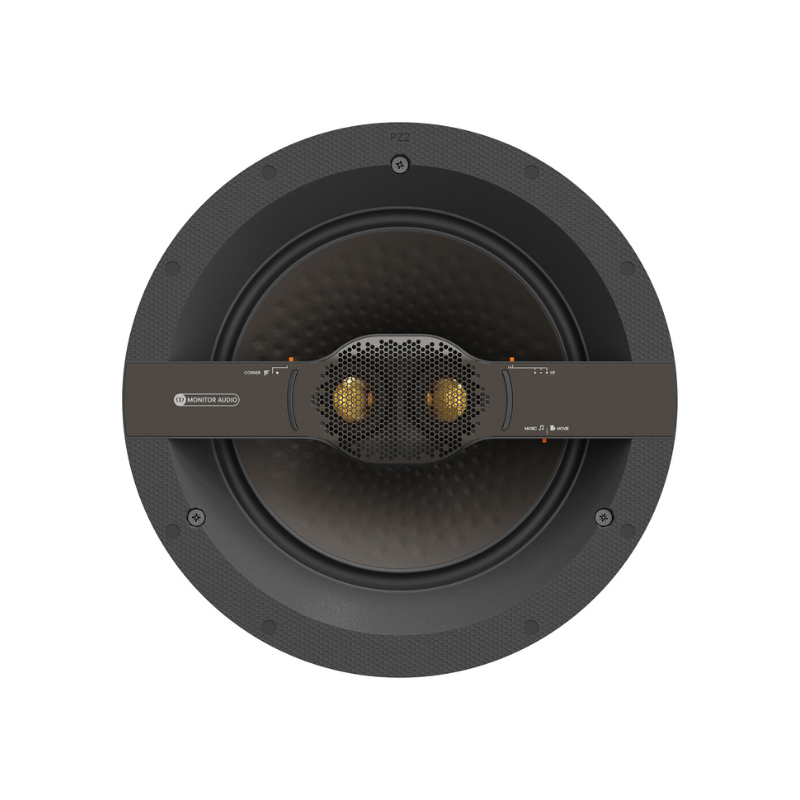

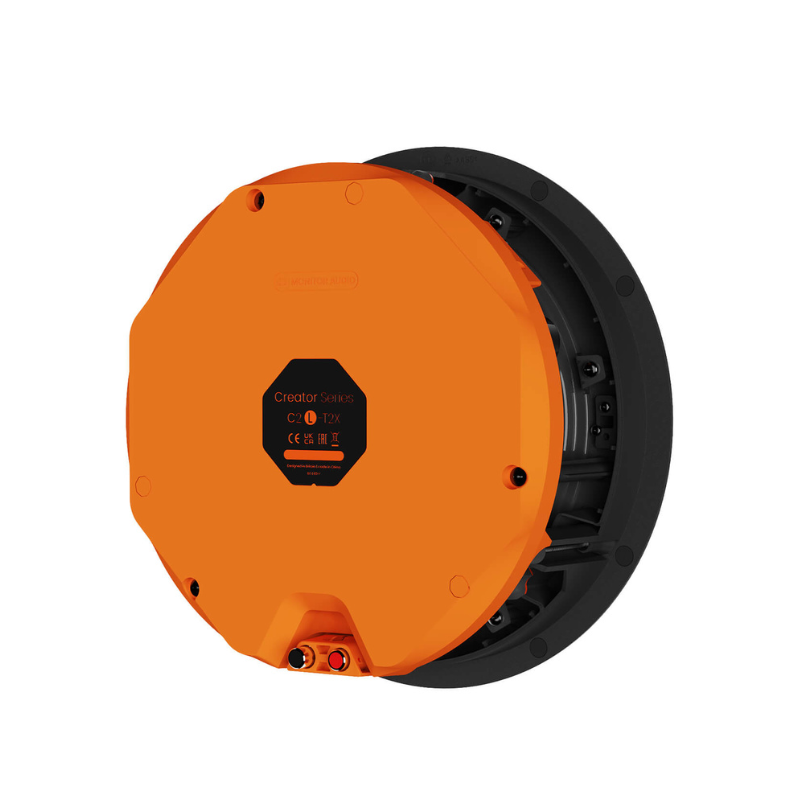

C2L-T2X
This large Tier 2 in-ceiling loudspeaker can be utilised as both a single stereo speaker for music or as a di-pole or bi-pole surround sound speaker for exhilarating movie sound. It has a cut-out dimension of 248 mm and revolutionary patented Quik-Link speaker cable connector and Tri-Grip II for quick, simple, reliable and strong installation and fitting.
Key Features
- Ideal for installations where pristine acoustic performance is required
- Switchable design for three modes
- Two-way design
- 2 x 1.25" (32 mm) C-CAM tweeter with UD Waveguide II for lifelike sound
- 1 x 9" (229 mm) RST II dual-coil bass driver for pristine mid-range and full bass
- Patented Quik-Link speaker cable connector for quicker installation (UK patent application no. 2216966.8)
- Tri-Grip II for easy and secure fitment
Specifications
Channels:
- 1 (Mono)
- 2 (Stereo)
Frequency Response, Installed (-6dB): 30 Hz – 30 kHz
Nominal Impedance:
- 4 Ohm (Mono)
- 8 Ohm (Stereo)
Minimum Impedance (20Hz to 20kHz):
- 3.2 Ohm @ 15 kHz (Mono)
- 6.4 Ohm @ 15 kHz (Stereo)
Sensitivity (2.83Vrms@1m, Installed): 88 dB
Maximum Peak SPL (single speaker @ 1m Z-Weighted):
- Mono: 117dB
Continuous Power Handling (RMS into Nominal Impedance, Pink Noise with 6dB Crest Factor):
- 240 W (Mono)
- 2 x 30 – 120 W (Stereo)
Recommended Amplifier Power (RMS into 8 OHM, Music Signal):
- 60 – 240 W (Mono)
- 2 x 60 – 240 W (Stereo)
Drive Unit Complement:
- 1 x 9" (229 mm) RST II dual-coil bass driver
- 2 x 1.25" (32 mm) C-CAM tweeter
Crossover Frequency: LF/HF: 2 kHz
Mounting Depth: 99 mm (37/8")
Cut-Out Hole Diameter: 248 mm (93/4")
External Dimensions (Including Grille - H x W x D): 278 x 278 x 103 mm (1015/16 x 1015/16 x 44/16")
Weight (each): 2.7 kg (6 lb)
Pre-Construction Bracket: CL-B
Cabinet Finish: Matt black & Orange & Bronze
Sold As: Single Unit
Switches:
- Corner Switch: On/Off
- HF Switch: - /0/ +
- Music/Movie Switch: Music/Movie
- Mono/Stereo Switch: Mono/Stereo
