Description

 W1M

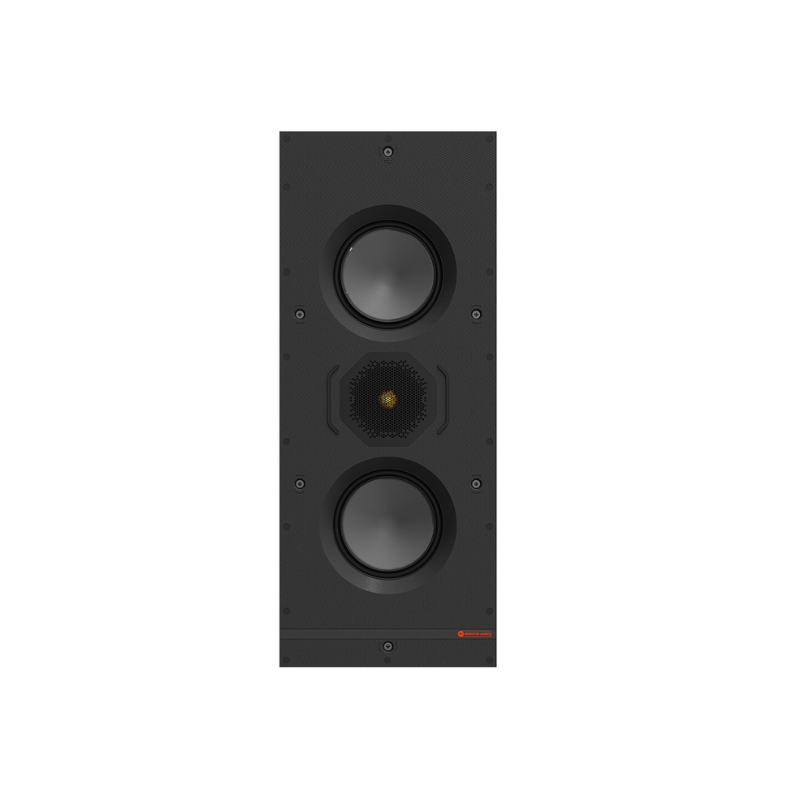

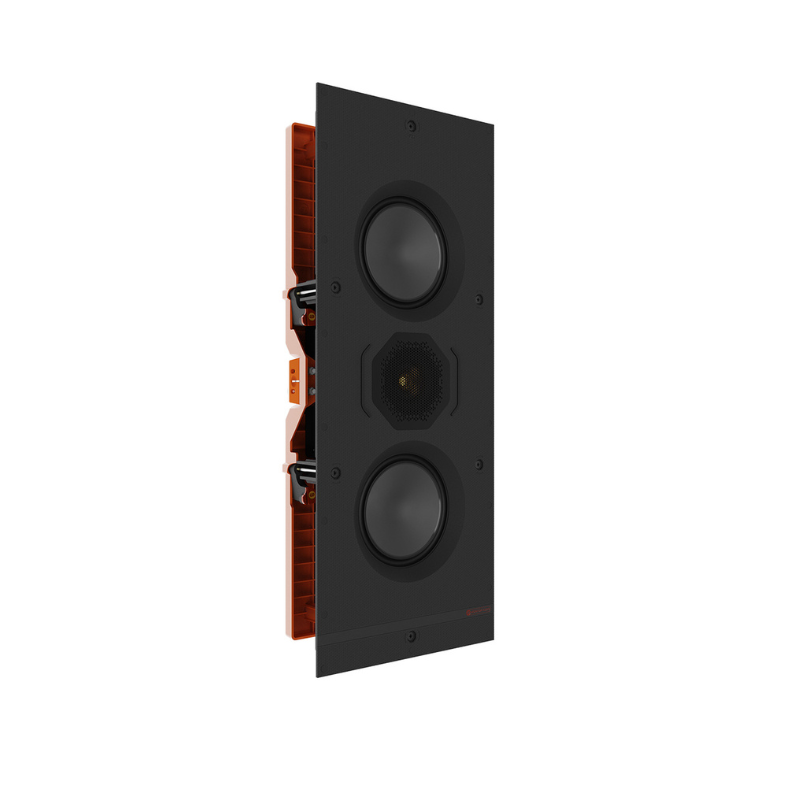

This medium-sized Tier 1 in-wall loudspeaker is a two-way model featuring two C-CAM mid-bass drivers and a C-CAM tweeter. It has a cut-out dimension of 527 x 198mm and revolutionary patented Quick-Link speaker cable connector and Tri-Grip II for quick, simple, reliable and strong installation and fitting.

Key Features

  • Ideal for cost-effective installations, where product simplicity and solid acoustic performance is required
  • Two-way design
  • 1 x 1" (25 mm) C-CAM tweeter with UD Waveguide I for lifelike sound
  • 2 x 5" (127 mm) C-CAM mid-bass driver for clear mid-range and full bass
  • Patented Quik-Link speaker cable connector for quicker installation (UK patent application no. 2216966.8)
  • Tri-Grip II for easy and secure fitment

Specifications

System Format: 2–Way

Channels: 1

Frequency Response, Installed (-6dB): 40 Hz – 30 kHz

Nominal Impedance: 6 ohm

Minimum Impedance (20Hz to 20kHz): 4.8 Ohm @ 15 kHz

Sensitivity (2.83Vrms@1m, Installed): 87 dB

Maximum Peak SPL (single speaker @ 1m Z-Weighted): 113 dB

Continuous Power Handling (RMS into Nominal Impedance, Pink Noise with 6dB Crest Factor): 75 W

Recommended Amplifier Power (RMS into 8 OHM, Music Signal): 30 – 110 W

Drive Unit Complement:

  • 2 x 5" (127 mm) C-CAM mid-bass driver
  • 1 x 1" (25 mm) C-CAM tweeter

Crossover Frequency: LF/HF: 2.75 kHz

Mounting Depth: 85 mm (33/8")

Cutout Dimensions (L x W): 527 x 198 mm (203/4 x 713/16")

External Dimensions (Including Grille - H x W x D): 560 x 231 x 90 mm (221/16 x 91/8 x 39/16")

Weight (each): 3.4 kg (7 lb 8 oz)

Pre-Construction Bracket: WM-B

Cabinet Finish: Matt black & Orange​

Sold As: Single Unit

Price on Request
This item requires further consultation. If interested, please reach out to our team and a product specialist will reach out within the hour.

Monitor Audio Creator W1M

Monitor Audio Creator W1M In-Wall Speaker (Each)

Price On Request

This medium-sized Tier 1 in-wall loudspeaker is designed for cost-effective installations, where product simplicity and solid acoustic performance is required. It is a two-way model featuring a C-CAM mid-bass driver and C-CAM tweeter. The performance benefit of having both within a single design mea Read more
Description

 W1M


This medium-sized Tier 1 in-wall loudspeaker is a two-way model featuring two C-CAM mid-bass drivers and a C-CAM tweeter. It has a cut-out dimension of 527 x 198mm and revolutionary patented Quick-Link speaker cable connector and Tri-Grip II for quick, simple, reliable and strong installation and fitting.

Key Features

  • Ideal for cost-effective installations, where product simplicity and solid acoustic performance is required
  • Two-way design
  • 1 x 1" (25 mm) C-CAM tweeter with UD Waveguide I for lifelike sound
  • 2 x 5" (127 mm) C-CAM mid-bass driver for clear mid-range and full bass
  • Patented Quik-Link speaker cable connector for quicker installation (UK patent application no. 2216966.8)
  • Tri-Grip II for easy and secure fitment

Specifications

System Format: 2–Way

Channels: 1

Frequency Response, Installed (-6dB): 40 Hz – 30 kHz

Nominal Impedance: 6 ohm

Minimum Impedance (20Hz to 20kHz): 4.8 Ohm @ 15 kHz

Sensitivity (2.83Vrms@1m, Installed): 87 dB

Maximum Peak SPL (single speaker @ 1m Z-Weighted): 113 dB

Continuous Power Handling (RMS into Nominal Impedance, Pink Noise with 6dB Crest Factor): 75 W

Recommended Amplifier Power (RMS into 8 OHM, Music Signal): 30 – 110 W

Drive Unit Complement:

  • 2 x 5" (127 mm) C-CAM mid-bass driver
  • 1 x 1" (25 mm) C-CAM tweeter

Crossover Frequency: LF/HF: 2.75 kHz

Mounting Depth: 85 mm (33/8")

Cutout Dimensions (L x W): 527 x 198 mm (203/4 x 713/16")

External Dimensions (Including Grille - H x W x D): 560 x 231 x 90 mm (221/16 x 91/8 x 39/16")

Weight (each): 3.4 kg (7 lb 8 oz)

Pre-Construction Bracket: WM-B

Cabinet Finish: Matt black & Orange​

Sold As: Single Unit

Price on Request
This item requires further consultation. If interested, please reach out to our team and a product specialist will reach out within the hour.
