Born of Passion, Vision & Knowledge.
Hyphn is born of collaboration between our designers and engineers, who set out to build the best loudspeaker anyone has ever heard. An ambition that’s easy to express, but a lot more challenging to achieve. Hyphn is intended to be a ‘statement loudspeaker’ both technically and visually. It is also designed for ‘real’ rooms, taking into account and addressing all the inherent constraints and compromises that entails.
Hyphn is a statement of intent.
Hyphn is a peerless, definitive, uncompromising demonstration of the Monitor Audio Group’s current design, engineering and manufacturing capabilities, and its future ambitions. It is unlike anything Monitor Audio, or anyone else, has ever created: the most creatively ambitious, technically advanced and powerful loudspeaker in the company’s history. It delivers a dramatically enhanced listening experience, with a visually striking presence.
Key Features
- The unique M-Array configuration features a single MPD III Transducer surrounded by six RDT III dedicated midrange drivers.
3rd generation MPD III high-frequency transducers reduce distortion, flatten frequency response and lead to wider, cleaner more consistent and lifelike sound. - RDT III cone produces piston-like control even under the most extreme performance, providing a more precise, lifelike tonal balance and lower distortion.
- Newly optimised Mid-range drivers ensure a completely smooth frequency transition with Tweeter.
- Carefully engineered crossovers produced to ensure the most exact and controlled sound performance across full frequency spectrum.

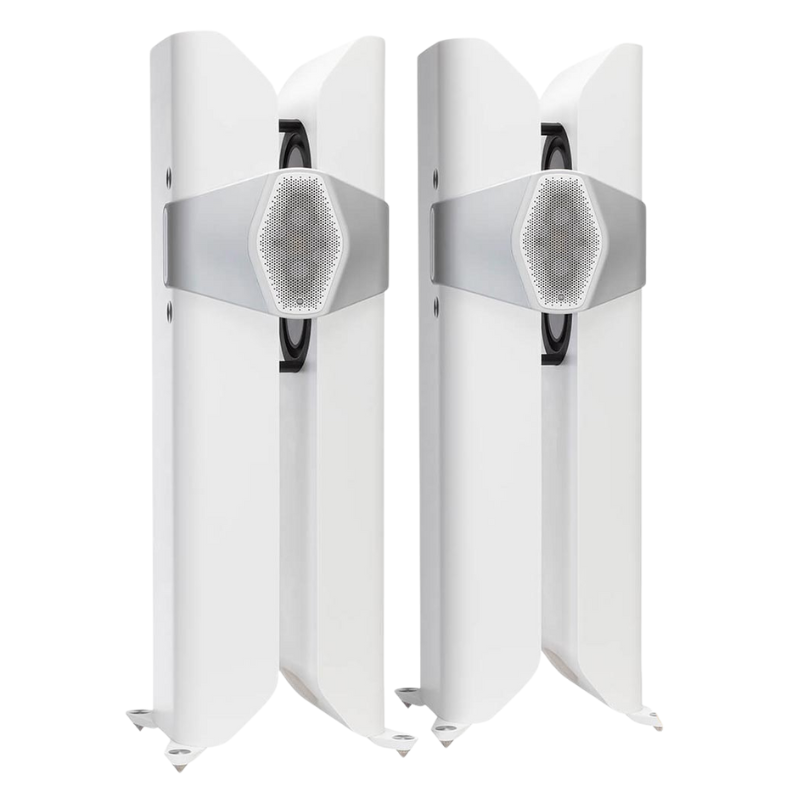

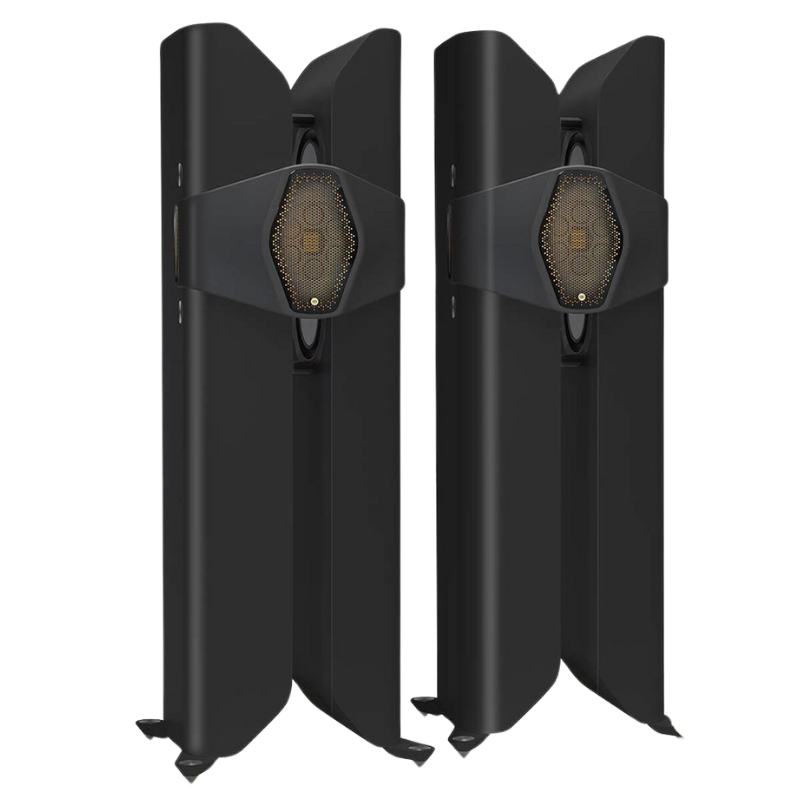

- Hyphn is available in three incredible finishes: Matte Black and Pure Satin White.
Specifications
Specifications
- Sensitivity (2.83Vrms @ 1m): 86 dB
- Recommended Amplifier Power (RMS into 4 Ohm, Music Signal): 200 – 1,600W
- Continuous Power Handling (RMS into Nominal Impedance, Pink Noise with 6dB Crest Factor): 800 W
- Nominal Impedance: 4 Ohm
- Minimum Impedance (20 Hz to 20 kHz): 3.5 Ohm @ 2.2 kHz
Drive Unit Complement
- Bass Driver: 4 x 8″ RDT III
- Midrange Driver: 6 x 2″ RDT III
- Tweeter: 1 x MPD III
Performance
- Frequency Response (In-room, -6dB): 18 Hz – 60 kHz
- Maximum Peak SPL (single speaker @1m Z-Weighted): 129 dB
System Configuration
- System Format: 3-Way
- Bass Alignment: Bass Reflex
- Port Tuning Frequency: 25 Hz
- Crossover Frequencies: 350 Hz, 3.7 kHz
Dimensions and Weight
- External Dimensions (Inc. plinth) (H x W x D): 1392 x 502 x 520 mm
- Weight (Inc. plinth, excluding packaging): 106.9 kg
