W2M

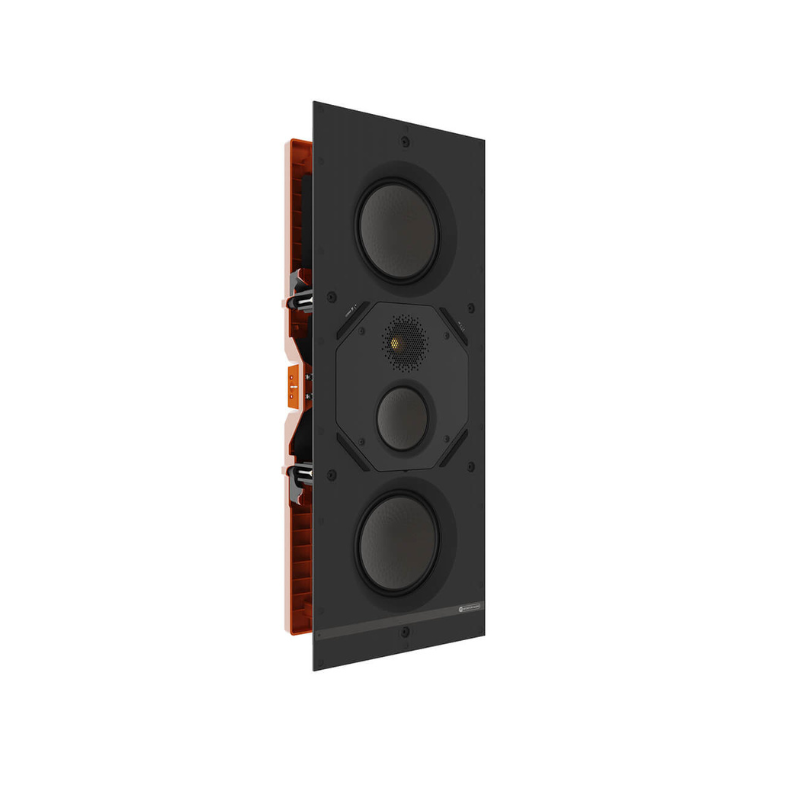

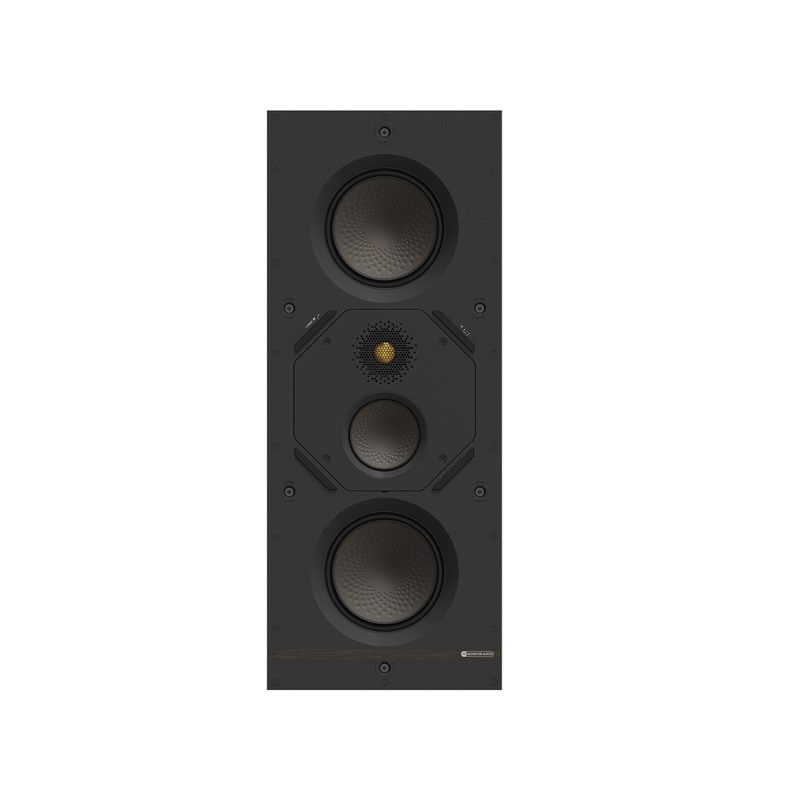

This medium-sized Tier 2 in-wall loudspeaker is a three-way model featuring two RST II bass drivers, an RST II mid-range driver and a C-CAM tweeter. It has a cut-out dimension of 527 x 198 mm and revolutionary patented Quik-Link speaker cable connector and Tri-Grip II for quick, simple, reliable and strong installation and fitting.
Key Features
- Ideal for installations where pristine acoustic performance is required
- Three-way design
- 1 x 1" (25 mm) C-CAM tweeter with UD Waveguide II for lifelike sound
- 1 x 3" (76 mm) RST II mid-range driver
- 2 x 5" (127 mm) RST II bass drivers for full bass
- Patented Quik-Link speaker cable connector for quicker installation (UK patent application no. 2216966.8)
- Tri-Grip II for easy and secure fitment
Specification
System Format: 3–Way
Channels: 1
Frequency Response, Installed (-6dB): 40 Hz – 35 kHz
Nominal Impedance: 6 ohm
Minimum Impedance (20Hz to 20kHz):
- 4.8 Ohm @ 1 kHz
- 4.1 Ohm @ 15 kHz
Sensitivity (2.83Vrms@1m, Installed): 87 dB
Maximum Peak SPL (single speaker @ 1m Z-Weighted): 116 dB
Continuous Power Handling (RMS into Nominal Impedance, Pink Noise with 6dB Crest Factor): 120 W
Recommended Amplifier Power (RMS into 8 OHM, Music Signal): 45 – 180 W
Drive Unit Complement:
- 2 x 5" (127 mm) RST II bass drivers
- 1 x 3" (76 mm) RST II midrange driver
- 1 x 1" (25 mm) C-CAM tweeter
Crossover Frequency:
- LF/HF: 650 Hz
- MF/HF: 3 kHz
Mounting Depth: 85 mm (33/8")
Cutout Dimensions (L x W): 527 x 198 mm (203/4 x 713/16")
External Dimensions (Including Grille - H x W x D): 560 x 231 x 90 mm (221/16 x 91/8 x 39/16")
Weight (each): 3.9 kg (8 lb 9 oz)
Pre-Construction Bracket: WM-B
Cabinet Finish: Matt black & Orange & Bronze
Sold As: Single Unit
Corner Switch: On/Off
HF Switch: - /0/ +
