W3M

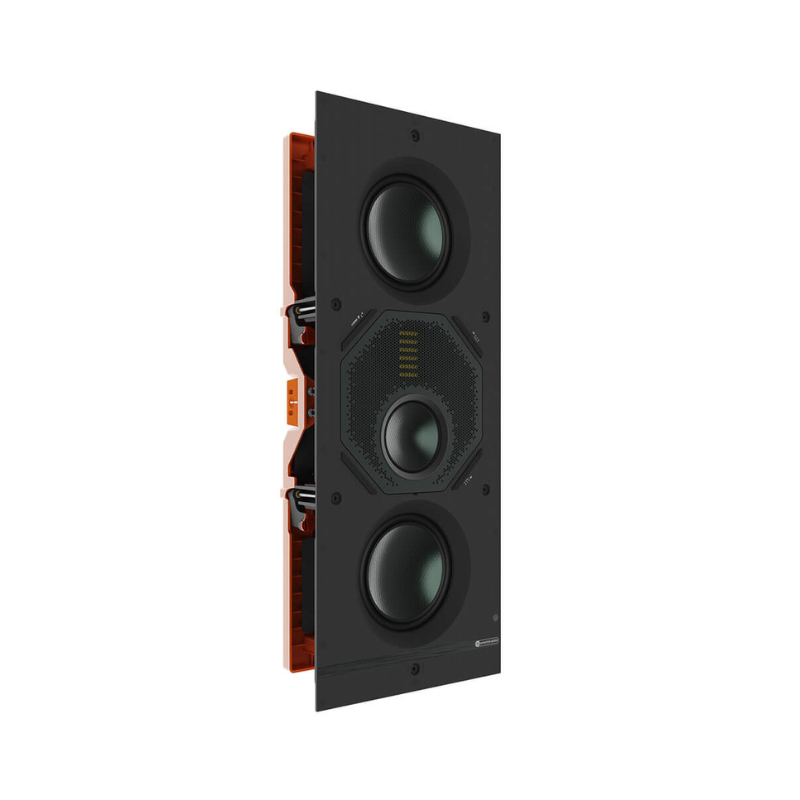

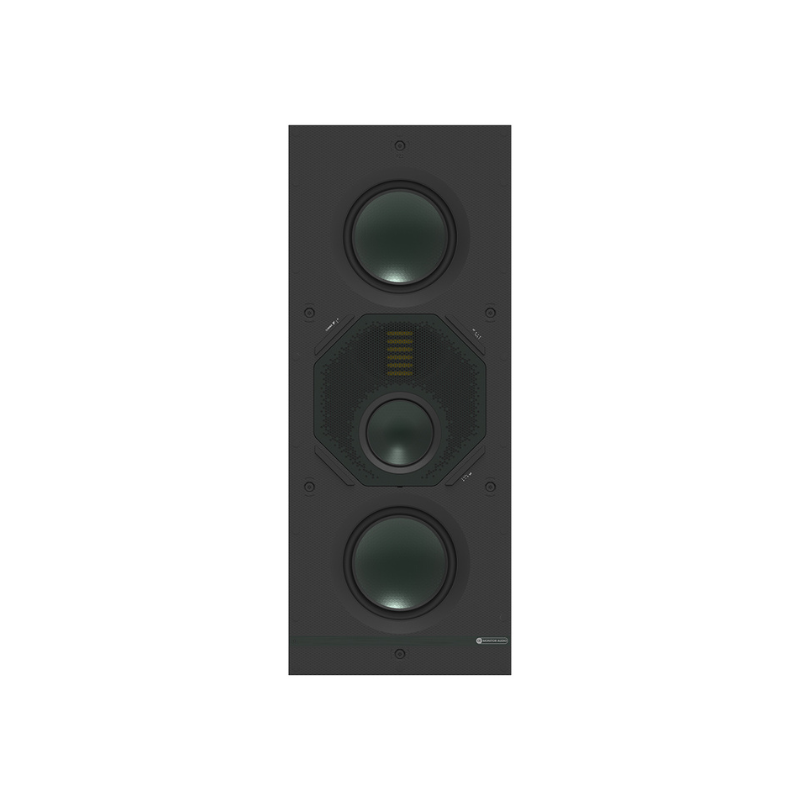

This high-performance, medium-sized Tier 3 in-wall loudspeaker is a three-way model featuring two RDT III bass drivers, a C-CAM mid-range driver and MPD II transducer. It has a cut-out dimension of 527 x 198 mm and revolutionary patented Quik-Link speaker cable connector and Tri-Grip II for quick, simple, reliable and strong installation and fitting.
Key Features
- Ideal for installations where high-performance acoustics are desired
- Three-way design
- 1 x MPD II transducer for breathtakingly precise high-frequency performance
- 1 x 3" (76 mm) C-CAM midrange driver
- 2 x 5" (127 mm) RDT III bass drivers for full bass

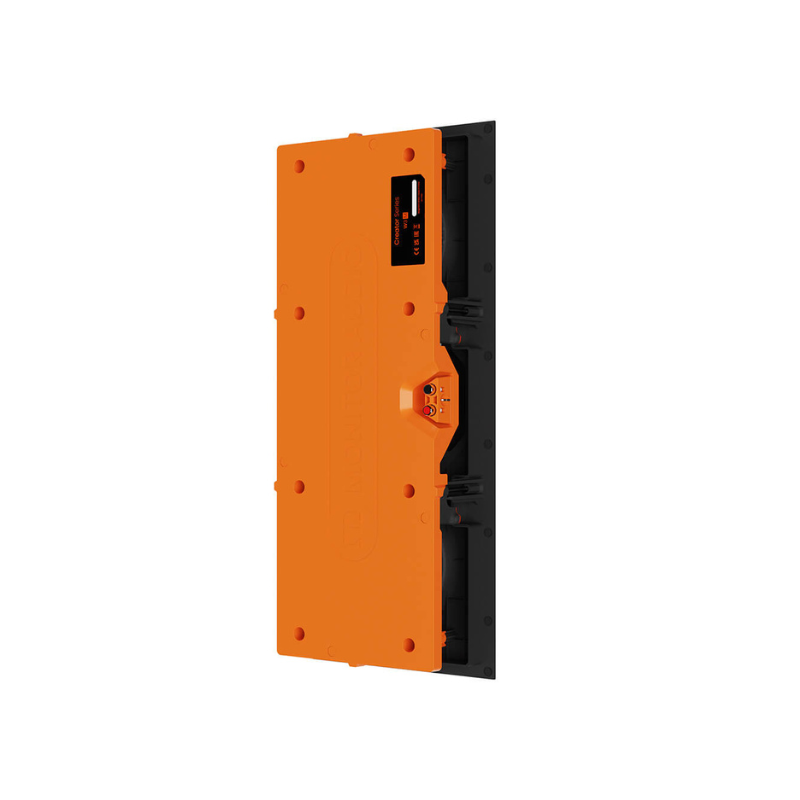

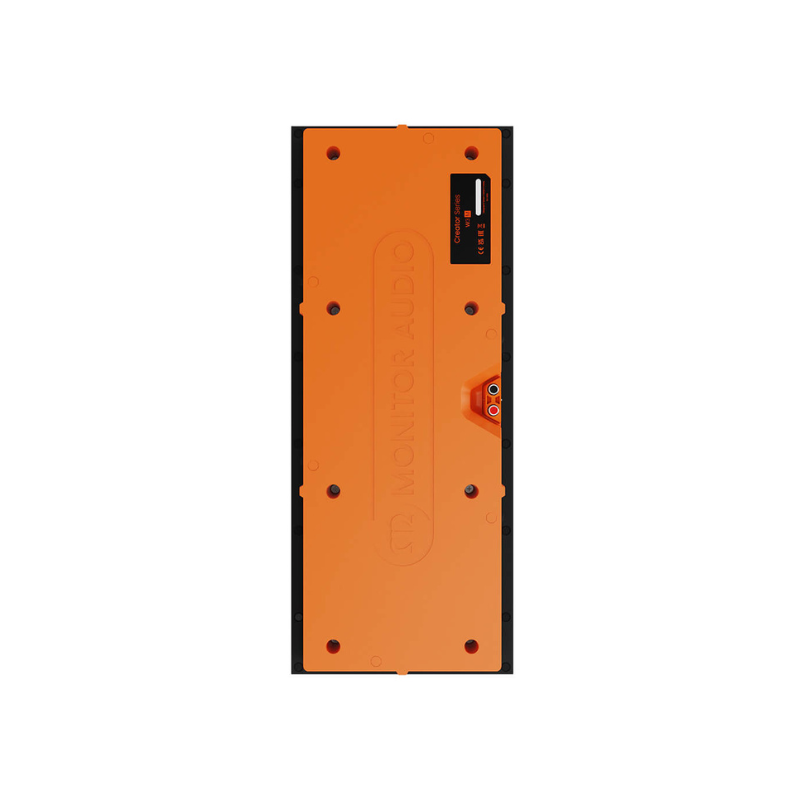

- Patented Quik-Link speaker cable connector for quicker installation (UK patent application no. 2216966.8)
- Tri-Grip II for easy and secure fitment
Specifications
System Format: 3–Way
Channels: 1
Frequency Response, Installed (-6dB): 45 Hz – 60 kHz
Nominal Impedance: 6 ohm
Minimum Impedance (20Hz to 20kHz): 4.8 Ohm @ 150 Hz
Sensitivity (2.83Vrms@1m, Installed): 88 dB
Maximum Peak SPL (single speaker @ 1m Z-Weighted): 122 dB
Continuous Power Handling (RMS into Nominal Impedance, Pink Noise with 6dB Crest Factor): 150 W
Recommended Amplifier Power (RMS into 8 OHM, Music Signal): 60 – 225 W
Drive Unit Complement:
- 2 x 5" (127 mm) RDT III bass drivers
- 1 x 3" (76 mm) C-CAM midrange driver
- 1 x MPD II transducer
Crossover Frequency:
- LF/HF: 650 Hz
- MF/HF: 3.5 kHz
Mounting Depth: 85 mm (33/8")
Cutout Dimensions (L x W): 527 x 198 mm (203/4 x 713/16")
External Dimensions (Including Grille - H x W x D): 560 x 231 x 90 mm (221/16 x 91/8 x 39/16")
Weight (each): 4.7 kg (10 lb 6 oz)
Pre-Construction Bracket: WM-B
Cabinet Finish: Matt black & Orange & Green
Sold As: Single Unit
Corner Switch: On/Off
MF Switch: - /0/ +
HF Switch: - /0/ +
