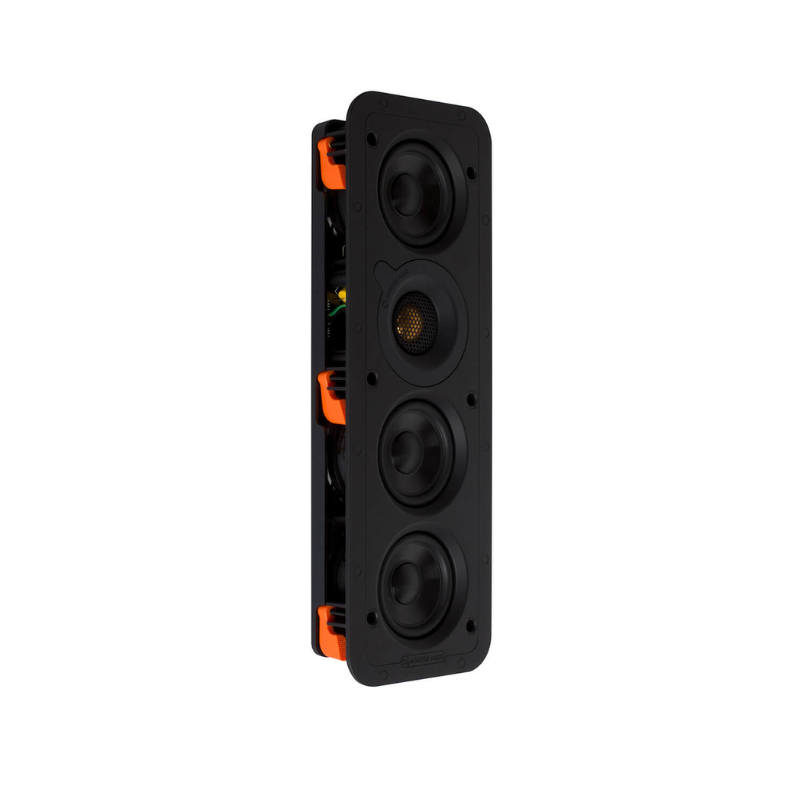

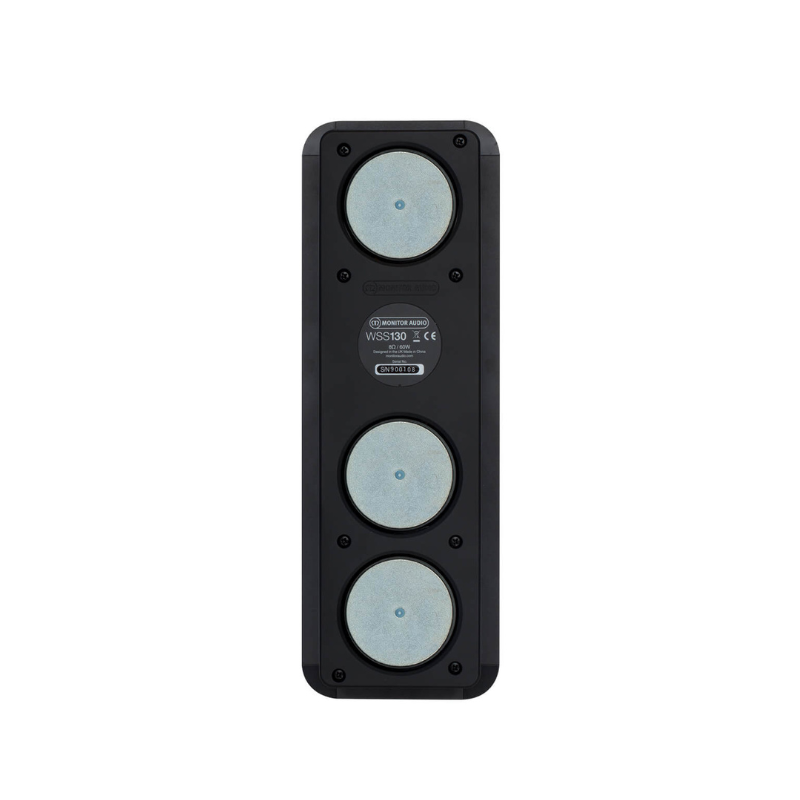

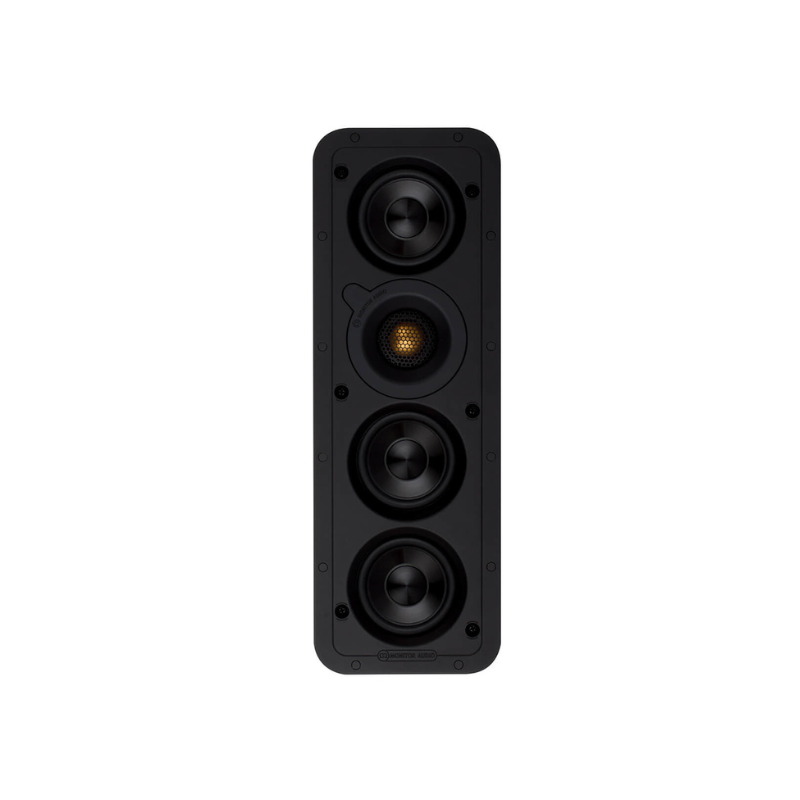

WSS130
Marking the entry point into the Super Slim in-wall speaker range, the WSS130 is perfectly suited to multi-room audio and home cinema installations. A 25 mm Gold Dome tweeter augments MMP II cone drivers, enabling a smooth overall sonic character.
Key Features
- Good, better, best performance levels
- Super-Slim depth 50 mm (2") – designed to fit in 2" stud walls or where space is restricted
- Designed for portrait or landscape installation – fits between standard 14" stud bays
- Elegant, slim profile only 385 x 140 mm wide
- Three, 3" bass/mid-range drivers featuring incremental technology and performance benefits – MMPII, C-CAM and dished C-CAM cones
- 25 mm C-CAM Gold Dome tweeter used on WSS130 and WSS230 models. WSS430 utilises MPD high frequency transducer from Platinum IC model and flagship Platinum II speaker range
- High quality crossover components – Selected and voiced for amazing sonic performance

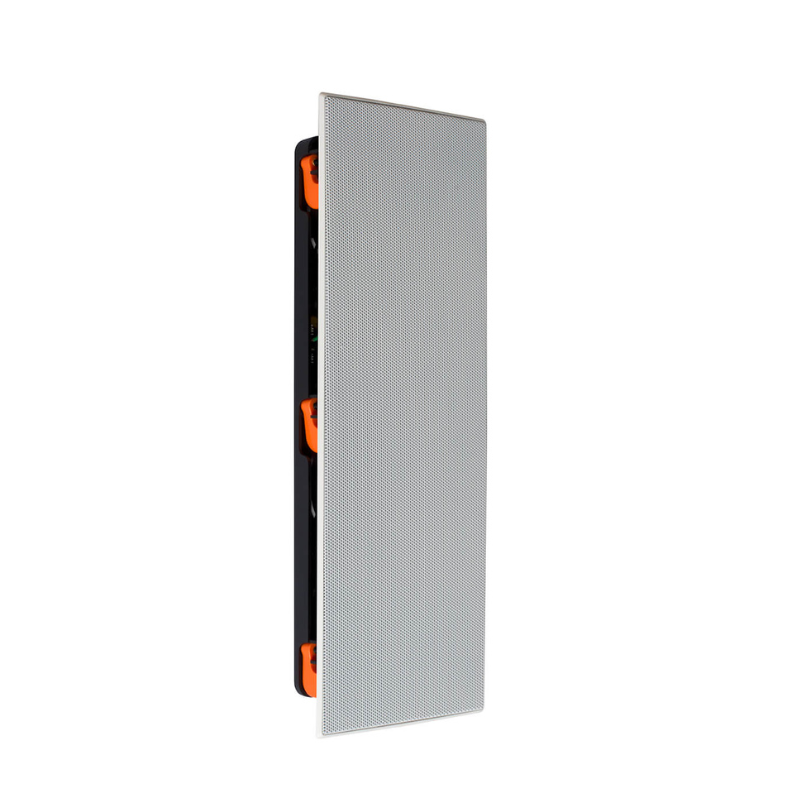

- Magnetically attached ‘trim-less’ grille – discreet, reliable, and easy servicing
- Tri-Grip Dog leg fixings – reliable, robust, and quick to install
- Gold plated sprung push terminals – easy to connect and reliable

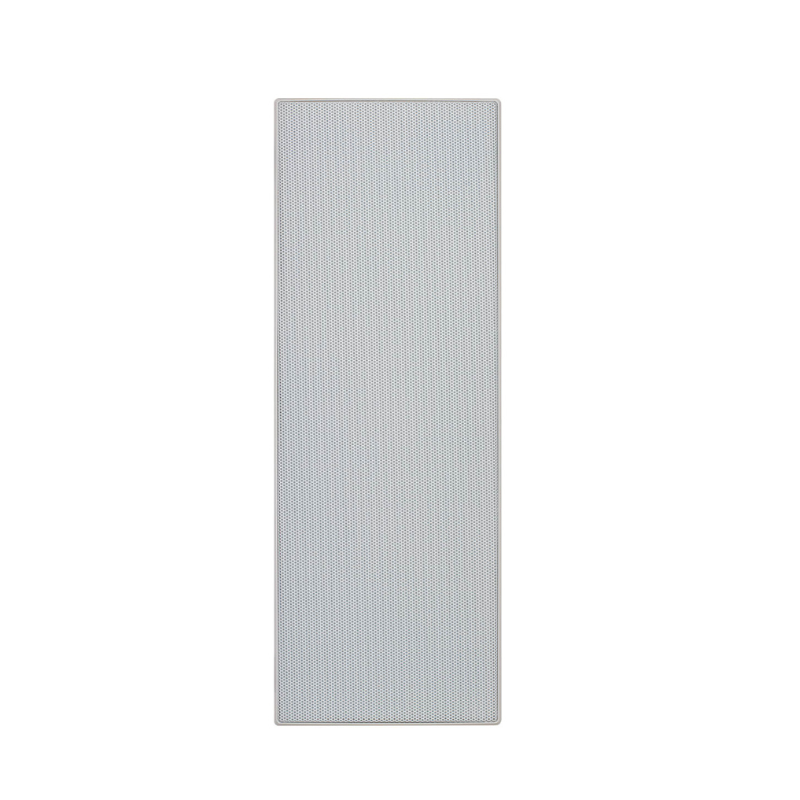

- Paintable grille – to complement and blend with décor
- WSS430 has rotating tweeter for optimum dispersion when used in landscape configuration
- WB3 (dark blue) pre-construction bracket
Specifications
Frequency Response (-6 dB): 75 Hz – 30 kHz
Sensitivity (1W@1M): 87 dB
Nominal Impedance: 8 ohms
Maximum SPL: 105.6 dBA
Power Handling (RMS):
- 60 W – Full range
- 100 W with crossover set to 100 Hz @ 12 dB/Octave
Recommended Amplifier Requirements: 10 – 100 W
Drive Unit Complement:
- 3 x 3" MMP II cone bass-mid drivers
- 1 x 25 mm (1") C-CAM Gold Dome tweeter
Crossover Recommendation using AVR/Processor: 100 Hz at a minimum of 12 dB/Octave (24 dB/Octave optimum)
Overall Dimensions: 385 x 140.5 mm (15 x 5 1/2")
Overall Depth (Including Grille): 54.25 mm (2 1/8")
Cut-Out Dimensions: 346 x 101 mm (13 1/2 x 4")
Mounting Depth: 50 mm (2")
Connection: Gold Plated Sprung push terminals – For bare wire connection up to 3 mm²
Fixing Type: 6 position Tri-Grip dog leg fixings
Construction Material: Mineral filled ABS Plastic, RoHS2 Compliant. Painted steel grille
Weight: 1.4 kg (3 lb 2 oz)
Pre-Construction Bracket: WB3 Pre-Construction Bracket (Dark Blue)
Sold As: Single Unit
