Description

WSS230

The WSS230 design brings with it our renowned C-CAM metal cone drivers, resulting in added sonic precision and detail. Offering a step-up from the WSS130, this Super Slim in-wall model is one for projects where (even) more critical music reproduction is required.


Key Features

  • Good, better, best performance levels
  • Super-slim depth 50 mm (2") – designed to fit in 2" stud walls or where space is restricted
  • Designed for portrait or landscape installation – fits between standard 14" stud bays
  • Elegant, slim profile only 385 x 140 mm wide
  • Three, 3" bass/mid-range drivers featuring incremental technology and performance benefits – MMP II, C-CAM and dished C-CAM cones
  • 25 mm C-CAM Gold Dome tweeter used on WSS130 and WSS230 models.
  • WSS430 utilises MPD high frequency transducer from Platinum IC model and flagship Platinum II speaker range
  • High quality crossover components – Selected and voiced for amazing sonic performance
  • Magnetically attached ‘trim-less’ grille – discreet, reliable, and easy servicing

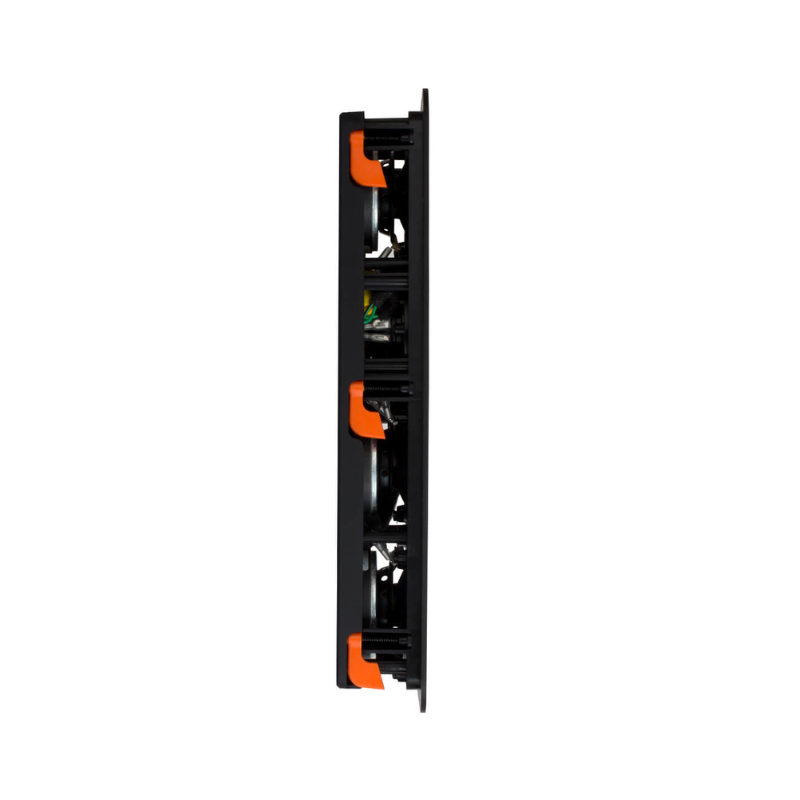

  • Tri-Grip Dog leg fixings – reliable, robust, and quick to install
  • Gold plated sprung push terminals – easy to connect and reliable

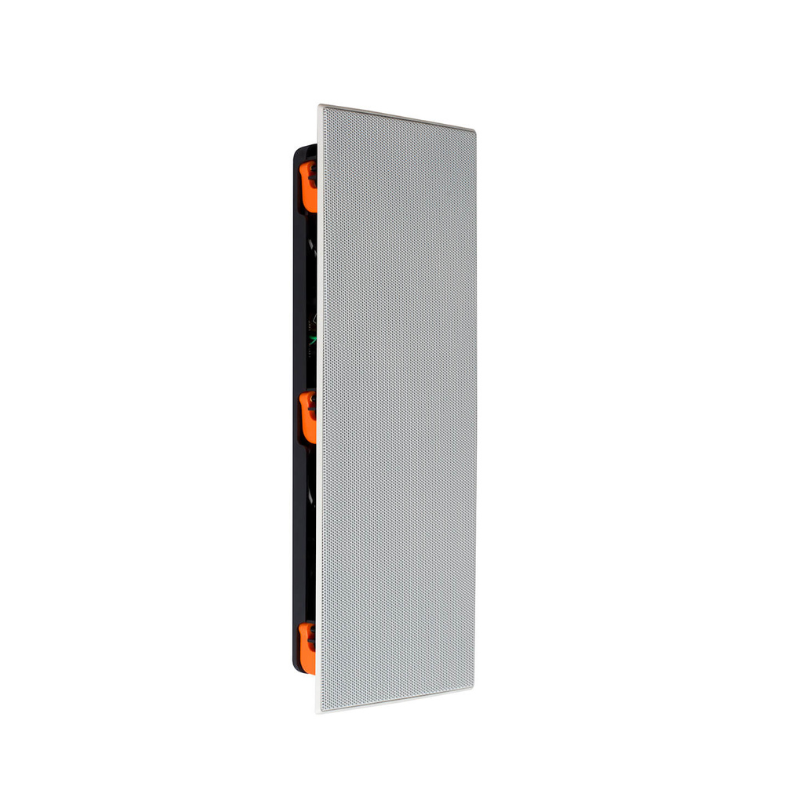

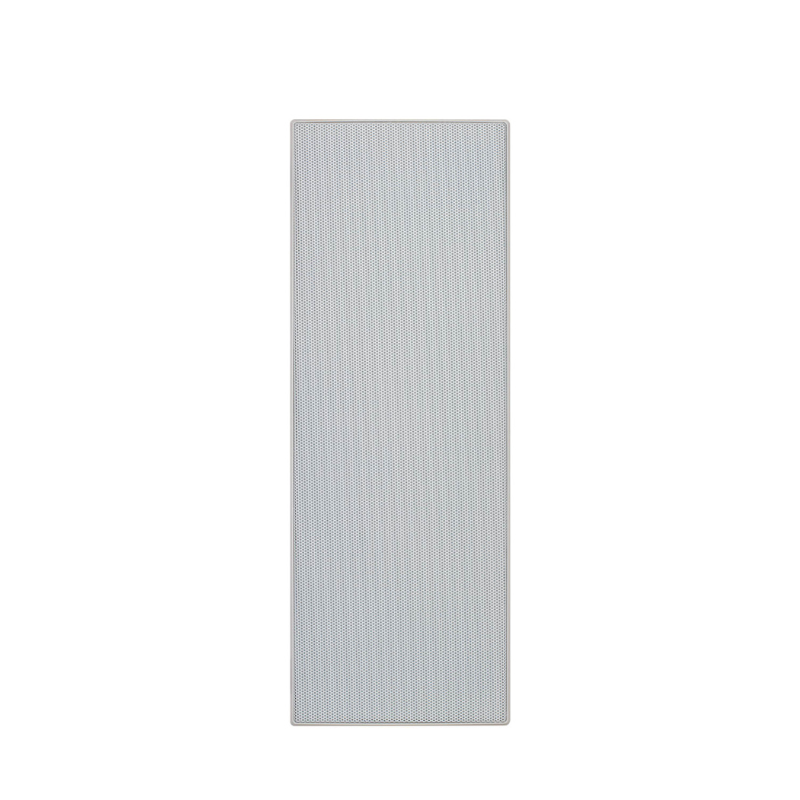

  • Paintable grille – to complement and blend with décor
  • WSS430 has rotating tweeter for optimum dispersion when used in landscape configuration
  • WB3 (dark blue) pre-construction bracket

Specifications

Frequency Response (-6 dB): 75 Hz – 30 KHz

Sensitivity (1W@1M): 87 dB

Nominal Impedance: 8 ohms

Maximum SPL: 105.6 dBA

Power Handling (RMS):

  • 60 W Full range
  • 100 W with crossover set to 100 Hz @ 12 dB/Octave

Recommended Amplifier Requirements: 10 – 100 W

Drive Unit Complement:

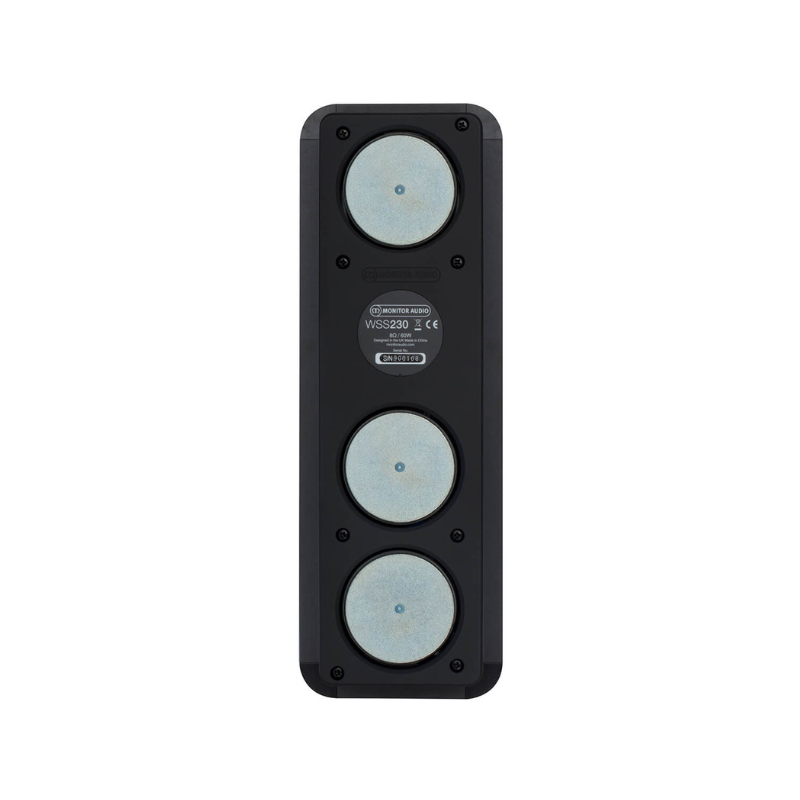

  • 3 x 3" C-CAM cone bass-mid drivers
  • 1 x 25 mm (1") C-CAM Gold Dome tweeter

Crossover Recommendation using AVR/Processor: 100 Hz at a minimum of 12 dB/Octave (24 dB/Octave optimum)

Overall Dimensions: 385 x 140.5 mm (15 x 5 1/2")

Overall Depth (Including Grille): 54.25 mm (2 1/8")

Cut-Out Dimensions: 346 x 101 mm (13 1/2 x 4")

Mounting Depth: 50 mm (2")

Connection: Gold Plated Sprung push terminals – For bare wire connection up to 3 mm²

Fixing Type: 6 position Tri-Grip dog leg fixings

Construction Material: Mineral filled ABS Plastic, RoHS2 Compliant. Painted steel grille

Weight: 1.4 kg (3 lb 2 oz)

Pre-Construction Bracket: WB3 Pre-Construction Bracket (Dark Blue)

Sold As: Single Unit

Price on Request
This item requires further consultation. If interested, please reach out to our team and a product specialist will reach out within the hour.

Monitor Audio WSS230

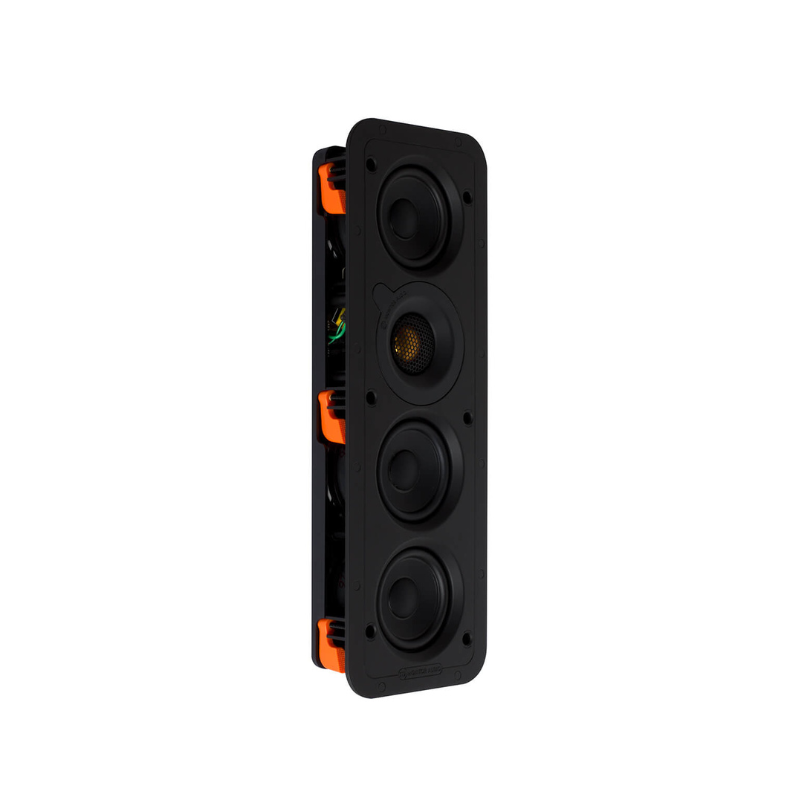

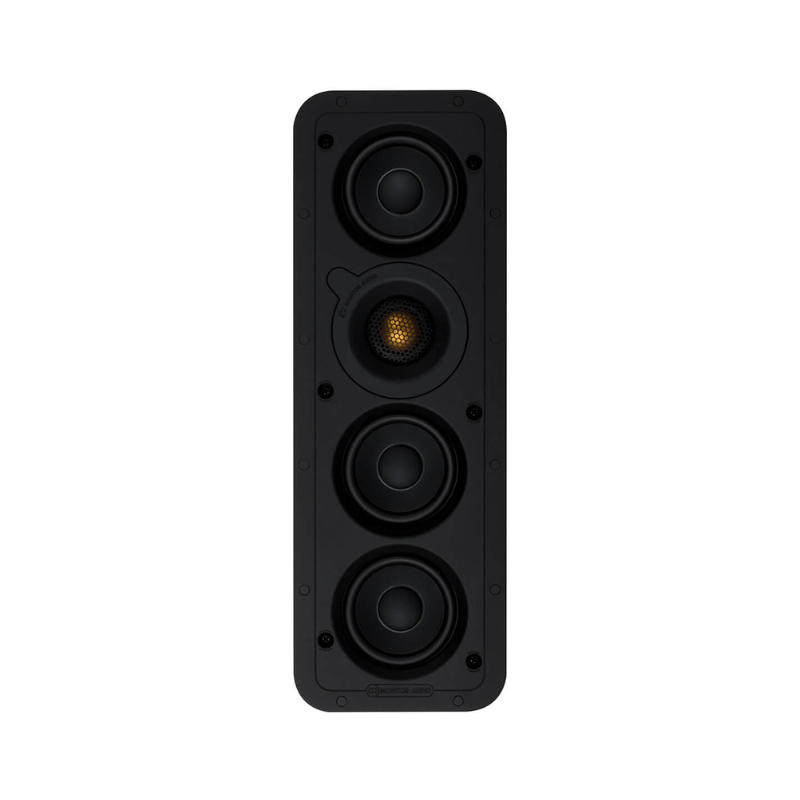

Monitor Audio WSS230 In-Wall Speaker (Each)

Price On Request

The WSS230 makes you think again – the possibility of installation in constructions featuring 2" studs slips effortlessly into view. Mounting restricted by AVC ducts, cabling or pipework? No problem to this in-wall speaker, or any of the speakers in this range. These models can also be installed bet Read more
