This product is now available to use with home theatre design software, The CEDIA Designer. Read more below.
Integrators Can Design Monitor Audio Theatres In Minutes Using The CEDIA Designer
Monitor Audio is pleased to announce that its products are available within home theatre design software, The CEDIA Designer’s manufacturer database, allowing any home cinema installer, designer, or dealer anywhere in the world to design technically accurate home cinemas and media rooms using the brand’s wide range of loudspeakers, subwoofers, and amplifiers.
What Is The CEDIA Designer And Why Is It Beneficial For Dealers And Installers?
- The CEDIA Designer (TCD) is a double CEDIA Award-winning cloud-based design tool that allows users to design any dedicated cinema or media room in minutes.
- TCD allows users to create technically impeccable dedicated cinema or media room designs, support documents, and aesthetic renders, within minutes – including creating a 3D CAD drawing for any room in under 30 seconds.
- TCD calculates in minutes what would typically take an experienced cinema designer weeks to design, producing a complete 30+ page cinema design proposal ready to produce to a client or submit to the CEDIA Awards in its theatre design categories.
- TCD specifies the precise location of the loudspeakers, screen, seating, projector, provides amplification and processor requirements, acoustic treatments, calculates the RT60 value, and much more.
Technology

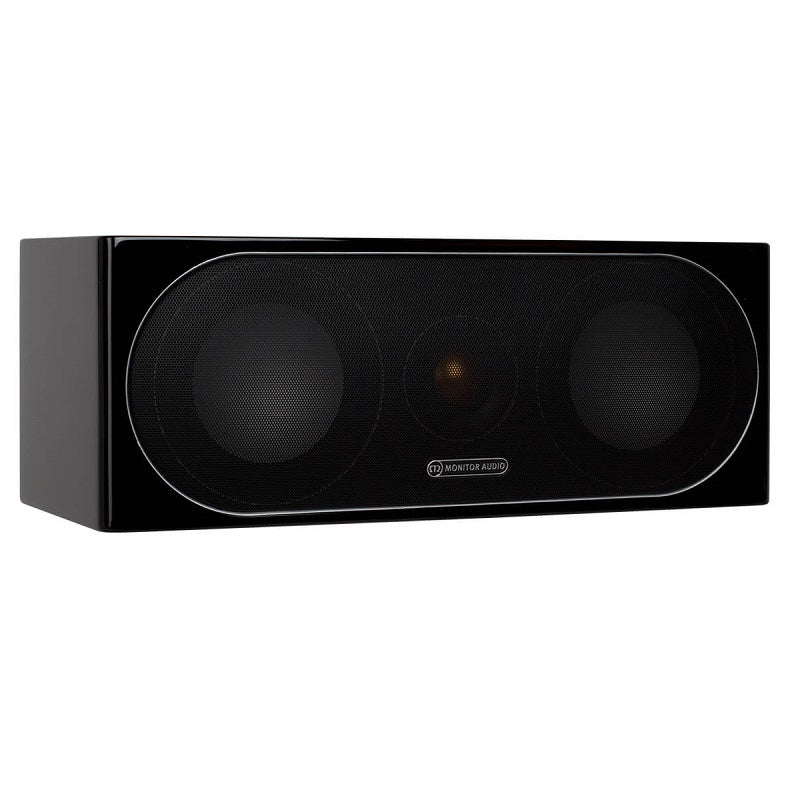

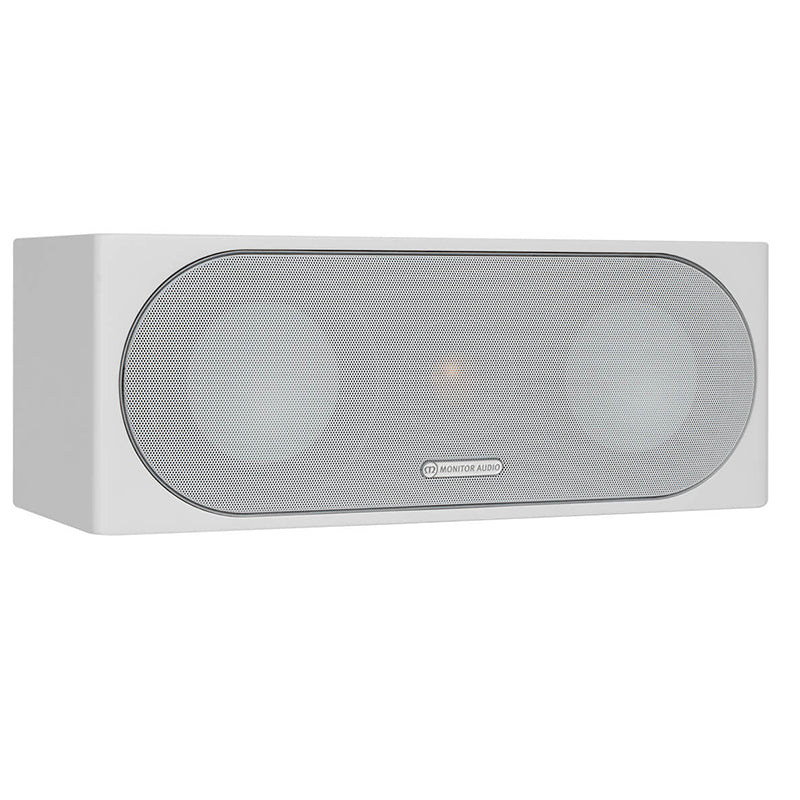

- Ultra-compact dedicated centre speaker
- Dual C-CAM bass drivers with C-CAM tweeter in MTM style configuration - Radius features bass drivers with concave cone profiles, introduced by our top-of-the-range Platinum speakers and applied subsequently to Gold GX. Extensive research and FEA modelling have allowed us to perfect the relationship between the radiating diaphragm and its motor design, introducing larger motor sizes and voice coils for increased excursion, higher power capability, and reduced distortion.
- C-CAM Gold Dome tweeter - optimised to deliver the finest and widest performance within the compact Radius cabinets. It benefits from a more efficient rear-venting design, releasing air trapped and compressed at the back of the tweeter dome, and guiding it around the drive assembly to a rear-loading chamber.

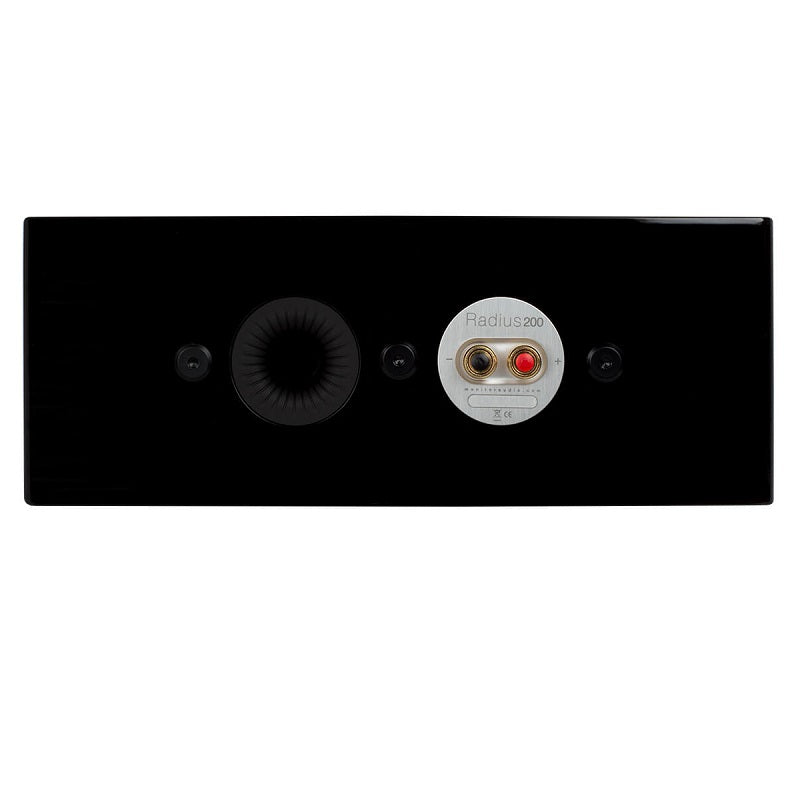

- HiVe II port design - Straight from Platinum’s design blueprint, the HiVe reflex port makes its Radius debut. It’s shaped to have the same effect on airflow as a gun-barrel on a bullet. Rifled grooves inside the port help to accelerate the flow and reduce turbulence, so air moves in and out of the port more efficiently, for a faster more dynamic bass response.
- Single through-bolt driver fixing provides mechanical de-coupling and enhanced mid-band clarity and resolution. The through-bolts also act as rigid cross bracing to give a very solid non-resonant cabinet.
SPECIFICATIONS
Frequency Response: 60 Hz — 35 kHz
Sensitivity (1W@1M): 86 dB
Nominal Impedance: 6 ohms
Power Handling (RMS): 100 W
System Power Handling (RMS): 150 W
Recommended Amplifier Requirements: 40 — 150 W
Maximum SPL: 106 dBa
Bass Alignment: Bass reflex - Rear ported
Drive Unit Complement: 2 x 4" (100 mm) C-CAM cone bass/mid driver | 1 x 1" (25 mm) C-CAM Gold Dome tweeter
Cabinet Dimensions (H x W x D): 125 x 330 x 140 mm (415/16 x 13 x 51/2")
Cabinet Dimensions (Including Grille and Terminals (H x W x D)): 125 x 330 x 164 mm (415/16 x 13 x 67/16")
Weight: 3.6 kg (7 lb 14 oz)
Sold As: Single Unit
