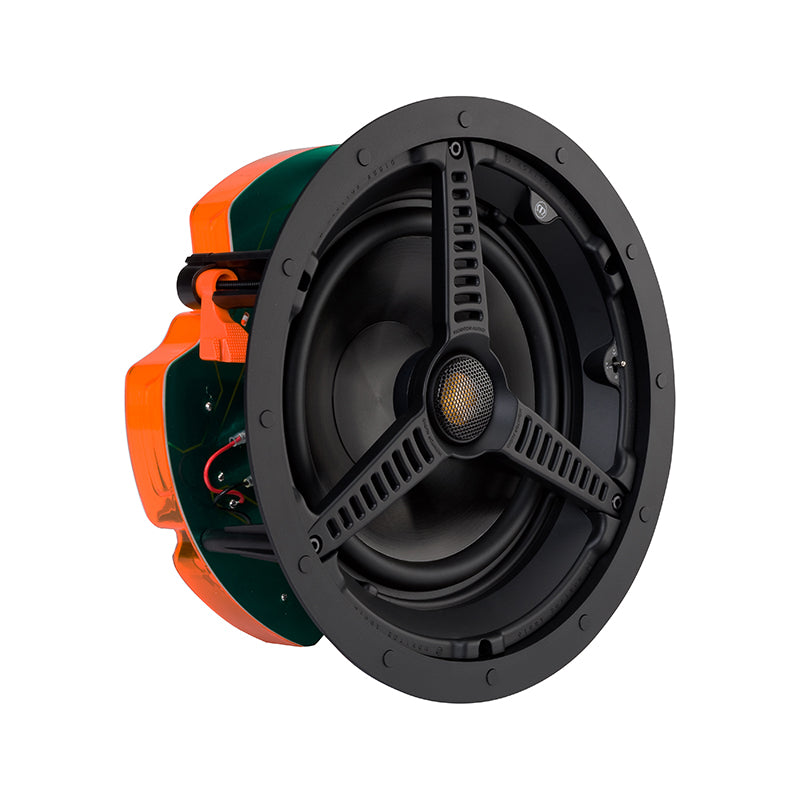

Optimum imaging and set-up are established via a pivoting tweeter and high-frequency (+3 dB / 0 dB /-3 dB) level adjustment.
Optional square grille can be used with this model.
SPECIFICATIONS
Frequency Response
50 Hz – 25 kHz
Nominal Impedance
6 ohms
Sensitivity (1W@1M)
90 dB
Maximum SPL
111.6 dBA
Power Handling (RMS)
120 W
Recommended Amplifier Requirements
30 – 120 W
Drive Unit Complement
8" MMP II cone bass driver
1" C-CAM pivoting Gold Dome tweeter
Adjustment Controls
HF Level Switch (+3 dB / 0 dB / -3 dB)
Overall Diameter (Including Grille)
285 mm (111/4")
Overall Depth (Including Grille)
126 mm (415/16")
Mounting Depth
122 mm (413/16")
Cut-Out Hole Diameter
247 mm (93/4")
Fixing Type
3 position Tri-Grip dog fixings
Optional Square Grille - Outer Dimensions
285 x 285 mm (111/4")
Construction Material
Mineral filled ABS, RoHS compliant
Weight
2.72 kg (6 lb)
Pre-Construction Bracket
Sold As
Single Unit
