Description

Technology

  • 4" C-CAM bass driver - Radius features bass drivers with concave cone profiles, introduced by our top-of-the-range Platinum speakers and applied subsequently to Gold GX. Extensive research and FEA modelling have allowed us to perfect the relationship between the radiating diaphragm and its motor design, introducing larger motor sizes and voice coils for increased excursion, higher power capability and reduced distortion.
  • C-CAM Gold Dome tweeter - optimised to deliver the finest and widest performance within the compact Radius cabinets. It benefits from a more efficient rear-venting design, releasing air trapped and compressed at the back of the tweeter dome, and guiding it around the drive assembly to a rear-loading chamber.
  • HiVe II port design - Straight from Platinum’s design blueprint, the HiVe reflex port makes its Radius debut. It’s shaped to have the same effect on airflow as a gun-barrel on a bullet. Rifled grooves inside the port help to accelerate the flow and reduce turbulence, so air moves in and out of the port more efficiently, for a faster more dynamic bass response.
  • Single through-bolt driver fixing provides mechanical de-coupling and enhanced mid-band clarity and resolution. The through-bolts also act as rigid cross bracing to give a very solid non-resonant cabinet.
  • Front and rear ported reflex design

SPECIFICATIONS

Frequency Response

50 Hz — 35 kHz

Sensitivity (1W@1M)

87 dB

Nominal Impedance

6 ohms

Power Handling (RMS)

100 W

System Power Handling (RMS)

150 W

Recommended Amplifier Requirements

40 — 150 W

Maximum SPL

107 dBa

Bass Alignment

Bass reflex - Front and rear ported

Drive Unit Complement

2 x 4" (100 mm) C-CAM cone bass/mid driver
1 x 1" (25 mm) C-CAM Gold Dome tweeter

Cabinet Dimensions (H x W x D)

1000 x 177 x 208 mm (393/8 x 615/16 x 83/16) Inc Plinth, Without Spikes

Cabinet Dimensions (Including Grille and Terminals (H x W x D))

1025 x 177 x 208 mm (403/8 x 615/16 x 83/16") Inc Plinth, With Spikes

Weight

9.9 kg (21 lb 12 oz)

Sold As

Single Unit

Price on Request
This item requires further consultation. If interested, please reach out to our team and a product specialist will reach out within the hour.

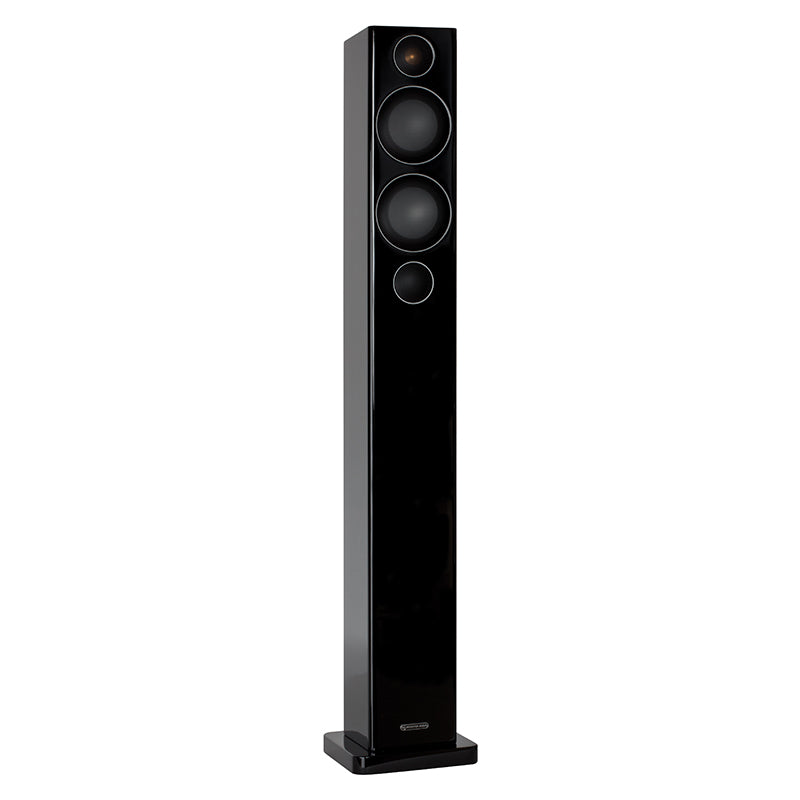

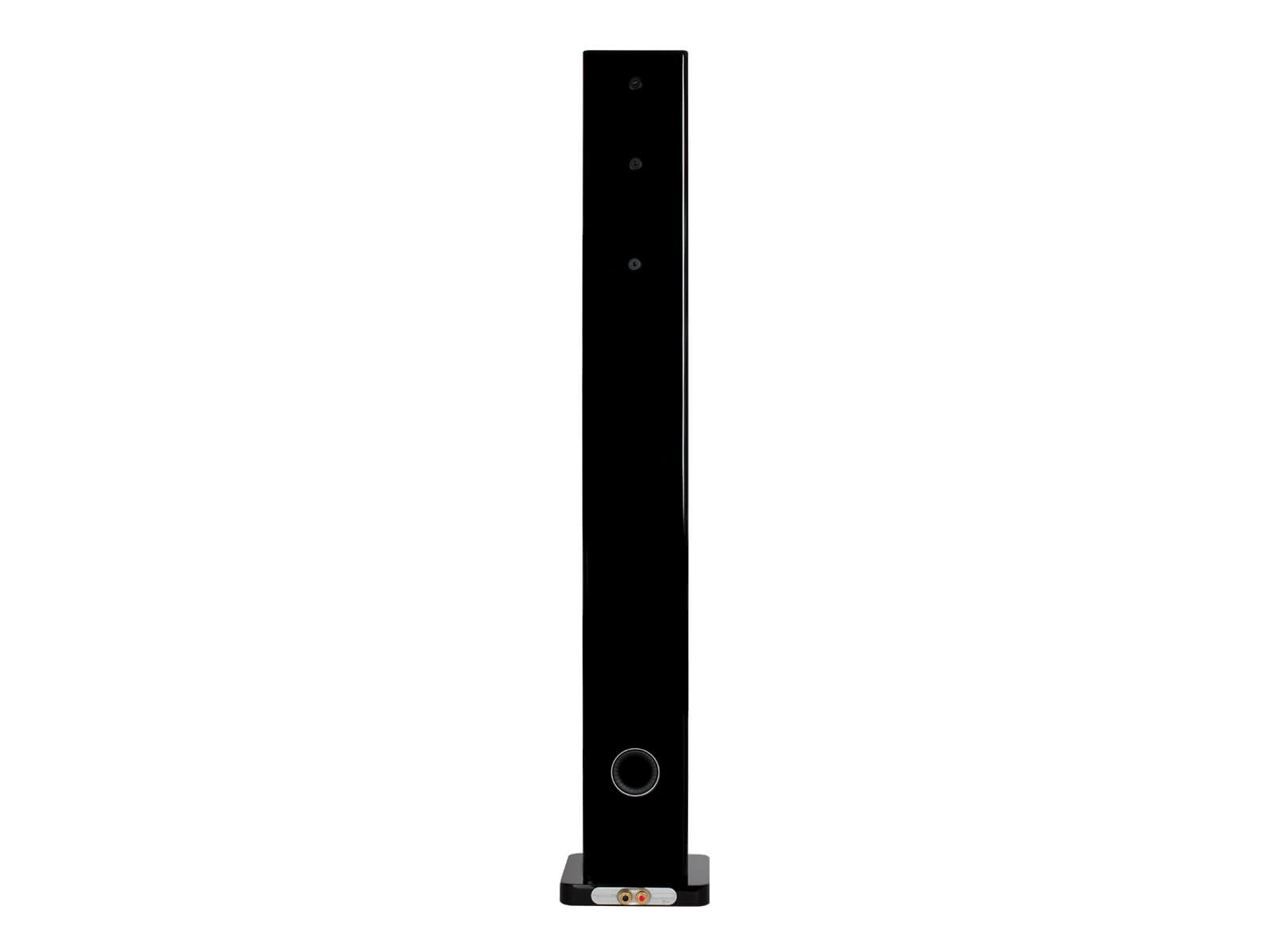

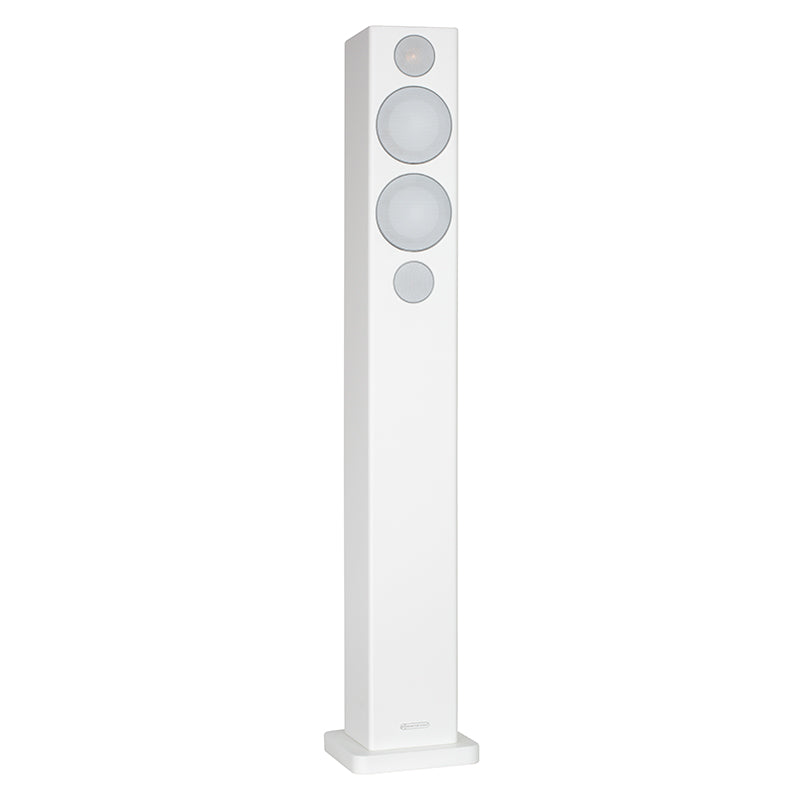

Monitor Audio Radius 270 Floorstanding Speakers (Pair)

Price On Request

The Radius 270 houses a precision-crafted Radius driver system of twin 100 mm (4″) C-CAM mid/bass drivers and a 25 mm (1″) C-CAM tweeter. Pair with the Read more

  • Monitor Audio Radius 270 Floorstanding Speakers (Pair)
  • Monitor Audio Radius 270 Floorstanding Speakers (Pair)

MONITORAUDIORADIUS270-B

Description

Technology

  • 4" C-CAM bass driver - Radius features bass drivers with concave cone profiles, introduced by our top-of-the-range Platinum speakers and applied subsequently to Gold GX. Extensive research and FEA modelling have allowed us to perfect the relationship between the radiating diaphragm and its motor design, introducing larger motor sizes and voice coils for increased excursion, higher power capability and reduced distortion.
  • C-CAM Gold Dome tweeter - optimised to deliver the finest and widest performance within the compact Radius cabinets. It benefits from a more efficient rear-venting design, releasing air trapped and compressed at the back of the tweeter dome, and guiding it around the drive assembly to a rear-loading chamber.
  • HiVe II port design - Straight from Platinum’s design blueprint, the HiVe reflex port makes its Radius debut. It’s shaped to have the same effect on airflow as a gun-barrel on a bullet. Rifled grooves inside the port help to accelerate the flow and reduce turbulence, so air moves in and out of the port more efficiently, for a faster more dynamic bass response.
  • Single through-bolt driver fixing provides mechanical de-coupling and enhanced mid-band clarity and resolution. The through-bolts also act as rigid cross bracing to give a very solid non-resonant cabinet.
  • Front and rear ported reflex design

SPECIFICATIONS

Frequency Response

50 Hz — 35 kHz

Sensitivity (1W@1M)

87 dB

Nominal Impedance

6 ohms

Power Handling (RMS)

100 W

System Power Handling (RMS)

150 W

Recommended Amplifier Requirements

40 — 150 W

Maximum SPL

107 dBa

Bass Alignment

Bass reflex - Front and rear ported

Drive Unit Complement

2 x 4" (100 mm) C-CAM cone bass/mid driver
1 x 1" (25 mm) C-CAM Gold Dome tweeter

Cabinet Dimensions (H x W x D)

1000 x 177 x 208 mm (393/8 x 615/16 x 83/16) Inc Plinth, Without Spikes

Cabinet Dimensions (Including Grille and Terminals (H x W x D))

1025 x 177 x 208 mm (403/8 x 615/16 x 83/16") Inc Plinth, With Spikes

Weight

9.9 kg (21 lb 12 oz)

Sold As

Single Unit

Price on Request
This item requires further consultation. If interested, please reach out to our team and a product specialist will reach out within the hour.
Ask a Question

Reach out to a product specialist

Product Description


Technology

  • 4" C-CAM bass driver - Radius features bass drivers with concave cone profiles, introduced by our top-of-the-range Platinum speakers and applied subsequently to Gold GX. Extensive research and FEA modelling have allowed us to perfect the relationship between the radiating diaphragm and its motor design, introducing larger motor sizes and voice coils for increased excursion, higher power capability and reduced distortion.
  • C-CAM Gold Dome tweeter - optimised to deliver the finest and widest performance within the compact Radius cabinets. It benefits from a more efficient rear-venting design, releasing air trapped and compressed at the back of the tweeter dome, and guiding it around the drive assembly to a rear-loading chamber.
  • HiVe II port design - Straight from Platinum’s design blueprint, the HiVe reflex port makes its Radius debut. It’s shaped to have the same effect on airflow as a gun-barrel on a bullet. Rifled grooves inside the port help to accelerate the flow and reduce turbulence, so air moves in and out of the port more efficiently, for a faster more dynamic bass response.
  • Single through-bolt driver fixing provides mechanical de-coupling and enhanced mid-band clarity and resolution. The through-bolts also act as rigid cross bracing to give a very solid non-resonant cabinet.
  • Front and rear ported reflex design

SPECIFICATIONS

Frequency Response

50 Hz — 35 kHz

Sensitivity (1W@1M)

87 dB

Nominal Impedance

6 ohms

Power Handling (RMS)

100 W

System Power Handling (RMS)

150 W

Recommended Amplifier Requirements

40 — 150 W

Maximum SPL

107 dBa

Bass Alignment

Bass reflex - Front and rear ported

Drive Unit Complement

2 x 4" (100 mm) C-CAM cone bass/mid driver
1 x 1" (25 mm) C-CAM Gold Dome tweeter

Cabinet Dimensions (H x W x D)

1000 x 177 x 208 mm (393/8 x 615/16 x 83/16) Inc Plinth, Without Spikes

Cabinet Dimensions (Including Grille and Terminals (H x W x D))

1025 x 177 x 208 mm (403/8 x 615/16 x 83/16") Inc Plinth, With Spikes

Weight

9.9 kg (21 lb 12 oz)

Sold As

Single Unit
