Technology
- 18 mm MDF cabinet construction with internal bracing
- Cool-running 200 W Class D amplifier with switch mode power supply (SMPSU)
- Twin side-firing 10" C-CAM drivers - one active and one passive ABR
- Low pass filter switch – for LFE or Stereo input selection
- Power switch with ON – Auto- Off/ trigger settings

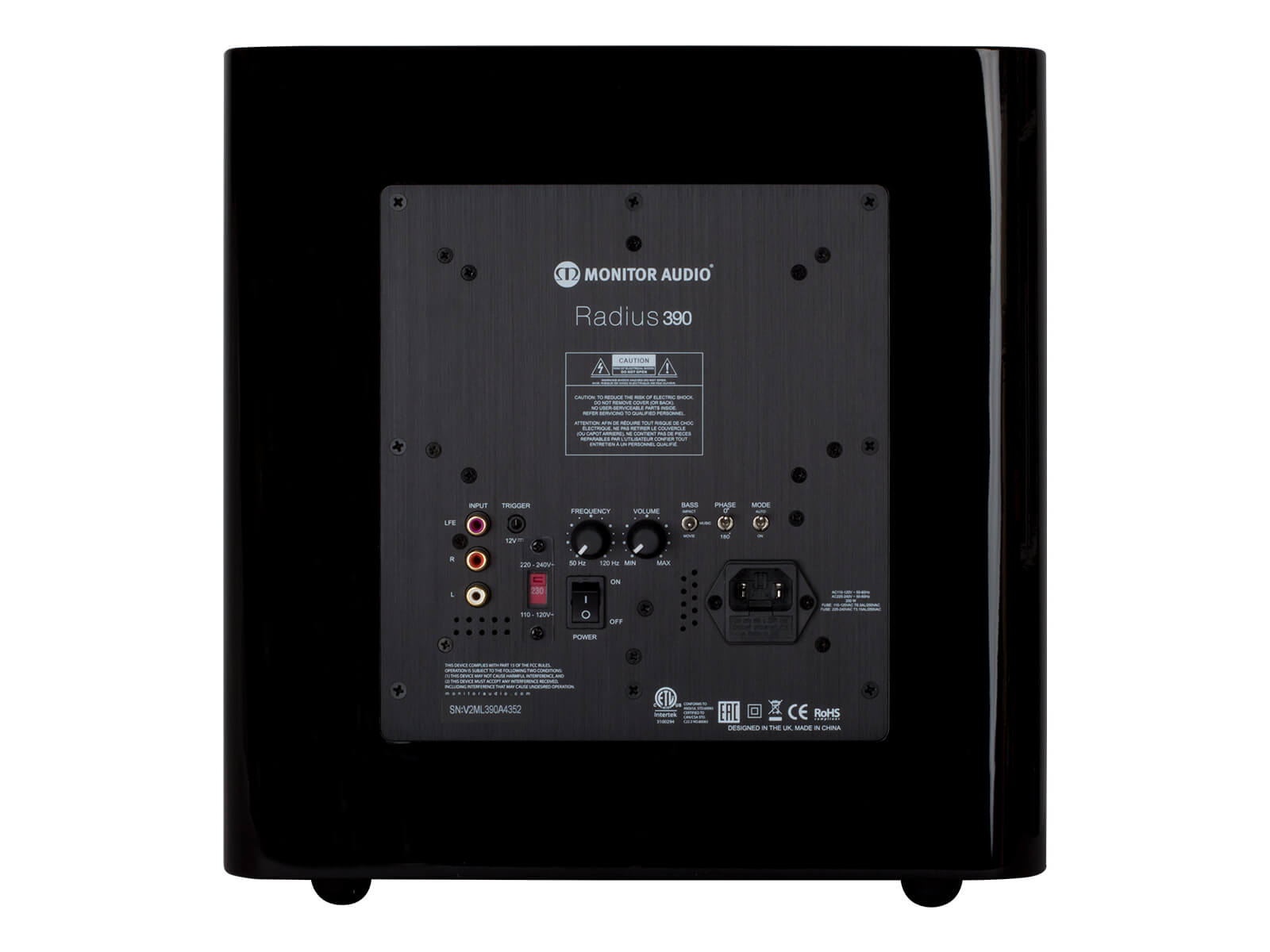

- Stereo/ LFE RCA inputs
- 3 x Pre-set EQ settings – Music/Movie/Impact
SPECIFICATIONS
System Format
Active sub-woofer system – Auxiliary (ABR) loading. 18 mm MDF cabinet
Lower Frequency Limit
30 Hz (- 6 dB)
Upper Frequency Limit
Variable 40 – 120 Hz @ 24 dB/Octave
Amplifier Output
200 W @ 1% THD+N
Amplifier Classification
Class D amplifier with Switch mode power supply (SMPSU)
Bass EQ Profiles
Music / Movie / Impact
Phase Control
0 & 180 degrees
Auto Sensing
Line Level >3.5mV
Input Level Requirements
Standby after approximately 15 minutes if no signal sensed
Input Impedance
> 20 ohms
Mains Input Voltage
AC 110 - 120 V ~ 50/60Hz; AC 220 - 240 V ~ 50/60Hz (Factory Region Preset)
Dimensions (Including Amp and Feet (H x W x D))
348 x 330 x 345 mm (1311/16 x 13 x 129/16")
Connection
Stereo RCA in, LFE in, 12v Trigger in (3.5 mm mono mini-jack)
Trigger Input
5 - 12v via 3.5mm mono mini-jack socket
Power Consumption
200 W / 0.5 W in Standby (ErP approved)
Weight (unpacked)
13.76 kg (30 lb 4 oz)
Sold As
Single Unit
