Description

Technology

  • 4" C-CAM bass driver - Radius features all new bass drivers with concave cone profiles, introduced by our top-of-the-range Platinum speakers and applied subsequently to Gold GX. Extensive research and FEA modelling have allowed us to perfect the relationship between the new radiating diaphragm and its motor design, introducing larger motor sizes and voice coils for increased excursion, higher power capability and reduced distortion.
  • C-CAM Gold Dome tweeter - optimised to deliver the finest and widest performance within the compact Radius cabinets. It benefits from a more efficient rear-venting design, releasing air trapped and compressed at the back of the tweeter dome, and guiding it around the drive assembly to a rear-loading chamber.
  • Single through-bolt driver fixing provides mechanical de-coupling and enhanced mid-band clarity and resolution. The through-bolts also act as rigid cross bracing to give a very solid non-resonant cabinet.
  • Wall mounting bracket Included

SPECIFICATIONS

Frequency Response

90 Hz — 35 kHz

Sensitivity (1W@1M)

87 dB

Nominal Impedance

6 ohms

Power Handling (RMS)

75 W

System Power Handling (RMS)

100 W

Recommended Amplifier Requirements

30 — 100 W

Maximum SPL

106 dBa

Bass Alignment

C:Bass reflex - Front ported L/R:Bass reflex - Side ported

Drive Unit Complement

3 x 4" (100 mm) C-CAM cone bass/mid driver
3 x 1" (25 mm) C-CAM Gold Dome tweeter

Cabinet Dimensions (H x W x D)

175 x 980 x 67 mm (67/8 x 389/16 x 25/8")

Cabinet Dimensions (Including Grille and Terminals (H x W x D))

175 x 980 x 79 mm (67/8 x 389/16 x 31/8")

Cabinet Dimensions (Including Grille and Bracket (H x W x D))

175 x 980 x 84 mm (67/8 x 389/16 x 35/16")

Pre-Construction Bracket

Dedicated bracket included

Weight

7.4 kg (16 lb 4 oz)

Sold As

Single Unit

Price on Request
This item requires further consultation. If interested, please reach out to our team and a product specialist will reach out within the hour.

MONITORAUDIORADIUSONE-B

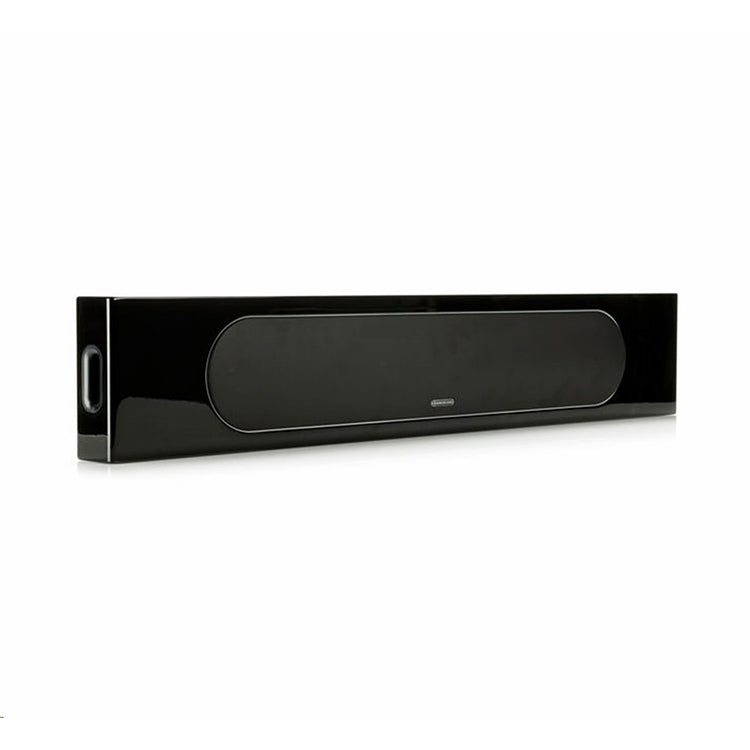

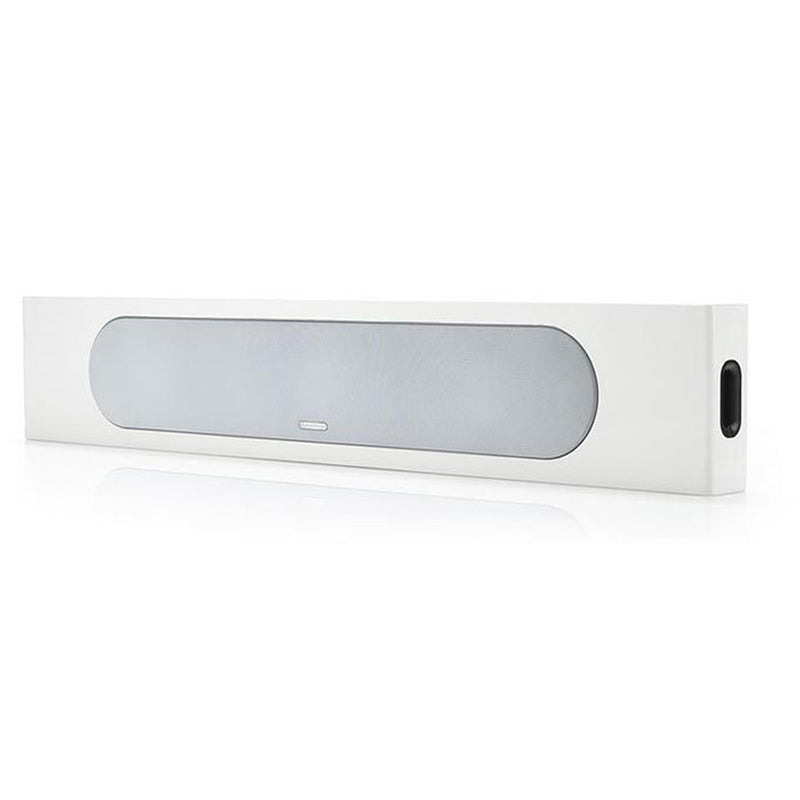

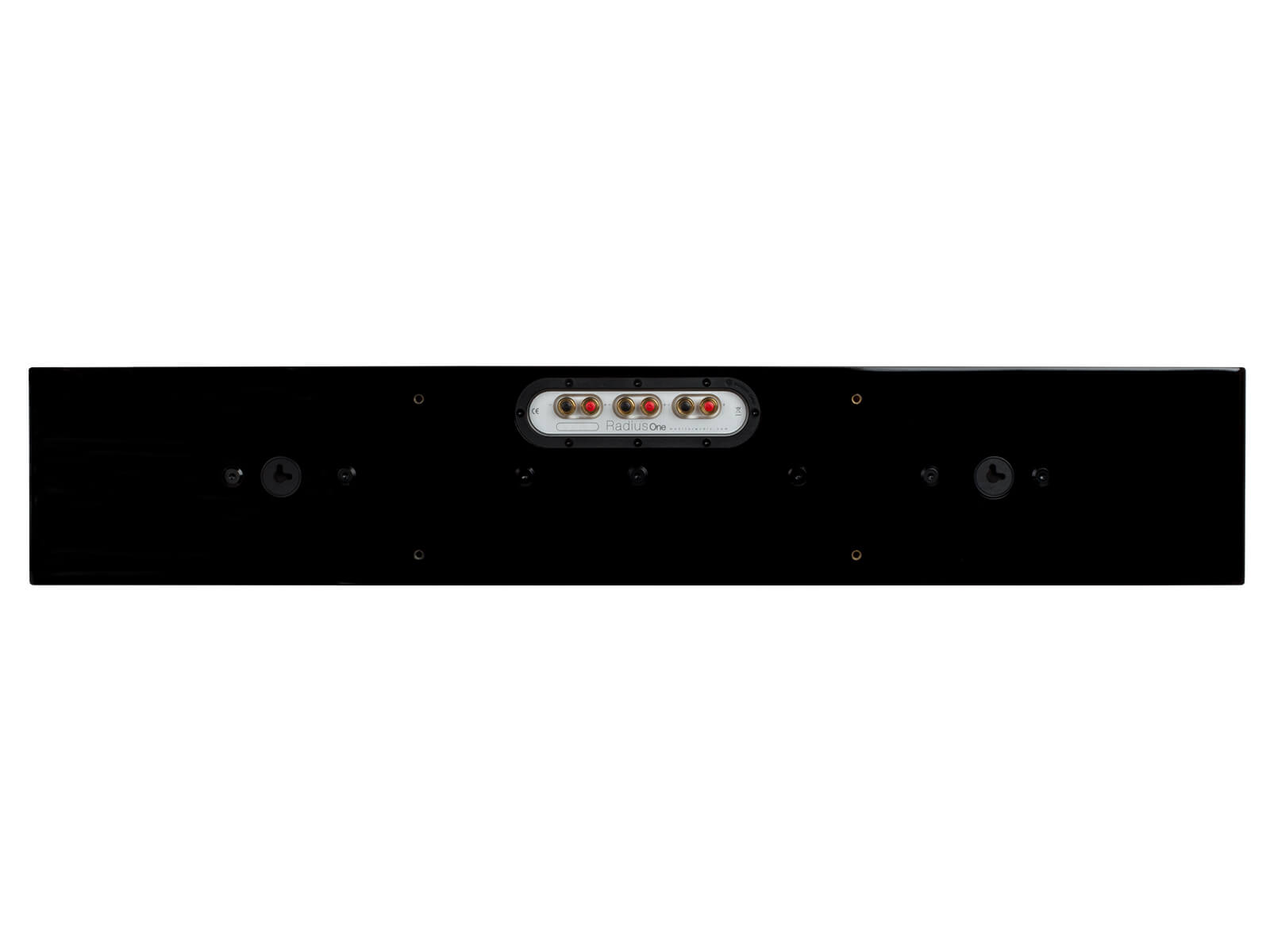

Monitor Audio Radius One LCR Passive Soundbar (Each)

Price On Request

The Radius One incorporates a string of C-CAM drivers arranged in three sets of 100 mm (4″) bass driver/ 25mm (1″) tweeter pairings, each with its own dedicated reflex-port Read more
