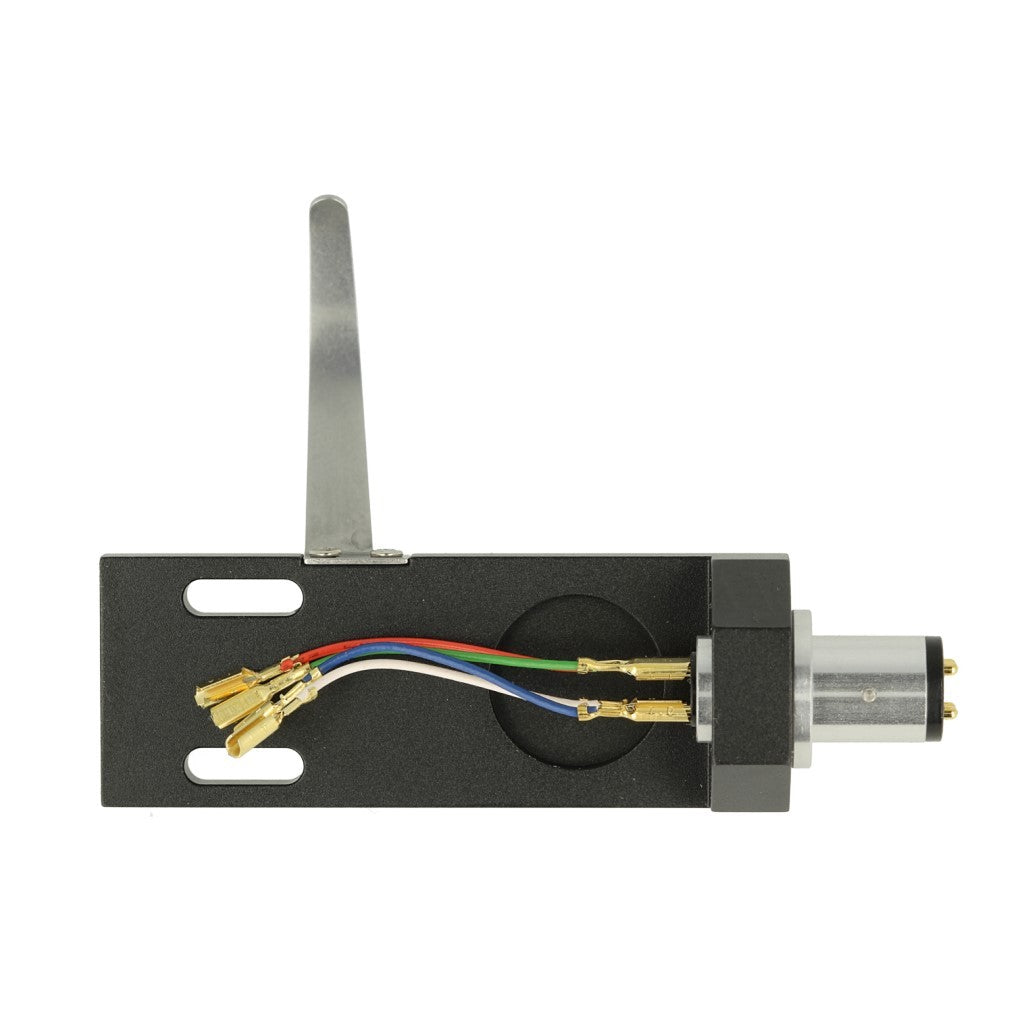

The LH-4000 comes with lead wires for easy and convenient connection
All Ortofon cartridges have a colour coding of the terminals, indicating red and green for the right channel respectively hot and the ground terminal. White and blue for left channel respectively hot and ground terminal. The green terminal will always be used for grounding the cartridge housings or motor-system, whenever connected inside the cartridge.
We recommend connecting lead wires to the cartridge and headshell before mounting the cartridge on the headshell.
Please remember the correct orientation of the leads. Ortofon cartridges' terminal PINs diameter is 1.2 mm, whilst Ortofon headshells' PINs diameter is only 1.0 mm.
SPECIFICATIONS
- Universal mount
- Solid aluminum build
- Azimuth adjustable by means of hexagon wrench.
- PIN conductor - Gold plated
- Weight - 14.3 grams without screws
- Mounting distance - min 32.5 mm, max 41.9 mm
A - Headshell length
B - Headshell width
C - Mounting distance max.
D - Mounting distance min.
E - Screw diameter max.
| LH-4000 | Headshell length: 51.9 mm | Headshell width: 19.1 mm | Mounting distance max: 45.6 mm | Mounting distance min: 39.5 mm | Screw diameter max: N/S |
